The Class for STR geometry. More...

#include <STRGeometryPar.h>

Inheritance diagram for STRGeometryPar:

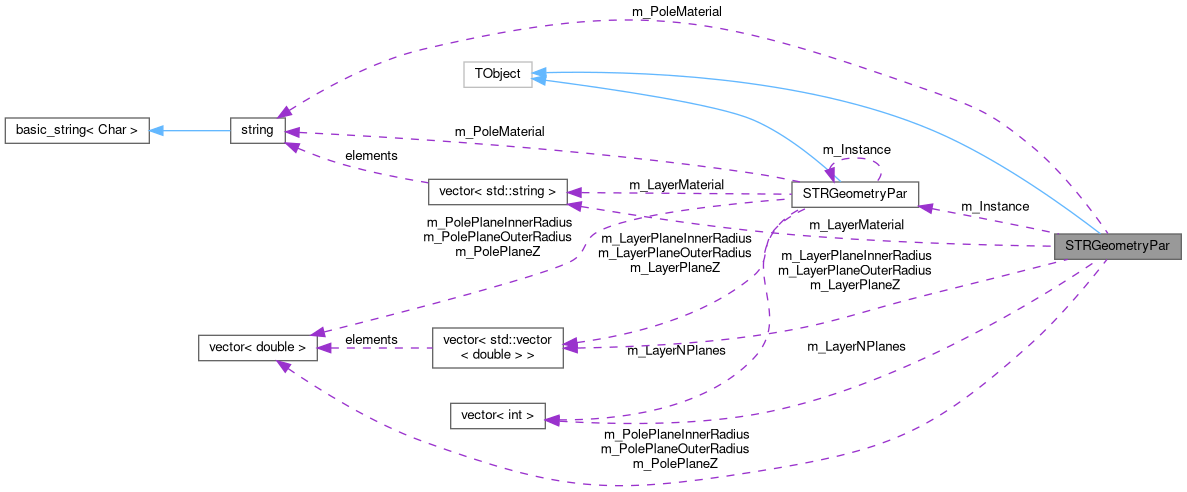

Collaboration diagram for STRGeometryPar:

[legend]

Public Member Functions
	STRGeometryPar ()
	Default constructor.

	~STRGeometryPar ()
	Destructor.

int	getVersion () const
	Get STR geometry version.

void	setVersion (int version)
	Set STR geometry version.

int	getNLayers (int shield) const
	Get the number of layers in the shield.

void	setNLayers (int shield, int nLayers)
	Set the number of layers in the shield, resize std::vectors.

std::string	getLayerMaterial (int shield, int layer) const
	Get the material of a layer (as a std::string)

void	setLayerMaterial (int shield, int layer, const std::string &material)
	Set the material of a layer (as a std::string)

int	getLayerNPlanes (int shield, int layer) const
	Get Number of polycone planes in each layer.

void	setLayerNPlanes (int shield, int layer, int nplanes)
	Set Number of polycone planes in each layer.

double	getLayerPlaneZ (int shield, int layer, int plane) const
	Get Z-position of one plane (w.r.t. IP)

const double *	getLayerPlaneZ (int shield, int layer) const
	Get Z-positions of all planes (w.r.t. IP)

void	setLayerPlaneZ (int shield, int layer, int plane, double z)
	Set Z-position of each plane (w.r.t. IP)

double	getLayerPlaneInnerRadius (int shield, int layer, int plane) const
	Get Inner radius of one plane.

const double *	getLayerPlaneInnerRadius (int shield, int layer) const
	Get Inner radius of all planes.

void	setLayerPlaneInnerRadius (int shield, int layer, int plane, double r)
	Set Inner radii of the planes.

double	getLayerPlaneOuterRadius (int shield, int layer, int plane) const
	Get Outer radii of one planes.

const double *	getLayerPlaneOuterRadius (int shield, int layer) const
	Get Outer radii of all planes.

void	setLayerPlaneOuterRadius (int shield, int layer, int plane, double r)
	Set Outer radii of the planes.

std::string	getPoleMaterial (int pole) const
	Get the material of a layer (as a std::string)

void	setPoleMaterial (int pole, const std::string &material)
	Set the material of a layer (as a std::string)

int	getPoleNPlanes (int pole) const
	Get Number of polycone planes in each layer.

void	setPoleNPlanes (int pole, int nplanes)
	Set Number of polycone planes in each layer.

double	getPolePlaneZ (int pole, int plane) const
	Get Z-position of one plane (w.r.t. IP)

const double *	getPolePlaneZ (int pole) const
	Get Z-positions of all planes (w.r.t. IP)

void	setPolePlaneZ (int pole, int plane, double z)
	Set Z-position of each plane (w.r.t. IP)

double	getPolePlaneInnerRadius (int pole, int plane) const
	Get Inner radius of one plane.

const double *	getPolePlaneInnerRadius (int pole) const
	Get Inner radius of all planes.

void	setPolePlaneInnerRadius (int pole, int plane, double r)
	Set Inner radii of the planes.

double	getPolePlaneOuterRadius (int pole, int plane) const
	Get Outer radii of one planes.

const double *	getPolePlaneOuterRadius (int pole) const
	Get Outer radii of all planes.

void	setPolePlaneOuterRadius (int pole, int plane, double r)
	Set Outer radii of the planes.

Static Public Attributes
static const int	NECLSHIELDS = 2
	Number of ECL shields in Belle2.

static const int	FWD_ECLSHIELD = 0
	Index corresponding to the forward shield.

static const int	BWD_ECLSHIELD = 1
	Index corresponding to the backward shield.

static const int	NPOLEPIECES = 2
	Number of pole pieces in Belle2.

static const int	FWD_POLEPIECE = 0
	Index corresponding to the forward pole piece.

static const int	BWD_POLEPIECE = 1
	Index corresponding to the backward pole piece.

Private Member Functions
	ClassDef (STRGeometryPar, 1)
	ClassDef, must be the last term before the closing {}.

Private Attributes
int	m_Version
	Geometry version.

int	m_NLayers [NECLSHIELDS]
	Number of layers in the shield.

std::vector< std::string >	m_LayerMaterial [NECLSHIELDS]
	Material of each of the layers.

std::vector< int >	m_LayerNPlanes [NECLSHIELDS]
	Number of polycone planes in each layer.

std::vector< std::vector< double > >	m_LayerPlaneZ [NECLSHIELDS]
	Z-position of each plane (w.r.t. IP)

std::vector< std::vector< double > >	m_LayerPlaneInnerRadius [NECLSHIELDS]
	Inner radii of the planes.

std::vector< std::vector< double > >	m_LayerPlaneOuterRadius [NECLSHIELDS]
	Outer radii of the planes.

std::string	m_PoleMaterial [NPOLEPIECES]
	Material of each of the pole pieces.

int	m_PoleNPlanes [NPOLEPIECES]
	Number of polycone planes in each pole piece.

std::vector< double >	m_PolePlaneZ [NPOLEPIECES]
	Z-position of each plane (w.r.t. IP)

std::vector< double >	m_PolePlaneInnerRadius [NPOLEPIECES]
	Inner radii of the planes.

std::vector< double >	m_PolePlaneOuterRadius [NPOLEPIECES]
	Outer radii of the planes.

Static Private Attributes
static STRGeometryPar *	m_Instance
	static pointer to the singleton instance of this class

Detailed Description

The Class for STR geometry.

Definition at line 25 of file STRGeometryPar.h.

Constructor & Destructor Documentation

◆ STRGeometryPar()

STRGeometryPar ( )

Default constructor.

Definition at line 13 of file STRGeometryPar.cc.

{
  // Set geometry version
  m_Version = 0;

  // Initialize values (to fix cppcheck warnings)
  for (int i = 0; i < NECLSHIELDS; i++) {
    m_NLayers[i] = 0;
  }
  for (int i = 0; i < NPOLEPIECES; i++) {
    m_PoleNPlanes[i] = 0;
  }


}

◆ ~STRGeometryPar()

~STRGeometryPar ( )

Destructor.

Definition at line 29 of file STRGeometryPar.cc.

30{

31}

Member Function Documentation

◆ getLayerMaterial()

std::string getLayerMaterial	(	int	shield,
		int	layer
	)		const

inline

Get the material of a layer (as a std::string)

Definition at line 69 of file STRGeometryPar.h.

69{ return m_LayerMaterial[shield].at(layer);}

Belle2::STRGeometryPar::m_LayerMaterial

std::vector< std::string > m_LayerMaterial[NECLSHIELDS]

Material of each of the layers.

Definition: STRGeometryPar.h:283

◆ getLayerNPlanes()

int getLayerNPlanes	(	int	shield,
		int	layer
	)		const

inline

Get Number of polycone planes in each layer.

Definition at line 75 of file STRGeometryPar.h.

    {
      return m_LayerNPlanes[shield].at(layer);
    }

◆ getLayerPlaneInnerRadius() [1/2]

const double * getLayerPlaneInnerRadius	(	int	shield,
		int	layer
	)		const

inline

Get Inner radius of all planes.

Definition at line 118 of file STRGeometryPar.h.

    {
      return &m_LayerPlaneInnerRadius[shield].at(layer).at(0);
    }

◆ getLayerPlaneInnerRadius() [2/2]

double getLayerPlaneInnerRadius	(	int	shield,
		int	layer,
		int	plane
	)		const

inline

Get Inner radius of one plane.

Definition at line 112 of file STRGeometryPar.h.

    {
      return m_LayerPlaneInnerRadius[shield].at(layer).at(plane);
    }

◆ getLayerPlaneOuterRadius() [1/2]

const double * getLayerPlaneOuterRadius	(	int	shield,
		int	layer
	)		const

inline

Get Outer radii of all planes.

Definition at line 136 of file STRGeometryPar.h.

    {
      return &m_LayerPlaneOuterRadius[shield].at(layer).at(0);
    }

◆ getLayerPlaneOuterRadius() [2/2]

double getLayerPlaneOuterRadius	(	int	shield,
		int	layer,
		int	plane
	)		const

inline

Get Outer radii of one planes.

Definition at line 130 of file STRGeometryPar.h.

    {
      return m_LayerPlaneOuterRadius[shield].at(layer).at(plane);
    }

◆ getLayerPlaneZ() [1/2]

const double * getLayerPlaneZ	(	int	shield,
		int	layer
	)		const

inline

Get Z-positions of all planes (w.r.t. IP)

Definition at line 98 of file STRGeometryPar.h.

    {
      return &m_LayerPlaneZ[shield].at(layer).at(0);
    }

◆ getLayerPlaneZ() [2/2]

double getLayerPlaneZ	(	int	shield,
		int	layer,
		int	plane
	)		const

inline

Get Z-position of one plane (w.r.t. IP)

Definition at line 92 of file STRGeometryPar.h.

    {
      return m_LayerPlaneZ[shield].at(layer).at(plane);
    }

◆ getNLayers()

int getNLayers ( int shield ) const

inline

Get the number of layers in the shield.

Definition at line 52 of file STRGeometryPar.h.

52{ return m_NLayers[shield] ; }

◆ getPoleMaterial()

std::string getPoleMaterial ( int pole ) const

inline

Get the material of a layer (as a std::string)

Definition at line 151 of file STRGeometryPar.h.

    {
      return m_PoleMaterial[pole];
    }

◆ getPoleNPlanes()

int getPoleNPlanes ( int pole ) const

inline

Get Number of polycone planes in each layer.

Definition at line 163 of file STRGeometryPar.h.

    {
      return m_PoleNPlanes[pole];
    }

◆ getPolePlaneInnerRadius() [1/2]

const double * getPolePlaneInnerRadius ( int pole ) const

inline

Get Inner radius of all planes.

Definition at line 206 of file STRGeometryPar.h.

    {
      return &m_PolePlaneInnerRadius[pole].at(0);
    }

◆ getPolePlaneInnerRadius() [2/2]

double getPolePlaneInnerRadius	(	int	pole,
		int	plane
	)		const

inline

Get Inner radius of one plane.

Definition at line 200 of file STRGeometryPar.h.

    {
      return m_PolePlaneInnerRadius[pole].at(plane);
    }

◆ getPolePlaneOuterRadius() [1/2]

const double * getPolePlaneOuterRadius ( int pole ) const

inline

Get Outer radii of all planes.

Definition at line 224 of file STRGeometryPar.h.

    {
      return &m_PolePlaneOuterRadius[pole].at(0);
    }

◆ getPolePlaneOuterRadius() [2/2]

double getPolePlaneOuterRadius	(	int	pole,
		int	plane
	)		const

inline

Get Outer radii of one planes.

Definition at line 218 of file STRGeometryPar.h.

    {
      return m_PolePlaneOuterRadius[pole].at(plane);
    }

◆ getPolePlaneZ() [1/2]

const double * getPolePlaneZ ( int pole ) const

inline

Get Z-positions of all planes (w.r.t. IP)

Definition at line 186 of file STRGeometryPar.h.

    {
      return &m_PolePlaneZ[pole].at(0);
    }

◆ getPolePlaneZ() [2/2]

double getPolePlaneZ	(	int	pole,
		int	plane
	)		const

inline

Get Z-position of one plane (w.r.t. IP)

Definition at line 180 of file STRGeometryPar.h.

    {
      return m_PolePlaneZ[pole].at(plane);
    }

◆ getVersion()

int getVersion ( ) const

inline

Get STR geometry version.

Definition at line 41 of file STRGeometryPar.h.

41{ return m_Version; }

◆ setLayerMaterial()

void setLayerMaterial	(	int	shield,
		int	layer,
		const std::string &	material
	)

inline

Set the material of a layer (as a std::string)

Definition at line 72 of file STRGeometryPar.h.

72{ m_LayerMaterial[shield].at(layer) = material; }

◆ setLayerNPlanes()

void setLayerNPlanes	(	int	shield,
		int	layer,
		int	nplanes
	)

inline

Set Number of polycone planes in each layer.

Definition at line 81 of file STRGeometryPar.h.

    {
      m_LayerNPlanes[shield].at(layer) = nplanes;

      // Resize std::vectors according to the number of planes in each layer
      m_LayerPlaneZ[shield].at(layer).resize(nplanes);
      m_LayerPlaneInnerRadius[shield].at(layer).resize(nplanes);
      m_LayerPlaneOuterRadius[shield].at(layer).resize(nplanes);
    }

◆ setLayerPlaneInnerRadius()

void setLayerPlaneInnerRadius	(	int	shield,
		int	layer,
		int	plane,
		double	r
	)

inline

Set Inner radii of the planes.

Definition at line 124 of file STRGeometryPar.h.

    {
      m_LayerPlaneInnerRadius[shield].at(layer).at(plane) = r;
    }

◆ setLayerPlaneOuterRadius()

void setLayerPlaneOuterRadius	(	int	shield,
		int	layer,
		int	plane,
		double	r
	)

inline

Set Outer radii of the planes.

Definition at line 142 of file STRGeometryPar.h.

    {
      m_LayerPlaneOuterRadius[shield].at(layer).at(plane) = r;
    }

◆ setLayerPlaneZ()

void setLayerPlaneZ	(	int	shield,
		int	layer,
		int	plane,
		double	z
	)

inline

Set Z-position of each plane (w.r.t. IP)

Definition at line 105 of file STRGeometryPar.h.

    {
      m_LayerPlaneZ[shield].at(layer).at(plane) = z;
    }

◆ setNLayers()

void setNLayers	(	int	shield,
		int	nLayers
	)

inline

Set the number of layers in the shield, resize std::vectors.

Definition at line 55 of file STRGeometryPar.h.

    {
      m_NLayers[shield] = nLayers ;

      // Resize std::vectors according to the number of layers
      m_LayerMaterial[shield].resize(nLayers);
      m_LayerNPlanes[shield].resize(nLayers);
      m_LayerPlaneZ[shield].resize(nLayers);
      m_LayerPlaneInnerRadius[shield].resize(nLayers);
      m_LayerPlaneOuterRadius[shield].resize(nLayers);

    }

◆ setPoleMaterial()

void setPoleMaterial	(	int	pole,
		const std::string &	material
	)

inline

Set the material of a layer (as a std::string)

Definition at line 157 of file STRGeometryPar.h.

    {
      m_PoleMaterial[pole] = material;
    }

◆ setPoleNPlanes()

void setPoleNPlanes	(	int	pole,
		int	nplanes
	)

inline

Set Number of polycone planes in each layer.

Definition at line 169 of file STRGeometryPar.h.

    {
      m_PoleNPlanes[pole] = nplanes;

      // Resize std::vectors according to the number of planes in each layer
      m_PolePlaneZ[pole].resize(nplanes);
      m_PolePlaneInnerRadius[pole].resize(nplanes);
      m_PolePlaneOuterRadius[pole].resize(nplanes);
    }

◆ setPolePlaneInnerRadius()

void setPolePlaneInnerRadius	(	int	pole,
		int	plane,
		double	r
	)

inline

Set Inner radii of the planes.

Definition at line 212 of file STRGeometryPar.h.

    {
      m_PolePlaneInnerRadius[pole].at(plane) = r;
    }

◆ setPolePlaneOuterRadius()

void setPolePlaneOuterRadius	(	int	pole,
		int	plane,
		double	r
	)

inline

Set Outer radii of the planes.

Definition at line 230 of file STRGeometryPar.h.

    {
      m_PolePlaneOuterRadius[pole].at(plane) = r;
    }

◆ setPolePlaneZ()

void setPolePlaneZ	(	int	pole,
		int	plane,
		double	z
	)

inline

Set Z-position of each plane (w.r.t. IP)

Definition at line 193 of file STRGeometryPar.h.

    {
      m_PolePlaneZ[pole].at(plane) = z;
    }

◆ setVersion()

void setVersion ( int version )

inline

Set STR geometry version.

Definition at line 44 of file STRGeometryPar.h.

44{ m_Version = version; }

Member Data Documentation

◆ BWD_ECLSHIELD

const int BWD_ECLSHIELD = 1

static

Index corresponding to the backward shield.

Definition at line 248 of file STRGeometryPar.h.

◆ BWD_POLEPIECE

const int BWD_POLEPIECE = 1

static

Index corresponding to the backward pole piece.

Definition at line 255 of file STRGeometryPar.h.

◆ FWD_ECLSHIELD

const int FWD_ECLSHIELD = 0

static

Index corresponding to the forward shield.

Definition at line 246 of file STRGeometryPar.h.

◆ FWD_POLEPIECE

const int FWD_POLEPIECE = 0

static

Index corresponding to the forward pole piece.

Definition at line 253 of file STRGeometryPar.h.

◆ m_Instance

STRGeometryPar* m_Instance

staticprivate

static pointer to the singleton instance of this class

Definition at line 263 of file STRGeometryPar.h.

◆ m_LayerMaterial

std::vector<std::string> m_LayerMaterial[NECLSHIELDS]

private

Material of each of the layers.

Definition at line 283 of file STRGeometryPar.h.

◆ m_LayerNPlanes

std::vector<int> m_LayerNPlanes[NECLSHIELDS]

private

Number of polycone planes in each layer.

Definition at line 286 of file STRGeometryPar.h.

◆ m_LayerPlaneInnerRadius

std::vector< std::vector<double> > m_LayerPlaneInnerRadius[NECLSHIELDS]

private

Inner radii of the planes.

Definition at line 292 of file STRGeometryPar.h.

◆ m_LayerPlaneOuterRadius

std::vector< std::vector<double> > m_LayerPlaneOuterRadius[NECLSHIELDS]

private

Outer radii of the planes.

Definition at line 295 of file STRGeometryPar.h.

◆ m_LayerPlaneZ

std::vector< std::vector<double> > m_LayerPlaneZ[NECLSHIELDS]

private

Z-position of each plane (w.r.t. IP)

Definition at line 289 of file STRGeometryPar.h.

◆ m_NLayers

int m_NLayers[NECLSHIELDS]

private

Number of layers in the shield.

Definition at line 280 of file STRGeometryPar.h.

◆ m_PoleMaterial

std::string m_PoleMaterial[NPOLEPIECES]

private

Material of each of the pole pieces.

Definition at line 303 of file STRGeometryPar.h.

◆ m_PoleNPlanes

int m_PoleNPlanes[NPOLEPIECES]

private

Number of polycone planes in each pole piece.

Definition at line 306 of file STRGeometryPar.h.

◆ m_PolePlaneInnerRadius

std::vector<double> m_PolePlaneInnerRadius[NPOLEPIECES]

private

Inner radii of the planes.

Definition at line 312 of file STRGeometryPar.h.

◆ m_PolePlaneOuterRadius

std::vector<double> m_PolePlaneOuterRadius[NPOLEPIECES]

private

Outer radii of the planes.

Definition at line 315 of file STRGeometryPar.h.

◆ m_PolePlaneZ

std::vector<double> m_PolePlaneZ[NPOLEPIECES]

private

Z-position of each plane (w.r.t. IP)

Definition at line 309 of file STRGeometryPar.h.

◆ m_Version

int m_Version

private

Geometry version.

Definition at line 273 of file STRGeometryPar.h.

◆ NECLSHIELDS

const int NECLSHIELDS = 2

static

Number of ECL shields in Belle2.

Definition at line 244 of file STRGeometryPar.h.

◆ NPOLEPIECES

const int NPOLEPIECES = 2

static

Number of pole pieces in Belle2.

Definition at line 251 of file STRGeometryPar.h.

The documentation for this class was generated from the following files:

structure/dbobjects/include/STRGeometryPar.h
structure/dbobjects/src/STRGeometryPar.cc

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ STRGeometryPar()

◆ ~STRGeometryPar()

Member Function Documentation

◆ getLayerMaterial()

◆ getLayerNPlanes()

◆ getLayerPlaneInnerRadius() [1/2]

◆ getLayerPlaneInnerRadius() [2/2]

◆ getLayerPlaneOuterRadius() [1/2]

◆ getLayerPlaneOuterRadius() [2/2]

◆ getLayerPlaneZ() [1/2]

◆ getLayerPlaneZ() [2/2]

◆ getNLayers()

◆ getPoleMaterial()

◆ getPoleNPlanes()

◆ getPolePlaneInnerRadius() [1/2]

◆ getPolePlaneInnerRadius() [2/2]

◆ getPolePlaneOuterRadius() [1/2]

◆ getPolePlaneOuterRadius() [2/2]

◆ getPolePlaneZ() [1/2]

◆ getPolePlaneZ() [2/2]

◆ getVersion()

◆ setLayerMaterial()

◆ setLayerNPlanes()

◆ setLayerPlaneInnerRadius()

◆ setLayerPlaneOuterRadius()

◆ setLayerPlaneZ()

◆ setNLayers()

◆ setPoleMaterial()

◆ setPoleNPlanes()

◆ setPolePlaneInnerRadius()

◆ setPolePlaneOuterRadius()

◆ setPolePlaneZ()

◆ setVersion()

Member Data Documentation

◆ BWD_ECLSHIELD

◆ BWD_POLEPIECE

◆ FWD_ECLSHIELD

◆ FWD_POLEPIECE

◆ m_Instance

◆ m_LayerMaterial

◆ m_LayerNPlanes

◆ m_LayerPlaneInnerRadius

◆ m_LayerPlaneOuterRadius

◆ m_LayerPlaneZ

◆ m_NLayers

◆ m_PoleMaterial

◆ m_PoleNPlanes

◆ m_PolePlaneInnerRadius

◆ m_PolePlaneOuterRadius

◆ m_PolePlaneZ

◆ m_Version

◆ NECLSHIELDS

◆ NPOLEPIECES
