A class to represent a Hough parameter plane. More...

#include <HoughPlaneBase.h>

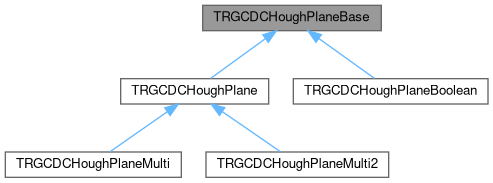

Inheritance diagram for TRGCDCHoughPlaneBase:

[legend]

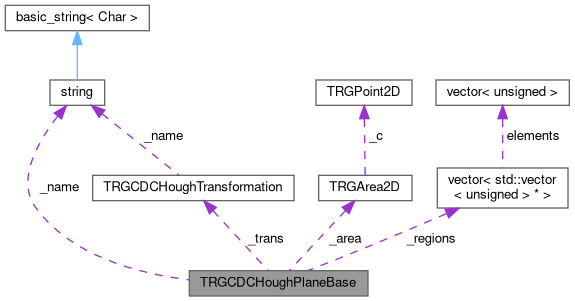

Collaboration diagram for TRGCDCHoughPlaneBase:

[legend]

Public Member Functions
	TRGCDCHoughPlaneBase (const std::string &name, const TRGCDCHoughTransformation &transformation, unsigned nX, float xMin, float xMax, unsigned nY, float yMin, float yMax)
	Contructor.

virtual	~TRGCDCHoughPlaneBase ()
	Destructor.

std::string	name (void) const
	returns name.

const TRGCDCHoughTransformation &	transformation (void) const
	returns Hough transformation object.

float	charge (void) const
	returns charge for this plane.

unsigned	nX (void) const
	returns # of x bins.

float	xMin (void) const
	returns min. of x.

float	xMax (void) const
	returns max. of x.

float	xSize (void) const
	returns size of x bin.

unsigned	nY (void) const
	return # of y bins.

float	yMin (void) const
	returns min. of y.

float	yMax (void) const
	returns max. of y.

float	ySize (void) const
	returns size of y bin.

virtual unsigned	entry (unsigned id) const =0
	returns count of a cell.

virtual unsigned	entry (unsigned x, unsigned y) const =0
	returns count of a cell.

virtual int	maxEntry (void) const =0
	returns max. count in a plane.

int	maxEntryInRegion (unsigned id) const
	returns max. count in region.

unsigned	serialId (unsigned x, unsigned y) const
	returns serial ID for position (x, y).

unsigned	serialId (const TRGPoint2D &p) const
	returns serial ID for position p.

void	id (unsigned serialId, unsigned &x, unsigned &y) const
	returns x and y for serialID.

TRGPoint2D	position (unsigned x, unsigned y) const
	returns position in Hough plain for a cell (x, y)..

unsigned	neighbor (unsigned serialID, unsigned direction) const
	returns neighbor cell.

std::vector< unsigned >	neighbors (unsigned serialID, unsigned windowSize=1) const
	returns neighbors.

const std::vector< std::vector< unsigned > * > &	regions (void) const
	returns regions.

void	locationInPlane (float x0, float y0, float x1, float y1, unsigned &nFound, unsigned &iX0, unsigned &iY0, unsigned &iX1, unsigned &iY1) const
	returns cell positions in the region.

virtual void	dump (const std::string &message=std::string(""), const std::string &prefix=std::string("")) const
	dumps debug information.

float	charge (float charge)
	sets and returns charge for this plane.

float	xMin (float newXMin)
	sets and returns min. of x.

float	xMax (float newXMax)
	sets and returns max. of x.

float	yMin (float newYMin)
	sets and returns min. of y.

float	yMax (float newYMax)
	sets and returns max. of y.

virtual void	vote (float rx, float ry, int weight=1)
	Voring.

virtual void	vote (float rx, float ry, int charge, int weight=1)
	Voring.

virtual void	vote (float xOffset, int weight=1)
	Votes using a pattern.

virtual void	registerPattern (unsigned id)=0
	registers a pattern..

virtual unsigned	setEntry (unsigned serialId, unsigned n)=0
	smoothing

void	setRegion (std::vector< unsigned > *)
	Sets region.

void	clearRegions (void)
	Clears regions.

virtual void	clear (void)=0
	Clears all entries.

Protected Member Functions
virtual void	add (unsigned cellId, int weight)=0
	Add to a cell.

Private Attributes
const std::string	_name
	Name.

const TRGCDCHoughTransformation &	_trans
	Hough transformation.

float	_charge
	Track charge for this plane.

const unsigned	_nX
	# of x bins.

float	_xMin
	x min.

float	_xMax
	x max.

float	_xSize
	Size of x bin.

const unsigned	_nY
	# of y bins.

float	_yMin
	y min.

float	_yMax
	y max.

float	_ySize
	Size of y bin.

const TRGArea2D	_area
	Area.

std::vector< std::vector< unsigned > * >	_regions
	Regions.

Detailed Description

A class to represent a Hough parameter plane.

Definition at line 33 of file HoughPlaneBase.h.

Member Function Documentation

◆ add()

virtual void add	(	unsigned	cellId,
		int	weight
	)

protectedpure virtual

Add to a cell.

Implemented in TRGCDCHoughPlane, and TRGCDCHoughPlaneBoolean.

◆ entry() [1/2]

virtual unsigned entry ( unsigned id ) const

pure virtual

returns count of a cell.

Implemented in TRGCDCHoughPlane, and TRGCDCHoughPlaneBoolean.

◆ entry() [2/2]

virtual unsigned entry	(	unsigned	x,
		unsigned	y
	)		const

pure virtual

returns count of a cell.

Implemented in TRGCDCHoughPlane, and TRGCDCHoughPlaneBoolean.

◆ maxEntry()

virtual int maxEntry ( void ) const

pure virtual

returns max. count in a plane.

Implemented in TRGCDCHoughPlane, and TRGCDCHoughPlaneBoolean.

◆ registerPattern()

virtual void registerPattern ( unsigned id )

pure virtual

registers a pattern..

Implemented in TRGCDCHoughPlane, TRGCDCHoughPlaneBoolean, TRGCDCHoughPlaneMulti, and TRGCDCHoughPlaneMulti2.

◆ setEntry()

virtual unsigned setEntry	(	unsigned	serialId,
		unsigned	n
	)

pure virtual

smoothing

Sets entry.

Implemented in TRGCDCHoughPlane, TRGCDCHoughPlaneBoolean, and TRGCDCHoughPlaneMulti2.

Member Data Documentation

◆ _area

const TRGArea2D _area

private

Area.

Definition at line 219 of file HoughPlaneBase.h.

◆ _charge

float _charge

private

Track charge for this plane.

Definition at line 192 of file HoughPlaneBase.h.

◆ _name

const std::string _name

private

Name.

Definition at line 186 of file HoughPlaneBase.h.

◆ _nX

const unsigned _nX

private

# of x bins.

Definition at line 195 of file HoughPlaneBase.h.

◆ _nY

const unsigned _nY

private

# of y bins.

Definition at line 207 of file HoughPlaneBase.h.

◆ _regions

std::vector<std::vector<unsigned> *> _regions

private

Regions.

Definition at line 222 of file HoughPlaneBase.h.

◆ _trans

const TRGCDCHoughTransformation& _trans

private

Hough transformation.

Definition at line 189 of file HoughPlaneBase.h.

◆ _xMax

float _xMax

private

x max.

Definition at line 201 of file HoughPlaneBase.h.

◆ _xMin

float _xMin

private

x min.

Definition at line 198 of file HoughPlaneBase.h.

◆ _xSize

float _xSize

private

Size of x bin.

Definition at line 204 of file HoughPlaneBase.h.

◆ _yMax

float _yMax

private

y max.

Definition at line 213 of file HoughPlaneBase.h.

◆ _yMin

float _yMin

private

y min.

Definition at line 210 of file HoughPlaneBase.h.

◆ _ySize

float _ySize

private

Size of y bin.

Definition at line 216 of file HoughPlaneBase.h.

The documentation for this class was generated from the following files:

trg/cdc/include/HoughPlaneBase.h
trg/cdc/src/HoughPlaneBase.cc
