BaseCandidateReceiver Class Reference

Base class that receives candidates found by quadtree. More...

#include <BaseCandidateReceiver.h>

Inheritance diagram for BaseCandidateReceiver:

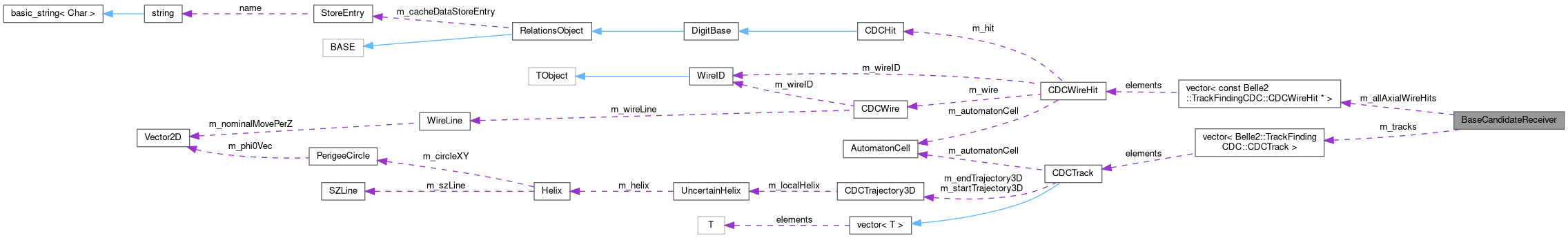

Collaboration diagram for BaseCandidateReceiver:

Public Member Functions
	BaseCandidateReceiver (std::vector< const CDCWireHit * > allAxialWireHits)
	Constructor.
virtual	~BaseCandidateReceiver ()
	Destructor.
virtual void	operator() (const std::vector< const CDCWireHit * > &inputWireHits, void *qt)
	Main entry point for the post processing call from the QuadTreeProcessor.
const std::vector< CDCTrack > &	getTracks () const
	Get the collected tracks.

Protected Attributes
std::vector< const CDCWireHit * >	m_allAxialWireHits
	Pool of all axial hits from which the road search may select additional hits.
std::vector< CDCTrack >	m_tracks
	Collected tracks.

Detailed Description

Base class that receives candidates found by quadtree.

Definition at line 25 of file BaseCandidateReceiver.h.

Constructor & Destructor Documentation

BaseCandidateReceiver()

BaseCandidateReceiver ( std::vector< const CDCWireHit * >  allAxialWireHits )

explicit

Constructor.

Definition at line 15 of file BaseCandidateReceiver.cc.

  : m_allAxialWireHits(std::move(allAxialWireHits))
{
}

~BaseCandidateReceiver()

~BaseCandidateReceiver ( )

virtual

Destructor.

Definition at line 20 of file BaseCandidateReceiver.cc.

{
}

Member Function Documentation

getTracks()

const std::vector< CDCTrack > & getTracks

(

)

const

Get the collected tracks.

Definition at line 40 of file BaseCandidateReceiver.cc.

{
  return m_tracks;
}

operator()()

void operator() ( const std::vector< const CDCWireHit * > &  inputWireHits, void *  qt  )

virtual

Main entry point for the post processing call from the QuadTreeProcessor.

Reimplemented in OffOriginExtension.

Definition at line 24 of file BaseCandidateReceiver.cc.

{
  // Unset the taken flag
  // NOTE after QuadTreeProcessor finds a leaf, it marks all items as "taken"
  for (const CDCWireHit* wireHit : inputWireHits) {
    (*wireHit)->setTakenFlag(false);
  }
  LowHitsAxialTrackUtil::addCandidateFromHits(inputWireHits,
                                              m_allAxialWireHits,
                                              m_tracks,
                                              true, // fromOrigin
                                              false, // straight
                                              false); // withPostprocessing
}

Member Data Documentation

m_allAxialWireHits

std::vector<const CDCWireHit*> m_allAxialWireHits

protected

Pool of all axial hits from which the road search may select additional hits.

Definition at line 39 of file BaseCandidateReceiver.h.

m_tracks

std::vector<CDCTrack> m_tracks

protected

Collected tracks.

Definition at line 42 of file BaseCandidateReceiver.h.

---

The documentation for this class was generated from the following files:

• tracking/trackFindingCDC/legendre/quadtree/include/BaseCandidateReceiver.h
• tracking/trackFindingCDC/legendre/quadtree/src/BaseCandidateReceiver.cc
