The Class for VXD Sensor payload. More...

#include <VXDGeoSensorPar.h>

Inheritance diagram for VXDGeoSensorPar:

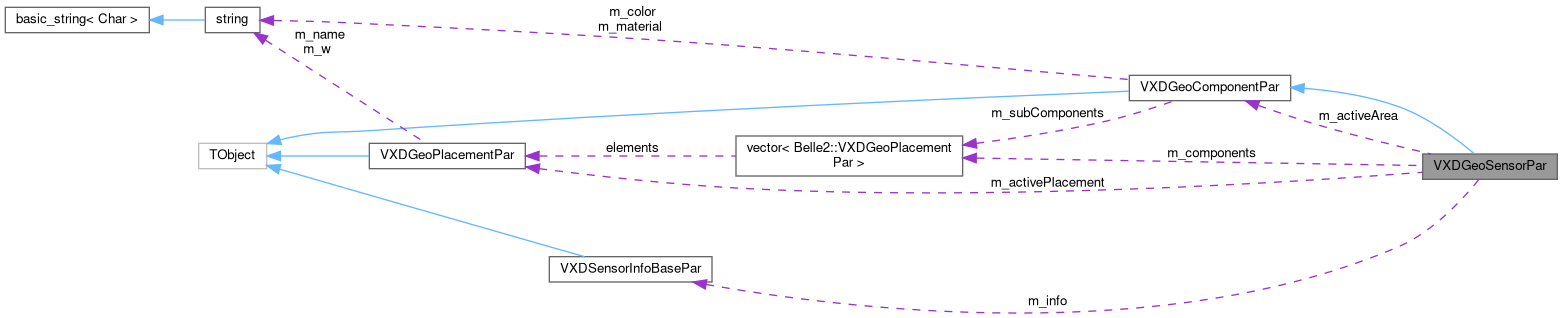

Collaboration diagram for VXDGeoSensorPar:

[legend]

Public Member Functions
	VXDGeoSensorPar (const std::string &material="", const std::string &color="", double width=0, double width2=0, double length=0, double height=0, double angle=0, bool slanted=false)
	Constructor.

	~VXDGeoSensorPar ()
	Destructor.

void	setActive (const VXDGeoComponentPar &area, const VXDGeoPlacementPar &placement)
	set the active area

const VXDGeoComponentPar &	getActiveArea () const
	get the component description for the active area

const VXDGeoPlacementPar &	getActivePlacement () const
	get the placement description for the active area

void	setComponents (const std::vector< VXDGeoPlacementPar > &component)
	set the list of sub components to be placed

const std::vector< VXDGeoPlacementPar > &	getComponents () const
	get the list of sub components

void	setSensorInfo (VXDSensorInfoBasePar *info)
	set the pointer to the SensorInfo class

const VXDSensorInfoBasePar *	getSensorInfo () const
	get the pointer to the SensorInfo class

bool	getSlanted () const
	return wether or not the sensor is slanted (usually only the first sensor in layers 4-6)

void	setSlanted (bool slanted)
	set wether or not the sensor is slanted (usually only the first sensor in layers 4-6)

const std::string &	getMaterial () const
	get the name of the Material for the component

void	setMaterial (const std::string &material)
	set the name of the Material for the component

const std::string &	getColor () const
	get the name of the color for the component

void	setColor (const std::string &color)
	set the name of the color for the component

double	getWidth () const
	get the width of the component

void	setWidth (double width)
	set the width of the component.

double	getWidth2 () const
	get the forward width of the component, 0 for rectangular

void	setWidth2 (double width2)
	set the width2 of the component

double	getLength () const
	get the length of the component

void	setLength (double length)
	set the length of the component

double	getHeight () const
	get the height of the component

double &	getHeight ()
	get the height of the component

void	setHeight (double height)
	set the height of the component

double	getAngle () const
	get the angle of the component

void	setAngle (double angle)
	set the angle of the component

const std::vector< VXDGeoPlacementPar > &	getSubComponents () const
	get sub components

void	setSubComponents (const std::vector< VXDGeoPlacementPar > &components)
	set sub components

Private Member Functions
	ClassDef (VXDGeoSensorPar, 5)
	ClassDef, must be the last term before the closing {}.

Private Attributes
VXDGeoComponentPar	m_activeArea
	Paramerers of the active area.

VXDGeoPlacementPar	m_activePlacement
	Position of the active area.

VXDSensorInfoBasePar *	m_info
	Sensor Information instance.

bool	m_slanted
	Indication wether this is a slanted sensor.

std::vector< VXDGeoPlacementPar >	m_components
	list of all components to be placed

std::string	m_material {""}
	Name of the material of the component.

std::string	m_color {""}
	Name of the color of the component.

double	m_width {0.}
	width of the component

double	m_width2 {0.}
	forward width of the component, 0 for recangular

double	m_length {0.}
	length of the component

double	m_height {0.}
	height of the component

double	m_angle {0.}
	angle of the component

std::vector< VXDGeoPlacementPar >	m_subComponents
	list of subcomponents

Detailed Description

The Class for VXD Sensor payload.

Definition at line 29 of file VXDGeoSensorPar.h.

Constructor & Destructor Documentation

◆ VXDGeoSensorPar()

VXDGeoSensorPar	(	const std::string &	material = `""`,
		const std::string &	color = `""`,
		double	width = `0`,
		double	width2 = `0`,
		double	length = `0`,
		double	height = `0`,
		double	angle = `0`,
		bool	slanted = `false`
	)

inline

Constructor.

Definition at line 32 of file VXDGeoSensorPar.h.

33 :

34 VXDGeoComponentPar(material, color, width, width2, length, height, angle), m_info(0), m_slanted(slanted) {}

Belle2::VXDGeoComponentPar::VXDGeoComponentPar

VXDGeoComponentPar(const std::string &material="", const std::string &color="", double width=0, double width2=0, double length=0, double height=0, double angle=0)

Constructor.

Definition: VXDGeoComponentPar.h:30

Belle2::VXDGeoSensorPar::m_info

VXDSensorInfoBasePar * m_info

Sensor Information instance.

Definition: VXDGeoSensorPar.h:67

Belle2::VXDGeoSensorPar::m_slanted

bool m_slanted

Indication wether this is a slanted sensor.

Definition: VXDGeoSensorPar.h:69

◆ ~VXDGeoSensorPar()

~VXDGeoSensorPar ( )

inline

Destructor.

Definition at line 36 of file VXDGeoSensorPar.h.

36{}

Member Function Documentation

◆ getActiveArea()

const VXDGeoComponentPar & getActiveArea ( ) const

inline

get the component description for the active area

Definition at line 46 of file VXDGeoSensorPar.h.

46{ return m_activeArea; }

Belle2::VXDGeoSensorPar::m_activeArea

VXDGeoComponentPar m_activeArea

Paramerers of the active area.

Definition: VXDGeoSensorPar.h:63

◆ getActivePlacement()

const VXDGeoPlacementPar & getActivePlacement ( ) const

inline

get the placement description for the active area

Definition at line 48 of file VXDGeoSensorPar.h.

48{ return m_activePlacement; }

Belle2::VXDGeoSensorPar::m_activePlacement

VXDGeoPlacementPar m_activePlacement

Position of the active area.

Definition: VXDGeoSensorPar.h:65

◆ getAngle()

double getAngle ( ) const

inlineinherited

get the angle of the component

Definition at line 65 of file VXDGeoComponentPar.h.

65{ return m_angle; }

Belle2::VXDGeoComponentPar::m_angle

double m_angle

angle of the component

Definition: VXDGeoComponentPar.h:90

◆ getColor()

const std::string & getColor ( ) const

inlineinherited

get the name of the color for the component

Definition at line 43 of file VXDGeoComponentPar.h.

43{ return m_color; }

Belle2::VXDGeoComponentPar::m_color

std::string m_color

Name of the color of the component.

Definition: VXDGeoComponentPar.h:80

◆ getComponents()

const std::vector< VXDGeoPlacementPar > & getComponents ( ) const

inline

get the list of sub components

Definition at line 52 of file VXDGeoSensorPar.h.

52{ return m_components; }

Belle2::VXDGeoSensorPar::m_components

std::vector< VXDGeoPlacementPar > m_components

list of all components to be placed

Definition: VXDGeoSensorPar.h:71

◆ getHeight() [1/2]

double & getHeight ( )

inlineinherited

get the height of the component

Definition at line 61 of file VXDGeoComponentPar.h.

61{ return m_height; }

Belle2::VXDGeoComponentPar::m_height

double m_height

height of the component

Definition: VXDGeoComponentPar.h:88

◆ getHeight() [2/2]

double getHeight ( ) const

inlineinherited

get the height of the component

Definition at line 59 of file VXDGeoComponentPar.h.

59{ return m_height; }

◆ getLength()

double getLength ( ) const

inlineinherited

get the length of the component

Definition at line 55 of file VXDGeoComponentPar.h.

55{ return m_length; }

Belle2::VXDGeoComponentPar::m_length

double m_length

length of the component

Definition: VXDGeoComponentPar.h:86

◆ getMaterial()

const std::string & getMaterial ( ) const

inlineinherited

get the name of the Material for the component

Definition at line 39 of file VXDGeoComponentPar.h.

39{ return m_material; }

Belle2::VXDGeoComponentPar::m_material

std::string m_material

Name of the material of the component.

Definition: VXDGeoComponentPar.h:78

◆ getSensorInfo()

const VXDSensorInfoBasePar * getSensorInfo ( ) const

inline

get the pointer to the SensorInfo class

Definition at line 56 of file VXDGeoSensorPar.h.

56{ return m_info; }

◆ getSlanted()

bool getSlanted ( ) const

inline

return wether or not the sensor is slanted (usually only the first sensor in layers 4-6)

Definition at line 58 of file VXDGeoSensorPar.h.

58{ return m_slanted; }

◆ getSubComponents()

const std::vector< VXDGeoPlacementPar > & getSubComponents ( ) const

inlineinherited

get sub components

Definition at line 69 of file VXDGeoComponentPar.h.

69{return m_subComponents;}

Belle2::VXDGeoComponentPar::m_subComponents

std::vector< VXDGeoPlacementPar > m_subComponents

list of subcomponents

Definition: VXDGeoComponentPar.h:92

◆ getWidth()

double getWidth ( ) const

inlineinherited

get the width of the component

Definition at line 47 of file VXDGeoComponentPar.h.

47{ return m_width; }

Belle2::VXDGeoComponentPar::m_width

double m_width

width of the component

Definition: VXDGeoComponentPar.h:82

◆ getWidth2()

double getWidth2 ( ) const

inlineinherited

get the forward width of the component, 0 for rectangular

Definition at line 51 of file VXDGeoComponentPar.h.

51{ return m_width2; }

Belle2::VXDGeoComponentPar::m_width2

double m_width2

forward width of the component, 0 for recangular

Definition: VXDGeoComponentPar.h:84

◆ setActive()

void setActive	(	const VXDGeoComponentPar &	area,
		const VXDGeoPlacementPar &	placement
	)

inline

set the active area

Parameters

area	component description of the active area
placement	placement description of the active area

Definition at line 41 of file VXDGeoSensorPar.h.

    {
      m_activeArea = area; m_activePlacement = placement;
    }

◆ setAngle()

void setAngle ( double angle )

inlineinherited

set the angle of the component

Definition at line 67 of file VXDGeoComponentPar.h.

67{ m_angle = angle; }

◆ setColor()

void setColor ( const std::string & color )

inlineinherited

set the name of the color for the component

Definition at line 45 of file VXDGeoComponentPar.h.

45{m_color = color; }

◆ setComponents()

void setComponents ( const std::vector< VXDGeoPlacementPar > & component )

inline

set the list of sub components to be placed

Definition at line 50 of file VXDGeoSensorPar.h.

50{ m_components = component; }

◆ setHeight()

void setHeight ( double height )

inlineinherited

set the height of the component

Definition at line 63 of file VXDGeoComponentPar.h.

63{ m_height = height; }

◆ setLength()

void setLength ( double length )

inlineinherited

set the length of the component

Definition at line 57 of file VXDGeoComponentPar.h.

57{ m_length = length; }

◆ setMaterial()

void setMaterial ( const std::string & material )

inlineinherited

set the name of the Material for the component

Definition at line 41 of file VXDGeoComponentPar.h.

41{ m_material = material; }

◆ setSensorInfo()

void setSensorInfo ( VXDSensorInfoBasePar * info )

inline

set the pointer to the SensorInfo class

Definition at line 54 of file VXDGeoSensorPar.h.

54{ m_info = info; }

◆ setSlanted()

void setSlanted ( bool slanted )

inline

set wether or not the sensor is slanted (usually only the first sensor in layers 4-6)

Definition at line 60 of file VXDGeoSensorPar.h.

60{ m_slanted = slanted; }

◆ setSubComponents()

void setSubComponents ( const std::vector< VXDGeoPlacementPar > & components )

inlineinherited

set sub components

Definition at line 71 of file VXDGeoComponentPar.h.

71{ m_subComponents = components; }

◆ setWidth()

void setWidth ( double width )

inlineinherited

set the width of the component.

This will automatically set width2 to zero

Definition at line 49 of file VXDGeoComponentPar.h.

49{ m_width = width; m_width2 = 0; }

◆ setWidth2()

void setWidth2 ( double width2 )

inlineinherited

set the width2 of the component

Definition at line 53 of file VXDGeoComponentPar.h.

53{m_width2 = width2; }

Member Data Documentation

◆ m_activeArea

VXDGeoComponentPar m_activeArea

private

Paramerers of the active area.

Definition at line 63 of file VXDGeoSensorPar.h.

◆ m_activePlacement

VXDGeoPlacementPar m_activePlacement

private

Position of the active area.

Definition at line 65 of file VXDGeoSensorPar.h.

◆ m_angle

double m_angle {0.}

privateinherited

angle of the component

Definition at line 90 of file VXDGeoComponentPar.h.

◆ m_color

std::string m_color {""}

privateinherited

Name of the color of the component.

Definition at line 80 of file VXDGeoComponentPar.h.

◆ m_components

std::vector<VXDGeoPlacementPar> m_components

private

list of all components to be placed

Definition at line 71 of file VXDGeoSensorPar.h.

◆ m_height

double m_height {0.}

privateinherited

height of the component

Definition at line 88 of file VXDGeoComponentPar.h.

◆ m_info

VXDSensorInfoBasePar* m_info

private

Sensor Information instance.

Definition at line 67 of file VXDGeoSensorPar.h.

◆ m_length

double m_length {0.}

privateinherited

length of the component

Definition at line 86 of file VXDGeoComponentPar.h.

◆ m_material

std::string m_material {""}

privateinherited

Name of the material of the component.

Definition at line 78 of file VXDGeoComponentPar.h.

◆ m_slanted

bool m_slanted

private

Indication wether this is a slanted sensor.

Definition at line 69 of file VXDGeoSensorPar.h.

◆ m_subComponents

std::vector<VXDGeoPlacementPar> m_subComponents

privateinherited

list of subcomponents

Definition at line 92 of file VXDGeoComponentPar.h.

◆ m_width

double m_width {0.}

privateinherited

width of the component

Definition at line 82 of file VXDGeoComponentPar.h.

◆ m_width2

double m_width2 {0.}

privateinherited

forward width of the component, 0 for recangular

Definition at line 84 of file VXDGeoComponentPar.h.

The documentation for this class was generated from the following file:

vxd/dbobjects/include/VXDGeoSensorPar.h

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VXDGeoSensorPar()

◆ ~VXDGeoSensorPar()

Member Function Documentation

◆ getActiveArea()

◆ getActivePlacement()

◆ getAngle()

◆ getColor()

◆ getComponents()

◆ getHeight() [1/2]

◆ getHeight() [2/2]

◆ getLength()

◆ getMaterial()

◆ getSensorInfo()

◆ getSlanted()

◆ getSubComponents()

◆ getWidth()

◆ getWidth2()

◆ setActive()

◆ setAngle()

◆ setColor()

◆ setComponents()

◆ setHeight()

◆ setLength()

◆ setMaterial()

◆ setSensorInfo()

◆ setSlanted()

◆ setSubComponents()

◆ setWidth()

◆ setWidth2()

Member Data Documentation

◆ m_activeArea

◆ m_activePlacement

◆ m_angle

◆ m_color

◆ m_components

◆ m_height

◆ m_info

◆ m_length

◆ m_material

◆ m_slanted

◆ m_subComponents

◆ m_width

◆ m_width2
