ClusterFilterValidationRun Class Reference

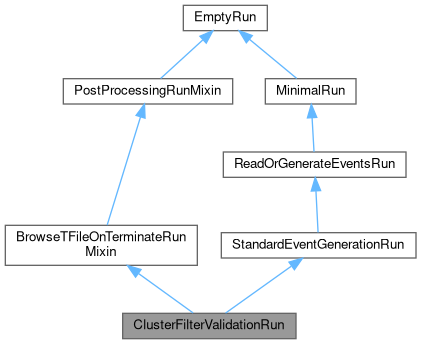

Inheritance diagram for ClusterFilterValidationRun:

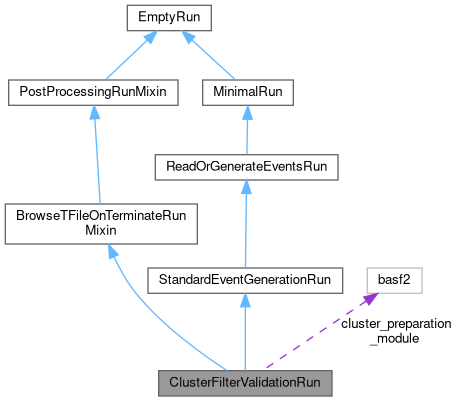

Collaboration diagram for ClusterFilterValidationRun:

Public Member Functions
def	create_argument_parser (self, **kwds)
def	create_path (self)

Static Public Attributes
basf2	cluster_preparation_module = basf2.register_module("TFCDC_ClusterPreparer")
	basf2 module for CDC cluster preparation
bool	py_profile = True
	create a python profile
str	output_file_name = "ClusterFilterValidation.root"
	output ROOT file

Detailed Description

Prepare and execute a basf2 job to read generated events or generate new events then validate the CDC cluster filter

Definition at line 34 of file clusterFilterValidation.py.

Member Function Documentation

create_argument_parser()

def create_argument_parser	(		self,
		**	kwds
	)

Configure the basf2 job script using the translated command-line arguments

Reimplemented from BrowseTFileOnTerminateRunMixin.

Definition at line 44 of file clusterFilterValidation.py.

    def create_argument_parser(self, **kwds):
        """Configure the basf2 job script using the translated command-line arguments"""
        argument_parser = super().create_argument_parser(**kwds)
        return argument_parser


create_path()

def create_path

(

self

)

Sets up a path that plays back pregenerated events or generates events
based on the properties in the base class.

Reimplemented from ReadOrGenerateEventsRun.

Definition at line 49 of file clusterFilterValidation.py.

    def create_path(self):
        """
        Sets up a path that plays back pregenerated events or generates events
        based on the properties in the base class.
        """
        main_path = super().create_path()

        cluster_preparation_module = self.get_basf2_module(self.cluster_preparation_module)
        main_path.add_module(cluster_preparation_module)

        # main_path.add_module(AxialStereoPairFitterModule())
        validation_module = ClusterFilterValidationModule(output_file_name=self.output_file_name)
        if self.py_profile:
            main_path.add_module(metamodules.PyProfilingModule(validation_module))
        else:
            main_path.add_module(validation_module)

        return main_path



Member Data Documentation

cluster_preparation_module

basf2 cluster_preparation_module = basf2.register_module("TFCDC_ClusterPreparer")

static

basf2 module for CDC cluster preparation

Definition at line 37 of file clusterFilterValidation.py.

output_file_name

str output_file_name = "ClusterFilterValidation.root"

static

output ROOT file

Definition at line 42 of file clusterFilterValidation.py.

py_profile

bool py_profile = True

static

create a python profile

Definition at line 40 of file clusterFilterValidation.py.

---

The documentation for this class was generated from the following file:

• tracking/trackFindingCDC/studies/clusterFilter/clusterFilterValidation.py
