ElossHarvestingRun Class Reference

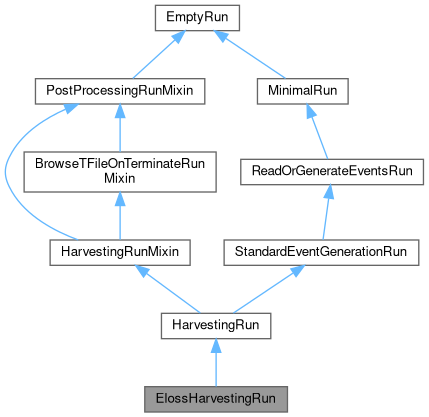

Inheritance diagram for ElossHarvestingRun:

Collaboration diagram for ElossHarvestingRun:

Public Member Functions
def	output_file_name (self)
def	harvesting_module (self, path=None)
def	create_argument_parser (self, **kwds)
def	create_path (self)

Static Public Attributes
int	n_events = 10000
	number of events to generate
str	generator_module = "eloss_gun"
	use the eloss_gun particle generator
str	detector_setup = "TrackingDetectorConstB"
	use the tracking-detector subset with constant magnetic field for the geometry

Detailed Description

Harvester to generate, postprocess and inspect MC events for energy-loss evaluation

Definition at line 99 of file record.py.

Member Function Documentation

create_argument_parser()

def create_argument_parser	(		self,
		**	kwds
	)

Convert command-line arguments to basf2 argument list

Reimplemented from HarvestingRunMixin.

Definition at line 120 of file record.py.

    def create_argument_parser(self, **kwds):
        """Convert command-line arguments to basf2 argument list"""
        argument_parser = super().create_argument_parser(**kwds)
        return argument_parser


create_path()

def create_path

(

self

)

Sets up a path that plays back pregenerated events or generates events
based on the properties in the base class.

Reimplemented from ReadOrGenerateEventsRun.

Definition at line 125 of file record.py.

    def create_path(self):
        """
        Sets up a path that plays back pregenerated events or generates events
        based on the properties in the base class.
        """
        path = super().create_path()

        path.add_module("TFCDC_WireHitPreparer",
                        logLevel=8,
                        flightTimeEstimation="outwards",
                        UseNLoops=1)

        path.add_module('TFCDC_AxialTrackCreatorMCTruth',
                        logLevel=8,
                        useOnlyBeforeTOP=True,
                        fit=True,
                        reconstructedDriftLength=True,
                        reconstructedPositions=True)

        return path



harvesting_module()

def harvesting_module	(		self,
			path = None
	)

Harvest and post-process the generated events

Reimplemented from HarvestingRunMixin.

Definition at line 113 of file record.py.

    def harvesting_module(self, path=None):
        """Harvest and post-process the generated events"""
        harvesting_module = ElossHarvestingModule(self.output_file_name)
        if path:
            path.add_module(harvesting_module)
        return harvesting_module


output_file_name()

def output_file_name

(

self

)

Get the output ROOT filename

Reimplemented from HarvestingRunMixin.

Definition at line 109 of file record.py.

    def output_file_name(self):
        """Get the output ROOT filename"""
        return 'eloss.root'


Member Data Documentation

detector_setup

str detector_setup = "TrackingDetectorConstB"

static

use the tracking-detector subset with constant magnetic field for the geometry

Definition at line 106 of file record.py.

generator_module

str generator_module = "eloss_gun"

static

use the eloss_gun particle generator

Definition at line 104 of file record.py.

n_events

int n_events = 10000

static

number of events to generate

Definition at line 102 of file record.py.

---

The documentation for this class was generated from the following file:

• tracking/trackFindingCDC/studies/eloss/record.py
