FacetFilterTrainingRun Class Reference

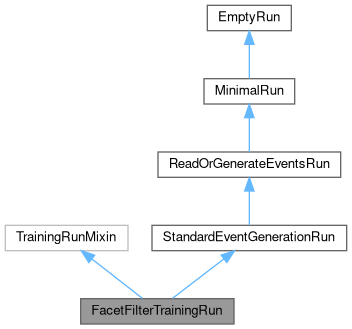

Inheritance diagram for FacetFilterTrainingRun:

Collaboration diagram for FacetFilterTrainingRun:

Public Member Functions
def	identifier (self)
def	create_argument_parser (self, **kwds)
def	create_path (self)

Public Attributes
	task
	Post-process events according to the user's desired task (train, eval, explore)
	variables
	Signal some variables to select in the classification analysis.

Static Public Attributes
int	n_events = 100
	Suggested number for this analysis.
str	generator_module = "generic"
	Suggested generator module.
str	task = "explore"
	Default task set to explore.
str	truth = "truth_positive"
	Name of the truth variables.
bool	flight_time_reestimation = False
	Option whether to reestimate the drift length.
bool	facet_least_square_fit = False
	Option whether to use the least square fit to the hit triplet.

Detailed Description

Run for recording facets encountered at the filter

Definition at line 23 of file trainFacetFilter.py.

Member Function Documentation

create_argument_parser()

def create_argument_parser	(		self,
		**	kwds
	)

Convert command-line arguments to basf2 argument list

Reimplemented from ReadOrGenerateEventsRun.

Definition at line 49 of file trainFacetFilter.py.

    def create_argument_parser(self, **kwds):
        """Convert command-line arguments to basf2 argument list"""

        argument_parser = super().create_argument_parser(**kwds)

        argument_parser.add_argument(
            "-fr",
            "--flight-time-reestimation",
            action="store_true",
            dest="flight_time_reestimation",
            help="Switch to reestimate drift length before fitting."
        )

        argument_parser.add_argument(
            "-fl",
            "--facet-least-square-fit",
            action="store_true",
            dest="facet_least_square_fit",
            help="Switch to fit the facet with least square method for the drift length update"
        )

        return argument_parser


create_path()

def create_path

(

self

)

Sets up a path that plays back pregenerated events or generates events
based on the properties in the base class.

Reimplemented from ReadOrGenerateEventsRun.

Definition at line 72 of file trainFacetFilter.py.

    def create_path(self):
        """
        Sets up a path that plays back pregenerated events or generates events
        based on the properties in the base class.
        """

        path = super().create_path()


        if self.task == "train":
            var_sets = [
                "mva",
                "filter(truth)",
            ]

        elif self.task == "eval":
            var_sets = [
                "filter(chi2)",
                "filter(realistic)",
                "filter(mva)",
                "filter(truth)",
            ]

        elif self.task == "explore":
            var_sets = [
                "basic",
                "truth",
                "bend",
                "fit",
                "filter(truth)",
                "filter(realistic)",
                "filter(chi2)",
            ]


            self.variables = [
                "curv",
                "curv_pull",
                "middle_phi_pull",
                "middle_chi2",
                "fit_0_phi0_sigma",
                "chi2_0",
                "chi2_0_per_s",
                "fit_1_phi0_sigma",
                "chi2_1",
                "chi2_1_per_s",
                "fit_phi0_sigma",
                "chi2 chi2_per_s",
                "realistic_accept",
                "chi2_accept",
            ]

        path.add_module("TFCDC_WireHitPreparer",
                        flightTimeEstimation="outwards",
                        UseNLoops=1.0)

        path.add_module("TFCDC_ClusterPreparer")

        path.add_module("TFCDC_SegmentFinderFacetAutomaton",
                        FacetUpdateDriftLength=self.flight_time_reestimation,
                        FacetLeastSquareFit=self.facet_least_square_fit,
                        FacetFilter="unionrecording",
                        FacetFilterParameters={
                            "rootFileName": self.sample_file_name,
                            "varSets": var_sets,
                        },
                        FacetRelationFilter="none")

        return path



identifier()

def identifier

(

self

)

Database identifier of the filter being trained

Definition at line 45 of file trainFacetFilter.py.

    def identifier(self):
        """Database identifier of the filter being trained"""
        return "trackfindingcdc_FacetFilter.xml"


Member Data Documentation

facet_least_square_fit

bool facet_least_square_fit = False

static

Option whether to use the least square fit to the hit triplet.

Definition at line 42 of file trainFacetFilter.py.

flight_time_reestimation

bool flight_time_reestimation = False

static

Option whether to reestimate the drift length.

Definition at line 39 of file trainFacetFilter.py.

generator_module

str generator_module = "generic"

static

Suggested generator module.

Definition at line 29 of file trainFacetFilter.py.

n_events

int n_events = 100

static

Suggested number for this analysis.

Definition at line 26 of file trainFacetFilter.py.

task [1/2]

str task = "explore"

static

Default task set to explore.

Definition at line 33 of file trainFacetFilter.py.

task [2/2]

task

Post-process events according to the user's desired task (train, eval, explore)

Definition at line 81 of file trainFacetFilter.py.

truth

str truth = "truth_positive"

static

Name of the truth variables.

Definition at line 36 of file trainFacetFilter.py.

variables

variables

Signal some variables to select in the classification analysis.

Definition at line 107 of file trainFacetFilter.py.

---

The documentation for this class was generated from the following file:

• tracking/trackFindingCDC/train/trainFacetFilter.py
