Geometry parameters of ARICH support structures and neutron shield. More...

#include <ARICHGeoSupport.h>

Inheritance diagram for ARICHGeoSupport:

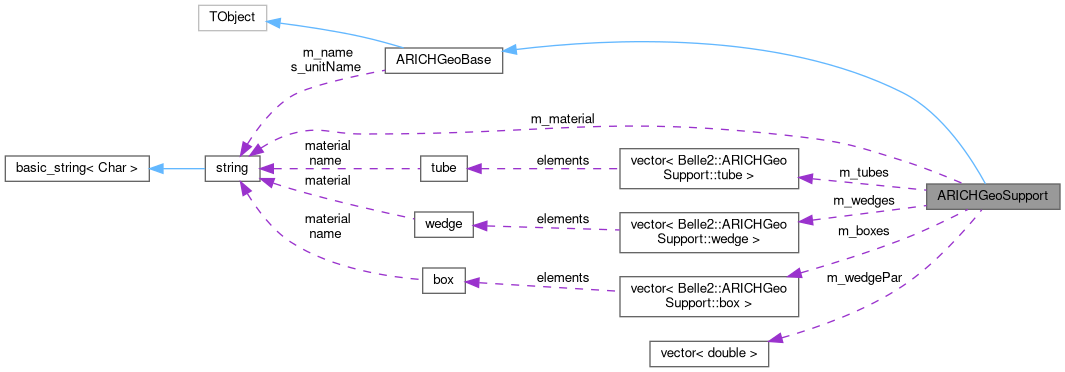

Collaboration diagram for ARICHGeoSupport:

[legend]

Classes
struct	box
	Struct to hold parameters of box volumes (examples, scintilators for cosmic test) More...

struct	tube
	Struct to hold tube parameters. More...

struct	wedge
	Struct to hold wedge parameters. More...

Public Member Functions
	ARICHGeoSupport ()
	Default constructor.

bool	isConsistent () const override
	Consistency check of geometry parameters.

void	print (const std::string &title="Parameters of ARICH support structure and neutron shield") const override
	Print the content of the class.

void	setWedge (unsigned i, const std::vector< double > &par)
	Set parameters of support wedge volumes.

void	addWedge (int type, double r, double phi, double z, const std::string &material)
	Add wedge (all added wedges are placed)

void	setMaterial (const std::string &material)
	Set default material of support structures.

void	addTube (double inR, double outR, double length, double zPosition, const std::string &material, const std::string &name)
	Add volume of cylindrical shape (tube)

unsigned	getNTubes () const
	Get number of tube volumes to be placed.

double	getTubeInnerR (unsigned i) const
	Get tube inner radius.

double	getTubeOuterR (unsigned i) const
	Get tube outer radius.

double	getTubeLength (unsigned i) const
	Get tube length.

double	getTubeZPosition (unsigned i) const
	Get tube Z position.

unsigned	getNWedges () const
	Get number of wedges to be placed.

int	getWedgeType (unsigned i) const
	Get type of i-th wedge.

double	getWedgeR (unsigned i) const
	Get radius at which i-th wedge is placed.

double	getWedgePhi (unsigned i) const
	Get phi angle at which i-th wedge is placed.

double	getWedgeZ (unsigned i) const
	Get Z position of i-th wedge.

const std::string &	getTubeMaterial (unsigned i) const
	Get material of i-th tube.

const std::string &	getWedgeMaterial (unsigned i) const
	Get material of i-th wedge.

const std::string &	getTubeName (unsigned i) const
	Get name of i-th tube.

const std::string &	getMaterial () const
	Get default material of support structures.

const std::vector< double >	getWedge (unsigned i) const
	Get parameters of wedge.

void	addBox (const std::string &name, const std::string &material, double size[3], double position[3], double rotation[3])
	Add box volume.

void	setBox (int i, const std::string &name, const std::string &material, double size[3], double position[3], double rotation[3])
	Re-set parameters of existing box.

unsigned	getNBoxes () const
	Get number of box volumes.

box	getBox (unsigned i) const
	Get box paramaters.

void	clearBoxes ()
	Clear container of boxes.

void	setName (const std::string &name)
	Sets object name.

const std::string &	getName () const
	Returns object name.

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface.

virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters.

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDefOverride (ARICHGeoSupport, 1)
	ClassDef.

Private Attributes
std::vector< tube >	m_tubes
	vector of tube volumes to be placed

std::string	m_material
	default material of support structure

std::vector< double >	m_wedgePar [m_nWedgeType]
	parameters of support wedges (joints)

std::vector< wedge >	m_wedges
	vector of wedge volumes to be placed

std::vector< box >	m_boxes
	vector of box volumes to be places

Static Private Attributes
static const unsigned	m_nWedgeType = 3
	number of wedge types

Detailed Description

Geometry parameters of ARICH support structures and neutron shield.

Definition at line 25 of file ARICHGeoSupport.h.

Constructor & Destructor Documentation

◆ ARICHGeoSupport()

ARICHGeoSupport ( )

inline

Default constructor.

Definition at line 31 of file ARICHGeoSupport.h.

32 {}

Member Function Documentation

◆ addBox()

void addBox	(	const std::string &	name,
		const std::string &	material,
		double	size[3],
		double	position[3],
		double	rotation[3]
	)

inline

Add box volume.

Parameters

name	volume name
material	volume material
size	array of side sizes
position	array of x,y,z position
rotation	array of x,y,z rotations

Definition at line 231 of file ARICHGeoSupport.h.

    {
      m_boxes.push_back({{size[0], size[1], size[2]}, {position[0], position[1], position[2]}, {rotation[0], rotation[1], rotation[2]}, name, material});
    }

◆ addTube()

void addTube	(	double	inR,
		double	outR,
		double	length,
		double	zPosition,
		const std::string &	material,
		const std::string &	name
	)

inline

Add volume of cylindrical shape (tube)

Parameters

inR	inner radius
outR	outer radius
length	length
zPosition	Z position of start of tube (in ARICH frame)
material	material
name	name

Definition at line 116 of file ARICHGeoSupport.h.

    {
      m_tubes.push_back({inR, outR, length, zPosition, material, name});
    }

◆ addWedge()

void addWedge	(	int	type,
		double	r,
		double	phi,
		double	z,
		const std::string &	material
	)

inline

Add wedge (all added wedges are placed)

Parameters

type	wedge type ID (1-3)
r	radius at which wedge is placed
phi	phi angle at which wedge is placed
z	z position of wedge (in ARICH frame)
material	wedge material

Definition at line 96 of file ARICHGeoSupport.h.

    {
      m_wedges.push_back({type, r, phi, z, material});
    }

◆ clearBoxes()

void clearBoxes ( )

inline

Clear container of boxes.

Definition at line 272 of file ARICHGeoSupport.h.

    {
      m_boxes.clear();
    }

◆ getBox()

box getBox ( unsigned i ) const

inline

Get box paramaters.

Parameters

i box index

Returns: box parameters

Definition at line 264 of file ARICHGeoSupport.h.

    {
      return m_boxes[i];
    }

◆ getMaterial()

const std::string & getMaterial ( ) const

inline

Get default material of support structures.

Returns: default material name

Definition at line 214 of file ARICHGeoSupport.h.

214{return m_material;}

Belle2::ARICHGeoSupport::m_material

std::string m_material

default material of support structure

Definition: ARICHGeoSupport.h:282

◆ getName()

const std::string & getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 49 of file ARICHGeoBase.h.

49{return m_name;}

Belle2::ARICHGeoBase::m_name

std::string m_name

geometry object name

Definition: ARICHGeoBase.h:82

◆ getNBoxes()

unsigned getNBoxes ( ) const

inline

Get number of box volumes.

Returns: number of box volumes

Definition at line 254 of file ARICHGeoSupport.h.

    {
      return m_boxes.size();
    }

◆ getNTubes()

unsigned getNTubes ( ) const

inline

Get number of tube volumes to be placed.

Returns: number of tube volumes

Definition at line 125 of file ARICHGeoSupport.h.

125{return m_tubes.size();};

◆ getNWedges()

unsigned getNWedges ( ) const

inline

Get number of wedges to be placed.

Returns: number of wedges

Definition at line 159 of file ARICHGeoSupport.h.

159{return m_wedges.size();};

◆ getTubeInnerR()

double getTubeInnerR ( unsigned i ) const

inline

Get tube inner radius.

Parameters

i	tube index

Returns: tube inner radius

Definition at line 132 of file ARICHGeoSupport.h.

132{return m_tubes.at(i).innerR / s_unit;}

Belle2::ARICHGeoBase::s_unit

static double s_unit

conversion unit for length

Definition: ARICHGeoBase.h:83

◆ getTubeLength()

double getTubeLength ( unsigned i ) const

inline

Get tube length.

Parameters

i	tube index

Returns: tube length

Definition at line 146 of file ARICHGeoSupport.h.

146{return m_tubes.at(i).length / s_unit;}

◆ getTubeMaterial()

const std::string & getTubeMaterial ( unsigned i ) const

inline

Get material of i-th tube.

Parameters

i	tube index

Returns: material name

Definition at line 194 of file ARICHGeoSupport.h.

194{return m_tubes.at(i).material;}

◆ getTubeName()

const std::string & getTubeName ( unsigned i ) const

inline

Get name of i-th tube.

Parameters

i	tube index

Returns: volume name

Definition at line 208 of file ARICHGeoSupport.h.

208{return m_tubes.at(i).name;}

◆ getTubeOuterR()

double getTubeOuterR ( unsigned i ) const

inline

Get tube outer radius.

Parameters

i	tube index

Returns: tube outer radius

Definition at line 139 of file ARICHGeoSupport.h.

139{return m_tubes.at(i).outerR / s_unit;}

◆ getTubeZPosition()

double getTubeZPosition ( unsigned i ) const

inline

Get tube Z position.

Parameters

i	tube index

Returns: tube Z position (start point in ARICH frame)

Definition at line 153 of file ARICHGeoSupport.h.

153{return m_tubes.at(i).zPosition / s_unit;}

◆ getWedge()

const std::vector< double > getWedge ( unsigned i ) const

inline

Get parameters of wedge.

Parameters

i	wedge type

Returns: vector of wedge parameters

Definition at line 221 of file ARICHGeoSupport.h.

221{std::vector<double> pars; if (i > m_nWedgeType || i == 0) { B2ERROR("invalid wedge number"); return pars;}; for (auto par : m_wedgePar[i - 1]) pars.push_back(par / s_unit); return pars;}

Belle2::ARICHGeoSupport::m_wedgePar

std::vector< double > m_wedgePar[m_nWedgeType]

parameters of support wedges (joints)

Definition: ARICHGeoSupport.h:284

Belle2::ARICHGeoSupport::m_nWedgeType

static const unsigned m_nWedgeType

number of wedge types

Definition: ARICHGeoSupport.h:283

◆ getWedgeMaterial()

const std::string & getWedgeMaterial ( unsigned i ) const

inline

Get material of i-th wedge.

Parameters

i	wedge index

Returns: material name

Definition at line 201 of file ARICHGeoSupport.h.

201{return m_wedges.at(i).material;}

◆ getWedgePhi()

double getWedgePhi ( unsigned i ) const

inline

Get phi angle at which i-th wedge is placed.

Parameters

i	wedge index

Returns: wedge phi position

Definition at line 180 of file ARICHGeoSupport.h.

180{return m_wedges.at(i).phi;}

◆ getWedgeR()

double getWedgeR ( unsigned i ) const

inline

Get radius at which i-th wedge is placed.

Parameters

i	wedge index

Returns: wedge radius

Definition at line 173 of file ARICHGeoSupport.h.

173{return m_wedges.at(i).r / s_unit;}

◆ getWedgeType()

int getWedgeType ( unsigned i ) const

inline

Get type of i-th wedge.

Parameters

i	wedge index

Returns: wedge type

Definition at line 166 of file ARICHGeoSupport.h.

166{return m_wedges.at(i).type;}

◆ getWedgeZ()

double getWedgeZ ( unsigned i ) const

inline

Get Z position of i-th wedge.

Parameters

i	wedge index

Returns: wedge Z position

Definition at line 187 of file ARICHGeoSupport.h.

187{return m_wedges.at(i).z / s_unit;}

◆ isConsistent()

bool isConsistent ( ) const

overridevirtual

Consistency check of geometry parameters.

Returns: true if consistent

Reimplemented from ARICHGeoBase.

Definition at line 17 of file ARICHGeoSupport.cc.

{
  return true;
}

◆ print()

void print ( const std::string & title = "Parameters of ARICH support structure and neutron shield" ) const

overridevirtual

Print the content of the class.

Parameters

title title to be printed

Reimplemented from ARICHGeoBase.

Definition at line 23 of file ARICHGeoSupport.cc.

{
  ARICHGeoBase::print(title);

  cout << " Default material: " << getMaterial() << endl;
  cout << " Placed tubes" << endl;

  unsigned nTube = getNTubes();
  for (unsigned i = 0; i < nTube; i++) {
    cout << "  " << getTubeName(i) << ", inner R: " << getTubeInnerR(i) << " " << s_unitName << ", outer R: " << getTubeOuterR(
           i) << " " << s_unitName << ", length: " <<  getTubeLength(i) << " " << s_unitName << ", Z position: " << getTubeZPosition(
           i) <<  " " << s_unitName << ", material: " << getTubeMaterial(i) <<  endl;  ;
  }

  cout << " Parameters of wedges" << endl;

  for (unsigned i = 1; i < m_nWedgeType + 1; i++) {
    cout << "  type: " << i << " par. vector: ";
    for (auto par : getWedge(i)) cout << par << " " << s_unitName << " ";
    cout << endl;
  }

  cout << " Placed wedges" << endl;
  unsigned nWedge = getNWedges();
  for (unsigned i = 0; i < nWedge; i++) {
    cout << "  ID: " << setprecision(4) << setw(2) <<  i << ", type: " << getWedgeType(i) << ", radius: " << getWedgeR(
           i) << " " << s_unitName << ", phi: " << setw(6) << getWedgePhi(i) << ", Z position: " << getWedgeZ(
           i) << " " << s_unitName << ", material: " << getWedgeMaterial(i) << endl;
  }
}

◆ printPlacement()

void printPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)		const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 25 of file ARICHGeoBase.cc.

{
//  cout << "Volume positioning information (inside local ARICH frame)" << endl;
  cout << " Center position; x: " << x << " " << s_unitName << ", y: " << y << " " << s_unitName << ", z: " << z << " " << s_unitName
       << endl;
  cout << " Rotations; x-axis: " << rx << " y-axis: " << ry << " z-axis: " << rz << " (in rad)"  << endl;
}

◆ printSurface()

void printSurface ( const GeoOpticalSurface & surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface optical surface parameters

Definition at line 32 of file ARICHGeoBase.cc.

{
  cout << " Optical surface: ";
  if (surface.getName().empty() and !surface.hasProperties()) {
    cout << "not defined" << endl;
    return;
  }
  cout << surface.getName();
  cout << ", model: " << surface.getModel();
  cout << ", finish: " << surface.getFinish();
  cout << ", type: " << surface.getType();
  cout << ", value: " << surface.getValue();
  cout << endl;
  if (surface.hasProperties()) {
    for (const auto& property : surface.getProperties()) {
      cout << "  - property: ";
      cout << property.getName() << " [";
      for (const auto& value : property.getValues()) cout << value << ", ";
      cout << "], @[";
      for (const auto& value : property.getEnergies()) cout << value / Unit::eV << ", ";
      cout << "] eV" << endl;
    }
  } else {
    cout << "  - properties: None" << endl;
  }

}

◆ setBox()

void setBox	(	int	i,
		const std::string &	name,
		const std::string &	material,
		double	size[3],
		double	position[3],
		double	rotation[3]
	)

inline

Re-set parameters of existing box.

Parameters

i	box index
name	volume name
material	volume material
size	array of side sizes
position	array of x,y,z position
rotation	array of x,y,z rotations

Definition at line 245 of file ARICHGeoSupport.h.

    {
      m_boxes[i] = {{size[0], size[1], size[2]}, {position[0], position[1], position[2]}, {rotation[0], rotation[1], rotation[2]}, name, material};
    }

◆ setMaterial()

void setMaterial ( const std::string & material )

inline

Set default material of support structures.

Parameters

material name of default material

Definition at line 105 of file ARICHGeoSupport.h.

105{ m_material = material;};

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 43 of file ARICHGeoBase.h.

43{m_name = name;}

◆ setWedge()

void setWedge	(	unsigned	i,
		const std::vector< double > &	par
	)

inline

Set parameters of support wedge volumes.

Parameters

i	wedge type ID (1-3)
par	vector of wedge parameters

Definition at line 86 of file ARICHGeoSupport.h.

86{if (i > m_nWedgeType || i == 0) { B2ERROR("invalid wedge number"); return;}; m_wedgePar[i - 1] = par;};

Member Data Documentation

◆ m_boxes

std::vector<box> m_boxes

private

vector of box volumes to be places

Definition at line 286 of file ARICHGeoSupport.h.

◆ m_material

std::string m_material

private

default material of support structure

Definition at line 282 of file ARICHGeoSupport.h.

◆ m_name

std::string m_name

protectedinherited

geometry object name

Definition at line 82 of file ARICHGeoBase.h.

◆ m_nWedgeType

const unsigned m_nWedgeType = 3

staticprivate

number of wedge types

Definition at line 283 of file ARICHGeoSupport.h.

◆ m_tubes

std::vector<tube> m_tubes

private

vector of tube volumes to be placed

Definition at line 281 of file ARICHGeoSupport.h.

◆ m_wedgePar

std::vector<double> m_wedgePar[m_nWedgeType]

private

parameters of support wedges (joints)

Definition at line 284 of file ARICHGeoSupport.h.

◆ m_wedges

std::vector<wedge> m_wedges

private

vector of wedge volumes to be placed

Definition at line 285 of file ARICHGeoSupport.h.

◆ s_unit

double s_unit = Unit::cm

staticprotectedinherited

conversion unit for length

Definition at line 83 of file ARICHGeoBase.h.

◆ s_unitName

std::string s_unitName

staticprotectedinherited

conversion unit name

Definition at line 84 of file ARICHGeoBase.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHGeoSupport.h
arich/dbobjects/src/ARICHGeoSupport.cc

Classes

Public Member Functions

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ARICHGeoSupport()

Member Function Documentation

◆ addBox()

◆ addTube()

◆ addWedge()

◆ clearBoxes()

◆ getBox()

◆ getMaterial()

◆ getName()

◆ getNBoxes()

◆ getNTubes()

◆ getNWedges()

◆ getTubeInnerR()

◆ getTubeLength()

◆ getTubeMaterial()

◆ getTubeName()

◆ getTubeOuterR()

◆ getTubeZPosition()

◆ getWedge()

◆ getWedgeMaterial()

◆ getWedgePhi()

◆ getWedgeR()

◆ getWedgeType()

◆ getWedgeZ()

◆ isConsistent()

◆ print()

◆ printPlacement()

◆ printSurface()

◆ setBox()

◆ setMaterial()

◆ setName()

◆ setWedge()

Member Data Documentation

◆ m_boxes

◆ m_material

◆ m_name

◆ m_nWedgeType

◆ m_tubes

◆ m_wedgePar

◆ m_wedges

◆ s_unit

◆ s_unitName
