Contains manufacturer data of one of the 4 photo sensors chips. More...

#include <ARICHHapdChipInfo.h>

Inheritance diagram for ARICHHapdChipInfo:

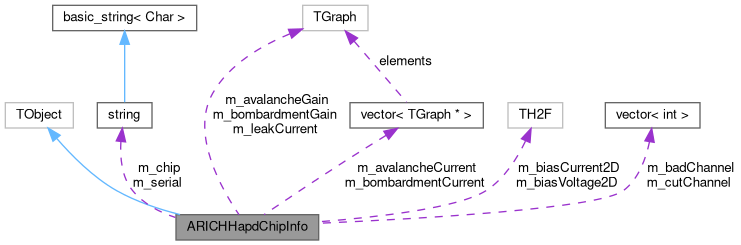

Collaboration diagram for ARICHHapdChipInfo:

[legend]

Public Member Functions
	ARICHHapdChipInfo ()
	Default constructor.

	ARICHHapdChipInfo (const std::string &serial)
	Constructor.

	~ARICHHapdChipInfo ()
	Destructor.

std::string	getHapdSerial () const
	Get HAPD Serial number.

void	setHapdSerial (const std::string &serial)
	Set HAPD serial number.

std::string	getChipLabel () const
	Get chip label.

void	setChipLabel (const std::string &chip)
	Set Chip label.

int	getBiasVoltage () const
	Get chip bias Voltage.

void	setBiasVoltage (int voltage)
	Set chip bias voltage.

int	getGain () const
	Get chip gain at operational voltage.

void	setGain (int gain)
	Set chip gain at operational voltage.

TGraph *	getLeakCurrent () const
	Get leakeage current as a function of bias voltage.

void	setLeakCurrent (TGraph *current)
	Set leakeage current as a function of bias voltage.

TGraph *	getBombardmentGain () const
	Get bombardment gain as a function of high voltage.

void	setBombardmentGain (TGraph *gain)
	Set bombardment gain as a function of high voltage.

TGraph *	getBombardmentCurrent (unsigned int i) const
	Get bombardment current as a function of high voltage.

void	setBombardmentCurrent (std::vector< TGraph * > bcurrent)
	Set bombardment current as a function of high voltage.

TGraph *	getAvalancheGain () const
	Get avalanche Gain as a function of bias voltage.

void	setAvalancheGain (TGraph *gain)
	Set avalanche Gain as a function of bias voltage.

TGraph *	getAvalancheCurrent (unsigned int i) const
	Get avalanche current as a function of bias voltage.

void	setAvalancheCurrent (std::vector< TGraph * > acurrent)
	Set avalanche current as a function of bias voltage.

TH2F *	getBiasVoltage2D () const
	Get bias voltage as a function of the channel.

void	setBiasVoltage2D (TH2F *h2d)
	Set bias voltage as a function of the channel.

TH2F *	getBiasCurrent2D () const
	Get bias current as a function of the channel.

void	setBiasCurrent2D (TH2F *h2d)
	Set bias current as a function of the channel.

int	getChannelNumber () const
	Get channel number for the bombardment and avalanche measurements information.

void	setChannelNumber (int channel)
	Set channel number for the bombardment and avalanche measurements information.

int	getCutChannel (unsigned int i) const
	Get a channel number from the list of cut channels.

void	appendCutChannel (int channel)
	Add a channel number to the list of cut channels.

void	setCutChannel (const std::vector< int > &channels)
	Set the list of cut channels.

int	getCutChannelsSize () const
	Get size of the list of cut channels.

int	getBadChannel (unsigned int i) const
	Get a channel number from the list of bad channels.

void	appendBadChannel (int channel)
	Add a channel number to the list of bad channels.

void	setBadChannel (const std::vector< int > &channels)
	Set the list of bad channels.

int	getBadChannelsSize () const
	Get size of the list of cut channels.

Private Member Functions
	ClassDef (ARICHHapdChipInfo, 3)
	ClassDef.

Private Attributes
std::string	m_serial
	serial number of the sensor

std::string	m_chip
	chip label

int	m_biasVoltage
	chip bias voltage

int	m_gain
	Total Gain at Operational Values.

TGraph *	m_leakCurrent
	Leakege Current as a function of bias voltage.

TGraph *	m_bombardmentGain
	Bombardment Gain as a function of high voltage.

std::vector< TGraph * >	m_bombardmentCurrent
	Bombardment Current as a function of high voltage.

TGraph *	m_avalancheGain
	Avalanche Gain as a function of bias voltage.

std::vector< TGraph * >	m_avalancheCurrent
	Avalanche Current as a function of bias voltage.

TH2F *	m_biasVoltage2D
	Bias Voltage as a function of the channel.

TH2F *	m_biasCurrent2D
	Bias Current as a function of the channel.

int	m_channelId
	Channel Number for the Bombardment and Avalanche measurements information.

std::vector< int >	m_cutChannel
	List of cut channels on the HAPD chip.

std::vector< int >	m_badChannel
	List of bad (cut and dead channels) on the HAPD chip.

Detailed Description

Contains manufacturer data of one of the 4 photo sensors chips.

Definition at line 24 of file ARICHHapdChipInfo.h.

Constructor & Destructor Documentation

◆ ARICHHapdChipInfo() [1/2]

ARICHHapdChipInfo ( )

inline

Default constructor.

Definition at line 31 of file ARICHHapdChipInfo.h.

                       : m_serial(""), m_chip(""), m_biasVoltage(0), m_gain(0), m_leakCurrent(NULL), m_bombardmentGain(NULL),
      m_bombardmentCurrent(), m_avalancheGain(NULL), m_avalancheCurrent(), m_biasVoltage2D(NULL), m_biasCurrent2D(NULL), m_channelId(0),
      m_cutChannel(), m_badChannel() {};

◆ ARICHHapdChipInfo() [2/2]

ARICHHapdChipInfo ( const std::string & serial )

inlineexplicit

Constructor.

Definition at line 38 of file ARICHHapdChipInfo.h.

                                                       : m_serial(serial), m_chip(""), m_biasVoltage(0), m_gain(0),
      m_leakCurrent(NULL),
      m_bombardmentGain(NULL), m_bombardmentCurrent(), m_avalancheGain(NULL), m_avalancheCurrent(), m_biasVoltage2D(NULL),
      m_biasCurrent2D(NULL), m_channelId(0), m_cutChannel(), m_badChannel() {};

◆ ~ARICHHapdChipInfo()

~ARICHHapdChipInfo ( )

inline

Destructor.

Definition at line 46 of file ARICHHapdChipInfo.h.

46{};

Member Function Documentation

◆ appendBadChannel()

void appendBadChannel ( int channel )

inline

Add a channel number to the list of bad channels.

Parameters

[in] channel HAPD channel number.

Definition at line 230 of file ARICHHapdChipInfo.h.

230{ m_badChannel.push_back(channel); }

◆ appendCutChannel()

void appendCutChannel ( int channel )

inline

Add a channel number to the list of cut channels.

Parameters

[in] channel HAPD channel number.

Definition at line 205 of file ARICHHapdChipInfo.h.

205{m_cutChannel.push_back(channel); }

◆ getAvalancheCurrent()

TGraph * getAvalancheCurrent ( unsigned int i ) const

Get avalanche current as a function of bias voltage.

Returns: Avalanche current

Definition at line 27 of file ARICHHapdChipInfo.cc.

{
  if (i < m_avalancheCurrent.size()) return m_avalancheCurrent[i];
  else return NULL;
}

◆ getAvalancheGain()

TGraph * getAvalancheGain ( ) const

inline

Get avalanche Gain as a function of bias voltage.

Returns: Avalanche gain.

Definition at line 136 of file ARICHHapdChipInfo.h.

136{return m_avalancheGain;}

◆ getBadChannel()

int getBadChannel ( unsigned int i ) const

Get a channel number from the list of bad channels.

Parameters

[in] i Index of the element in the list.

Returns: Channel number.

Definition at line 47 of file ARICHHapdChipInfo.cc.

{
  if (i < m_badChannel.size()) return m_badChannel[i];
  else return -1;
}

◆ getBadChannelsSize()

int getBadChannelsSize ( ) const

inline

Get size of the list of cut channels.

Returns: Size.

Definition at line 242 of file ARICHHapdChipInfo.h.

242{return m_badChannel.size();}

◆ getBiasCurrent2D()

TH2F * getBiasCurrent2D ( ) const

inline

Get bias current as a function of the channel.

Returns: 2D map of the current.

Definition at line 172 of file ARICHHapdChipInfo.h.

172{return m_biasCurrent2D;}

◆ getBiasVoltage()

int getBiasVoltage ( ) const

inline

Get chip bias Voltage.

Returns: Bias voltage.

Definition at line 76 of file ARICHHapdChipInfo.h.

76{return m_biasVoltage;}

◆ getBiasVoltage2D()

TH2F * getBiasVoltage2D ( ) const

inline

Get bias voltage as a function of the channel.

Returns: 2D map of the voltage.

Definition at line 160 of file ARICHHapdChipInfo.h.

160{return m_biasVoltage2D;}

◆ getBombardmentCurrent()

TGraph * getBombardmentCurrent ( unsigned int i ) const

Get bombardment current as a function of high voltage.

Returns: Current.

Definition at line 14 of file ARICHHapdChipInfo.cc.

{
  if (i < m_bombardmentCurrent.size()) return m_bombardmentCurrent[i];
  else return NULL;
}

◆ getBombardmentGain()

TGraph * getBombardmentGain ( ) const

inline

Get bombardment gain as a function of high voltage.

Returns: Bombardment gain.

Definition at line 112 of file ARICHHapdChipInfo.h.

112{return m_bombardmentGain;}

◆ getChannelNumber()

int getChannelNumber ( ) const

inline

Get channel number for the bombardment and avalanche measurements information.

Returns: Channel number.

Definition at line 185 of file ARICHHapdChipInfo.h.

185{return m_channelId;}

◆ getChipLabel()

std::string getChipLabel ( ) const

inline

Get chip label.

Returns: Chip label.

Definition at line 64 of file ARICHHapdChipInfo.h.

64{return m_chip; };

◆ getCutChannel()

int getCutChannel ( unsigned int i ) const

Get a channel number from the list of cut channels.

Parameters

[in] i Index of the element in the list.

Returns: Channel number.

Definition at line 40 of file ARICHHapdChipInfo.cc.

{
  if (i < m_cutChannel.size()) return m_cutChannel[i];
  else return -1;
}

◆ getCutChannelsSize()

int getCutChannelsSize ( ) const

inline

Get size of the list of cut channels.

Returns: Size.

Definition at line 217 of file ARICHHapdChipInfo.h.

217{return m_cutChannel.size();}

◆ getGain()

int getGain ( ) const

inline

Get chip gain at operational voltage.

Returns: Chip gain.

Definition at line 88 of file ARICHHapdChipInfo.h.

88{return m_gain;}

◆ getHapdSerial()

std::string getHapdSerial ( ) const

inline

Get HAPD Serial number.

Returns: HAPD Serial number.

Definition at line 52 of file ARICHHapdChipInfo.h.

52{return m_serial; };

◆ getLeakCurrent()

TGraph * getLeakCurrent ( ) const

inline

Get leakeage current as a function of bias voltage.

Returns: Leakage current.

Definition at line 100 of file ARICHHapdChipInfo.h.

100{return m_leakCurrent;}

◆ setAvalancheCurrent()

void setAvalancheCurrent ( std::vector< TGraph * > acurrent )

Set avalanche current as a function of bias voltage.

Parameters

[in] acurrent Avalanche current current vs bias.

Definition at line 34 of file ARICHHapdChipInfo.cc.

{
  for (unsigned int i = 0; i < acurrent.size(); i++) m_avalancheCurrent.push_back(acurrent[i]);
}

◆ setAvalancheGain()

void setAvalancheGain ( TGraph * gain )

inline

Set avalanche Gain as a function of bias voltage.

Parameters

[in] gain Avalanche gain vs bias.

Definition at line 142 of file ARICHHapdChipInfo.h.

142{m_avalancheGain = gain;}

◆ setBadChannel()

void setBadChannel ( const std::vector< int > & channels )

inline

Set the list of bad channels.

Parameters

[in] channels HAPD channel numbers.

Definition at line 236 of file ARICHHapdChipInfo.h.

236{m_badChannel = channels; }

◆ setBiasCurrent2D()

void setBiasCurrent2D ( TH2F * h2d )

inline

Set bias current as a function of the channel.

Parameters

[in] h2d 2D map of the current.

Definition at line 178 of file ARICHHapdChipInfo.h.

178{ m_biasCurrent2D = h2d;}

◆ setBiasVoltage()

void setBiasVoltage ( int voltage )

inline

Set chip bias voltage.

Parameters

[in] voltage Bias voltage.

Definition at line 82 of file ARICHHapdChipInfo.h.

82{ m_biasVoltage = voltage; }

◆ setBiasVoltage2D()

void setBiasVoltage2D ( TH2F * h2d )

inline

Set bias voltage as a function of the channel.

Parameters

[in] h2d 2D map of the voltage.

Definition at line 166 of file ARICHHapdChipInfo.h.

166{ m_biasVoltage2D = h2d;}

◆ setBombardmentCurrent()

void setBombardmentCurrent ( std::vector< TGraph * > bcurrent )

Set bombardment current as a function of high voltage.

Parameters

[in] bcurrent Bombardment current current vs high voltage.

Definition at line 21 of file ARICHHapdChipInfo.cc.

{
  for (unsigned int i = 0; i < bcurrent.size(); i++) m_bombardmentCurrent.push_back(bcurrent[i]);
}

◆ setBombardmentGain()

void setBombardmentGain ( TGraph * gain )

inline

Set bombardment gain as a function of high voltage.

Parameters

[in] gain Bombardment gain.

Definition at line 118 of file ARICHHapdChipInfo.h.

118{m_bombardmentGain = gain;}

◆ setChannelNumber()

void setChannelNumber ( int channel )

inline

Set channel number for the bombardment and avalanche measurements information.

Parameters

[in] channel Channel number

Definition at line 192 of file ARICHHapdChipInfo.h.

192{m_channelId = channel;}

◆ setChipLabel()

void setChipLabel ( const std::string & chip )

inline

Set Chip label.

Parameters

[in] chip Chip label.

Definition at line 70 of file ARICHHapdChipInfo.h.

70{m_chip = chip; }

◆ setCutChannel()

void setCutChannel ( const std::vector< int > & channels )

inline

Set the list of cut channels.

Parameters

[in] channels HAPD channel numbers.

Definition at line 211 of file ARICHHapdChipInfo.h.

211{m_cutChannel = channels; }

◆ setGain()

void setGain ( int gain )

inline

Set chip gain at operational voltage.

Parameters

[in] gain Chip gain.

Definition at line 94 of file ARICHHapdChipInfo.h.

94{ m_gain = gain;}

◆ setHapdSerial()

void setHapdSerial ( const std::string & serial )

inline

Set HAPD serial number.

Parameters

[in] serial HAPD serial number.

Definition at line 58 of file ARICHHapdChipInfo.h.

58{m_serial = serial; }

◆ setLeakCurrent()

void setLeakCurrent ( TGraph * current )

inline

Set leakeage current as a function of bias voltage.

Parameters

[in] current Leakeage current.

Definition at line 106 of file ARICHHapdChipInfo.h.

106{m_leakCurrent = current;}

Member Data Documentation

◆ m_avalancheCurrent

std::vector<TGraph*> m_avalancheCurrent

private

Avalanche Current as a function of bias voltage.

Definition at line 253 of file ARICHHapdChipInfo.h.

◆ m_avalancheGain

TGraph* m_avalancheGain

private

Avalanche Gain as a function of bias voltage.

Definition at line 252 of file ARICHHapdChipInfo.h.

◆ m_badChannel

std::vector<int> m_badChannel

private

List of bad (cut and dead channels) on the HAPD chip.

Definition at line 258 of file ARICHHapdChipInfo.h.

◆ m_biasCurrent2D

TH2F* m_biasCurrent2D

private

Bias Current as a function of the channel.

Definition at line 255 of file ARICHHapdChipInfo.h.

◆ m_biasVoltage

int m_biasVoltage

private

chip bias voltage

Definition at line 247 of file ARICHHapdChipInfo.h.

◆ m_biasVoltage2D

TH2F* m_biasVoltage2D

private

Bias Voltage as a function of the channel.

Definition at line 254 of file ARICHHapdChipInfo.h.

◆ m_bombardmentCurrent

std::vector<TGraph*> m_bombardmentCurrent

private

Bombardment Current as a function of high voltage.

Definition at line 251 of file ARICHHapdChipInfo.h.

◆ m_bombardmentGain

TGraph* m_bombardmentGain

private

Bombardment Gain as a function of high voltage.

Definition at line 250 of file ARICHHapdChipInfo.h.

◆ m_channelId

int m_channelId

private

Channel Number for the Bombardment and Avalanche measurements information.

Definition at line 256 of file ARICHHapdChipInfo.h.

◆ m_chip

std::string m_chip

private

chip label

Definition at line 246 of file ARICHHapdChipInfo.h.

◆ m_cutChannel

std::vector<int> m_cutChannel

private

List of cut channels on the HAPD chip.

Definition at line 257 of file ARICHHapdChipInfo.h.

◆ m_gain

int m_gain

private

Total Gain at Operational Values.

Definition at line 248 of file ARICHHapdChipInfo.h.

◆ m_leakCurrent

TGraph* m_leakCurrent

private

Leakege Current as a function of bias voltage.

Definition at line 249 of file ARICHHapdChipInfo.h.

◆ m_serial

std::string m_serial

private

serial number of the sensor

Definition at line 245 of file ARICHHapdChipInfo.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHHapdChipInfo.h
arich/dbobjects/src/ARICHHapdChipInfo.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ARICHHapdChipInfo() [1/2]

◆ ARICHHapdChipInfo() [2/2]

◆ ~ARICHHapdChipInfo()

Member Function Documentation

◆ appendBadChannel()

◆ appendCutChannel()

◆ getAvalancheCurrent()

◆ getAvalancheGain()

◆ getBadChannel()

◆ getBadChannelsSize()

◆ getBiasCurrent2D()

◆ getBiasVoltage()

◆ getBiasVoltage2D()

◆ getBombardmentCurrent()

◆ getBombardmentGain()

◆ getChannelNumber()

◆ getChipLabel()

◆ getCutChannel()

◆ getCutChannelsSize()

◆ getGain()

◆ getHapdSerial()

◆ getLeakCurrent()

◆ setAvalancheCurrent()

◆ setAvalancheGain()

◆ setBadChannel()

◆ setBiasCurrent2D()

◆ setBiasVoltage()

◆ setBiasVoltage2D()

◆ setBombardmentCurrent()

◆ setBombardmentGain()

◆ setChannelNumber()

◆ setChipLabel()

◆ setCutChannel()

◆ setGain()

◆ setHapdSerial()

◆ setLeakCurrent()

Member Data Documentation

◆ m_avalancheCurrent

◆ m_avalancheGain

◆ m_badChannel

◆ m_biasCurrent2D

◆ m_biasVoltage

◆ m_biasVoltage2D

◆ m_bombardmentCurrent

◆ m_bombardmentGain

◆ m_channelId

◆ m_chip

◆ m_cutChannel

◆ m_gain

◆ m_leakCurrent

◆ m_serial
