Class to store mapping between cell id and store array positions. More...

#include <ECLCellIdMapping.h>

Inheritance diagram for ECLCellIdMapping:

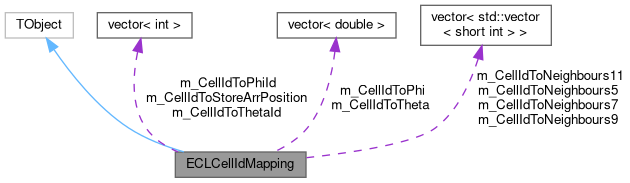

Collaboration diagram for ECLCellIdMapping:

[legend]

Public Member Functions
	ECLCellIdMapping ()
	Default constructor.

void	setCellIdToStoreArray (const int &cellid, const int &idx)
	Set celld id to store array.

void	setCellIdToNeighbour5 (const int &cellid, const std::vector< short int > &neighbours)
	Set celld id to neighbour5.

void	setCellIdToNeighbour7 (const int &cellid, const std::vector< short int > &neighbours)
	Set celld id to neighbour7.

void	setCellIdToNeighbour9 (const int &cellid, const std::vector< short int > &neighbours)
	Set celld id to neighbour9.

void	setCellIdToNeighbour11 (const int &cellid, const std::vector< short int > &neighbours)
	Set celld id to neighbour11.

void	setCellIdToPhi (const int &cellid, const double &phi)
	Set celld id to phi.

void	setCellIdToTheta (const int &cellid, const double &theta)
	Set celld id to theta.

void	setCellIdToPhiId (const int &cellid, const int &phiid)
	Set celld id to phi.

void	setCellIdToThetaId (const int &cellid, const int &thetaid)
	Set celld id to theta.

void	reset ()
	Reset store array.

int	getCellIdToStoreArray (const int &cellid)
	Get store array from cell id.

std::vector< short int > &	getCellIdToNeighbour5 (const int &cellid)
	Get store array from cell id.

std::vector< short int > &	getCellIdToNeighbour7 (const int &cellid)
	Get store array from cell id.

std::vector< short int > &	getCellIdToNeighbour9 (const int &cellid)
	Get store array from cell id.

std::vector< short int > &	getCellIdToNeighbour11 (const int &cellid)
	Get store array from cell id.

double	getCellIdToPhi (const int &cellid)
	Get phi from cell id.

double	getCellIdToTheta (const int &cellid)
	Get theta from cell id.

int	getCellIdToPhiId (const int &cellid)
	Get phi from cell id.

int	getCellIdToThetaId (const int &cellid)
	Get theta from cell id.

Private Member Functions
	ClassDef (ECLCellIdMapping, 1)
	ClassDef.

Private Attributes
std::vector< int >	m_CellIdToStoreArrPosition
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to store array positions

std::vector< double >	m_CellIdToPhi
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

std::vector< double >	m_CellIdToTheta
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

std::vector< int >	m_CellIdToPhiId
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

std::vector< int >	m_CellIdToThetaId
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

std::vector< std::vector< short int > >	m_CellIdToNeighbours5
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 5x5 neighbour vector

std::vector< std::vector< short int > >	m_CellIdToNeighbours7
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 7x7 neighbour vector

std::vector< std::vector< short int > >	m_CellIdToNeighbours9
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 9x9 neighbour vector

std::vector< std::vector< short int > >	m_CellIdToNeighbours11
	vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 11x11 neighbour vector

Detailed Description

Class to store mapping between cell id and store array positions.

Definition at line 28 of file ECLCellIdMapping.h.

Constructor & Destructor Documentation

◆ ECLCellIdMapping()

ECLCellIdMapping ( )

inline

Default constructor.

Definition at line 34 of file ECLCellIdMapping.h.

                       :
      m_CellIdToStoreArrPosition(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToPhi(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToTheta(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToPhiId(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToThetaId(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToNeighbours5(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToNeighbours7(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToNeighbours9(ECLElementNumbers::c_NCrystals + 1),
      m_CellIdToNeighbours11(ECLElementNumbers::c_NCrystals + 1)
    {
      for (unsigned idx = 0; idx < ECLElementNumbers::c_NCrystals + 1; idx++) {
        m_CellIdToStoreArrPosition[idx] = -1;
      }
    }

Member Function Documentation

◆ getCellIdToNeighbour11()

std::vector< short int > & getCellIdToNeighbour11 ( const int & cellid )

inline

Get store array from cell id.

Definition at line 188 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToNeighbours11[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
      }
    }

◆ getCellIdToNeighbour5()

std::vector< short int > & getCellIdToNeighbour5 ( const int & cellid )

inline

Get store array from cell id.

Definition at line 158 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToNeighbours5[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
      }
    }

◆ getCellIdToNeighbour7()

std::vector< short int > & getCellIdToNeighbour7 ( const int & cellid )

inline

Get store array from cell id.

Definition at line 168 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToNeighbours7[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
      }
    }

◆ getCellIdToNeighbour9()

std::vector< short int > & getCellIdToNeighbour9 ( const int & cellid )

inline

Get store array from cell id.

Definition at line 178 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToNeighbours9[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
      }
    }

◆ getCellIdToPhi()

double getCellIdToPhi ( const int & cellid )

inline

Get phi from cell id.

Definition at line 198 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToPhi[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
        return -1;
      }
    }

◆ getCellIdToPhiId()

int getCellIdToPhiId ( const int & cellid )

inline

Get phi from cell id.

Definition at line 221 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToPhiId[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
        return -1;
      }
    }

◆ getCellIdToStoreArray()

int getCellIdToStoreArray ( const int & cellid )

inline

Get store array from cell id.

Definition at line 147 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToStoreArrPosition[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
        return -1;
      }
    }

◆ getCellIdToTheta()

double getCellIdToTheta ( const int & cellid )

inline

Get theta from cell id.

Definition at line 209 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToTheta[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
        return -1;
      }
    }

◆ getCellIdToThetaId()

int getCellIdToThetaId ( const int & cellid )

inline

Get theta from cell id.

Definition at line 232 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        return m_CellIdToThetaId[cellid];
      } else {
        B2FATAL("Cell Id " << cellid << " does not exist.");
        return -1;
      }
    }

◆ reset()

void reset ( )

inline

Reset store array.

Definition at line 141 of file ECLCellIdMapping.h.

    {
      memset(&m_CellIdToStoreArrPosition[0], -1, m_CellIdToStoreArrPosition.size() * sizeof m_CellIdToStoreArrPosition[0]);
    }

◆ setCellIdToNeighbour11()

void setCellIdToNeighbour11	(	const int &	cellid,
		const std::vector< short int > &	neighbours
	)

inline

Set celld id to neighbour11.

Definition at line 91 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToNeighbours11[cellid] = neighbours;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToNeighbour5()

void setCellIdToNeighbour5	(	const int &	cellid,
		const std::vector< short int > &	neighbours
	)

inline

Set celld id to neighbour5.

Definition at line 61 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToNeighbours5[cellid] = neighbours;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToNeighbour7()

void setCellIdToNeighbour7	(	const int &	cellid,
		const std::vector< short int > &	neighbours
	)

inline

Set celld id to neighbour7.

Definition at line 71 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToNeighbours7[cellid] = neighbours;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToNeighbour9()

void setCellIdToNeighbour9	(	const int &	cellid,
		const std::vector< short int > &	neighbours
	)

inline

Set celld id to neighbour9.

Definition at line 81 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToNeighbours9[cellid] = neighbours;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToPhi()

void setCellIdToPhi	(	const int &	cellid,
		const double &	phi
	)

inline

Set celld id to phi.

Definition at line 101 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToPhi[cellid] = phi;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToPhiId()

void setCellIdToPhiId	(	const int &	cellid,
		const int &	phiid
	)

inline

Set celld id to phi.

Definition at line 121 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToPhiId[cellid] = phiid;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToStoreArray()

void setCellIdToStoreArray	(	const int &	cellid,
		const int &	idx
	)

inline

Set celld id to store array.

Definition at line 51 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToStoreArrPosition[cellid] = idx;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToTheta()

void setCellIdToTheta	(	const int &	cellid,
		const double &	theta
	)

inline

Set celld id to theta.

Definition at line 111 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToTheta[cellid] = theta;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

◆ setCellIdToThetaId()

void setCellIdToThetaId	(	const int &	cellid,
		const int &	thetaid
	)

inline

Set celld id to theta.

Definition at line 131 of file ECLCellIdMapping.h.

    {
      if (cellid > 0 and cellid < ECLElementNumbers::c_NCrystals + 1) {
        m_CellIdToThetaId[cellid] = thetaid;
      } else {
        B2ERROR("Cell Id " << cellid << " does not exist.");
      }
    }

Member Data Documentation

◆ m_CellIdToNeighbours11

std::vector<std::vector<short int> > m_CellIdToNeighbours11

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 11x11 neighbour vector

Definition at line 270 of file ECLCellIdMapping.h.

◆ m_CellIdToNeighbours5

std::vector<std::vector<short int> > m_CellIdToNeighbours5

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 5x5 neighbour vector

Definition at line 261 of file ECLCellIdMapping.h.

◆ m_CellIdToNeighbours7

std::vector<std::vector<short int> > m_CellIdToNeighbours7

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 7x7 neighbour vector

Definition at line 264 of file ECLCellIdMapping.h.

◆ m_CellIdToNeighbours9

std::vector<std::vector<short int> > m_CellIdToNeighbours9

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to 9x9 neighbour vector

Definition at line 267 of file ECLCellIdMapping.h.

◆ m_CellIdToPhi

std::vector<double> m_CellIdToPhi

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

Definition at line 249 of file ECLCellIdMapping.h.

◆ m_CellIdToPhiId

std::vector<int> m_CellIdToPhiId

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

Definition at line 255 of file ECLCellIdMapping.h.

◆ m_CellIdToStoreArrPosition

std::vector<int> m_CellIdToStoreArrPosition

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to store array positions

Definition at line 246 of file ECLCellIdMapping.h.

◆ m_CellIdToTheta

std::vector<double> m_CellIdToTheta

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

Definition at line 252 of file ECLCellIdMapping.h.

◆ m_CellIdToThetaId

std::vector<int> m_CellIdToThetaId

private

vector (ECLElementNumbers::c_NCrystals + 1 entries) with cell id to phi values

Definition at line 258 of file ECLCellIdMapping.h.

The documentation for this class was generated from the following file:

ecl/dataobjects/include/ECLCellIdMapping.h

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ECLCellIdMapping()

Member Function Documentation

◆ getCellIdToNeighbour11()

◆ getCellIdToNeighbour5()

◆ getCellIdToNeighbour7()

◆ getCellIdToNeighbour9()

◆ getCellIdToPhi()

◆ getCellIdToPhiId()

◆ getCellIdToStoreArray()

◆ getCellIdToTheta()

◆ getCellIdToThetaId()

◆ reset()

◆ setCellIdToNeighbour11()

◆ setCellIdToNeighbour5()

◆ setCellIdToNeighbour7()

◆ setCellIdToNeighbour9()

◆ setCellIdToPhi()

◆ setCellIdToPhiId()

◆ setCellIdToStoreArray()

◆ setCellIdToTheta()

◆ setCellIdToThetaId()

Member Data Documentation

◆ m_CellIdToNeighbours11

◆ m_CellIdToNeighbours5

◆ m_CellIdToNeighbours7

◆ m_CellIdToNeighbours9

◆ m_CellIdToPhi

◆ m_CellIdToPhiId

◆ m_CellIdToStoreArrPosition

◆ m_CellIdToTheta

◆ m_CellIdToThetaId
