ExporterEventInfo Class Reference

Bundles information for a single event to be stored by NonRootDataExportModule. More...

#include <ExporterEventInfo.h>

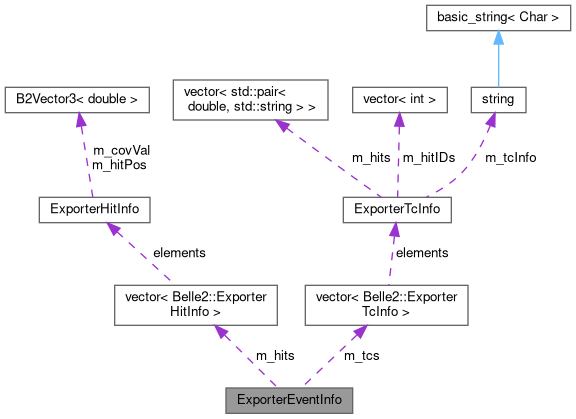

Collaboration diagram for ExporterEventInfo:

Public Member Functions
	ExporterEventInfo (int evtNum)
	Empty constructor.
	~ExporterEventInfo ()
	Destructor.
void	addHit (ExporterHitInfo aHit)
	adds Hit to internal storage.
void	addTc (ExporterTcInfo aTc)
	adds Tc to internal storage.
std::vector< ExporterHitInfo > *	getHits ()
	returns a pointer to internal vector of hits
int	getEventNumber ()
	returns number of current event
std::vector< ExporterTcInfo > *	getTcs ()
	returns a pointer to internal vector of tcs
int	getNPXDTrueHits ()
	returns number of stored pxdTruehits
int	getNSVDTrueHits ()
	returns number of stored svdTruehits
int	getNMCHits ()
	returns total number of stored mcHits stored in all Tcs of this event

Protected Member Functions
int	countHitsOfType (int type)
	used by getXXXHits to determine number of hits of certain type found in current event

Protected Attributes
int	m_eventNumber
	knows number of current event
std::vector< ExporterHitInfo >	m_hits
	stores all hits of event
std::vector< ExporterTcInfo >	m_tcs
	stores all tcs of event

Detailed Description

Bundles information for a single event to be stored by NonRootDataExportModule.

Definition at line 26 of file ExporterEventInfo.h.

Constructor & Destructor Documentation

ExporterEventInfo()

ExporterEventInfo ( int  evtNum )

inlineexplicit

Empty constructor.

Definition at line 29 of file ExporterEventInfo.h.

                                          :
      m_eventNumber(evtNum) {}

~ExporterEventInfo()

~ExporterEventInfo ( )

inline

Destructor.

Definition at line 34 of file ExporterEventInfo.h.

{}

Member Function Documentation

addHit()

void addHit

(

ExporterHitInfo

aHit

)

adds Hit to internal storage.

Definition at line 17 of file ExporterEventInfo.cc.

{ m_hits.push_back(aHit); }

addTc()

void addTc

(

ExporterTcInfo

aTc

)

adds Tc to internal storage.

Definition at line 21 of file ExporterEventInfo.cc.

{ m_tcs.push_back(aTc); }

countHitsOfType()

int countHitsOfType ( int  type )

protected

used by getXXXHits to determine number of hits of certain type found in current event

Definition at line 49 of file ExporterEventInfo.cc.

{
  int counter = 0;
  for (ExporterHitInfo hit : m_hits) {
    if (hit.getType() == type) { ++counter; }
  }
  return counter;
}

getEventNumber()

int getEventNumber ( )

inline

returns number of current event

Definition at line 50 of file ExporterEventInfo.h.

{ return m_eventNumber; }

getHits()

std::vector< ExporterHitInfo > * getHits

(

)

returns a pointer to internal vector of hits

Definition at line 25 of file ExporterEventInfo.cc.

{ return &m_hits; }

getNMCHits()

int getNMCHits

(

)

returns total number of stored mcHits stored in all Tcs of this event

Definition at line 40 of file ExporterEventInfo.cc.

{
  int nMCHits = 0;
  for (ExporterTcInfo tc : m_tcs) {
    nMCHits += tc.getNHits();
  }
  return nMCHits;
}

getNPXDTrueHits()

int getNPXDTrueHits

(

)

returns number of stored pxdTruehits

Definition at line 33 of file ExporterEventInfo.cc.

{ return countHitsOfType(0); }

getNSVDTrueHits()

int getNSVDTrueHits

(

)

returns number of stored svdTruehits

Definition at line 37 of file ExporterEventInfo.cc.

{ return countHitsOfType(1); }

getTcs()

std::vector< ExporterTcInfo > * getTcs

(

)

returns a pointer to internal vector of tcs

Definition at line 29 of file ExporterEventInfo.cc.

{ return &m_tcs; }

Member Data Documentation

m_eventNumber

int m_eventNumber

protected

knows number of current event

Definition at line 73 of file ExporterEventInfo.h.

m_hits

std::vector<ExporterHitInfo> m_hits

protected

stores all hits of event

Definition at line 74 of file ExporterEventInfo.h.

m_tcs

std::vector<ExporterTcInfo> m_tcs

protected

stores all tcs of event

Definition at line 75 of file ExporterEventInfo.h.

---

The documentation for this class was generated from the following files:

• tracking/vxdCaTracking/include/ExporterEventInfo.h
• tracking/vxdCaTracking/src/ExporterEventInfo.cc
