KLMElectronicsMapImporter Class Reference
Packages » klm

KLM database importer. More...

#include <KLMElectronicsMapImporter.h>

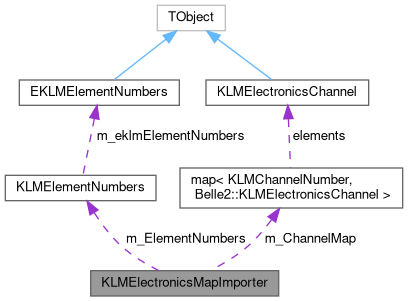

Collaboration diagram for KLMElectronicsMapImporter:
Collaboration graph
[legend]

Public Member Functions

 KLMElectronicsMapImporter ()
 Constructor.

 ~KLMElectronicsMapImporter ()
 Destructor.

void setIOV (int experimentLow, int runLow, int experimentHigh, int runHigh)
 Set interval of validity.

void clearElectronicsMap ()
 Clear electronics map (to be able to import its multiple versions).

void loadBKLMElectronicsMap (int version)
 Load BKLM electronics map.

void loadEKLMElectronicsMap (int version, bool mc)
 Load EKLM electronics map.

void setLane (int subdetector, int section, int sector, int layer, int lane)
 Set non-default lane for all channels in a module.

void setLane (int subdetector, int section, int sector, int layer, int plane, int lane)
 Set non-default lane for all channels in a plane.

void importElectronicsMap ()
 Import electronics map.


Private Member Functions

int getEKLMStripFirmwareBySoftware (int stripSoftware) const
 Get EKLM firmware strip number by software strip number.

void setChannelsEKLMSegment (int section, int sector, int layer, int plane, int segment, int firmwareSegment)
 Set channels for EKLM segment.

void addEKLMLane (int section, int sector, int layer, int copper, int slot, int lane)
 Add EKLM electronics map lane.


Private Attributes

const KLMElementNumbers * m_ElementNumbers
 Element numbers.

std::map< KLMChannelNumber, KLMElectronicsChannel > m_ChannelMap
 Data for creation of the electronics map.

int m_ExperimentLow = 0
 Low experiment.

int m_RunLow = 0
 Low run.

int m_ExperimentHigh = -1
 High experiment.

int m_RunHigh = -1
 High run.


Detailed Description

KLM database importer.

Definition at line 27 of file KLMElectronicsMapImporter.h.

Constructor & Destructor Documentation

◆ KLMElectronicsMapImporter()

KLMElectronicsMapImporter ( )

Constructor.

Definition at line 24 of file KLMElectronicsMapImporter.cc.

24 :
25 m_ElementNumbers(&(KLMElementNumbers::Instance()))
26{
27}
Belle2::KLMElectronicsMapImporter::m_ElementNumbers
const KLMElementNumbers * m_ElementNumbers
Element numbers.
Definition: KLMElectronicsMapImporter.h:138
Belle2::KLMElementNumbers::Instance
static const KLMElementNumbers & Instance()
Instantiation.
Definition: KLMElementNumbers.cc:29

◆ ~KLMElectronicsMapImporter()

~KLMElectronicsMapImporter ( )

Destructor.

Definition at line 29 of file KLMElectronicsMapImporter.cc.

30{
31}

Member Function Documentation

◆ addEKLMLane()

void addEKLMLane ( int  section,
int  sector,
int  layer,
int  copper,
int  slot,
int  lane
)
private

Add EKLM electronics map lane.

Parameters
[in]sectionSection.
[in]sectorSector.
[in]layerLayer.
[in]copperCopper.
[in]slotSlot.
[in]laneLane.

Definition at line 187 of file KLMElectronicsMapImporter.cc.

189{
190 for (int plane = 1; plane <= EKLMElementNumbers::getMaximalPlaneNumber(); ++plane) {
191 for (int strip = 1; strip <= EKLMElementNumbers::getMaximalStripNumber(); ++strip) {
192 int axis = plane - 1;
193 int channel = getEKLMStripFirmwareBySoftware(strip);
194 KLMChannelNumber detectorChannel = m_ElementNumbers->channelNumberEKLM(
195 section, sector, layer, plane, strip);
196 m_ChannelMap.insert(
197 std::pair<KLMChannelNumber, KLMElectronicsChannel>(
198 detectorChannel,
199 KLMElectronicsChannel(EKLM_ID + copper, slot, lane, axis, channel)));
200 }
201 }
202}
Belle2::EKLMElementNumbers::getMaximalStripNumber
static constexpr int getMaximalStripNumber()
Get maximal strip number.
Definition: EKLMElementNumbers.h:319
Belle2::EKLMElementNumbers::getMaximalPlaneNumber
static constexpr int getMaximalPlaneNumber()
Get maximal plane number.
Definition: EKLMElementNumbers.h:303
Belle2::KLMElectronicsChannel
BKLM electronics channel.
Definition: KLMElectronicsChannel.h:23
Belle2::KLMElectronicsMapImporter::m_ChannelMap
std::map< KLMChannelNumber, KLMElectronicsChannel > m_ChannelMap
Data for creation of the electronics map.
Definition: KLMElectronicsMapImporter.h:141
Belle2::KLMElectronicsMapImporter::getEKLMStripFirmwareBySoftware
int getEKLMStripFirmwareBySoftware(int stripSoftware) const
Get EKLM firmware strip number by software strip number.
Definition: KLMElectronicsMapImporter.cc:175
Belle2::KLMElementNumbers::channelNumberEKLM
KLMChannelNumber channelNumberEKLM(int section, int sector, int layer, int plane, int strip) const
Get channel number for EKLM.
Definition: KLMElementNumbers.cc:62
Belle2::KLMChannelNumber
uint16_t KLMChannelNumber
Channel number.
Definition: KLMElementNumberDefinitions.h:36

◆ clearElectronicsMap()

void clearElectronicsMap ( )

Clear electronics map (to be able to import its multiple versions).

Definition at line 42 of file KLMElectronicsMapImporter.cc.

43{
44 m_ChannelMap.clear();
45}

◆ getEKLMStripFirmwareBySoftware()

int getEKLMStripFirmwareBySoftware ( int  stripSoftware) const
private

Get EKLM firmware strip number by software strip number.

Parameters
[in]stripSoftwareSoftware strip number.

Definition at line 175 of file KLMElectronicsMapImporter.cc.

176{
177 int segment, strip;
178 /* Segment is 0-based here. */
179 segment = (stripSoftware - 1) / EKLMElementNumbers::getNStripsSegment();
180 /* Order of segment readout boards in the firmware is opposite. */
181 segment = 4 - segment;
182 strip = segment * EKLMElementNumbers::getNStripsSegment() +
183 (stripSoftware - 1) % EKLMElementNumbers::getNStripsSegment() + 1;
184 return strip;
185}
Belle2::EKLMElementNumbers::getNStripsSegment
static constexpr int getNStripsSegment()
Get number of strips in a segment.
Definition: EKLMElementNumbers.h:391

◆ importElectronicsMap()

void importElectronicsMap ( )

Import electronics map.

Definition at line 428 of file KLMElectronicsMapImporter.cc.

429{
430 DBImportObjPtr<KLMElectronicsMap> electronicsMap;
431 electronicsMap.construct();
432 std::map<KLMChannelNumber, KLMElectronicsChannel>::iterator it;
433 for (it = m_ChannelMap.begin(); it != m_ChannelMap.end(); ++it) {
434 electronicsMap->addChannel(
435 it->first,
436 it->second.getCopper(),
437 it->second.getSlot(),
438 it->second.getLane(),
439 it->second.getAxis(),
440 it->second.getChannel());
441 }
442 IntervalOfValidity iov(m_ExperimentLow, m_RunLow,
443 m_ExperimentHigh, m_RunHigh);
444 electronicsMap.import(iov);
445}
Belle2::DBImportBase::import
bool import(const IntervalOfValidity &iov)
Import the object to database.
Definition: DBImportBase.cc:36
Belle2::DBImportObjPtr
Class for importing a single object to the database.
Definition: DBImportObjPtr.h:23
Belle2::DBImportObjPtr::construct
void construct(Args &&... params)
Construct an object of type T in this DBImportObjPtr using the provided constructor arguments.
Definition: DBImportObjPtr.h:47
Belle2::IntervalOfValidity
A class that describes the interval of experiments/runs for which an object in the database is valid.
Definition: IntervalOfValidity.h:25

◆ loadBKLMElectronicsMap()

void loadBKLMElectronicsMap ( int  version)

Load BKLM electronics map.

Parameters
[in]versionmap version: 1) Before experiment 10. 2) Experiment 10 and later (mapping in chimney sector has changed)

Definition at line 47 of file KLMElectronicsMapImporter.cc.

48{
49 const int minimalVersion = 1;
50 const int maximalVersion = 2;
51 if (version < minimalVersion || version > maximalVersion) {
52 B2FATAL("Incorrect version (" << version << ") of BKLM electronics map. "
53 "It must be from " << minimalVersion << " to " << maximalVersion);
54 }
55 int copperId = 0;
56 int slotId = 0;
57 int laneId;
58 int axisId = 0;
59 KLMChannelIndex bklmPlanes(KLMChannelIndex::c_IndexLevelPlane);
60 for (KLMChannelIndex bklmPlane = bklmPlanes.beginBKLM();
61 bklmPlane != bklmPlanes.endBKLM(); ++bklmPlane) {
62 int section = bklmPlane.getSection();
63 int sector = bklmPlane.getSector();
64 int layer = bklmPlane.getLayer();
65 int plane = bklmPlane.getPlane();
66
67 if (section == BKLMElementNumbers::c_ForwardSection) {
68 if (sector == 3 || sector == 4 || sector == 5 || sector == 6)
69 copperId = 1 + BKLM_ID;
70 if (sector == 1 || sector == 2 || sector == 7 || sector == 8)
71 copperId = 2 + BKLM_ID;
72 }
73 if (section == BKLMElementNumbers::c_BackwardSection) {
74 if (sector == 3 || sector == 4 || sector == 5 || sector == 6)
75 copperId = 3 + BKLM_ID;
76 if (sector == 1 || sector == 2 || sector == 7 || sector == 8)
77 copperId = 4 + BKLM_ID;
78 }
79
80 if (sector == 3 || sector == 4 || sector == 5 || sector == 6)
81 slotId = sector - 2;
82 if (sector == 1 || sector == 2)
83 slotId = sector + 2;
84 if (sector == 7 || sector == 8)
85 slotId = sector - 6;
86
87 if (layer >= BKLMElementNumbers::c_FirstRPCLayer) {
88 laneId = layer + 5;
89 axisId = plane;
90 } else {
91 laneId = layer;
92 if (plane == BKLMElementNumbers::c_ZPlane)
93 axisId = 1;
94 if (plane == BKLMElementNumbers::c_PhiPlane)
95 axisId = 0;
96 }
97
98 int MaxiChannel = BKLMElementNumbers::getNStrips(
99 section, sector, layer, plane);
100
101 bool dontFlip = false;
102 if (section == BKLMElementNumbers::c_ForwardSection &&
103 (sector == 7 || sector == 8 || sector == 1 || sector == 2))
104 dontFlip = true;
105 if (section == BKLMElementNumbers::c_BackwardSection &&
106 (sector == 4 || sector == 5 || sector == 6 || sector == 7))
107 dontFlip = true;
108
109 for (int iStrip = 1; iStrip <= MaxiChannel; iStrip++) {
110 int channelId = iStrip;
111
112 if (!(dontFlip && layer >= BKLMElementNumbers::c_FirstRPCLayer && plane == BKLMElementNumbers::c_PhiPlane))
113 channelId = MaxiChannel - iStrip + 1;
114
115 if (plane == BKLMElementNumbers::c_PhiPlane) {
116 if (layer == 1)
117 channelId += 4;
118 if (layer == 2)
119 channelId += 2;
120 }
121
122 if (plane == BKLMElementNumbers::c_ZPlane) {
123 if (layer < BKLMElementNumbers::c_FirstRPCLayer) {
124 int channelCheck = channelId;
125 if (section == BKLMElementNumbers::c_BackwardSection
126 && sector == BKLMElementNumbers::c_ChimneySector) {
127 if (layer == 1) {
128 if (version == 1) {
129 if (channelCheck > 0 && channelCheck < 9)
130 channelId = 9 - channelId;
131 if (channelCheck > 8 && channelCheck < 24)
132 channelId = 54 - channelId;
133 if (channelCheck > 23 && channelCheck < 39)
134 channelId = 54 - channelId;
135 } else {
136 if (channelCheck > 0 && channelCheck < 9)
137 channelId = 9 - channelId; // 8 : 1
138 if (channelCheck > 8 && channelCheck < 24)
139 channelId = 39 - channelId; // 30 : 16
140 if (channelCheck > 23 && channelCheck < 39)
141 channelId = 69 - channelId; // 45 : 31
142 }
143 }
144 if (layer == 2) {
145 if (channelCheck > 0 && channelCheck < 10)
146 channelId = 10 - channelId;
147 if (channelCheck > 9 && channelCheck < 24)
148 channelId = 40 - channelId;
149 if (channelCheck > 23 && channelCheck < 39)
150 channelId = 69 - channelId;
151 }
152 } else { // All the sectors except the chimney one
153 if (channelCheck > 0 && channelCheck < 10)
154 channelId = 10 - channelId;
155 if (channelCheck > 9 && channelCheck < 25)
156 channelId = 40 - channelId;
157 if (channelCheck > 24 && channelCheck < 40)
158 channelId = 70 - channelId;
159 if (channelCheck > 39 && channelCheck < 55)
160 channelId = 100 - channelId;
161 }
162 }
163 }
164
165 KLMChannelNumber detectorChannel = m_ElementNumbers->channelNumberBKLM(
166 section, sector, layer, plane, iStrip);
167 m_ChannelMap.insert(
168 std::pair<KLMChannelNumber, KLMElectronicsChannel>(
169 detectorChannel,
170 KLMElectronicsChannel(copperId, slotId, laneId, axisId, channelId)));
171 }
172 }
173}
Belle2::BKLMElementNumbers::c_ChimneySector
@ c_ChimneySector
Chimney sector: BB3 in 1-based notation; BB2 in 0-based notation.
Definition: BKLMElementNumbers.h:54
Belle2::BKLMElementNumbers::c_FirstRPCLayer
@ c_FirstRPCLayer
First RPC layer.
Definition: BKLMElementNumbers.h:64
Belle2::BKLMElementNumbers::getNStrips
static int getNStrips(int section, int sector, int layer, int plane)
Get number of strips.
Definition: BKLMElementNumbers.cc:107
Belle2::KLMChannelIndex
KLM channel index.
Definition: KLMChannelIndex.h:23
Belle2::KLMChannelIndex::beginBKLM
KLMChannelIndex beginBKLM()
First channel for BKLM.
Definition: KLMChannelIndex.cc:187
Belle2::KLMChannelIndex::endBKLM
KLMChannelIndex & endBKLM()
Last channel for BKLM.
Definition: KLMChannelIndex.cc:193
Belle2::KLMElementNumbers::channelNumberBKLM
KLMChannelNumber channelNumberBKLM(int section, int sector, int layer, int plane, int strip) const
Get channel number for BKLM.
Definition: KLMElementNumbers.cc:48

◆ loadEKLMElectronicsMap()

void loadEKLMElectronicsMap ( int  version,
bool  mc
)

Load EKLM electronics map.

Parameters
[in]versionMap version: 1) Phase 2, experiment 3. Connection of cables was wrong for backward sectors 2 and 3. 2) Phase 3, starting from experiment 4.
[in]mcMC or data (MC does not have occasional cable switches that exist in the data).

Definition at line 222 of file KLMElectronicsMapImporter.cc.

223{
224 const int minimalVersion = 1;
225 const int maximalVersion = 2;
226 if (version < minimalVersion || version > maximalVersion) {
227 B2FATAL("Incorrect version (" << version << ") of EKLM electronics map. "
228 "It must be from " << minimalVersion << " to " << maximalVersion);
229 }
230 /* Backward section. */
231 /* Sector 1. */
232 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 1, 3, 1, 1);
233 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 2, 3, 1, 2);
234 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 3, 3, 1, 3);
235 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 4, 3, 1, 4);
236 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 5, 3, 1, 5);
237 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 6, 3, 1, 6);
238 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 7, 3, 2, 1);
239 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 8, 3, 2, 2);
240 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 9, 3, 2, 3);
241 /* Wrong connection was fixed between phase 2 and phase 3. */
242 if (mc || (version >= 2)) {
243 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 10, 3, 2, 4);
244 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 11, 3, 2, 5);
245 } else {
246 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 10, 3, 2, 5);
247 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 11, 3, 2, 4);
248 }
249 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 1, 12, 3, 2, 6);
250 /* Sector 2. */
251 if (version == 1) {
252 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 1, 3, 3, 1);
253 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 2, 3, 3, 2);
254 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 3, 3, 3, 3);
255 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 4, 3, 3, 4);
256 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 5, 3, 3, 5);
257 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 6, 3, 3, 6);
258 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 7, 3, 4, 1);
259 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 8, 3, 4, 2);
260 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 9, 3, 4, 3);
261 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 10, 3, 4, 4);
262 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 11, 3, 4, 5);
263 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 12, 3, 4, 6);
264 } else {
265 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 1, 3, 4, 6);
266 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 2, 3, 4, 5);
267 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 3, 3, 4, 4);
268 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 4, 3, 4, 3);
269 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 5, 3, 4, 2);
270 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 6, 3, 4, 1);
271 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 7, 3, 3, 6);
272 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 8, 3, 3, 5);
273 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 9, 3, 3, 4);
274 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 10, 3, 3, 3);
275 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 11, 3, 3, 2);
276 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 2, 12, 3, 3, 1);
277 }
278 /* Sector 3. */
279 if (version == 1) {
280 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 1, 4, 1, 1);
281 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 2, 4, 1, 2);
282 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 3, 4, 1, 3);
283 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 4, 4, 1, 4);
284 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 5, 4, 1, 5);
285 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 6, 4, 1, 6);
286 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 7, 4, 2, 1);
287 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 8, 4, 2, 2);
288 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 9, 4, 2, 3);
289 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 10, 4, 2, 4);
290 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 11, 4, 2, 5);
291 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 12, 4, 2, 6);
292 } else {
293 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 1, 4, 2, 6);
294 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 2, 4, 2, 5);
295 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 3, 4, 2, 4);
296 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 4, 4, 2, 3);
297 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 5, 4, 2, 2);
298 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 6, 4, 2, 1);
299 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 7, 4, 1, 6);
300 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 8, 4, 1, 5);
301 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 9, 4, 1, 4);
302 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 10, 4, 1, 3);
303 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 11, 4, 1, 2);
304 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 3, 12, 4, 1, 1);
305 }
306 /* Sector 4. */
307 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 1, 4, 3, 1);
308 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 2, 4, 3, 2);
309 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 3, 4, 3, 3);
310 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 4, 4, 3, 4);
311 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 5, 4, 3, 5);
312 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 6, 4, 3, 6);
313 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 7, 4, 4, 1);
314 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 8, 4, 4, 2);
315 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 9, 4, 4, 3);
316 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 10, 4, 4, 4);
317 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 11, 4, 4, 5);
318 addEKLMLane(EKLMElementNumbers::c_BackwardSection, 4, 12, 4, 4, 6);
319 /* Forward section. */
320 /* Sector 1. */
321 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 1, 1, 3, 1);
322 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 2, 1, 3, 2);
323 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 3, 1, 3, 3);
324 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 4, 1, 3, 4);
325 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 5, 1, 3, 5);
326 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 6, 1, 3, 6);
327 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 7, 1, 3, 7);
328 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 8, 1, 4, 1);
329 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 9, 1, 4, 2);
330 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 10, 1, 4, 3);
331 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 11, 1, 4, 4);
332 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 12, 1, 4, 5);
333 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 13, 1, 4, 6);
334 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 1, 14, 1, 4, 7);
335 /* Sector 2. */
336 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 1, 1, 1, 1);
337 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 2, 1, 1, 2);
338 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 3, 1, 1, 3);
339 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 4, 1, 1, 4);
340 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 5, 1, 1, 5);
341 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 6, 1, 1, 6);
342 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 7, 1, 1, 7);
343 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 8, 1, 2, 1);
344 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 9, 1, 2, 2);
345 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 10, 1, 2, 3);
346 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 11, 1, 2, 4);
347 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 12, 1, 2, 5);
348 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 13, 1, 2, 6);
349 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 2, 14, 1, 2, 7);
350 /* Sector 3. */
351 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 1, 2, 3, 1);
352 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 2, 2, 3, 2);
353 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 3, 2, 3, 3);
354 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 4, 2, 3, 4);
355 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 5, 2, 3, 5);
356 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 6, 2, 3, 6);
357 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 7, 2, 3, 7);
358 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 8, 2, 4, 1);
359 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 9, 2, 4, 2);
360 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 10, 2, 4, 3);
361 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 11, 2, 4, 4);
362 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 12, 2, 4, 5);
363 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 13, 2, 4, 6);
364 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 3, 14, 2, 4, 7);
365 /* Sector 4. */
366 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 1, 2, 1, 1);
367 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 2, 2, 1, 2);
368 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 3, 2, 1, 3);
369 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 4, 2, 1, 4);
370 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 5, 2, 1, 5);
371 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 6, 2, 1, 6);
372 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 7, 2, 1, 7);
373 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 8, 2, 2, 1);
374 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 9, 2, 2, 2);
375 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 10, 2, 2, 3);
376 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 11, 2, 2, 4);
377 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 12, 2, 2, 5);
378 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 13, 2, 2, 6);
379 addEKLMLane(EKLMElementNumbers::c_ForwardSection, 4, 14, 2, 2, 7);
380 /* Switch of internal cables. */
381 if (!mc) {
382 setChannelsEKLMSegment(1, 1, 5, 1, 1, 4);
383 setChannelsEKLMSegment(1, 1, 5, 1, 2, 5);
384 setChannelsEKLMSegment(1, 1, 5, 2, 1, 4);
385 setChannelsEKLMSegment(1, 1, 5, 2, 2, 5);
386 setChannelsEKLMSegment(2, 1, 10, 2, 3, 2);
387 setChannelsEKLMSegment(2, 1, 10, 2, 4, 3);
388 }
389}
Belle2::KLMElectronicsMapImporter::setChannelsEKLMSegment
void setChannelsEKLMSegment(int section, int sector, int layer, int plane, int segment, int firmwareSegment)
Set channels for EKLM segment.
Definition: KLMElectronicsMapImporter.cc:204
Belle2::KLMElectronicsMapImporter::addEKLMLane
void addEKLMLane(int section, int sector, int layer, int copper, int slot, int lane)
Add EKLM electronics map lane.
Definition: KLMElectronicsMapImporter.cc:187

◆ setChannelsEKLMSegment()

void setChannelsEKLMSegment ( int  section,
int  sector,
int  layer,
int  plane,
int  segment,
int  firmwareSegment
)
private

Set channels for EKLM segment.

Parameters
[in]sectionSection.
[in]sectorSector.
[in]layerLayer.
[in]planePlane.
[in]segmentSegment.
[in]firmwareSegmentSegment number in firmware.

Definition at line 204 of file KLMElectronicsMapImporter.cc.

207{
208 std::map<KLMChannelNumber, KLMElectronicsChannel>:: iterator it;
209 for (int strip = 1; strip <= EKLMElementNumbers::getNStripsSegment(); ++strip) {
210 int stripPlane = strip + EKLMElementNumbers::getNStripsSegment() * (segment - 1);
211 KLMChannelNumber detectorChannel = m_ElementNumbers->channelNumberEKLM(
212 section, sector, layer, plane, stripPlane);
213 it = m_ChannelMap.find(detectorChannel);
214 if (it == m_ChannelMap.end())
215 B2FATAL("The KLM electronics map is not loaded or incomplete.");
216 int channel = (firmwareSegment - 1) * EKLMElementNumbers::getNStripsSegment() +
217 strip;
218 it->second.setChannel(channel);
219 }
220}

◆ setIOV()

void setIOV ( int  experimentLow,
int  runLow,
int  experimentHigh,
int  runHigh
)

Set interval of validity.

Definition at line 33 of file KLMElectronicsMapImporter.cc.

35{
36 m_ExperimentLow = experimentLow;
37 m_RunLow = runLow;
38 m_ExperimentHigh = experimentHigh;
39 m_RunHigh = runHigh;
40}

◆ setLane() [1/2]

void setLane ( int  subdetector,
int  section,
int  sector,
int  layer,
int  lane
)

Set non-default lane for all channels in a module.

Parameters
[in]subdetectorSubdetector.
[in]sectionSection.
[in]sectorSector.
[in]layerLayer.
[in]laneLane.

Definition at line 391 of file KLMElectronicsMapImporter.cc.

393{
394 std::map<KLMChannelNumber, KLMElectronicsChannel>::iterator it;
395 int minimalPlane = m_ElementNumbers->getMinimalPlaneNumber(subdetector);
396 KLMChannelIndex klmChannel(subdetector, section, sector, layer, minimalPlane, 1);
397 KLMChannelIndex klmModule(klmChannel);
398 klmModule.setIndexLevel(KLMChannelIndex::c_IndexLevelLayer);
399 KLMChannelIndex klmNextModule(klmModule);
400 ++klmNextModule;
401 for (; klmChannel != klmNextModule; ++klmChannel) {
402 KLMChannelNumber channel = klmChannel.getKLMChannelNumber();
403 it = m_ChannelMap.find(channel);
404 if (it == m_ChannelMap.end())
405 B2FATAL("The KLM electronics map is not loaded or incomplete.");
406 it->second.setLane(lane);
407 }
408}
Belle2::KLMElementNumbers::getMinimalPlaneNumber
int getMinimalPlaneNumber(int subdetector) const
Get minimal plane number.
Definition: KLMElementNumbers.cc:254

◆ setLane() [2/2]

void setLane ( int  subdetector,
int  section,
int  sector,
int  layer,
int  plane,
int  lane
)

Set non-default lane for all channels in a plane.

Parameters
[in]subdetectorSubdetector.
[in]sectionSection.
[in]sectorSector.
[in]layerLayer.
[in]planePlane.
[in]laneLane.

Definition at line 410 of file KLMElectronicsMapImporter.cc.

412{
413 std::map<KLMChannelNumber, KLMElectronicsChannel>::iterator it;
414 KLMChannelIndex klmChannel(subdetector, section, sector, layer, plane, 1);
415 KLMChannelIndex klmPlane(klmChannel);
416 klmPlane.setIndexLevel(KLMChannelIndex::c_IndexLevelPlane);
417 KLMChannelIndex klmNextPlane(klmPlane);
418 ++klmNextPlane;
419 for (; klmChannel != klmNextPlane; ++klmChannel) {
420 KLMChannelNumber channel = klmChannel.getKLMChannelNumber();
421 it = m_ChannelMap.find(channel);
422 if (it == m_ChannelMap.end())
423 B2FATAL("The KLM electronics map is not loaded or incomplete.");
424 it->second.setLane(lane);
425 }
426}

Member Data Documentation

◆ m_ChannelMap

std::map<KLMChannelNumber, KLMElectronicsChannel> m_ChannelMap
private

Data for creation of the electronics map.

Definition at line 141 of file KLMElectronicsMapImporter.h.

◆ m_ElementNumbers

const KLMElementNumbers* m_ElementNumbers
private

Element numbers.

Definition at line 138 of file KLMElectronicsMapImporter.h.

◆ m_ExperimentHigh

int m_ExperimentHigh = -1
private

High experiment.

Definition at line 150 of file KLMElectronicsMapImporter.h.

◆ m_ExperimentLow

int m_ExperimentLow = 0
private

Low experiment.

Definition at line 144 of file KLMElectronicsMapImporter.h.

◆ m_RunHigh

int m_RunHigh = -1
private

High run.

Definition at line 153 of file KLMElectronicsMapImporter.h.

◆ m_RunLow

int m_RunLow = 0
private

Low run.

Definition at line 147 of file KLMElectronicsMapImporter.h.

The documentation for this class was generated from the following files:
