PXDClusterPositionErrorPar Class Reference

The payload class for PXD cluster position error. More...

#include <PXDClusterPositionErrorPar.h>

Inheritance diagram for PXDClusterPositionErrorPar:

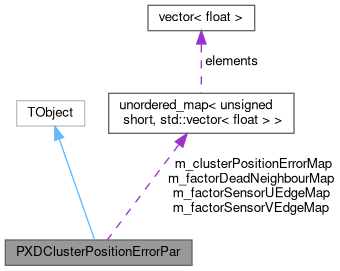

Collaboration diagram for PXDClusterPositionErrorPar:

Public Member Functions
	PXDClusterPositionErrorPar (unsigned short nBinsU=1, unsigned short nBinsV=3, unsigned short maxSize=8, float defaultValue=0.0, float defaultFactor=1.0)
	Default constructor.
unsigned short	getBinsU () const
	Get number of bins along sensor u side.
unsigned short	getBinsV () const
	Get number of bins along sensor v side.
unsigned short	getMaxClusterSize () const
	Get maximum cluster size that the error is defined.
unsigned short	getGlobalID (unsigned short uBin, unsigned short vBin, unsigned short size) const
	Get global id from uBin and vBin and cluster size.
void	setContent (unsigned short sensorID, unsigned short globalID, float value)
	Set map content.
void	setContent (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size, float value)
	Set map content.
float	getContent (unsigned short sensorID, unsigned short globalID) const
	Get content.
float	getContent (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size) const
	Get content.
void	setSensorUEdgeFactor (unsigned short sensorID, unsigned short globalID, float factor)
	Set scaling factor at sensor U edge.
void	setSensorUEdgeFactor (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size, float factor)
	Set scaling factor at sensor U edge.
void	setSensorVEdgeFactor (unsigned short sensorID, unsigned short globalID, float factor)
	Set scaling factor at sensor V edge.
void	setSensorVEdgeFactor (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size, float factor)
	Set scaling factor at sensor V edge.
void	setDeadNeighbourFactor (unsigned short sensorID, unsigned short globalID, float factor)
	Set scaling factor when neighbouring dead rows/columns.
void	setDeadNeighbourFactor (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size, float factor)
	Set scaling factor when neighbouring dead rows/columns.
float	getSensorUEdgeFactor (unsigned short sensorID, unsigned short globalID) const
	Get scaling factor at sensor edge in U.
float	getSensorUEdgeFactor (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size) const
	Get scaling factor at sensor edge in U.
float	getSensorVEdgeFactor (unsigned short sensorID, unsigned short globalID) const
	Get scaling factor at sensor edge in V.
float	getSensorVEdgeFactor (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size) const
	Get scaling factor at sensor edge in V.
float	getDeadNeighbourFactor (unsigned short sensorID, unsigned short globalID) const
	Get scaling factor when neighbouring dead rows/column.
float	getDeadNeighbourFactor (unsigned short sensorID, unsigned short uBin, unsigned short vBin, unsigned short size) const
	Get scaling factor when neighbouring dead rows/column.
const std::unordered_map< unsigned short, std::vector< float > > &	getClusterPositionErrorMap () const
	Return unordered_map with all PXD cluster position errors.

Private Member Functions
	ClassDef (PXDClusterPositionErrorPar, 8)
	ClassDef, must be the last term before the closing {}.

Private Attributes
unsigned short	m_nBinsU
	Number of bins per sensor along u side.
unsigned short	m_nBinsV
	Number of bins per sensor along v side.
unsigned short	m_maxSize
	Maximum cluster size.
float	m_defaultValue
	Default value for map.
float	m_defaultFactor
	Default value for scale factor map.
std::unordered_map< unsigned short, std::vector< float > >	m_factorSensorUEdgeMap
	Scaling factor at sensor U edge for layers 1 or 2 and FWD/BWD sensors with sensor number 1 or 2.
std::unordered_map< unsigned short, std::vector< float > >	m_factorSensorVEdgeMap
	Scaling factor at sensor V edge for layers 1 or 2 and FWD/BWD sensors with sensor number 1 or 2.
std::unordered_map< unsigned short, std::vector< float > >	m_factorDeadNeighbourMap
	Scaling factor when neighbouring dead rows/colums for FWD/BWD sensors by sensor number 1 or 2.
std::unordered_map< unsigned short, std::vector< float > >	m_clusterPositionErrorMap
	Map for holding the cluster position errors for all PXD sensors by sensor id (unsigned short).

Detailed Description

The payload class for PXD cluster position error.

The payload class stores the expected cluster position error in [cm]. (Values are currently obtained from MC reco - true)

In principle, errors depend on cluster dimension and pixel cell size, and not on global position. (const cell size in u, 4 different sizes in v for Layer1/2 and for small/large cell regions) Nonetheless, error values are stored for each sensor in bins of u and v to accommodate the possibility to define errors as a function of position.

Position error is assigned to every cluster in PXDClusterizer module.

Definition at line 34 of file PXDClusterPositionErrorPar.h.

Constructor & Destructor Documentation

PXDClusterPositionErrorPar()

PXDClusterPositionErrorPar ( unsigned short  nBinsU = 1, unsigned short  nBinsV = 3, unsigned short  maxSize = 8, float  defaultValue = 0.0, float  defaultFactor = 1.0  )

inline

Default constructor.

Definition at line 38 of file PXDClusterPositionErrorPar.h.

                                                                                   :
      m_nBinsU(nBinsU), m_nBinsV(nBinsV), m_maxSize(maxSize), m_defaultValue(defaultValue), m_defaultFactor(defaultFactor),
      m_factorSensorUEdgeMap(), m_factorSensorVEdgeMap(), m_factorDeadNeighbourMap(), m_clusterPositionErrorMap() { }

Member Function Documentation

getBinsU()

unsigned short getBinsU ( ) const

inline

Get number of bins along sensor u side.

Definition at line 45 of file PXDClusterPositionErrorPar.h.

{ return m_nBinsU; }

getBinsV()

unsigned short getBinsV ( ) const

inline

Get number of bins along sensor v side.

Definition at line 49 of file PXDClusterPositionErrorPar.h.

{ return m_nBinsV; }

getClusterPositionErrorMap()

const std::unordered_map< unsigned short, std::vector< float > > & getClusterPositionErrorMap ( ) const

inline

Return unordered_map with all PXD cluster position errors.

Definition at line 316 of file PXDClusterPositionErrorPar.h.

{return m_clusterPositionErrorMap;}

getContent() [1/2]

float getContent ( unsigned short  sensorID, unsigned short  globalID  ) const

inline

Get content.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin)

Returns

value cluster position error value to store

Definition at line 105 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_clusterPositionErrorMap.find(sensorID);
      if (mapIter != m_clusterPositionErrorMap.end()) {
        // Found sensor, return position error value
        auto& errVec = mapIter->second;
        return errVec[globalID];
      }
      // Sensor not found, keep low profile and return default position error value
      return m_defaultValue;
    }

getContent() [2/2]

float getContent ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size  ) const

inline

Get content.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size

Returns

value cluster position error value to store

Definition at line 124 of file PXDClusterPositionErrorPar.h.

    {
      return getContent(sensorID, getGlobalID(uBin, vBin, size));
    }

getDeadNeighbourFactor() [1/2]

float getDeadNeighbourFactor ( unsigned short  sensorID, unsigned short  globalID  ) const

inline

Get scaling factor when neighbouring dead rows/column.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin,size)

Returns

value scale factor when neighbouring dead rows/column

Definition at line 292 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_factorDeadNeighbourMap.find(sensorID);
      if (mapIter != m_factorDeadNeighbourMap.end()) {
        // Found sensor, return scale factor value
        auto& facVec = mapIter->second;
        return facVec[globalID];
      }
      // Sensor not found, keep low profile and return default scale factor value
      return m_defaultFactor;
    }

getDeadNeighbourFactor() [2/2]

float getDeadNeighbourFactor ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size  ) const

inline

Get scaling factor when neighbouring dead rows/column.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size

Returns

value scale factor when neighbouring dead rows/columns

Definition at line 310 of file PXDClusterPositionErrorPar.h.

    {
      return getDeadNeighbourFactor(sensorID, getGlobalID(uBin, vBin, size));
    }

getGlobalID()

unsigned short getGlobalID ( unsigned short  uBin, unsigned short  vBin, unsigned short  size  ) const

inline

Get global id from uBin and vBin and cluster size.

Definition at line 59 of file PXDClusterPositionErrorPar.h.

    {
      if (size > m_maxSize) size = m_maxSize;
      return uBin * (m_nBinsV * m_maxSize) + vBin * m_maxSize + size - 1;
    }

getMaxClusterSize()

unsigned short getMaxClusterSize ( ) const

inline

Get maximum cluster size that the error is defined.

Definition at line 53 of file PXDClusterPositionErrorPar.h.

{ return m_maxSize; }

getSensorUEdgeFactor() [1/2]

float getSensorUEdgeFactor ( unsigned short  sensorID, unsigned short  globalID  ) const

inline

Get scaling factor at sensor edge in U.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin,size)

Returns

value scale factor at sensor edge in U

Definition at line 236 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_factorSensorUEdgeMap.find(sensorID);
      if (mapIter != m_factorSensorUEdgeMap.end()) {
        // Found sensor, return scale factor value
        auto& facVec = mapIter->second;
        return facVec[globalID];
      }
      // Sensor not found, keep low profile and return default scale factor value
      return m_defaultFactor;
    }

getSensorUEdgeFactor() [2/2]

float getSensorUEdgeFactor ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size  ) const

inline

Get scaling factor at sensor edge in U.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size

Returns

value scale factor at sensor edge in U

Definition at line 254 of file PXDClusterPositionErrorPar.h.

    {
      return getSensorUEdgeFactor(sensorID, getGlobalID(uBin, vBin, size));
    }

getSensorVEdgeFactor() [1/2]

float getSensorVEdgeFactor ( unsigned short  sensorID, unsigned short  globalID  ) const

inline

Get scaling factor at sensor edge in V.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin,size)

Returns

value scale factor at sensor edge in V

Definition at line 264 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_factorSensorVEdgeMap.find(sensorID);
      if (mapIter != m_factorSensorVEdgeMap.end()) {
        // Found sensor, return scale factor value
        auto& facVec = mapIter->second;
        return facVec[globalID];
      }
      // Sensor not found, keep low profile and return default scale factor value
      return m_defaultFactor;
    }

getSensorVEdgeFactor() [2/2]

float getSensorVEdgeFactor ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size  ) const

inline

Get scaling factor at sensor edge in V.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size

Returns

value scale factor at sensor edge in V

Definition at line 282 of file PXDClusterPositionErrorPar.h.

    {
      return getSensorVEdgeFactor(sensorID, getGlobalID(uBin, vBin, size));
    }

setContent() [1/2]

void setContent ( unsigned short  sensorID, unsigned short  globalID, float  value  )

inline

Set map content.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin) and cluser size
value	cluster position error value to store

Definition at line 70 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_clusterPositionErrorMap.find(sensorID);
      if (mapIter != m_clusterPositionErrorMap.end()) {
        // Already some values stored
        auto& errVec = mapIter->second;
        // Set the value
        errVec[globalID] = value;
      } else {
        // Create a fresh position error vector
        std::vector<float> errVec(m_nBinsU * m_nBinsV * m_maxSize, m_defaultValue);
        // Set the value
        errVec[globalID] = value;
        // Add vector to map
        m_clusterPositionErrorMap[sensorID] = errVec;
      }
    }

setContent() [2/2]

void setContent ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size, float  value  )

inline

Set map content.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size
value	cluster position error value to store

Definition at line 95 of file PXDClusterPositionErrorPar.h.

    {
      setContent(sensorID, getGlobalID(uBin, vBin, size), value);
    }

setDeadNeighbourFactor() [1/2]

void setDeadNeighbourFactor ( unsigned short  sensorID, unsigned short  globalID, float  factor  )

inline

Set scaling factor when neighbouring dead rows/columns.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin) and cluser size
factor	scale factor value to store

Definition at line 202 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_factorDeadNeighbourMap.find(sensorID);
      if (mapIter != m_factorDeadNeighbourMap.end()) {
        // Already some values stored
        auto& facVec = mapIter->second;
        // Set the value
        facVec[globalID] = factor;
      } else {
        // Create a fresh scale factor vector
        std::vector<float> facVec(m_nBinsU * m_nBinsV * m_maxSize, m_defaultFactor);
        // Set the value
        facVec[globalID] = factor;
        // Add vector to map
        m_factorDeadNeighbourMap[sensorID] = facVec;
      }
    }

setDeadNeighbourFactor() [2/2]

void setDeadNeighbourFactor ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size, float  factor  )

inline

Set scaling factor when neighbouring dead rows/columns.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size
factor	scale factor value to store

Definition at line 226 of file PXDClusterPositionErrorPar.h.

    {
      setDeadNeighbourFactor(sensorID, getGlobalID(uBin, vBin, size), factor);
    }

setSensorUEdgeFactor() [1/2]

void setSensorUEdgeFactor ( unsigned short  sensorID, unsigned short  globalID, float  factor  )

inline

Set scaling factor at sensor U edge.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin) and cluser size
factor	scale factor value to store

Definition at line 134 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_factorSensorUEdgeMap.find(sensorID);
      if (mapIter != m_factorSensorUEdgeMap.end()) {
        // Already some values stored
        auto& facVec = mapIter->second;
        // Set the value
        facVec[globalID] = factor;
      } else {
        // Create a fresh scale factor vector
        std::vector<float> facVec(m_nBinsU * m_nBinsV * m_maxSize, m_defaultFactor);
        // Set the value
        facVec[globalID] = factor;
        // Add vector to map
        m_factorSensorUEdgeMap[sensorID] = facVec;
      }
    }

setSensorUEdgeFactor() [2/2]

void setSensorUEdgeFactor ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size, float  factor  )

inline

Set scaling factor at sensor U edge.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size
factor	scale factor value to store

Definition at line 158 of file PXDClusterPositionErrorPar.h.

    {
      setSensorUEdgeFactor(sensorID, getGlobalID(uBin, vBin, size), factor);
    }

setSensorVEdgeFactor() [1/2]

void setSensorVEdgeFactor ( unsigned short  sensorID, unsigned short  globalID, float  factor  )

inline

Set scaling factor at sensor V edge.

Parameters

sensorID	unique ID of the sensor
globalID	unique ID for part of sensor (uBin,vBin) and cluser size
factor	scale factor value to store

Definition at line 168 of file PXDClusterPositionErrorPar.h.

    {
      auto mapIter = m_factorSensorVEdgeMap.find(sensorID);
      if (mapIter != m_factorSensorVEdgeMap.end()) {
        // Already some values stored
        auto& facVec = mapIter->second;
        // Set the value
        facVec[globalID] = factor;
      } else {
        // Create a fresh scale factor vector
        std::vector<float> facVec(m_nBinsU * m_nBinsV * m_maxSize, m_defaultFactor);
        // Set the value
        facVec[globalID] = factor;
        // Add vector to map
        m_factorSensorVEdgeMap[sensorID] = facVec;
      }
    }

setSensorVEdgeFactor() [2/2]

void setSensorVEdgeFactor ( unsigned short  sensorID, unsigned short  uBin, unsigned short  vBin, unsigned short  size, float  factor  )

inline

Set scaling factor at sensor V edge.

Parameters

sensorID	unique ID of the sensor
uBin	position error bin along u side of sensor
vBin	position error bin along v side of sensor
size	cluster size
factor	scale factor value to store

Definition at line 192 of file PXDClusterPositionErrorPar.h.

    {
      setSensorVEdgeFactor(sensorID, getGlobalID(uBin, vBin, size), factor);
    }

Member Data Documentation

m_clusterPositionErrorMap

std::unordered_map<unsigned short, std::vector<float> > m_clusterPositionErrorMap

private

Map for holding the cluster position errors for all PXD sensors by sensor id (unsigned short).

Definition at line 345 of file PXDClusterPositionErrorPar.h.

m_defaultFactor

float m_defaultFactor

private

Default value for scale factor map.

Definition at line 333 of file PXDClusterPositionErrorPar.h.

m_defaultValue

float m_defaultValue

private

Default value for map.

Definition at line 330 of file PXDClusterPositionErrorPar.h.

m_factorDeadNeighbourMap

std::unordered_map<unsigned short, std::vector<float> > m_factorDeadNeighbourMap

private

Scaling factor when neighbouring dead rows/colums for FWD/BWD sensors by sensor number 1 or 2.

Definition at line 342 of file PXDClusterPositionErrorPar.h.

m_factorSensorUEdgeMap

std::unordered_map<unsigned short, std::vector<float> > m_factorSensorUEdgeMap

private

Scaling factor at sensor U edge for layers 1 or 2 and FWD/BWD sensors with sensor number 1 or 2.

Definition at line 336 of file PXDClusterPositionErrorPar.h.

m_factorSensorVEdgeMap

std::unordered_map<unsigned short, std::vector<float> > m_factorSensorVEdgeMap

private

Scaling factor at sensor V edge for layers 1 or 2 and FWD/BWD sensors with sensor number 1 or 2.

Definition at line 339 of file PXDClusterPositionErrorPar.h.

m_maxSize

unsigned short m_maxSize

private

Maximum cluster size.

Definition at line 327 of file PXDClusterPositionErrorPar.h.

m_nBinsU

unsigned short m_nBinsU

private

Number of bins per sensor along u side.

Definition at line 321 of file PXDClusterPositionErrorPar.h.

m_nBinsV

unsigned short m_nBinsV

private

Number of bins per sensor along v side.

Definition at line 324 of file PXDClusterPositionErrorPar.h.

---

The documentation for this class was generated from the following file:

• pxd/dbobjects/include/PXDClusterPositionErrorPar.h
