Database object for Run Information. More...

#include <RunInfo.h>

Inheritance diagram for RunInfo:

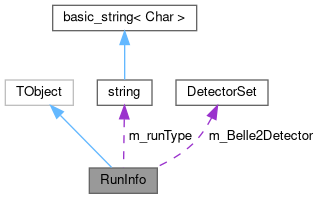

Collaboration diagram for RunInfo:

[legend]

Public Member Functions
	RunInfo ()
	Default constructor.

void	setExp (unsigned int exp)
	Set Experimental Number.

void	setRun (unsigned int run)
	Set Run Number.

void	setRunType (const std::string &run_type)
	Set Run Type.

void	setStartTime (unsigned long long int start_time)
	Set Run Start time (Epoch time)

void	setStopTime (unsigned long long int stop_time)
	Set Run Stop time (Epoch time)

void	setReceivedNevent (unsigned int received_nevent)
	Set No.

void	setAcceptedNevent (unsigned int accepted_nevent)
	Set No.

void	setSentNevent (unsigned int sent_nevent)
	Set No.

void	setRunLength (unsigned int run_length)
	Set Run length (in sec) by DAQ.

void	setTriggerRate (double trigger_rate)
	Set Trigger rate (in Hz)

void	setBelle2Detector (unsigned int pxd, unsigned int svd, unsigned int cdc, unsigned int top, unsigned int arich, unsigned int ecl, unsigned int klm)
	Set DetectorSet based on which sub-detectors is included.

void	setBadRun (unsigned int bad_run)
	Set Bad run tag (=0 means good run)

void	setPreScaleTrigger (unsigned int prescaleTrigger, int bit)
	Set L1 preScale Trigger factors.

unsigned int	getExp () const
	Get Experiment number.

unsigned int	getRun () const
	Get Run number.

const std::string &	getRunType () const
	Get Run type.

unsigned long long int	getStartTime () const
	Get Run start time (Epoch time)

unsigned long long int	getStopTime () const
	Get Run stop time (Epoch time)

unsigned int	getReceivedNevent () const
	Get No.

unsigned int	getAcceptedNevent () const
	Get No.

unsigned int	getSentNevent () const
	Get No.

unsigned int	getRunLength () const
	Get Run length (in sec) by DAQ.

double	getTriggerRate () const
	Get Trigger rate (Hz)

unsigned int	getBadRun () const
	Get Bad run tag.

Const::DetectorSet	getBelle2Detector () const
	Get DetectorSet for the subdetectors included in the set.

unsigned int	getPreScaleTrigger (int bit) const
	Get L1 preScale Trigger factors.

virtual void	Print (Option_t *option="") const override
	Print the content value.

Private Member Functions
	ClassDefOverride (RunInfo, 2)
	ClassDef.

Private Attributes
unsigned int	m_exp {0}
	Experiment Number.

unsigned int	m_run {0}
	Run Number.

std::string	m_runType {""}
	Run type

unsigned long long int	m_startTime {0}
	Run start time (Epoch time)

unsigned long long int	m_stopTime {0}
	Run stop time (Epoch time)

unsigned int	m_receivedNevent {0}
	No.

unsigned int	m_acceptedNevent {0}
	Get No.

unsigned int	m_sentNevent {0}
	No.

double	m_triggerRate {0}
	Trigger rate (in Hz)

unsigned int	m_runLength {0}
	Run length (in sec) by DAQ.

unsigned int	m_badRun {0}
	Bad run tag (=0 means good run)

Const::DetectorSet	m_Belle2Detector
	DetectorSet for the sub-detector used.

unsigned int	m_prescaleTrigger [192] = {0}
	L1 Trigger Prescale factors.

Detailed Description

Database object for Run Information.

Definition at line 24 of file RunInfo.h.

Constructor & Destructor Documentation

◆ RunInfo()

RunInfo ( )

inline

Default constructor.

Definition at line 30 of file RunInfo.h.

30{}

Member Function Documentation

◆ getAcceptedNevent()

unsigned int getAcceptedNevent ( ) const

inline

Get No.

of events triggered

Definition at line 163 of file RunInfo.h.

163{ return m_acceptedNevent; }

Belle2::RunInfo::m_acceptedNevent

unsigned int m_acceptedNevent

Get No.

Definition: RunInfo.h:234

◆ getBadRun()

unsigned int getBadRun ( ) const

inline

Get Bad run tag.

Definition at line 184 of file RunInfo.h.

184{ return m_badRun; }

Belle2::RunInfo::m_badRun

unsigned int m_badRun

Bad run tag (=0 means good run)

Definition: RunInfo.h:246

◆ getBelle2Detector()

Const::DetectorSet getBelle2Detector ( ) const

inline

Get DetectorSet for the subdetectors included in the set.

Definition at line 190 of file RunInfo.h.

190{ return m_Belle2Detector;}

Belle2::RunInfo::m_Belle2Detector

Const::DetectorSet m_Belle2Detector

DetectorSet for the sub-detector used.

Definition: RunInfo.h:249

◆ getExp()

unsigned int getExp ( ) const

inline

Get Experiment number.

Definition at line 132 of file RunInfo.h.

132{ return m_exp; }

Belle2::RunInfo::m_exp

unsigned int m_exp

Experiment Number.

Definition: RunInfo.h:216

◆ getPreScaleTrigger()

unsigned int getPreScaleTrigger ( int bit ) const

inline

Get L1 preScale Trigger factors.

Definition at line 196 of file RunInfo.h.

    {
      if (bit > -1  && bit < 192) {
        return m_prescaleTrigger[bit];
      } else {
        B2FATAL("getPreScaleTrigger Error : " << bit << " not a valid range. \n Terminate");
      }
    }

◆ getReceivedNevent()

unsigned int getReceivedNevent ( ) const

inline

Get No.

of events HLT processed

Definition at line 158 of file RunInfo.h.

158{ return m_receivedNevent; }

Belle2::RunInfo::m_receivedNevent

unsigned int m_receivedNevent

No.

Definition: RunInfo.h:231

◆ getRun()

unsigned int getRun ( ) const

inline

Get Run number.

Definition at line 137 of file RunInfo.h.

137{ return m_run; }

Belle2::RunInfo::m_run

unsigned int m_run

Run Number.

Definition: RunInfo.h:219

◆ getRunLength()

unsigned int getRunLength ( ) const

inline

Get Run length (in sec) by DAQ.

Definition at line 173 of file RunInfo.h.

173{ return m_runLength; }

Belle2::RunInfo::m_runLength

unsigned int m_runLength

Run length (in sec) by DAQ.

Definition: RunInfo.h:243

◆ getRunType()

const std::string & getRunType ( ) const

inline

Get Run type.

Definition at line 142 of file RunInfo.h.

142{return m_runType;}

Belle2::RunInfo::m_runType

std::string m_runType

Run type

Definition: RunInfo.h:222

◆ getSentNevent()

unsigned int getSentNevent ( ) const

inline

Get No.

of events recorded

Definition at line 168 of file RunInfo.h.

168{ return m_sentNevent; }

Belle2::RunInfo::m_sentNevent

unsigned int m_sentNevent

No.

Definition: RunInfo.h:237

◆ getStartTime()

unsigned long long int getStartTime ( ) const

inline

Get Run start time (Epoch time)

Definition at line 147 of file RunInfo.h.

147{ return m_startTime; }

Belle2::RunInfo::m_startTime

unsigned long long int m_startTime

Run start time (Epoch time)

Definition: RunInfo.h:225

◆ getStopTime()

unsigned long long int getStopTime ( ) const

inline

Get Run stop time (Epoch time)

Definition at line 153 of file RunInfo.h.

153{ return m_stopTime; }

Belle2::RunInfo::m_stopTime

unsigned long long int m_stopTime

Run stop time (Epoch time)

Definition: RunInfo.h:228

◆ getTriggerRate()

double getTriggerRate ( ) const

inline

Get Trigger rate (Hz)

Definition at line 178 of file RunInfo.h.

178{ return m_triggerRate; }

Belle2::RunInfo::m_triggerRate

double m_triggerRate

Trigger rate (in Hz)

Definition: RunInfo.h:240

◆ Print()

void Print ( Option_t * option = "" ) const

overridevirtual

Print the content value.

Definition at line 19 of file RunInfo.cc.

{
  std::cout << " " << std::endl;
  std::cout << "Run Summary" << std::endl;
  std::cout << " Exp " << m_exp << ", Run " << m_run << std::endl;
  std::cout << " Run Type " << m_runType << std::endl;
  std::cout << " Start time " << m_startTime << ", Stop time " << m_stopTime
            << ", Run Length " << m_runLength << ", Trigger Rate " << m_triggerRate << std::endl;
  std::cout << " Received nevents " << m_receivedNevent << " Accepted nevents " << m_acceptedNevent
            << ", Sent nevents " << m_sentNevent << std::endl;

  std::cout << "Detector used " << std::endl;
  for (const Const::EDetector& det : m_Belle2Detector) {
    std::cout << det << "  :   " ;
  }
  std::cout << std::endl;


}

◆ setAcceptedNevent()

void setAcceptedNevent ( unsigned int accepted_nevent )

inline

Set No.

of events triggered

Definition at line 65 of file RunInfo.h.

65{m_acceptedNevent = accepted_nevent; }

◆ setBadRun()

void setBadRun ( unsigned int bad_run )

inline

Set Bad run tag (=0 means good run)

Definition at line 112 of file RunInfo.h.

112{m_badRun = bad_run; }

◆ setBelle2Detector()

void setBelle2Detector	(	unsigned int	pxd,
		unsigned int	svd,
		unsigned int	cdc,
		unsigned int	top,
		unsigned int	arich,
		unsigned int	ecl,
		unsigned int	klm
	)

inline

Set DetectorSet based on which sub-detectors is included.

Definition at line 86 of file RunInfo.h.

    {
      if (pxd > 0)
        m_Belle2Detector = m_Belle2Detector + Const::PXD ;
      if (svd > 0)
        m_Belle2Detector = m_Belle2Detector + Const::SVD ;
      if (cdc > 0)
        m_Belle2Detector = m_Belle2Detector + Const::CDC ;
      if (top > 0)
        m_Belle2Detector = m_Belle2Detector + Const::TOP ;
      if (arich > 0)
        m_Belle2Detector = m_Belle2Detector + Const::ARICH ;
      if (ecl > 0)
        m_Belle2Detector = m_Belle2Detector + Const::ECL ;
      if (klm > 0)
        m_Belle2Detector = m_Belle2Detector + Const::KLM ;
    }

◆ setExp()

void setExp ( unsigned int exp )

inline

Set Experimental Number.

Definition at line 35 of file RunInfo.h.

35{ m_exp = exp; }

◆ setPreScaleTrigger()

void setPreScaleTrigger	(	unsigned int	prescaleTrigger,
		int	bit
	)

inline

Set L1 preScale Trigger factors.

Definition at line 118 of file RunInfo.h.

    {
      if (bit > -1  && bit < 192) {
        m_prescaleTrigger[bit] = prescaleTrigger;
      } else {
        B2FATAL("setPreScaleTrigger Error : " << bit << " not a valid range. \n Terminate");
      }
    }

◆ setReceivedNevent()

void setReceivedNevent ( unsigned int received_nevent )

inline

Set No.

of events HLT processed

Definition at line 60 of file RunInfo.h.

60{m_receivedNevent = received_nevent; }

◆ setRun()

void setRun ( unsigned int run )

inline

Set Run Number.

Definition at line 40 of file RunInfo.h.

40{ m_run = run; }

◆ setRunLength()

void setRunLength ( unsigned int run_length )

inline

Set Run length (in sec) by DAQ.

Definition at line 75 of file RunInfo.h.

75{ m_runLength = run_length; }

◆ setRunType()

void setRunType ( const std::string & run_type )

inline

Set Run Type.

Definition at line 45 of file RunInfo.h.

45{m_runType = run_type;}

◆ setSentNevent()

void setSentNevent ( unsigned int sent_nevent )

inline

Set No.

of events recorded

Definition at line 70 of file RunInfo.h.

70{m_sentNevent = sent_nevent; }

◆ setStartTime()

void setStartTime ( unsigned long long int start_time )

inline

Set Run Start time (Epoch time)

Definition at line 50 of file RunInfo.h.

50{ m_startTime = start_time; }

◆ setStopTime()

void setStopTime ( unsigned long long int stop_time )

inline

Set Run Stop time (Epoch time)

Definition at line 55 of file RunInfo.h.

55{ m_stopTime = stop_time; }

◆ setTriggerRate()

void setTriggerRate ( double trigger_rate )

inline

Set Trigger rate (in Hz)

Definition at line 80 of file RunInfo.h.

80{ m_triggerRate = trigger_rate; }

Member Data Documentation

◆ m_acceptedNevent

unsigned int m_acceptedNevent {0}

private

Get No.

of events triggered

Definition at line 234 of file RunInfo.h.

◆ m_badRun

unsigned int m_badRun {0}

private

Bad run tag (=0 means good run)

Definition at line 246 of file RunInfo.h.

◆ m_Belle2Detector

Const::DetectorSet m_Belle2Detector

private

DetectorSet for the sub-detector used.

Definition at line 249 of file RunInfo.h.

◆ m_exp

unsigned int m_exp {0}

private

Experiment Number.

Definition at line 216 of file RunInfo.h.

◆ m_prescaleTrigger

unsigned int m_prescaleTrigger[192] = {0}

private

L1 Trigger Prescale factors.

Definition at line 252 of file RunInfo.h.

◆ m_receivedNevent

unsigned int m_receivedNevent {0}

private

No.

of events HLT processed

Definition at line 231 of file RunInfo.h.

◆ m_run

unsigned int m_run {0}

private

Run Number.

Definition at line 219 of file RunInfo.h.

◆ m_runLength

unsigned int m_runLength {0}

private

Run length (in sec) by DAQ.

Start and Stop time are when shifter starts the run but in reality there is some difference as DAQ doesn't start immediately or can be paused during the run.

Definition at line 243 of file RunInfo.h.

◆ m_runType

std::string m_runType {""}

private

Run type

Definition at line 222 of file RunInfo.h.

◆ m_sentNevent

unsigned int m_sentNevent {0}

private

No.

of events recorded

Definition at line 237 of file RunInfo.h.

◆ m_startTime

unsigned long long int m_startTime {0}

private

Run start time (Epoch time)

Definition at line 225 of file RunInfo.h.

◆ m_stopTime

unsigned long long int m_stopTime {0}

private

Run stop time (Epoch time)

Definition at line 228 of file RunInfo.h.

◆ m_triggerRate

double m_triggerRate {0}

private

Trigger rate (in Hz)

Definition at line 240 of file RunInfo.h.

The documentation for this class was generated from the following files:

framework/dbobjects/include/RunInfo.h
framework/dbobjects/src/RunInfo.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ RunInfo()

Member Function Documentation

◆ getAcceptedNevent()

◆ getBadRun()

◆ getBelle2Detector()

◆ getExp()

◆ getPreScaleTrigger()

◆ getReceivedNevent()

◆ getRun()

◆ getRunLength()

◆ getRunType()

◆ getSentNevent()

◆ getStartTime()

◆ getStopTime()

◆ getTriggerRate()

◆ Print()

◆ setAcceptedNevent()

◆ setBadRun()

◆ setBelle2Detector()

◆ setExp()

◆ setPreScaleTrigger()

◆ setReceivedNevent()

◆ setRun()

◆ setRunLength()

◆ setRunType()

◆ setSentNevent()

◆ setStartTime()

◆ setStopTime()

◆ setTriggerRate()

Member Data Documentation

◆ m_acceptedNevent

◆ m_badRun

◆ m_Belle2Detector

◆ m_exp

◆ m_prescaleTrigger

◆ m_receivedNevent

◆ m_run

◆ m_runLength

◆ m_runType

◆ m_sentNevent

◆ m_startTime

◆ m_stopTime

◆ m_triggerRate
