SVDHotStripsCalibrations Class Reference

This class defines the wrapper to retrieve the the list of the hot strips flgged offline. More...

#include <SVDHotStripsCalibrations.h>

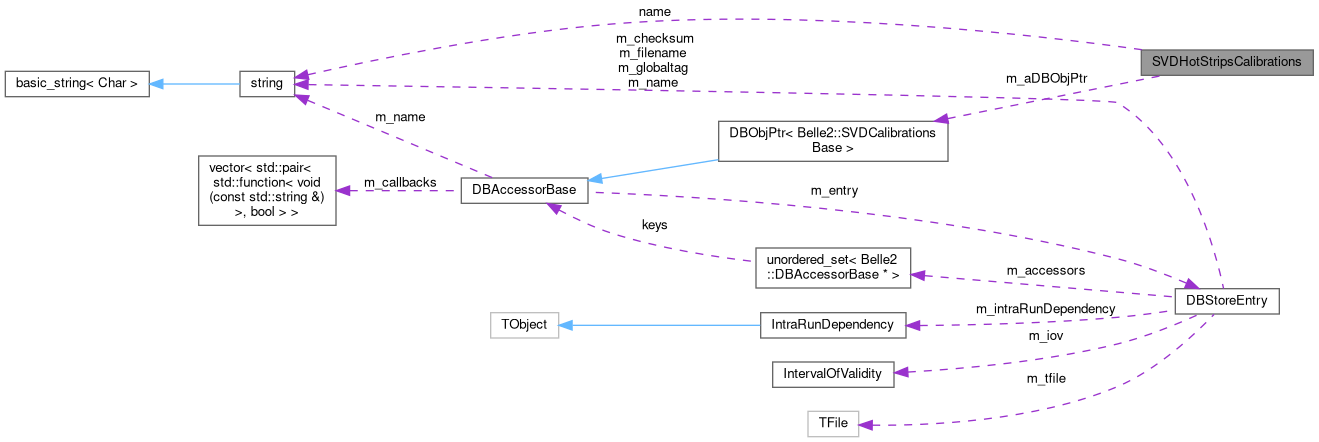

Collaboration diagram for SVDHotStripsCalibrations:

Public Types
typedef SVDCalibrationsBase< SVDCalibrationsBitmap >	t_payload
	typedef of the SVDHotStripsCalibrations payload for all SVD strips

Public Member Functions
	SVDHotStripsCalibrations ()
	Constructor, no input argument is required.
float	isHot (const VxdID &sensorID, const bool &isU, const unsigned short &strip) const
	This is the method for getting the offline list of bad strips to be masked.
TString	getUniqueID ()
	returns the unique ID of the payload
bool	isValid ()
	returns true if the m_aDBObtPtr is valid in the requested IoV

Static Public Attributes
static std::string	name = std::string("SVDHotStripsCalibrations")
	name of the SVDHotStripsCalibrations payload

Private Attributes
DBObjPtr< t_payload >	m_aDBObjPtr
	SVDHotStripsCalibrations payload.

Detailed Description

This class defines the wrapper to retrieve the the list of the hot strips flgged offline.

Definition at line 32 of file SVDHotStripsCalibrations.h.

Member Typedef Documentation

t_payload

typedef SVDCalibrationsBase< SVDCalibrationsBitmap > t_payload

typedef of the SVDHotStripsCalibrations payload for all SVD strips

Definition at line 36 of file SVDHotStripsCalibrations.h.

Constructor & Destructor Documentation

SVDHotStripsCalibrations()

SVDHotStripsCalibrations ( )

inline

Constructor, no input argument is required.

Definition at line 39 of file SVDHotStripsCalibrations.h.

                              : m_aDBObjPtr(name)
    {
      m_aDBObjPtr.addCallback([ this ](const std::string&) -> void {
        B2DEBUG(20, "SVDHotStripsCalibrations: from now on we are using " <<
                this->m_aDBObjPtr -> get_uniqueID()); });
    }

Member Function Documentation

getUniqueID()

TString getUniqueID ( )

inline

returns the unique ID of the payload

Definition at line 66 of file SVDHotStripsCalibrations.h.

{ return m_aDBObjPtr->get_uniqueID(); }

isHot()

float isHot ( const VxdID &  sensorID, const bool &  isU, const unsigned short &  strip  ) const

inline

This is the method for getting the offline list of bad strips to be masked.

Input:

Parameters

sensorID	identitiy of the sensor for which the calibration is required
isU	sensor side, true for p (u) side, false for n (v) side
strip	strip number

Output: boolean value, 1 is the strip has to be masked, 0 otherwise. it throws std::out_of_range if the strip is unknown

Definition at line 57 of file SVDHotStripsCalibrations.h.

    {
      return m_aDBObjPtr->get(sensorID.getLayerNumber(), sensorID.getLadderNumber(),
                              sensorID.getSensorNumber(), m_aDBObjPtr->sideIndex(isU),
                              strip);
    }

isValid()

bool isValid ( )

inline

returns true if the m_aDBObtPtr is valid in the requested IoV

Definition at line 69 of file SVDHotStripsCalibrations.h.

{ return m_aDBObjPtr.isValid(); }

Member Data Documentation

m_aDBObjPtr

DBObjPtr< t_payload > m_aDBObjPtr

private

SVDHotStripsCalibrations payload.

Definition at line 72 of file SVDHotStripsCalibrations.h.

name

std::string name = std::string("SVDHotStripsCalibrations")

static

name of the SVDHotStripsCalibrations payload

Definition at line 34 of file SVDHotStripsCalibrations.h.

---

The documentation for this class was generated from the following files:

• svd/calibration/include/SVDHotStripsCalibrations.h
• svd/calibration/src/SVDHotStripsCalibrations.cc
