TRGOpticalLinkFrontEnd Class Reference

A class to represent a serial link between trigger modules. More...

#include <OpticalLinkFrontEnd.h>

Inheritance diagram for TRGOpticalLinkFrontEnd:

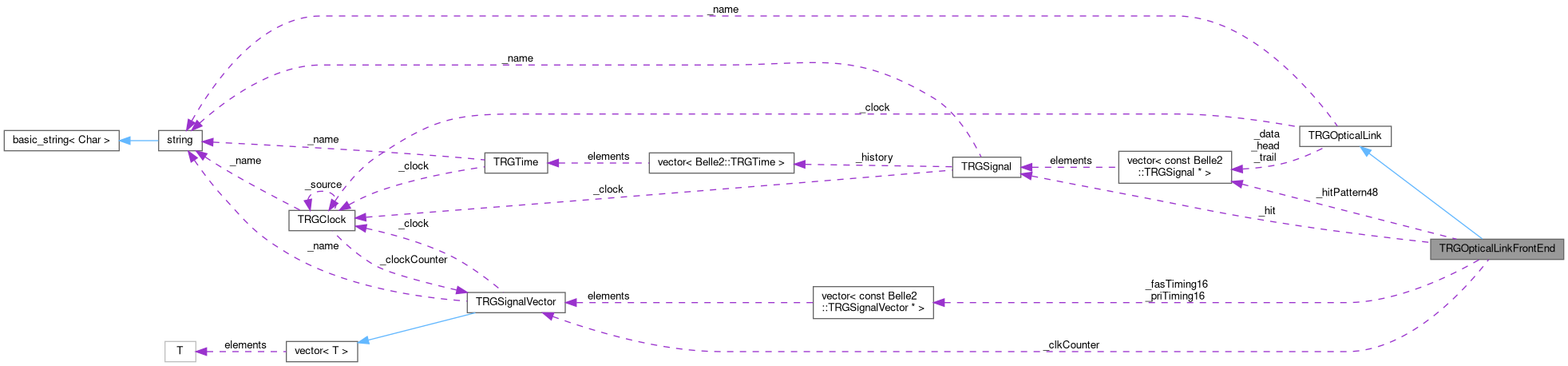

Collaboration diagram for TRGOpticalLinkFrontEnd:

Public Member Functions
	TRGOpticalLinkFrontEnd (const std::string &name, const TRGClock &)
	Constructor.
virtual	~TRGOpticalLinkFrontEnd ()
	Destructor.
const std::string &	name (void) const
	returns name.
const TRGClock &	clock (void) const
	returns clock.
void	dump (const std::string &message="", const std::string &pre="") const
	dumps contents.
void	appendHeader (const TRGSignal *)
	appends a signal to header data.
void	appendTrailer (const TRGSignal *)
	appends a signal to trailer data.
void	append (const TRGSignal *)
	appends a signal to data.

Private Attributes
const TRGSignal *	_hit
	VHDL : begin.
std::vector< const TRGSignal * >	_hitPattern48
	Hit pattern of 48 wires.
std::vector< const TRGSignalVector * >	_priTiming16
	Timing of the priority cells (2ns LSB) VHDL : type PriTiming is array (2 downto 0) of std_logic;.
std::vector< const TRGSignalVector * >	_fasTiming16
	Timing of the fastest hit in PTS (2ns LSB) VHDL : type FasTiming is array (2 downto 0) of std_logic;.
TRGSignalVector	_clkCounter
	Clock counter VHDL : type ClkCounter is array (31 downto 0) of std_logic;.
const std::string	_name
	Name of a link.
const TRGClock *	_clock
	Used clock.
std::vector< const TRGSignal * >	_head
	Signal header.
std::vector< const TRGSignal * >	_trail
	Signal trailer.
std::vector< const TRGSignal * >	_data
	Signal storage.

Detailed Description

A class to represent a serial link between trigger modules.

Definition at line 33 of file OpticalLinkFrontEnd.h.

Member Function Documentation

dump()

void dump ( const std::string &  message = "", const std::string &  pre = ""  ) const

inherited

dumps contents.

"message" is to select information to dump. "pre" will be printed in head of each line.

Member Data Documentation

_clkCounter

TRGSignalVector _clkCounter

private

Clock counter VHDL : type ClkCounter is array (31 downto 0) of std_logic;.

Definition at line 67 of file OpticalLinkFrontEnd.h.

_clock

const TRGClock* _clock

privateinherited

Used clock.

Definition at line 64 of file OpticalLink.h.

_data

std::vector<const TRGSignal*> _data

privateinherited

Signal storage.

Definition at line 73 of file OpticalLink.h.

_fasTiming16

std::vector<const TRGSignalVector*> _fasTiming16

private

Timing of the fastest hit in PTS (2ns LSB) VHDL : type FasTiming is array (2 downto 0) of std_logic;.

Definition at line 63 of file OpticalLinkFrontEnd.h.

_head

std::vector<const TRGSignal*> _head

privateinherited

Signal header.

Definition at line 67 of file OpticalLink.h.

_hit

const TRGSignal* _hit

private

VHDL : begin.

test signal

Definition at line 52 of file OpticalLinkFrontEnd.h.

_hitPattern48

std::vector<const TRGSignal*> _hitPattern48

private

Hit pattern of 48 wires.

Definition at line 55 of file OpticalLinkFrontEnd.h.

_name

const std::string _name

privateinherited

Name of a link.

Definition at line 61 of file OpticalLink.h.

_priTiming16

std::vector<const TRGSignalVector*> _priTiming16

private

Timing of the priority cells (2ns LSB) VHDL : type PriTiming is array (2 downto 0) of std_logic;.

Definition at line 59 of file OpticalLinkFrontEnd.h.

_trail

std::vector<const TRGSignal*> _trail

privateinherited

Signal trailer.

Definition at line 70 of file OpticalLink.h.

---

The documentation for this class was generated from the following file:

• trg/cdc/include/OpticalLinkFrontEnd.h
