Struct containing all parameters of one ladder. More...

#include <GeoVXDComponents.h>

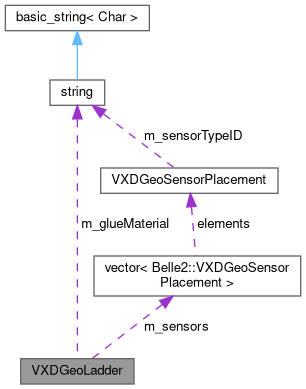

Collaboration diagram for VXDGeoLadder:

[legend]

Public Member Functions
	VXDGeoLadder (int layerID=0, double shift=0, double radius=0, double slantedAngle=0, double slantedRadius=0, double glueSize=-1, const std::string &glueMaterial="")
	Constructor.

int	getLayerID () const
	get the layer id

double	getShift () const
	get the shift along the u coordinate for all sensors in the ladder

double	getRadius () const
	get the radius of all sensors except slanted ones

double	getSlantedAngle () const
	get the slant angle for slanted sensors

double	getSlantedRadius () const
	get the radius for slanted sensors

double	getGlueSize () const
	get the additional glue size, e.g.

const std::string &	getGlueMaterial () const
	get the glue material

const std::vector< VXDGeoSensorPlacement > &	getSensors () const
	get list of sensors

void	addSensor (const VXDGeoSensorPlacement &sensor)
	add a sensor to the list of sensors in the ladder

Private Attributes
int	m_layerID
	ID of the ladder inside the layer.

double	m_shift
	Shift of the ladder along local u.

double	m_radius
	Radius where to place the ladder.

double	m_slantedAngle
	Angle of the module with respect to the global z-axis for slanted sensors.

double	m_slantedRadius
	Radius of the center of the active area for slanted sensors.

double	m_glueSize
	Oversize of the glue between the ladders, <0 means no glue.

std::string	m_glueMaterial
	name of the Material used as glue

std::vector< VXDGeoSensorPlacement >	m_sensors
	list of all sensors to be placed in the ladder

Detailed Description

Struct containing all parameters of one ladder.

Definition at line 185 of file GeoVXDComponents.h.

Constructor & Destructor Documentation

◆ VXDGeoLadder()

VXDGeoLadder	(	int	layerID = `0`,
		double	shift = `0`,
		double	radius = `0`,
		double	slantedAngle = `0`,
		double	slantedRadius = `0`,
		double	glueSize = `-1`,
		const std::string &	glueMaterial = `""`
	)

inline

Constructor.

Definition at line 188 of file GeoVXDComponents.h.

                                                                          :
      m_layerID(layerID), m_shift(shift), m_radius(radius),
      m_slantedAngle(slantedAngle), m_slantedRadius(slantedRadius),
      m_glueSize(glueSize), m_glueMaterial(glueMaterial) {}

Member Function Documentation

◆ addSensor()

void addSensor ( const VXDGeoSensorPlacement & sensor )

inline

add a sensor to the list of sensors in the ladder

Definition at line 211 of file GeoVXDComponents.h.

211{ m_sensors.push_back(sensor); }

Belle2::VXDGeoLadder::m_sensors

std::vector< VXDGeoSensorPlacement > m_sensors

list of all sensors to be placed in the ladder

Definition: GeoVXDComponents.h:228

◆ getGlueMaterial()

const std::string & getGlueMaterial ( ) const

inline

get the glue material

Definition at line 207 of file GeoVXDComponents.h.

207{ return m_glueMaterial; }

◆ getGlueSize()

double getGlueSize ( ) const

inline

get the additional glue size, e.g.

the amount the glue is produding on all sides of the joint

Definition at line 205 of file GeoVXDComponents.h.

205{ return m_glueSize; }

◆ getLayerID()

int getLayerID ( ) const

inline

get the layer id

Definition at line 195 of file GeoVXDComponents.h.

195{ return m_layerID; }

◆ getRadius()

double getRadius ( ) const

inline

get the radius of all sensors except slanted ones

Definition at line 199 of file GeoVXDComponents.h.

199{ return m_radius; }

◆ getSensors()

const std::vector< VXDGeoSensorPlacement > & getSensors ( ) const

inline

get list of sensors

Definition at line 209 of file GeoVXDComponents.h.

209{ return m_sensors; }

◆ getShift()

double getShift ( ) const

inline

get the shift along the u coordinate for all sensors in the ladder

Definition at line 197 of file GeoVXDComponents.h.

197{ return m_shift; }

◆ getSlantedAngle()

double getSlantedAngle ( ) const

inline

get the slant angle for slanted sensors

Definition at line 201 of file GeoVXDComponents.h.

201{ return m_slantedAngle; }

◆ getSlantedRadius()

double getSlantedRadius ( ) const

inline

get the radius for slanted sensors

Definition at line 203 of file GeoVXDComponents.h.

203{ return m_slantedRadius; }

Member Data Documentation

◆ m_glueMaterial

std::string m_glueMaterial

private

name of the Material used as glue

Definition at line 226 of file GeoVXDComponents.h.

◆ m_glueSize

double m_glueSize

private

Oversize of the glue between the ladders, <0 means no glue.

Definition at line 224 of file GeoVXDComponents.h.

◆ m_layerID

int m_layerID

private

ID of the ladder inside the layer.

Definition at line 214 of file GeoVXDComponents.h.

◆ m_radius

double m_radius

private

Radius where to place the ladder.

Definition at line 218 of file GeoVXDComponents.h.

◆ m_sensors

std::vector<VXDGeoSensorPlacement> m_sensors

private

list of all sensors to be placed in the ladder

Definition at line 228 of file GeoVXDComponents.h.

◆ m_shift

double m_shift

private

Shift of the ladder along local u.

Definition at line 216 of file GeoVXDComponents.h.

◆ m_slantedAngle

double m_slantedAngle

private

Angle of the module with respect to the global z-axis for slanted sensors.

Definition at line 220 of file GeoVXDComponents.h.

◆ m_slantedRadius

double m_slantedRadius

private

Radius of the center of the active area for slanted sensors.

Definition at line 222 of file GeoVXDComponents.h.

The documentation for this class was generated from the following file:

vxd/geometry/include/GeoVXDComponents.h
