The Class for VXD Ladder payload. More...

#include <VXDGeoLadderPar.h>

Inheritance diagram for VXDGeoLadderPar:

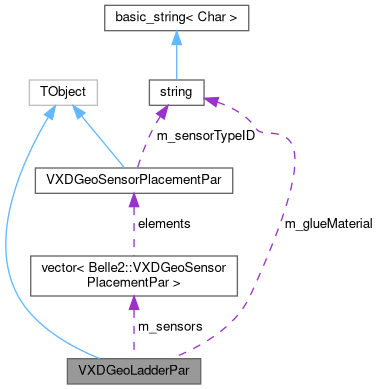

Collaboration diagram for VXDGeoLadderPar:

[legend]

Public Member Functions
	VXDGeoLadderPar (int layerID=0, double shift=0, double radius=0, double slantedAngle=0, double slantedRadius=0, double glueSize=-1, const std::string &glueMaterial="")
	Constructor.

	~VXDGeoLadderPar ()
	Destructor.

int	getLayerID () const
	get the layer id

void	setLayerID (int layerID)
	set the layer id

double	getShift () const
	get the shift along the u coordinate for all sensors in the ladder

void	setShift (double shift)
	set the shift along the u coordinate for all sensors in the ladder

double	getRadius () const
	get the radius of all sensors except slanted ones

void	setRadius (double radius)
	set the radius of all sensors except slanted ones

double	getSlantedAngle () const
	get the slant angle for slanted sensors

void	setSlantedAngle (double slantedAngle)
	set the slant angle for slanted sensors

double	getSlantedRadius () const
	get the radius for slanted sensors

void	setSlantedRadius (double slantedRadius)
	set the radius for slanted sensors

double	getGlueSize () const
	get the additional glue size, e.g.

void	setGlueSize (double glueSize)
	set the additional glue size, e.g.

const std::string &	getGlueMaterial () const
	get the glue material

void	setGlueMaterial (const std::string &glueMaterial)
	set the glue material

const std::vector< VXDGeoSensorPlacementPar > &	getSensors () const
	get list of sensors

void	addSensor (const VXDGeoSensorPlacementPar &sensor)
	add a sensor to the list of sensors in the ladder

Private Member Functions
	ClassDef (VXDGeoLadderPar, 5)
	ClassDef, must be the last term before the closing {}.

Private Attributes
int	m_layerID
	ID of the ladder inside the layer.

double	m_shift
	Shift of the ladder along local u.

double	m_radius
	Radius where to place the ladder.

double	m_slantedAngle
	Angle of the module with respect to the global z-axis for slanted sensors.

double	m_slantedRadius
	Radius of the center of the active area for slanted sensors.

double	m_glueSize
	Oversize of the glue between the ladders, <0 means no glue.

std::string	m_glueMaterial
	name of the Material used as glue

std::vector< VXDGeoSensorPlacementPar >	m_sensors
	list of all sensors to be placed in the ladder

Detailed Description

The Class for VXD Ladder payload.

Definition at line 29 of file VXDGeoLadderPar.h.

Constructor & Destructor Documentation

◆ VXDGeoLadderPar()

VXDGeoLadderPar	(	int	layerID = `0`,
		double	shift = `0`,
		double	radius = `0`,
		double	slantedAngle = `0`,
		double	slantedRadius = `0`,
		double	glueSize = `-1`,
		const std::string &	glueMaterial = `""`
	)

inline

Constructor.

Definition at line 32 of file VXDGeoLadderPar.h.

                                                                             :
      m_layerID(layerID), m_shift(shift), m_radius(radius),
      m_slantedAngle(slantedAngle), m_slantedRadius(slantedRadius),
      m_glueSize(glueSize), m_glueMaterial(glueMaterial) {}

◆ ~VXDGeoLadderPar()

~VXDGeoLadderPar ( )

inline

Destructor.

Definition at line 39 of file VXDGeoLadderPar.h.

39{}

Member Function Documentation

◆ addSensor()

void addSensor ( const VXDGeoSensorPlacementPar & sensor )

inline

add a sensor to the list of sensors in the ladder

Definition at line 72 of file VXDGeoLadderPar.h.

72{ m_sensors.push_back(sensor); }

Belle2::VXDGeoLadderPar::m_sensors

std::vector< VXDGeoSensorPlacementPar > m_sensors

list of all sensors to be placed in the ladder

Definition: VXDGeoLadderPar.h:90

◆ getGlueMaterial()

const std::string & getGlueMaterial ( ) const

inline

get the glue material

Definition at line 66 of file VXDGeoLadderPar.h.

66{ return m_glueMaterial; }

◆ getGlueSize()

double getGlueSize ( ) const

inline

get the additional glue size, e.g.

the amount the glue is produding on all sides of the joint

Definition at line 62 of file VXDGeoLadderPar.h.

62{ return m_glueSize; }

◆ getLayerID()

int getLayerID ( ) const

inline

get the layer id

Definition at line 42 of file VXDGeoLadderPar.h.

42{ return m_layerID; }

◆ getRadius()

double getRadius ( ) const

inline

get the radius of all sensors except slanted ones

Definition at line 50 of file VXDGeoLadderPar.h.

50{ return m_radius; }

◆ getSensors()

const std::vector< VXDGeoSensorPlacementPar > & getSensors ( ) const

inline

get list of sensors

Definition at line 70 of file VXDGeoLadderPar.h.

70{ return m_sensors; }

◆ getShift()

double getShift ( ) const

inline

get the shift along the u coordinate for all sensors in the ladder

Definition at line 46 of file VXDGeoLadderPar.h.

46{ return m_shift; }

◆ getSlantedAngle()

double getSlantedAngle ( ) const

inline

get the slant angle for slanted sensors

Definition at line 54 of file VXDGeoLadderPar.h.

54{ return m_slantedAngle; }

◆ getSlantedRadius()

double getSlantedRadius ( ) const

inline

get the radius for slanted sensors

Definition at line 58 of file VXDGeoLadderPar.h.

58{ return m_slantedRadius; }

◆ setGlueMaterial()

void setGlueMaterial ( const std::string & glueMaterial )

inline

set the glue material

Definition at line 68 of file VXDGeoLadderPar.h.

68{ m_glueMaterial = glueMaterial; }

◆ setGlueSize()

void setGlueSize ( double glueSize )

inline

set the additional glue size, e.g.

the amount the glue is produding on all sides of the joint

Definition at line 64 of file VXDGeoLadderPar.h.

64{ m_glueSize = glueSize; }

◆ setLayerID()

void setLayerID ( int layerID )

inline

set the layer id

Definition at line 44 of file VXDGeoLadderPar.h.

44{ m_layerID = layerID; }

◆ setRadius()

void setRadius ( double radius )

inline

set the radius of all sensors except slanted ones

Definition at line 52 of file VXDGeoLadderPar.h.

52{ m_radius = radius; }

◆ setShift()

void setShift ( double shift )

inline

set the shift along the u coordinate for all sensors in the ladder

Definition at line 48 of file VXDGeoLadderPar.h.

48{ m_shift = shift; }

◆ setSlantedAngle()

void setSlantedAngle ( double slantedAngle )

inline

set the slant angle for slanted sensors

Definition at line 56 of file VXDGeoLadderPar.h.

56{ m_slantedAngle = slantedAngle; }

◆ setSlantedRadius()

void setSlantedRadius ( double slantedRadius )

inline

set the radius for slanted sensors

Definition at line 60 of file VXDGeoLadderPar.h.

60{ m_slantedRadius = slantedRadius; }

Member Data Documentation

◆ m_glueMaterial

std::string m_glueMaterial

private

name of the Material used as glue

Definition at line 88 of file VXDGeoLadderPar.h.

◆ m_glueSize

double m_glueSize

private

Oversize of the glue between the ladders, <0 means no glue.

Definition at line 86 of file VXDGeoLadderPar.h.

◆ m_layerID

int m_layerID

private

ID of the ladder inside the layer.

Definition at line 76 of file VXDGeoLadderPar.h.

◆ m_radius

double m_radius

private

Radius where to place the ladder.

Definition at line 80 of file VXDGeoLadderPar.h.

◆ m_sensors

std::vector<VXDGeoSensorPlacementPar> m_sensors

private

list of all sensors to be placed in the ladder

Definition at line 90 of file VXDGeoLadderPar.h.

◆ m_shift

double m_shift

private

Shift of the ladder along local u.

Definition at line 78 of file VXDGeoLadderPar.h.

◆ m_slantedAngle

double m_slantedAngle

private

Angle of the module with respect to the global z-axis for slanted sensors.

Definition at line 82 of file VXDGeoLadderPar.h.

◆ m_slantedRadius

double m_slantedRadius

private

Radius of the center of the active area for slanted sensors.

Definition at line 84 of file VXDGeoLadderPar.h.

The documentation for this class was generated from the following file:

vxd/dbobjects/include/VXDGeoLadderPar.h
