Struct holding all parameters for a completeVXD Sensor. More...

#include <GeoVXDComponents.h>

Inheritance diagram for VXDGeoSensor:

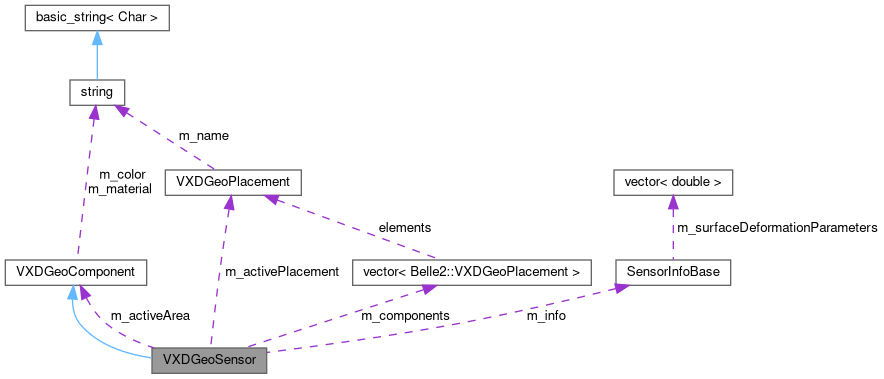

Collaboration diagram for VXDGeoSensor:

[legend]

Public Member Functions
	VXDGeoSensor (const std::string &material="", const std::string &color="", double width=0, double width2=0, double length=0, double height=0, bool slanted=false)
	Constructor.

void	setActive (const VXDGeoComponent &area, const VXDGeoPlacement &placement)
	set the active area

VXDGeoComponent &	getActiveArea ()
	get the component description for the active area

const VXDGeoPlacement &	getActivePlacement ()
	get the placement description for the active area

void	setComponents (const std::vector< VXDGeoPlacement > &component)
	set the list of sub components to be placed

const std::vector< VXDGeoPlacement > &	getComponents () const
	get the list of sub components

void	setSensorInfo (VXD::SensorInfoBase *info)
	set the pointer to the SensorInfo class

const VXD::SensorInfoBase *	getSensorInfo () const
	get the pointer to the SensorInfo class

bool	getSlanted () const
	return wether or not the sensor is slanted (usually only the first sensor in layers 4-6)

G4LogicalVolume *	getVolume () const
	get the pointer to the logical volume, NULL if not yet created

void	setVolume (G4LogicalVolume *volume)
	set the pointer to the logical volume

const std::string &	getMaterial () const
	get the name of the Material for the component

const std::string &	getColor () const
	get the name of the color for the component

double	getWidth () const
	get the width of the component

void	setWidth (double width)
	set the width of the component.

double	getWidth2 () const
	get the forward width of the component, 0 for rectangular

double	getLength () const
	get the length of the component

void	setLength (double length)
	set the length of the component

double &	getHeight ()
	get the height of the component

double	getHeight () const
	get the height of the component

Private Attributes
VXDGeoComponent	m_activeArea
	Paramerers of the active area.

VXDGeoPlacement	m_activePlacement
	Position of the active area.

VXD::SensorInfoBase *	m_info
	Sensor Information instance.

bool	m_slanted
	Indication wether this is a slanted sensor.

std::vector< VXDGeoPlacement >	m_components
	List of all components to be placed.

G4LogicalVolume *	m_volume
	Pointer to the Logical volume if already created

std::string	m_material
	transient member, owned by Geant4

std::string	m_color
	Name of the color of the component.

double	m_width
	width of the component

double	m_width2
	forward width of the component, 0 for recangular

double	m_length
	length of the component

double	m_height
	height of the component

Detailed Description

Struct holding all parameters for a completeVXD Sensor.

Definition at line 109 of file GeoVXDComponents.h.

Constructor & Destructor Documentation

◆ VXDGeoSensor()

VXDGeoSensor	(	const std::string &	material = `""`,
		const std::string &	color = `""`,
		double	width = `0`,
		double	width2 = `0`,
		double	length = `0`,
		double	height = `0`,
		bool	slanted = `false`
	)

inline

Constructor.

Definition at line 112 of file GeoVXDComponents.h.

113 :

114 VXDGeoComponent(material, color, width, width2, length, height), m_info(0), m_slanted(slanted) {}

Belle2::VXDGeoComponent::VXDGeoComponent

VXDGeoComponent(const std::string &material="", const std::string &color="", double width=0, double width2=0, double length=0, double height=0)

Constructor.

Definition: GeoVXDComponents.h:65

Belle2::VXDGeoSensor::m_info

VXD::SensorInfoBase * m_info

Sensor Information instance.

Definition: GeoVXDComponents.h:143

Belle2::VXDGeoSensor::m_slanted

bool m_slanted

Indication wether this is a slanted sensor.

Definition: GeoVXDComponents.h:145

Member Function Documentation

◆ getActiveArea()

VXDGeoComponent & getActiveArea ( )

inline

get the component description for the active area

Definition at line 124 of file GeoVXDComponents.h.

124{ return m_activeArea; }

Belle2::VXDGeoSensor::m_activeArea

VXDGeoComponent m_activeArea

Paramerers of the active area.

Definition: GeoVXDComponents.h:139

◆ getActivePlacement()

const VXDGeoPlacement & getActivePlacement ( )

inline

get the placement description for the active area

Definition at line 126 of file GeoVXDComponents.h.

126{ return m_activePlacement; }

Belle2::VXDGeoSensor::m_activePlacement

VXDGeoPlacement m_activePlacement

Position of the active area.

Definition: GeoVXDComponents.h:141

◆ getColor()

const std::string & getColor ( ) const

inlineinherited

get the name of the color for the component

Definition at line 76 of file GeoVXDComponents.h.

76{ return m_color; }

Belle2::VXDGeoComponent::m_color

std::string m_color

Name of the color of the component.

Definition: GeoVXDComponents.h:97

◆ getComponents()

const std::vector< VXDGeoPlacement > & getComponents ( ) const

inline

get the list of sub components

Definition at line 130 of file GeoVXDComponents.h.

130{ return m_components; }

Belle2::VXDGeoSensor::m_components

std::vector< VXDGeoPlacement > m_components

List of all components to be placed.

Definition: GeoVXDComponents.h:147

◆ getHeight() [1/2]

double & getHeight ( )

inlineinherited

get the height of the component

Definition at line 88 of file GeoVXDComponents.h.

88{ return m_height; }

Belle2::VXDGeoComponent::m_height

double m_height

height of the component

Definition: GeoVXDComponents.h:105

◆ getHeight() [2/2]

double getHeight ( ) const

inlineinherited

get the height of the component

Definition at line 90 of file GeoVXDComponents.h.

90{ return m_height; }

◆ getLength()

double getLength ( ) const

inlineinherited

get the length of the component

Definition at line 84 of file GeoVXDComponents.h.

84{ return m_length; }

Belle2::VXDGeoComponent::m_length

double m_length

length of the component

Definition: GeoVXDComponents.h:103

◆ getMaterial()

const std::string & getMaterial ( ) const

inlineinherited

get the name of the Material for the component

Definition at line 74 of file GeoVXDComponents.h.

74{ return m_material; }

Belle2::VXDGeoComponent::m_material

std::string m_material

transient member, owned by Geant4

Definition: GeoVXDComponents.h:95

◆ getSensorInfo()

const VXD::SensorInfoBase * getSensorInfo ( ) const

inline

get the pointer to the SensorInfo class

Definition at line 134 of file GeoVXDComponents.h.

134{ return m_info; }

◆ getSlanted()

bool getSlanted ( ) const

inline

return wether or not the sensor is slanted (usually only the first sensor in layers 4-6)

Definition at line 136 of file GeoVXDComponents.h.

136{ return m_slanted; }

◆ getVolume()

G4LogicalVolume * getVolume ( ) const

inlineinherited

get the pointer to the logical volume, NULL if not yet created

Definition at line 70 of file GeoVXDComponents.h.

70{ return m_volume; }

Belle2::VXDGeoComponent::m_volume

G4LogicalVolume * m_volume

Pointer to the Logical volume if already created

Definition: GeoVXDComponents.h:93

◆ getWidth()

double getWidth ( ) const

inlineinherited

get the width of the component

Definition at line 78 of file GeoVXDComponents.h.

78{ return m_width; }

Belle2::VXDGeoComponent::m_width

double m_width

width of the component

Definition: GeoVXDComponents.h:99

◆ getWidth2()

double getWidth2 ( ) const

inlineinherited

get the forward width of the component, 0 for rectangular

Definition at line 82 of file GeoVXDComponents.h.

82{ return m_width2; }

Belle2::VXDGeoComponent::m_width2

double m_width2

forward width of the component, 0 for recangular

Definition: GeoVXDComponents.h:101

◆ setActive()

void setActive	(	const VXDGeoComponent &	area,
		const VXDGeoPlacement &	placement
	)

inline

set the active area

Parameters

area	component description of the active area
placement	placement description of the active area

Definition at line 119 of file GeoVXDComponents.h.

    {
      m_activeArea = area; m_activePlacement = placement;
    }

◆ setComponents()

void setComponents ( const std::vector< VXDGeoPlacement > & component )

inline

set the list of sub components to be placed

Definition at line 128 of file GeoVXDComponents.h.

128{ m_components = component; }

◆ setLength()

void setLength ( double length )

inlineinherited

set the length of the component

Definition at line 86 of file GeoVXDComponents.h.

86{ m_length = length; }

◆ setSensorInfo()

void setSensorInfo ( VXD::SensorInfoBase * info )

inline

set the pointer to the SensorInfo class

Definition at line 132 of file GeoVXDComponents.h.

132{ m_info = info; }

◆ setVolume()

void setVolume ( G4LogicalVolume * volume )

inlineinherited

set the pointer to the logical volume

Definition at line 72 of file GeoVXDComponents.h.

72{ m_volume = volume; }

◆ setWidth()

void setWidth ( double width )

inlineinherited

set the width of the component.

This will automatically set width2 to zero

Definition at line 80 of file GeoVXDComponents.h.

80{ m_width = width; m_width2 = 0; }

Member Data Documentation

◆ m_activeArea

VXDGeoComponent m_activeArea

private

Paramerers of the active area.

Definition at line 139 of file GeoVXDComponents.h.

◆ m_activePlacement

VXDGeoPlacement m_activePlacement

private

Position of the active area.

Definition at line 141 of file GeoVXDComponents.h.

◆ m_color

std::string m_color

privateinherited

Name of the color of the component.

Definition at line 97 of file GeoVXDComponents.h.

◆ m_components

std::vector<VXDGeoPlacement> m_components

private

List of all components to be placed.

Definition at line 147 of file GeoVXDComponents.h.

◆ m_height

double m_height

privateinherited

height of the component

Definition at line 105 of file GeoVXDComponents.h.

◆ m_info

VXD::SensorInfoBase* m_info

private

Sensor Information instance.

Definition at line 143 of file GeoVXDComponents.h.

◆ m_length

double m_length

privateinherited

length of the component

Definition at line 103 of file GeoVXDComponents.h.

◆ m_material

std::string m_material

privateinherited

transient member, owned by Geant4

Name of the material of the component

Definition at line 95 of file GeoVXDComponents.h.

◆ m_slanted

bool m_slanted

private

Indication wether this is a slanted sensor.

Definition at line 145 of file GeoVXDComponents.h.

◆ m_volume

G4LogicalVolume* m_volume

privateinherited

Pointer to the Logical volume if already created

Definition at line 93 of file GeoVXDComponents.h.

◆ m_width

double m_width

privateinherited

width of the component

Definition at line 99 of file GeoVXDComponents.h.

◆ m_width2

double m_width2

privateinherited

forward width of the component, 0 for recangular

Definition at line 101 of file GeoVXDComponents.h.

The documentation for this class was generated from the following file:

vxd/geometry/include/GeoVXDComponents.h

Public Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ VXDGeoSensor()

Member Function Documentation

◆ getActiveArea()

◆ getActivePlacement()

◆ getColor()

◆ getComponents()

◆ getHeight() [1/2]

◆ getHeight() [2/2]

◆ getLength()

◆ getMaterial()

◆ getSensorInfo()

◆ getSlanted()

◆ getVolume()

◆ getWidth()

◆ getWidth2()

◆ setActive()

◆ setComponents()

◆ setLength()

◆ setSensorInfo()

◆ setVolume()

◆ setWidth()

Member Data Documentation

◆ m_activeArea

◆ m_activePlacement

◆ m_color

◆ m_components

◆ m_height

◆ m_info

◆ m_length

◆ m_material

◆ m_slanted

◆ m_volume

◆ m_width

◆ m_width2
