SkimSampleCalculator Class Reference

Implementation of a calculator used in the SoftwareTriggerModule to fill a SoftwareTriggerObject for selecting particles for skimming and data quality monitoring. More...

#include <SkimSampleCalculator.h>

Inheritance diagram for SkimSampleCalculator:
Inheritance graph
[legend]

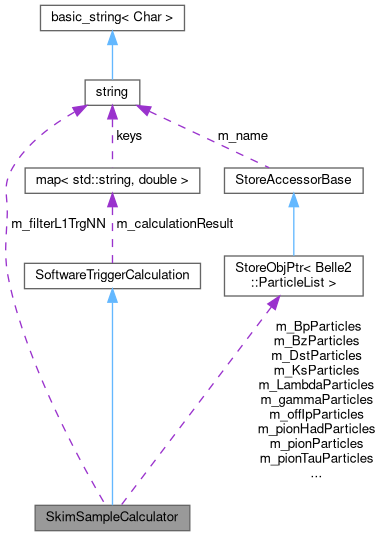

Collaboration diagram for SkimSampleCalculator:
Collaboration graph
[legend]

Public Member Functions

 SkimSampleCalculator ()
 Set the default names for the store object particle lists.

void requireStoreArrays () override
 Require the particle list. We do not need more here.

void doCalculation (SoftwareTriggerObject &calculationResult) override
 Actually write out the variables into the map.

void writeDebugOutput (const std::unique_ptr< TTree > &debugOutputTTree)
 Function to write out debug output into the given TTree.

void addDebugOutput (const StoreObjPtr< SoftwareTriggerVariables > &storeObject, const std::string &prefix)
 Function to write out debug output into the given StoreObject.

const SoftwareTriggerObject & fillInCalculations ()
 Main function of this class: calculate the needed variables using the overwritten doCalculation function and write out the values into the results object (with their names).


Private Attributes

StoreObjPtr< ParticleList > m_pionParticles
 Internal storage of the tracks as particles.

StoreObjPtr< ParticleList > m_gammaParticles
 Internal storage of the ECL clusters as particles.

StoreObjPtr< ParticleList > m_pionHadParticles
 Internal storage of the tracks as particles (definition for hadronb).

StoreObjPtr< ParticleList > m_pionTauParticles
 Internal storage of the tracks as particles (definition for tau skims).

StoreObjPtr< ParticleList > m_KsParticles
 Internal storage of the K_S0's.

StoreObjPtr< ParticleList > m_LambdaParticles
 Internal storage of the Lambda0's.

StoreObjPtr< ParticleList > m_DstParticles
 Internal storage of the D*'s.

StoreObjPtr< ParticleList > m_offIpParticles
 Internal storage of the tracks for alignment calibration.

std::string m_filterL1TrgNN = ""
 HLT filter line for the TRG skim.

StoreObjPtr< ParticleList > m_BpParticles
 Internal storage of the B+'s.

StoreObjPtr< ParticleList > m_BzParticles
 Internal storage of the B0's.

SoftwareTriggerObject m_calculationResult
 Internal storage of the result of the calculation.

bool m_debugPrepared = false
 Flag to not add the branches twice to the TTree.


Detailed Description

Implementation of a calculator used in the SoftwareTriggerModule to fill a SoftwareTriggerObject for selecting particles for skimming and data quality monitoring.

This class implements the two main functions requireStoreArrays and doCalculation of the SoftwareTriggerCalculation class.

Definition at line 28 of file SkimSampleCalculator.h.

Constructor & Destructor Documentation

◆ SkimSampleCalculator()

SkimSampleCalculator ( )

Set the default names for the store object particle lists.

Definition at line 42 of file SkimSampleCalculator.cc.

42 :
43 m_pionParticles("pi+:skim"), m_gammaParticles("gamma:skim"), m_pionHadParticles("pi+:hadb"), m_pionTauParticles("pi+:tau"),
44 m_KsParticles("K_S0:merged"), m_LambdaParticles("Lambda0:merged"), m_DstParticles("D*+:d0pi"), m_offIpParticles("pi+:offip"),
45 m_filterL1TrgNN("software_trigger_cut&filter&L1_trigger_nn_info"),
46 m_BpParticles("B+:BtoCharmForHLT"), m_BzParticles("B0:BtoCharmForHLT")
47{
48
49}
Belle2::SoftwareTrigger::SkimSampleCalculator::m_pionParticles
StoreObjPtr< ParticleList > m_pionParticles
Internal storage of the tracks as particles.
Definition: SkimSampleCalculator.h:41
Belle2::SoftwareTrigger::SkimSampleCalculator::m_gammaParticles
StoreObjPtr< ParticleList > m_gammaParticles
Internal storage of the ECL clusters as particles.
Definition: SkimSampleCalculator.h:43
Belle2::SoftwareTrigger::SkimSampleCalculator::m_BzParticles
StoreObjPtr< ParticleList > m_BzParticles
Internal storage of the B0's.
Definition: SkimSampleCalculator.h:61
Belle2::SoftwareTrigger::SkimSampleCalculator::m_LambdaParticles
StoreObjPtr< ParticleList > m_LambdaParticles
Internal storage of the Lambda0's.
Definition: SkimSampleCalculator.h:51
Belle2::SoftwareTrigger::SkimSampleCalculator::m_pionHadParticles
StoreObjPtr< ParticleList > m_pionHadParticles
Internal storage of the tracks as particles (definition for hadronb).
Definition: SkimSampleCalculator.h:45
Belle2::SoftwareTrigger::SkimSampleCalculator::m_KsParticles
StoreObjPtr< ParticleList > m_KsParticles
Internal storage of the K_S0's.
Definition: SkimSampleCalculator.h:49
Belle2::SoftwareTrigger::SkimSampleCalculator::m_filterL1TrgNN
std::string m_filterL1TrgNN
HLT filter line for the TRG skim.
Definition: SkimSampleCalculator.h:57
Belle2::SoftwareTrigger::SkimSampleCalculator::m_DstParticles
StoreObjPtr< ParticleList > m_DstParticles
Internal storage of the D*'s.
Definition: SkimSampleCalculator.h:53
Belle2::SoftwareTrigger::SkimSampleCalculator::m_pionTauParticles
StoreObjPtr< ParticleList > m_pionTauParticles
Internal storage of the tracks as particles (definition for tau skims).
Definition: SkimSampleCalculator.h:47
Belle2::SoftwareTrigger::SkimSampleCalculator::m_BpParticles
StoreObjPtr< ParticleList > m_BpParticles
Internal storage of the B+'s.
Definition: SkimSampleCalculator.h:59
Belle2::SoftwareTrigger::SkimSampleCalculator::m_offIpParticles
StoreObjPtr< ParticleList > m_offIpParticles
Internal storage of the tracks for alignment calibration.
Definition: SkimSampleCalculator.h:55

Member Function Documentation

◆ addDebugOutput()

void addDebugOutput ( const StoreObjPtr< SoftwareTriggerVariables > &  storeObject,
const std::string &  prefix
)
inherited

Function to write out debug output into the given StoreObject.

Needs an already prefilled calculationResult for this (probably using the fillInCalculations function). All added variables are prefixed with the given prefix string.

Definition at line 34 of file SoftwareTriggerCalculation.cc.

35 {
36 for (auto& identifierWithValue : m_calculationResult) {
37 const std::string& identifier = identifierWithValue.first;
38 const double value = identifierWithValue.second;
39
40 storeObject->append(prefix + "_" + identifier, value);
41 }
42 }
Belle2::SoftwareTrigger::SoftwareTriggerCalculation::m_calculationResult
SoftwareTriggerObject m_calculationResult
Internal storage of the result of the calculation.
Definition: SoftwareTriggerCalculation.h:74

◆ doCalculation()

void doCalculation ( SoftwareTriggerObject &  calculationResult)
overridevirtual

Actually write out the variables into the map.

Implements SoftwareTriggerCalculation.

Definition at line 66 of file SkimSampleCalculator.cc.

67{
68 // Prefetch some later needed objects/values
69 const Particle* gammaWithMaximumRho = getElementWithMaximumRho<Particle>(m_gammaParticles);
70 const Particle* gammaWithSecondMaximumRho = getElementWithMaximumRhoBelow<Particle>(m_gammaParticles,
71 getRho(gammaWithMaximumRho));
72 const Particle* trackWithMaximumRho = getElementWithMaximumRho<Particle>(m_pionParticles);
73 const Particle* trackWithSecondMaximumRho = getElementWithMaximumRhoBelow<Particle>(m_pionParticles,
74 getRho(trackWithMaximumRho));
75
76 const double& rhoOfECLClusterWithMaximumRho = getRhoOfECLClusterWithMaximumRho(m_pionParticles, m_gammaParticles);
77 const double& rhoOfECLClusterWithSecondMaximumRho = getRhoOfECLClusterWithMaximumRhoBelow(m_pionParticles,
78 m_gammaParticles,
79 rhoOfECLClusterWithMaximumRho);
80
81 const double& rhoOfTrackWithMaximumRho = getRho(trackWithMaximumRho);
82 const double& rhoOfTrackWithSecondMaximumRho = getRho(trackWithSecondMaximumRho);
83 const double& rhoOfGammaWithMaximumRho = getRho(gammaWithMaximumRho);
84 const double& rhoOfGammaWithSecondMaximumRho = getRho(gammaWithSecondMaximumRho);
85
86 // Simple to calculate variables
87 // EC1CMSLE
88 calculationResult["EC1CMSLE"] = rhoOfECLClusterWithMaximumRho;
89
90 // EC2CMSLE
91 calculationResult["EC2CMSLE"] = rhoOfECLClusterWithSecondMaximumRho;
92
93 // EC12CMSLE
94 calculationResult["EC12CMSLE"] = rhoOfECLClusterWithMaximumRho + rhoOfECLClusterWithSecondMaximumRho;
95
96 // nTracksLE
97 calculationResult["nTracksLE"] = m_pionParticles->getListSize();
98
99 // nTracksTAU
100 calculationResult["nTracksTAU"] = m_pionTauParticles->getListSize();
101
102 // nGammasLE
103 calculationResult["nGammasLE"] = m_gammaParticles->getListSize();
104
105 // P1CMSBhabhaLE
106 calculationResult["P1CMSBhabhaLE"] = rhoOfTrackWithMaximumRho;
107
108 // P1CMSBhabhaLE/E_beam
109 calculationResult["P1OEbeamCMSBhabhaLE"] = rhoOfTrackWithMaximumRho / BeamEnergyCMS();
110
111 // P2CMSBhabhaLE
112 calculationResult["P2CMSBhabhaLE"] = rhoOfTrackWithSecondMaximumRho;
113
114 // P2CMSBhabhaLE/E_beam
115 calculationResult["P2OEbeamCMSBhabhaLE"] = rhoOfTrackWithSecondMaximumRho / BeamEnergyCMS();
116
117 // P12CMSBhabhaLE
118 calculationResult["P12CMSBhabhaLE"] = rhoOfTrackWithMaximumRho + rhoOfTrackWithSecondMaximumRho;
119
120 //G1CMSLE, the largest energy of gamma in CMS
121 calculationResult["G1CMSBhabhaLE"] = rhoOfGammaWithMaximumRho;
122 //G1OEbeamCMSLE, the largest energy of gamma in CMS over beam energy
123 calculationResult["G1OEbeamCMSBhabhaLE"] = rhoOfGammaWithMaximumRho / BeamEnergyCMS();
124
