CombinedWireHitFilter Class Reference

Filter rejecting hits according to DB values. More...

#include <CombinedWireHitFilter.h>

Inheritance diagram for CombinedWireHitFilter:

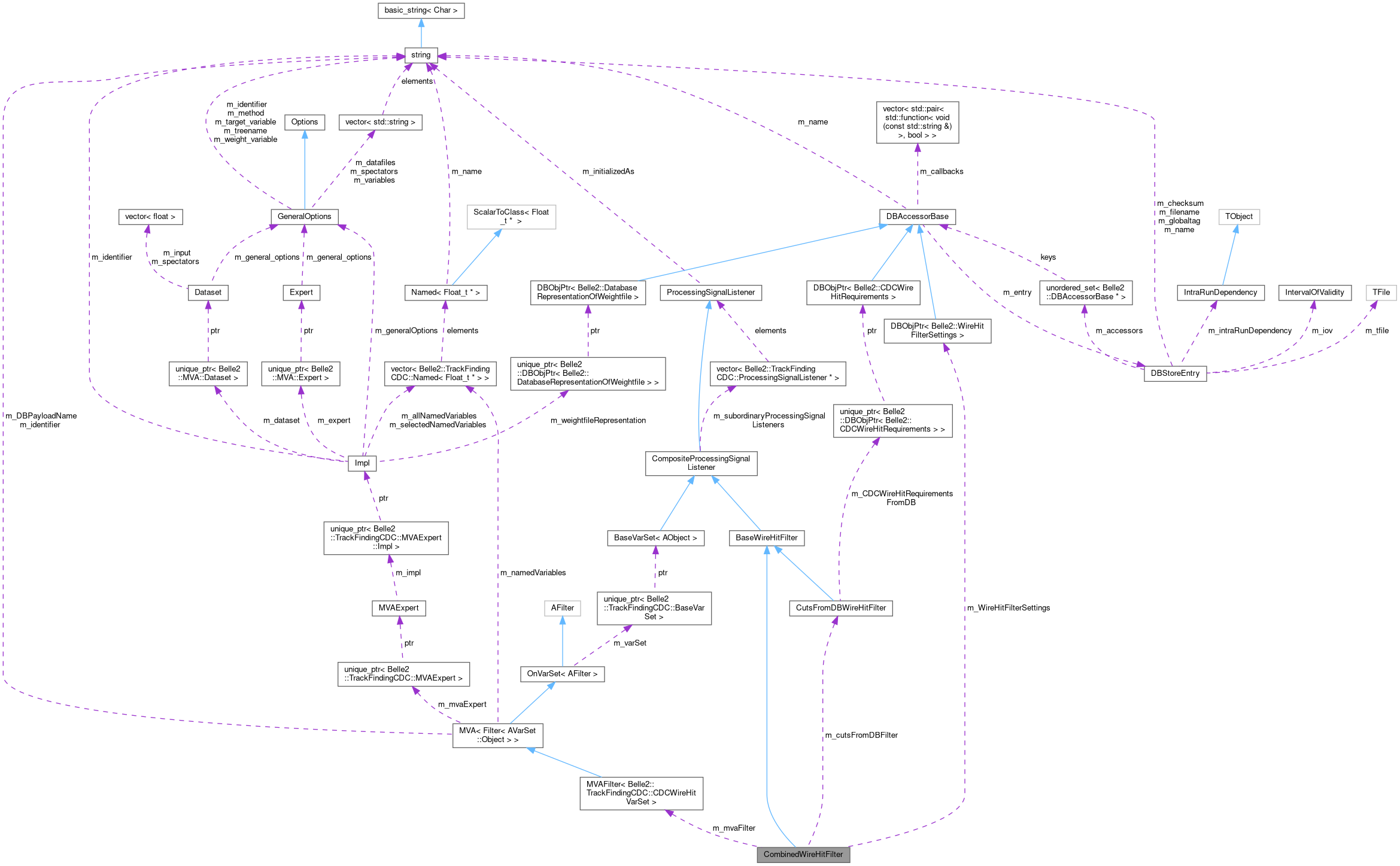

Collaboration diagram for CombinedWireHitFilter:

Public Types
using	Object = AObject
	Type of the object to be analysed.
using	Interface = Filter< AObject >
	Mark this class as the basic interface.

Public Member Functions
	CombinedWireHitFilter ()
	Default constructor.
virtual	~CombinedWireHitFilter ()=default
	Default destructor.
void	exposeParameters (ModuleParamList *moduleParamList, const std::string &prefix) final
	Expose the parameters to a module.
TrackFindingCDC::Weight	operator() (const TrackFindingCDC::CDCWireHit &wireHit) final
	Basic filter method to override.
virtual bool	needsTruthInformation ()
	Indicates if the filter requires Monte Carlo information.
virtual Weight	operator() (const Object &obj)
	Function to evaluate the object.
Weight	operator() (const Object *obj)
	Function to evaluate the object.
virtual std::vector< float >	operator() (const std::vector< Object * > &objs)
	Function to evaluate a vector of objects Base implementation applies the function to each object.
void	initialize () override
	Receive and dispatch signal before the start of the event processing.
void	beginRun () override
	Receive and dispatch signal for the beginning of a new run.
void	beginEvent () override
	Receive and dispatch signal for the start of a new event.
void	endRun () override
	Receive and dispatch signal for the end of the run.
void	terminate () override
	Receive and dispatch Signal for termination of the event processing.

Protected Member Functions
void	addProcessingSignalListener (ProcessingSignalListener *psl)
	Register a processing signal listener to be notified.
int	getNProcessingSignalListener ()
	Get the number of currently registered listeners.

Private Types
using	Super = ProcessingSignalListener
	Type of the base class.

Private Attributes
TrackFindingCDC::MVAFilter< CDCWireHitVarSet >	m_mvaFilter
	MVA filter.
CutsFromDBWireHitFilter	m_cutsFromDBFilter
	Cuts from DB filter.
DBObjPtr< WireHitFilterSettings >	m_WireHitFilterSettings
	Switch to MVA super layer from database.
std::vector< ProcessingSignalListener * >	m_subordinaryProcessingSignalListeners
	References to subordinary signal processing listener contained in this findlet.
bool	m_initialized = false
	Flag to keep track whether initialization happend before.
bool	m_terminated = false
	Flag to keep track whether termination happend before.
std::string	m_initializedAs
	Name of the type during initialisation.

Detailed Description

Filter rejecting hits according to DB values.

Definition at line 28 of file CombinedWireHitFilter.h.

Member Typedef Documentation

Interface

using Interface = Filter<AObject>

inherited

Mark this class as the basic interface.

Definition at line 38 of file Filter.dcl.h.

Object

using Object = AObject

inherited

Type of the object to be analysed.

Definition at line 35 of file Filter.dcl.h.

Super

using Super = ProcessingSignalListener

privateinherited

Type of the base class.

Definition at line 25 of file CompositeProcessingSignalListener.h.

Constructor & Destructor Documentation

CombinedWireHitFilter()

CombinedWireHitFilter

(

)

Default constructor.

Definition at line 16 of file CombinedWireHitFilter.cc.

{
  this->addProcessingSignalListener(&m_mvaFilter);
  this->addProcessingSignalListener(&m_cutsFromDBFilter);
}

Member Function Documentation

addProcessingSignalListener()

void addProcessingSignalListener ( ProcessingSignalListener *  psl )

protectedinherited

Register a processing signal listener to be notified.

Definition at line 55 of file CompositeProcessingSignalListener.cc.

{
  m_subordinaryProcessingSignalListeners.push_back(psl);
}

beginEvent()

void beginEvent ( )

overridevirtualinherited

Receive and dispatch signal for the start of a new event.

Reimplemented from ProcessingSignalListener.

Reimplemented in SpacePointTagger< Belle2::CKFToPXDResult, Belle2::PXDCluster >, SpacePointTagger< Belle2::CKFToSVDResult, Belle2::SVDCluster >, BaseEventTimeExtractor< RecoTrack * >, BaseEventTimeExtractor< TrackFindingCDC::CDCWireHit & >, SharingHitsMatcher< Belle2::TrackFindingCDC::CDCTrack, Belle2::TrackFindingCDC::CDCSegment2D >, MCSymmetric< BaseAxialSegmentPairFilter >, MCSymmetric< BaseFacetFilter >, MCSymmetric< BaseFacetRelationFilter >, MCSymmetric< BaseSegmentPairFilter >, MCSymmetric< BaseSegmentPairRelationFilter >, MCSymmetric< BaseSegmentRelationFilter >, MCSymmetric< BaseSegmentTripleFilter >, MCSymmetric< BaseSegmentTripleRelationFilter >, MCSymmetric< BaseTrackRelationFilter >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCFacet >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCWireHit, true >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCSegment2D >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCTrack >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCSegmentPair >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCSegmentTriple >, RecoTrackStorer, ROIFinder, and SVDHoughTracking.

Definition at line 31 of file CompositeProcessingSignalListener.cc.

{
  Super::beginEvent();
  for (ProcessingSignalListener* psl : m_subordinaryProcessingSignalListeners) {
    psl->beginEvent();
  }
}

beginRun()

void beginRun ( )

overridevirtualinherited

Receive and dispatch signal for the beginning of a new run.

Reimplemented from ProcessingSignalListener.

Reimplemented in LayerRelationFilter< AFilter >, FourHitFilter, QualityIndicatorFilter, ThreeHitFilter, TwoHitVirtualIPFilter, TwoHitVirtualIPQIFilter, RecoTrackStorer, ROIFinder, SpacePointLoaderAndPreparer, and TrackCandidateResultRefiner.

Definition at line 23 of file CompositeProcessingSignalListener.cc.

{
  Super::beginRun();
  for (ProcessingSignalListener* psl : m_subordinaryProcessingSignalListeners) {
    psl->beginRun();
  }
}

endRun()

void endRun ( )

overridevirtualinherited

Receive and dispatch signal for the end of the run.

Reimplemented from ProcessingSignalListener.

Definition at line 39 of file CompositeProcessingSignalListener.cc.

{
  for (ProcessingSignalListener* psl : reversedRange(m_subordinaryProcessingSignalListeners)) {
    psl->endRun();
  }
  Super::endRun();
}

exposeParameters()

void exposeParameters ( ModuleParamList *  moduleParamList, const std::string &  prefix  )

finalvirtual

Expose the parameters to a module.

Reimplemented from Filter< AObject >.

Definition at line 22 of file CombinedWireHitFilter.cc.

{
  m_mvaFilter.exposeParameters(moduleParamList, prefix);
  m_cutsFromDBFilter.exposeParameters(moduleParamList, prefix);
}

getNProcessingSignalListener()

int getNProcessingSignalListener ( )

protectedinherited

Get the number of currently registered listeners.

Definition at line 60 of file CompositeProcessingSignalListener.cc.

{
  return m_subordinaryProcessingSignalListeners.size();
}

initialize()

void initialize ( )

overridevirtualinherited

Receive and dispatch signal before the start of the event processing.

Reimplemented from ProcessingSignalListener.

Reimplemented in UnionVarSet< AObject >, UnionVarSet< Object >, VariadicUnionVarSet< AVarSets >, ResultStorer< Belle2::CKFToPXDResult >, ResultStorer< Belle2::CKFToSVDResult >, BaseEventTimeExtractor< RecoTrack * >, BaseEventTimeExtractor< TrackFindingCDC::CDCWireHit & >, StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::HyperHough >, StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::QuadraticLegendre >, StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::Z0TanLambdaLegendre >, OnVarSet< Filter< ATruthVarSet::Object > >, OnVarSet< Filter< AVarSet::Object > >, OnVarSet< BaseFacetFilter >, OnVarSet< BaseFacetRelationFilter >, OnVarSet< BaseAxialSegmentPairFilter >, OnVarSet< BaseSegmentRelationFilter >, OnVarSet< BaseTrackRelationFilter >, OnVarSet< BaseSegmentPairRelationFilter >, MCSymmetric< BaseAxialSegmentPairFilter >, MCSymmetric< BaseFacetFilter >, MCSymmetric< BaseFacetRelationFilter >, MCSymmetric< BaseSegmentPairFilter >, MCSymmetric< BaseSegmentPairRelationFilter >, MCSymmetric< BaseSegmentRelationFilter >, MCSymmetric< BaseSegmentTripleFilter >, MCSymmetric< BaseSegmentTripleRelationFilter >, MCSymmetric< BaseTrackRelationFilter >, StoreArrayLoader< const Belle2::SpacePoint >, StoreArrayLoader< DataStoreInputTypeRefType >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCFacet >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCWireHit, true >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCSegment2D >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCTrack >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCSegmentPair >, StoreVectorSwapper< Belle2::TrackFindingCDC::CDCSegmentTriple >, RelationVarSet< ABaseVarSet >, QualityIndicatorFilter, TwoHitVirtualIPQIFilter, MultiHoughSpaceFastInterceptFinder, RawTrackCandCleaner< AHit >, RawTrackCandCleaner< Belle2::vxdHoughTracking::VXDHoughState >, RecoTrackStorer, ROIFinder, SingleHoughSpaceFastInterceptFinder, SpacePointLoaderAndPreparer, TrackCandidateOverlapResolver, and TrackCandidateResultRefiner.

Definition at line 15 of file CompositeProcessingSignalListener.cc.

{
  Super::initialize();
  for (ProcessingSignalListener* psl : m_subordinaryProcessingSignalListeners) {
    psl->initialize();
  }
}

needsTruthInformation()

bool needsTruthInformation

virtualinherited

Indicates if the filter requires Monte Carlo information.

Reimplemented in MCSymmetric< BaseAxialSegmentPairFilter >, MCSymmetric< BaseFacetFilter >, MCSymmetric< BaseFacetRelationFilter >, MCSymmetric< BaseSegmentPairFilter >, MCSymmetric< BaseSegmentPairRelationFilter >, MCSymmetric< BaseSegmentRelationFilter >, MCSymmetric< BaseSegmentTripleFilter >, MCSymmetric< BaseSegmentTripleRelationFilter >, MCSymmetric< BaseTrackRelationFilter >, OnVarSet< Filter< ATruthVarSet::Object > >, OnVarSet< Filter< AVarSet::Object > >, OnVarSet< BaseFacetFilter >, OnVarSet< BaseFacetRelationFilter >, OnVarSet< BaseAxialSegmentPairFilter >, OnVarSet< BaseSegmentRelationFilter >, OnVarSet< BaseTrackRelationFilter >, and OnVarSet< BaseSegmentPairRelationFilter >.

Definition at line 46 of file Filter.icc.h.

    {
      return false;
    }

operator()() [1/4]

Weight operator() ( const Object &  obj )

virtualinherited

Function to evaluate the object.

Base implementation accepts all objects.

Parameters

obj	The object to be accepted or rejected.

Returns

A finite float value if the object is accepted. NAN if the object is rejected.

Reimplemented in SeedChargeCDCPathFilter, SizeCDCPathFilter, ArcLengthBasedCDCfromEclPathPairFilter, ArcLengthBasedCDCPathPairFilter, Chi2BasedCDCPathPairFilter, DistanceBasedCDCPathPairFilter, DuplicateCDCPathPairFilter, HitDistanceBasedCDCPathPairFilter, MCTruthCDCPathPairFilter, DistanceCDCStateFilter, ExtrapolateAndUpdateCDCStateFilter, MCTruthCDCStateFilter, MCTruthEclSeedFilter, RoughCDCfromEclStateFilter, RoughCDCStateFilter, FiveHitFilter, FourHitFilter, QualityIndicatorFilter, ThreeHitFilter, TwoHitVirtualIPFilter, TwoHitVirtualIPQIFilter, SimplePXDStateFilter, AllPXDStateFilter, ResidualSVDStateFilter, SimpleSVDStateFilter, AllSVDStateFilter, and RelationFilter< AObject >.

Definition at line 52 of file Filter.icc.h.

    {
      return 1;
    }

operator()() [2/4]

Weight operator() ( const Object *  obj )

inherited

Function to evaluate the object.

Base implementation accepts all objects, except nullptr.

Parameters

obj	The object to be accepted or rejected.

Returns

A finit float value if the object is accepted. NAN if the object is rejected. Nullptr is always rejected.

Definition at line 58 of file Filter.icc.h.

    {
      return obj ? operator()(*obj) : NAN;
    }

operator()() [3/4]

std::vector< float > operator() ( const std::vector< Object * > &  objs )

virtualinherited

Function to evaluate a vector of objects Base implementation applies the function to each object.

Can be optimized for MVA filters

Parameters

objs	A vector of pointers to objects

Returns

A vector of float or NAN values. See above

Definition at line 64 of file Filter.icc.h.

    {
      std::vector<float> out;
      for (const auto& obj : objs) {
        out.push_back(operator()(obj));
      }
      return out;
    }

operator()() [4/4]

Weight operator() ( const TrackFindingCDC::CDCWireHit &  wireHit )

final

Basic filter method to override.

Definition at line 29 of file CombinedWireHitFilter.cc.

{
  if (not m_WireHitFilterSettings.isValid()) {
    B2FATAL("WireHitFilterSetting DB object is invalid");
  }
  const int switchSLayer = m_WireHitFilterSettings->getMVASwitchSuperLayer();
  const auto* cdcHit = wireHit.getHit();
  const auto sl = cdcHit->getISuperLayer();

  if (sl < switchSLayer) {
    return m_cutsFromDBFilter(wireHit);
  } else {
    return m_mvaFilter(wireHit);
  }
}

terminate()

void terminate ( )

overridevirtualinherited

Receive and dispatch Signal for termination of the event processing.

Reimplemented from ProcessingSignalListener.

Reimplemented in StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::HyperHough >, StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::QuadraticLegendre >, and StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::Z0TanLambdaLegendre >.

Definition at line 47 of file CompositeProcessingSignalListener.cc.

{
  for (ProcessingSignalListener* psl : reversedRange(m_subordinaryProcessingSignalListeners)) {
    psl->terminate();
  }
  Super::terminate();
}

Member Data Documentation

m_cutsFromDBFilter

CutsFromDBWireHitFilter m_cutsFromDBFilter

private

Cuts from DB filter.

Definition at line 48 of file CombinedWireHitFilter.h.

m_initialized

bool m_initialized = false

privateinherited

Flag to keep track whether initialization happend before.

Definition at line 52 of file ProcessingSignalListener.h.

m_initializedAs

std::string m_initializedAs

privateinherited

Name of the type during initialisation.

Definition at line 58 of file ProcessingSignalListener.h.

m_mvaFilter

TrackFindingCDC::MVAFilter<CDCWireHitVarSet> m_mvaFilter

private

MVA filter.

Definition at line 45 of file CombinedWireHitFilter.h.

m_subordinaryProcessingSignalListeners

std::vector<ProcessingSignalListener*> m_subordinaryProcessingSignalListeners

privateinherited

References to subordinary signal processing listener contained in this findlet.

Definition at line 52 of file CompositeProcessingSignalListener.h.

m_terminated

bool m_terminated = false

privateinherited

Flag to keep track whether termination happend before.

Definition at line 55 of file ProcessingSignalListener.h.

m_WireHitFilterSettings

DBObjPtr<WireHitFilterSettings> m_WireHitFilterSettings

private

Switch to MVA super layer from database.

Definition at line 51 of file CombinedWireHitFilter.h.

---

The documentation for this class was generated from the following files:

• tracking/trackFindingCDC/filters/wireHit/include/CombinedWireHitFilter.h
• tracking/trackFindingCDC/filters/wireHit/src/CombinedWireHitFilter.cc
