NDFinderTrack Class Reference
Packages » trg

Store track parameters of found tracks. More...

#include <NDFinder.h>

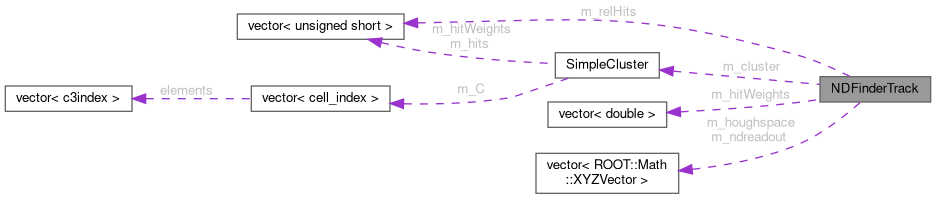

Collaboration diagram for NDFinderTrack:
Collaboration graph
[legend]

Public Member Functions

 NDFinderTrack (std::vector< double > values, const SimpleCluster &cluster, std::vector< ROOT::Math::XYZVector > houghspace, std::vector< ROOT::Math::XYZVector > ndreadout)

virtual ~NDFinderTrack ()
 Default destructor.

double getOmega ()

double getPhi0 ()

double getCot ()

double getNRelHits ()

std::vector< unsigned short > getRelHits ()

std::vector< unsigned short > getRelHitsWeights ()

void reset ()

SimpleCluster getCluster ()

std::vector< ROOT::Math::XYZVector > getHoughSpace ()

std::vector< ROOT::Math::XYZVector > getNDReadout ()


Private Attributes

double m_omega
 2D track curvature

double m_phi
 2D azimuthal angle

double m_cotTheta
 3D polar angle

std::vector< unsigned short > m_relHits
 vector of the indices of the related hits in the list of CDC hits (StoreArray<CDCHits>)

std::vector< double > m_hitWeights
 vector of the weights for each related hit.

SimpleCluster m_cluster

std::vector< ROOT::Math::XYZVector > m_houghspace

std::vector< ROOT::Math::XYZVector > m_ndreadout


Detailed Description

Store track parameters of found tracks.

Definition at line 28 of file NDFinder.h.

Constructor & Destructor Documentation

◆ NDFinderTrack()

NDFinderTrack ( std::vector< double > values,
const SimpleCluster & cluster,
std::vector< ROOT::Math::XYZVector > houghspace,
std::vector< ROOT::Math::XYZVector > ndreadout )
inline

Definition at line 30 of file NDFinder.h.

31 :
32 m_cluster(cluster)
33 {
34 m_omega = values[0];
35 m_phi = values[1];
36 m_cotTheta = values[2];
37 m_houghspace = houghspace;
38 m_ndreadout = ndreadout;
39 }

◆ ~NDFinderTrack()

virtual ~NDFinderTrack ( )
inlinevirtual

Default destructor.

Definition at line 42 of file NDFinder.h.

42{}

Member Function Documentation

◆ getCluster()

SimpleCluster getCluster ( )
inline

Definition at line 73 of file NDFinder.h.

74 {
75 return m_cluster;
76 }

◆ getCot()

double getCot ( )
inline

Definition at line 51 of file NDFinder.h.

52 {
53 return m_cotTheta;
54 }

◆ getHoughSpace()

std::vector< ROOT::Math::XYZVector > getHoughSpace ( )
inline

Definition at line 77 of file NDFinder.h.

78 {
79 return m_houghspace;
80 }

◆ getNDReadout()

std::vector< ROOT::Math::XYZVector > getNDReadout ( )
inline

Definition at line 81 of file NDFinder.h.

82 {
83 return m_ndreadout;
84 }

◆ getNRelHits()

double getNRelHits ( )
inline

Definition at line 55 of file NDFinder.h.

56 {
57 return m_cluster.getHits().size();
58 }

◆ getOmega()

double getOmega ( )
inline

Definition at line 43 of file NDFinder.h.

44 {
45 return m_omega;
46 }

◆ getPhi0()

double getPhi0 ( )
inline

Definition at line 47 of file NDFinder.h.

48 {
49 return m_phi;
50 }

◆ getRelHits()

std::vector< unsigned short > getRelHits ( )
inline

Definition at line 59 of file NDFinder.h.

60 {
61 return m_cluster.getHits();
62 }

◆ getRelHitsWeights()

std::vector< unsigned short > getRelHitsWeights ( )
inline

Definition at line 63 of file NDFinder.h.

64 {
65 return m_cluster.getWeights();
66 }

◆ reset()

void reset ( )
inline

Definition at line 67 of file NDFinder.h.

68 {
69 m_omega = 0.;
70 m_phi = 0.;
71 m_cotTheta = 0.;
72 }

Member Data Documentation

◆ m_cluster

SimpleCluster m_cluster
private

Definition at line 98 of file NDFinder.h.

◆ m_cotTheta

double m_cotTheta
private

3D polar angle

Definition at line 92 of file NDFinder.h.

◆ m_hitWeights

std::vector<double> m_hitWeights
private

vector of the weights for each related hit.

Definition at line 97 of file NDFinder.h.

◆ m_houghspace

std::vector<ROOT::Math::XYZVector> m_houghspace
private

Definition at line 99 of file NDFinder.h.

◆ m_ndreadout

std::vector<ROOT::Math::XYZVector> m_ndreadout
private

Definition at line 100 of file NDFinder.h.

◆ m_omega

double m_omega
private

2D track curvature

Definition at line 88 of file NDFinder.h.

◆ m_phi

double m_phi
private

2D azimuthal angle

Definition at line 90 of file NDFinder.h.

◆ m_relHits

std::vector<unsigned short> m_relHits
private

vector of the indices of the related hits in the list of CDC hits (StoreArray<CDCHits>)

Definition at line 95 of file NDFinder.h.

The documentation for this class was generated from the following file:
