TRGCDCFrontEnd Class Reference

A class to represent a CDC front-end board. More...

#include <FrontEnd.h>

Inheritance diagram for TRGCDCFrontEnd:

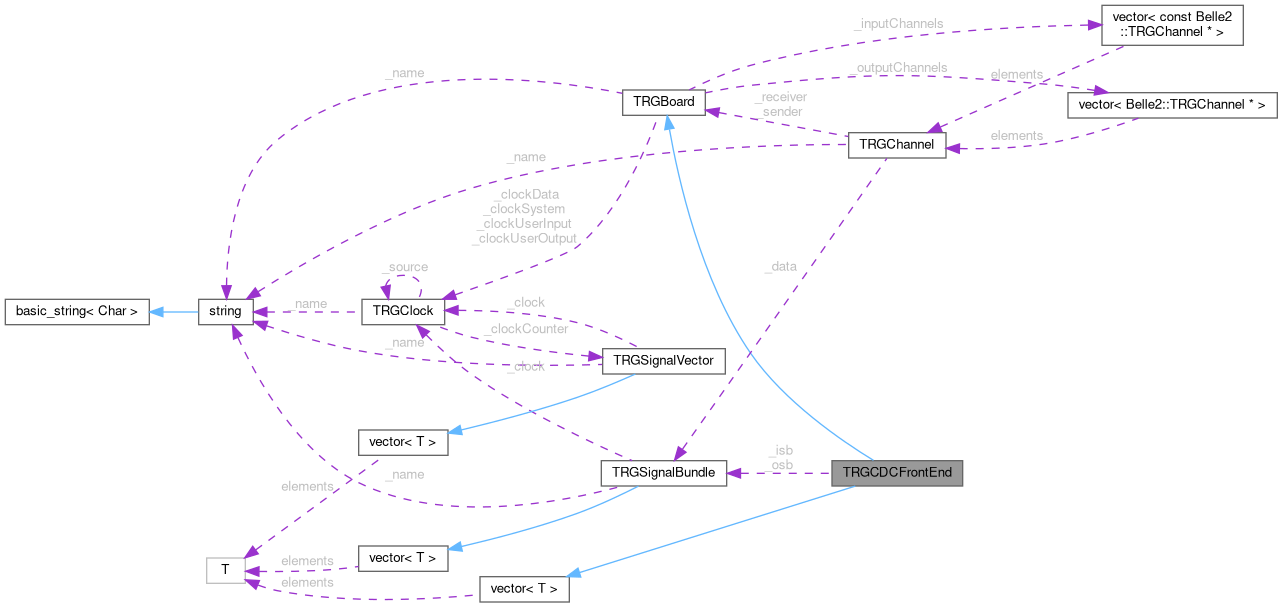

Collaboration diagram for TRGCDCFrontEnd:

Public Types
enum	boardType {   innerInside = 0 ,   innerOutside = 1 ,   outerInside = 2 ,   outerOutside = 3 ,   unknown = 999 }
	enum boardType More...

Public Member Functions
	TRGCDCFrontEnd (const std::string &name, boardType type, const TRGClock &systemClock, const TRGClock &dataClock, const TRGClock &userClock)
	Constructor.
virtual	~TRGCDCFrontEnd ()
	Destructor.
boardType	type (void) const
	returns type.
void	simulate (void)
	simulates firmware.
TRGSignalBundle *	getOSB (void) const
	output from FrontEnd
void	push_back (const TRGCDCWire *)
	push back TRGCDCWire for this Front-end
void	dump (const std::string &message="", const std::string &pre="") const
	dumps contents.
void	dump_log (void) const
	Dump all the details of _mosb into a .log file, do it in the end of simulate()
void	dump_log_innerInside (void) const
	Dump all the details of _mosb into a .log file, for innerInside FE.
void	dump_log_innerOutside (void) const
	Dump all the details of _mosb into a .log file, for innerOutside FE.
void	dump_log_outerInside (void) const
	Dump all the details of _mosb into a .log file, for outerInside FE.
void	dump_log_outerOutside (void) const
	Dump all the details of _mosb into a .log file, for outerOutside FE.
const std::string &	name (void) const
	returns name.
const TRGClock &	clockSystem (void) const
	returns system clock.
const TRGClock &	clockData (void) const
	returns data clock.
const TRGClock &	clockUserInput (void) const
	returns Aurora user clock for input.
const TRGClock &	clockUserOutput (void) const
	returns Aurora user clock for output.
unsigned	nInput (void) const
	returns input channels.
const TRGChannel *	input (unsigned i) const
	returns input channel i.
unsigned	nOutput (void) const
	returns output channels.
TRGChannel *	output (unsigned i) const
	returns output channel i.
void	appendInput (const TRGChannel *)
	appends an input Aurora channel.
void	appendOutput (TRGChannel *)
	appends an output Aurora channel.

Static Public Member Functions
static std::string	version (void)
	returns version.
static TRGState	packerInnerInside (const TRGState &input)
	Makes bit pattern using input bit pattern for the inner FE.
static TRGState	packerInnerOutside (const TRGState &input)
	Makes bit pattern using input bit pattern for the outer FE.
static TRGState	packerOuterInside (const TRGState &input)
	Makes bit pattern using input bit pattern for the inner FE.
static TRGState	packerOuterOutside (const TRGState &input)
	Makes bit pattern using input bit pattern for the outer FE.
static void	unpackerInnerInside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.
static void	unpackerInnerOutside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.
static void	unpackerOuterInside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.
static void	unpackerOuterOutside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.
static int	implementation (const boardType &type, std::ofstream &)
	make a VHDL component file.
static int	implementationPort (const boardType &type, std::ofstream &)
	writes a port map.

Public Attributes
T	elements
	STL member.

Private Attributes
boardType	_type
	Board type.
TRGSignalBundle *	_isb
	Input signal bundle.
TRGSignalBundle *	_osb
	Output signal bundle.
const std::string	_name
	Name of a board.
const TRGClock *	_clockSystem
	System clock.
const TRGClock *	_clockData
	Data clock.
const TRGClock *	_clockUserInput
	User clock.
const TRGClock *	_clockUserOutput
	User clock.
std::vector< const TRGChannel * >	_inputChannels
	Input Aurora channel.
std::vector< TRGChannel * >	_outputChannels
	Output Aurora channel.

Detailed Description

A class to represent a CDC front-end board.

Definition at line 35 of file FrontEnd.h.

Member Enumeration Documentation

boardType

enum boardType

enum boardType

Definition at line 41 of file FrontEnd.h.

                   {
      innerInside  = 0,       // inner of the inner-most super layer
      innerOutside = 1,       // outer of the inner-most super layer
      outerInside  = 2,       // inner of the outer super layer
      outerOutside = 3,       // outer of the outer super layer
      unknown = 999
    };

Member Function Documentation

getOSB()

TRGSignalBundle * getOSB ( void ) const

inline

output from FrontEnd

Definition at line 77 of file FrontEnd.h.

{ return _osb; };

Member Data Documentation

_clockData

const TRGClock* _clockData

privateinherited

Data clock.

Definition at line 90 of file Board.h.

_clockSystem

const TRGClock* _clockSystem

privateinherited

System clock.

Definition at line 87 of file Board.h.

_clockUserInput

const TRGClock* _clockUserInput

privateinherited

User clock.

Definition at line 93 of file Board.h.

_clockUserOutput

const TRGClock* _clockUserOutput

privateinherited

User clock.

Definition at line 96 of file Board.h.

_inputChannels

std::vector<const TRGChannel*> _inputChannels

privateinherited

Input Aurora channel.

Definition at line 99 of file Board.h.

_isb

TRGSignalBundle* _isb

private

Input signal bundle.

Definition at line 148 of file FrontEnd.h.

_name

const std::string _name

privateinherited

Name of a board.

Definition at line 84 of file Board.h.

_osb

TRGSignalBundle* _osb

private

Output signal bundle.

Definition at line 151 of file FrontEnd.h.

_outputChannels

std::vector<TRGChannel*> _outputChannels

privateinherited

Output Aurora channel.

Definition at line 102 of file Board.h.

_type

boardType _type

private

Board type.

Definition at line 145 of file FrontEnd.h.

---

The documentation for this class was generated from the following files:

• trg/cdc/include/FrontEnd.h
• trg/cdc/src/FrontEnd.cc
