TRGCDCTracker2D Class Reference

A class to represent a CDC 2D tracker board. More...

#include <Tracker2D.h>

Inheritance diagram for TRGCDCTracker2D:

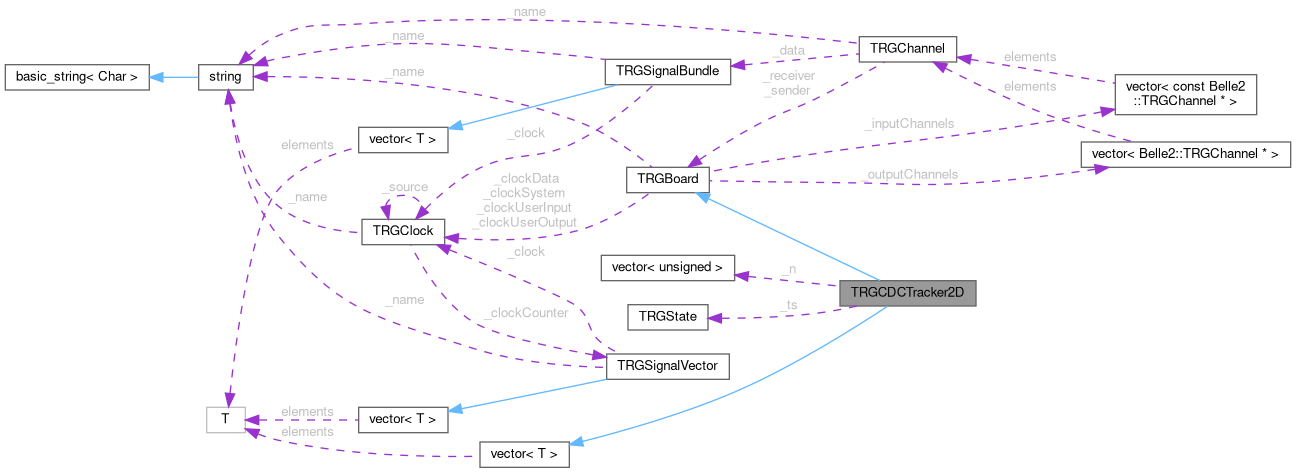

Collaboration diagram for TRGCDCTracker2D:

Public Member Functions
	TRGCDCTracker2D (const std::string &name, const TRGClock &systemClock, const TRGClock &dataClock, const TRGClock &userClockInput, const TRGClock &userClockOutput)
	Constructor.
virtual	~TRGCDCTracker2D ()
	Destructor.
void	simulate (void)
	simulates firmware.
void	push_back (const TRGCDCTrackSegmentFinder *)
	Appends a TSF board.
void	dump (const std::string &message="", const std::string &pre="") const
	dumps contents.
const std::string &	name (void) const
	returns name.
const TRGClock &	clockSystem (void) const
	returns system clock.
const TRGClock &	clockData (void) const
	returns data clock.
const TRGClock &	clockUserInput (void) const
	returns Aurora user clock for input.
const TRGClock &	clockUserOutput (void) const
	returns Aurora user clock for output.
unsigned	nInput (void) const
	returns input channels.
const TRGChannel *	input (unsigned i) const
	returns input channel i.
unsigned	nOutput (void) const
	returns output channels.
TRGChannel *	output (unsigned i) const
	returns output channel i.
void	appendInput (const TRGChannel *)
	appends an input Aurora channel.
void	appendOutput (TRGChannel *)
	appends an output Aurora channel.

Static Public Member Functions
static std::string	version (void)
	returns version.
static unsigned	nTSF (void)
	returns # of TSF.
static unsigned	nTSF (unsigned i)
	returns # of TSF in super layer i. (i=0 to 4)
static void	unpacker (const TRGState &input, TRGState &output)
	Unpack TSF output.
static TRGState	packer (const TRGState &input, TRGState &registers, bool &logicStillActive)
	Packer for 3D tracker.
static void	HoughMappingPlus (void)
	Do core logic simulation for positive charge.
static void	HoughMappingMinus (void)
	Do core logic simulation for negative charge.

Public Attributes
T	elements
	STL member.

Private Member Functions
void	setConstants (void)
	Sets constants.

Static Private Member Functions
static void	hitInformation (const TRGState &registers)
	Gets TSF hit information for one certin clock from the registers.

Private Attributes
const std::string	_name
	Name of a board.
const TRGClock *	_clockSystem
	System clock.
const TRGClock *	_clockData
	Data clock.
const TRGClock *	_clockUserInput
	User clock.
const TRGClock *	_clockUserOutput
	User clock.
std::vector< const TRGChannel * >	_inputChannels
	Input Aurora channel.
std::vector< TRGChannel * >	_outputChannels
	Output Aurora channel.

Static Private Attributes
static unsigned	_nTSF = 0
	# of TSFs.
static std::vector< unsigned >	_n
	# of TSFs in super layer i.
static TRGState	_ts
	Keeps TS hit info.

Detailed Description

A class to represent a CDC 2D tracker board.

Definition at line 35 of file Tracker2D.h.

Member Data Documentation

_clockData

const TRGClock* _clockData

privateinherited

Data clock.

Definition at line 90 of file Board.h.

_clockSystem

const TRGClock* _clockSystem

privateinherited

System clock.

Definition at line 87 of file Board.h.

_clockUserInput

const TRGClock* _clockUserInput

privateinherited

User clock.

Definition at line 93 of file Board.h.

_clockUserOutput

const TRGClock* _clockUserOutput

privateinherited

User clock.

Definition at line 96 of file Board.h.

_inputChannels

std::vector<const TRGChannel*> _inputChannels

privateinherited

Input Aurora channel.

Definition at line 99 of file Board.h.

_name

const std::string _name

privateinherited

Name of a board.

Definition at line 84 of file Board.h.

_outputChannels

std::vector<TRGChannel*> _outputChannels

privateinherited

Output Aurora channel.

Definition at line 102 of file Board.h.

---

The documentation for this class was generated from the following files:

• trg/cdc/include/Tracker2D.h
• trg/cdc/src/Tracker2D.cc
