Class to store raw data waveforms. More...

#include <TOPRawWaveform.h>

Inheritance diagram for TOPRawWaveform:

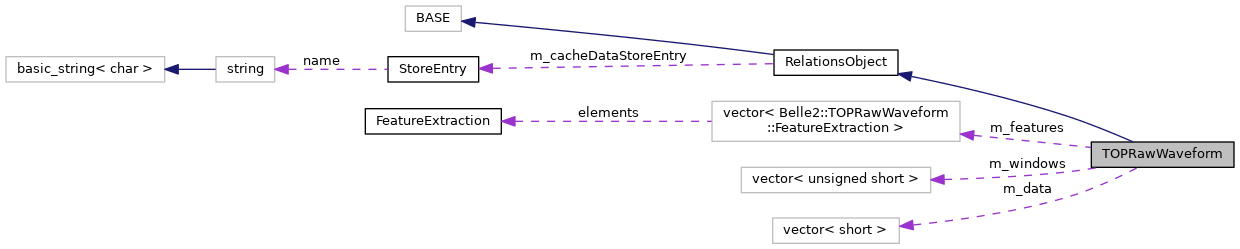

Collaboration diagram for TOPRawWaveform:

[legend]

Classes
struct	FeatureExtraction
	Feature extraction data. More...

Public Types
enum	{ c_WindowSize = 64 }
	Various constants. More...

Public Member Functions
	TOPRawWaveform ()
	Default constructor.

	TOPRawWaveform (int moduleID, int pixelID, unsigned channel, unsigned scrodID, unsigned window, int startSample, const std::vector< short > &data)
	Useful constructor. More...

void	setPedestalSubtractedFlag (bool value)
	Sets pedestal subtracted flag.

void	setPhysicalWindow (unsigned window)
	Sets hardware physical window number.

void	setLastWriteAddr (unsigned lastWriteAddr)
	Sets current (reference) window number.

void	setStorageWindows (const std::vector< unsigned short > &windows)
	Sets storage window numbers.

void	setRevo9Counter (unsigned short revo9Counter)
	Sets number of global clock tics since last revo9 flag. More...

void	setOffsetWindows (int offsetWindows)
	Sets number of offset windows (windows before "first one") - MC only. More...

int	getModuleID () const
	Returns module ID. More...

int	getPixelID () const
	Returns pixel ID (1-based) More...

unsigned	getChannel () const
	Returns hardware channel number (0-based) More...

unsigned	getScrodID () const
	Returns SCROD ID. More...

unsigned	getStorageWindow () const
	Returns hardware logic window number (storage window) More...

int	getStartSample () const
	Returns sample number of the first waveform sample. More...

bool	isPedestalSubtracted () const
	Tells whether pedestal already subtracted or not. More...

unsigned	getPhysicalWindow () const
	Returns hardware physical window number. More...

unsigned	getReferenceWindow () const
	Returns IRS reference analog storage window (last write address). More...

const std::vector< unsigned short > &	getStorageWindows () const
	Returns storage window numbers of waveform segments. More...

unsigned short	getRevo9Counter () const
	Returns 127 MHz clock ticks since last revo9 marker. More...

int	getOffsetWindows () const
	Returns number of windows before the "first one" which defines the time origin. More...

unsigned	getASICChannel () const
	Returns ASIC channel number. More...

unsigned	getASICNumber () const
	Returns ASIC number. More...

unsigned	getCarrierNumber () const
	Returns carrier board number. More...

unsigned	getBoardstackNumber () const
	Returns boardstack number. More...

unsigned	getSize () const
	Returns waveform size. More...

const std::vector< short > &	getWaveform () const
	Returns waveform. More...

bool	areWindowsInOrder (unsigned lastSample=0xFFFFFFFF, unsigned short storageDepth=508) const
	Checks if storage windows come in the consecutive order before the last sample (no gaps in between before the last sample) More...

int	getIntegral (int sampleRise, int samplePeak, int sampleFall) const
	Returns integral of a peak. More...

int	featureExtraction (int threshold, int hysteresis, int thresholdCount) const
	Do feature extraction. More...

const std::vector< FeatureExtraction > &	getFeatureExtractionData () const
	Returns feature extraction data. More...

void	addRelationTo (const RelationsInterface< BASE > *object, float weight=1.0, const std::string &namedRelation="") const
	Add a relation from this object to another object (with caching). More...

void	addRelationTo (const TObject *object, float weight=1.0, const std::string &namedRelation="") const
	Add a relation from this object to another object (no caching, can be quite slow). More...

void	copyRelations (const RelationsInterface< BASE > *sourceObj)
	Copies all relations of sourceObj (pointing from or to sourceObj) to this object (including weights). More...

template<class TO >
RelationVector< TO >	getRelationsTo (const std::string &name="", const std::string &namedRelation="") const
	Get the relations that point from this object to another store array. More...

template<class FROM >
RelationVector< FROM >	getRelationsFrom (const std::string &name="", const std::string &namedRelation="") const
	Get the relations that point from another store array to this object. More...

template<class T >
RelationVector< T >	getRelationsWith (const std::string &name="", const std::string &namedRelation="") const
	Get the relations between this object and another store array. More...

template<class TO >
TO *	getRelatedTo (const std::string &name="", const std::string &namedRelation="") const
	Get the object to which this object has a relation. More...

template<class FROM >
FROM *	getRelatedFrom (const std::string &name="", const std::string &namedRelation="") const
	Get the object from which this object has a relation. More...

template<class T >
T *	getRelated (const std::string &name="", const std::string &namedRelation="") const
	Get the object to or from which this object has a relation. More...

template<class TO >
std::pair< TO *, float >	getRelatedToWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing to an array. More...

template<class FROM >
std::pair< FROM *, float >	getRelatedFromWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing from an array. More...

template<class T >
std::pair< T *, float >	getRelatedWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing from/to an array. More...

virtual std::string	getName () const
	Return a short name that describes this object, e.g. More...

virtual std::string	getInfoHTML () const
	Return a short summary of this object's contents in HTML format. More...

std::string	getInfo () const
	Return a short summary of this object's contents in raw text format. More...

std::string	getArrayName () const
	Get name of array this object is stored in, or "" if not found.

int	getArrayIndex () const
	Returns this object's array index (in StoreArray), or -1 if not found.

Protected Member Functions
TClonesArray *	getArrayPointer () const
	Returns the pointer to the raw DataStore array holding this object (protected since these arrays are easy to misuse).

Private Member Functions
int	Integral (int sampleRise, int samplePeak, int sampleFall) const
	Returns integral of a peak. More...

	ClassDef (TOPRawWaveform, 9)
	ClassDef.

Private Attributes
int	m_moduleID = 0
	module ID

int	m_pixelID = 0
	software channel ID

unsigned	m_channel = 0
	hardware channel number

unsigned short	m_scrodID = 0
	SCROD ID.

unsigned short	m_window = 0
	hardware logic window number (storage window)

int	m_startSample = 0
	sample number of the first waveform sample

std::vector< short >	m_data
	waveform ADC values

bool	m_pedestalSubtracted = false
	true, if pedestals already subtracted

unsigned short	m_physicalWindow = 0
	hardware physical window number

unsigned short	m_lastWriteAddr = 0
	current (reference) window number

std::vector< unsigned short >	m_windows
	storage windows of waveform segments

unsigned short	m_revo9Counter = 0
	number of clock ticks since last revo9 flag

int	m_offsetWindows = 0
	number of offset windows (windows before "first one")

std::vector< FeatureExtraction >	m_features
	cache for feature extraction data

DataStore::StoreEntry *	m_cacheDataStoreEntry
	Cache of the data store entry to which this object belongs.

int	m_cacheArrayIndex
	Cache of the index in the TClonesArray to which this object belongs.

Detailed Description

Class to store raw data waveforms.

Definition at line 34 of file TOPRawWaveform.h.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Various constants.

Enumerator
c_WindowSize	number of samples per ASIC window

Definition at line 40 of file TOPRawWaveform.h.

55 {}

Constructor & Destructor Documentation

◆ TOPRawWaveform()

TOPRawWaveform	(	int	moduleID,
		int	pixelID,
		unsigned	channel,
		unsigned	scrodID,
		unsigned	window,
		int	startSample,
		const std::vector< short > &	data
	)

inline

Useful constructor.

Parameters

moduleID	module (slot) ID (1-based)
pixelID	pixel ID (1-based)
channel	hardware channel number (0-based)
scrodID	SCROD ID
window	hardware logic window number (storage window)
startSample	sample number of the first waveform sample
data	waveform ADC values

Definition at line 76 of file TOPRawWaveform.h.

Member Function Documentation

◆ addRelationTo() [1/2]

void addRelationTo	(	const RelationsInterface< BASE > *	object,
		float	weight = `1.0`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Add a relation from this object to another object (with caching).

Parameters

object	The object to which the relation should point.
weight	The weight of the relation.
namedRelation	Additional name for the relation, or "" for the default naming

Definition at line 144 of file RelationsObject.h.

◆ addRelationTo() [2/2]

void addRelationTo	(	const TObject *	object,
		float	weight = `1.0`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Add a relation from this object to another object (no caching, can be quite slow).

Parameters

object	The object to which the relation should point.
weight	The weight of the relation.
namedRelation	Additional name for the relation, or "" for the default naming

Definition at line 157 of file RelationsObject.h.

◆ areWindowsInOrder()

bool areWindowsInOrder	(	unsigned	lastSample = `0xFFFFFFFF`,
		unsigned short	storageDepth = `508`
	)		const

inline

Checks if storage windows come in the consecutive order before the last sample (no gaps in between before the last sample)

Parameters

lastSample	last sample
storageDepth	storage depth

Returns: true, if no gaps before the last sample

Definition at line 243 of file TOPRawWaveform.h.

◆ copyRelations()

void copyRelations ( const RelationsInterface< BASE > * sourceObj )

inlineinherited

Copies all relations of sourceObj (pointing from or to sourceObj) to this object (including weights).

Useful if you want to make a complete copy of a StoreArray object to make modifications to it, but retain all information on linked objects.

Note: this only works if sourceObj inherits from the same base (e.g. RelationsObject), and only for related objects that also inherit from the same base.

Definition at line 172 of file RelationsObject.h.

◆ getASICChannel()

unsigned getASICChannel ( ) const

inline

Returns ASIC channel number.

Returns: channel number

Definition at line 201 of file TOPRawWaveform.h.

◆ getASICNumber()

unsigned getASICNumber ( ) const

inline

Returns ASIC number.

Returns: ASIC number

Definition at line 207 of file TOPRawWaveform.h.

◆ getBoardstackNumber()

unsigned getBoardstackNumber ( ) const

inline

Returns boardstack number.

Returns: boardstack number

Definition at line 219 of file TOPRawWaveform.h.

◆ getCarrierNumber()

unsigned getCarrierNumber ( ) const

inline

Returns carrier board number.

Returns: carrier number

Definition at line 213 of file TOPRawWaveform.h.

◆ getChannel()

unsigned getChannel ( ) const

inline

Returns hardware channel number (0-based)

Returns: channel number

Definition at line 139 of file TOPRawWaveform.h.

◆ getFeatureExtractionData()

const std::vector<FeatureExtraction>& getFeatureExtractionData ( ) const

inline

Returns feature extraction data.

Returns: FE data

Definition at line 278 of file TOPRawWaveform.h.

◆ getInfo()

std::string getInfo ( ) const

inlineinherited

Return a short summary of this object's contents in raw text format.

Returns the contents of getInfoHTML() while translating line-breaks etc.

Note: : You don't need to implement this function (it's not virtual), getInfoHTML() is enough.

Definition at line 372 of file RelationsObject.h.

◆ getInfoHTML()

virtual std::string getInfoHTML ( ) const

inlinevirtualinherited

Return a short summary of this object's contents in HTML format.

Reimplement this in your own class to provide useful output for display or debugging purposes. For example, you might do something like:

std::stringstream out;
out << "<b>PDG</b>: " << m_pdg << "<br>";
out << "<b>Covariance Matrix</b>: " << HTML::getString(getCovariance5()) << "<br>";
return out.str();

See also: Particle::getInfoHTML() for a more complex example.; HTML for some utility functions.; Use getInfo() to get a raw text version of this output.

Reimplemented in TrackFitResult, TRGSummary, Track, SoftwareTriggerResult, Particle, RecoTrack, MCParticle, Cluster, and PIDLikelihood.

Definition at line 364 of file RelationsObject.h.

◆ getModuleID()

int getModuleID ( ) const

inline

Returns module ID.

Returns: module ID

Definition at line 127 of file TOPRawWaveform.h.

◆ getName()

virtual std::string getName ( ) const

inlinevirtualinherited

Return a short name that describes this object, e.g.

pi+ for an MCParticle.

Reimplemented in SpacePoint, Particle, and MCParticle.

Definition at line 346 of file RelationsObject.h.

◆ getOffsetWindows()

int getOffsetWindows ( ) const

inline

Returns number of windows before the "first one" which defines the time origin.

Returns: number of windows before the "first one"

Definition at line 195 of file TOPRawWaveform.h.

◆ getPhysicalWindow()

unsigned getPhysicalWindow ( ) const

inline

Returns hardware physical window number.

Returns: window number

Definition at line 169 of file TOPRawWaveform.h.

◆ getPixelID()

int getPixelID ( ) const

inline

Returns pixel ID (1-based)

Returns: pixel ID

Definition at line 133 of file TOPRawWaveform.h.

◆ getReferenceWindow()

unsigned getReferenceWindow ( ) const

inline

Returns IRS reference analog storage window (last write address).

This corresponds to the last window in the analog memory sampled. All timing is a "look-back" from this window.

Returns: window number

Definition at line 177 of file TOPRawWaveform.h.

◆ getRelated()

T* getRelated	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the object to or from which this object has a relation.

Template Parameters

T	The class of objects to or from which the relation points.

Parameters

name	The name of the store array to or from which the relation points. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: The first related object or a null pointer.

Definition at line 280 of file RelationsObject.h.

◆ getRelatedFrom()

FROM* getRelatedFrom	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the object from which this object has a relation.

Template Parameters

FROM	The class of objects from which the relation points.

Parameters

name	The name of the store array from which the relation points. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: The first related object or a null pointer.

Definition at line 265 of file RelationsObject.h.

◆ getRelatedFromWithWeight()

std::pair<FROM*, float> getRelatedFromWithWeight	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get first related object & weight of relation pointing from an array.

Template Parameters

FROM	The class of objects from which the relation points.

Parameters

name	The name of the store array from which the relation points. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 316 of file RelationsObject.h.

◆ getRelatedTo()

TO* getRelatedTo	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the object to which this object has a relation.

Template Parameters

TO	The class of objects to which the relation points.

Parameters

name	The name of the store array to which the relation points. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: The first related object or a null pointer.

Definition at line 250 of file RelationsObject.h.

◆ getRelatedToWithWeight()

std::pair<TO*, float> getRelatedToWithWeight	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get first related object & weight of relation pointing to an array.

Template Parameters

TO	The class of objects to which the relation points.

Parameters

name	The name of the store array to which the relation points. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 299 of file RelationsObject.h.

◆ getRelatedWithWeight()

std::pair<T*, float> getRelatedWithWeight	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get first related object & weight of relation pointing from/to an array.

Template Parameters

T	The class of objects to or from which the relation points.

Parameters

name	The name of the store array to or from which the relation points. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 333 of file RelationsObject.h.

◆ getRelationsFrom()

RelationVector<FROM> getRelationsFrom	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the relations that point from another store array to this object.

Template Parameters

FROM	The class of objects from which the relations point.

Parameters

name	The name of the store array from which the relations point. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: A vector of relations.

Definition at line 214 of file RelationsObject.h.

◆ getRelationsTo()

RelationVector<TO> getRelationsTo	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the relations that point from this object to another store array.

Template Parameters

TO	The class of objects to which the relations point.

Parameters

name	The name of the store array to which the relations point. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: A vector of relations.

Definition at line 199 of file RelationsObject.h.

◆ getRelationsWith()

RelationVector<T> getRelationsWith	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the relations between this object and another store array.

Relations in both directions are returned.

Template Parameters

T	The class of objects to or from which the relations point.

Parameters

name	The name of the store array to or from which the relations point. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: A vector of relations.

Definition at line 232 of file RelationsObject.h.

◆ getRevo9Counter()

unsigned short getRevo9Counter ( ) const

inline

Returns 127 MHz clock ticks since last revo9 marker.

Returns: revo9counter

Definition at line 189 of file TOPRawWaveform.h.

◆ getScrodID()

unsigned getScrodID ( ) const

inline

Returns SCROD ID.

Returns: SCROD ID

Definition at line 145 of file TOPRawWaveform.h.

◆ getSize()

unsigned getSize ( ) const

inline

Returns waveform size.

Returns: size

Definition at line 225 of file TOPRawWaveform.h.

◆ getStartSample()

int getStartSample ( ) const

inline

Returns sample number of the first waveform sample.

Returns: sample number

Definition at line 157 of file TOPRawWaveform.h.

◆ getStorageWindow()

unsigned getStorageWindow ( ) const

inline

Returns hardware logic window number (storage window)

Returns: window number

Definition at line 151 of file TOPRawWaveform.h.

◆ getStorageWindows()

const std::vector<unsigned short>& getStorageWindows ( ) const

inline

Returns storage window numbers of waveform segments.

Returns: window numbers

Definition at line 183 of file TOPRawWaveform.h.

◆ getWaveform()

const std::vector<short>& getWaveform ( ) const

inline

Returns waveform.

Returns: vector of ADC values

Definition at line 231 of file TOPRawWaveform.h.

◆ isPedestalSubtracted()

bool isPedestalSubtracted ( ) const

inline

Tells whether pedestal already subtracted or not.

Returns: true if subtracted

Definition at line 163 of file TOPRawWaveform.h.

◆ setOffsetWindows()

void setOffsetWindows ( int offsetWindows )

inline

Sets number of offset windows (windows before "first one") - MC only.

Parameters

offsetWindows number of windows before "first one"

Definition at line 121 of file TOPRawWaveform.h.

◆ setRevo9Counter()

void setRevo9Counter ( unsigned short revo9Counter )

inline

Sets number of global clock tics since last revo9 flag.

Parameters

revo9Counter counter state

Definition at line 115 of file TOPRawWaveform.h.

The documentation for this class was generated from the following files:

top/dataobjects/include/TOPRawWaveform.h
top/dataobjects/src/TOPRawWaveform.cc

Classes

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ TOPRawWaveform()

Member Function Documentation

◆ addRelationTo() [1/2]

◆ addRelationTo() [2/2]

◆ areWindowsInOrder()

◆ copyRelations()

◆ getASICChannel()

◆ getASICNumber()

◆ getBoardstackNumber()

◆ getCarrierNumber()

◆ getChannel()

◆ getFeatureExtractionData()

◆ getInfo()

◆ getInfoHTML()

◆ getModuleID()

◆ getName()

◆ getOffsetWindows()

◆ getPhysicalWindow()

◆ getPixelID()

◆ getReferenceWindow()

◆ getRelated()

◆ getRelatedFrom()

◆ getRelatedFromWithWeight()

◆ getRelatedTo()

◆ getRelatedToWithWeight()

◆ getRelatedWithWeight()

◆ getRelationsFrom()

◆ getRelationsTo()

◆ getRelationsWith()

◆ getRevo9Counter()

◆ getScrodID()

◆ getSize()

◆ getStartSample()

◆ getStorageWindow()

◆ getStorageWindows()

◆ getWaveform()

◆ isPedestalSubtracted()

◆ setOffsetWindows()

◆ setRevo9Counter()
