The PXD Raw Hit class This class stores information about PXD Pixel hits and makes them available in a root tree. More...

#include <PXDRawHit.h>

Inheritance diagram for PXDRawHit:

[legend]

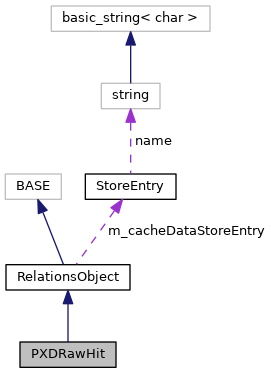

Collaboration diagram for PXDRawHit:

[legend]

Public Member Functions
	PXDRawHit ()
	Default constructor for the ROOT IO.

	PXDRawHit (VxdID sensorID, short row, short column, short charge, unsigned int frameNr)

VxdID	getSensorID () const
	Get the sensor ID. More...

short	getRow () const
	Get v cell id of hit position. More...

short	getVCellID () const
	Get v cell id of hit position. More...

short	getColumn () const
	Get u cell id of hit position. More...

short	getUCellID () const
	Get u cell id of hit position. More...

short	getCharge () const
	Get collected charge. More...

unsigned short	getFrameNr () const
	Get frame number. More...

void	addRelationTo (const RelationsInterface< BASE > *object, float weight=1.0, const std::string &namedRelation="") const
	Add a relation from this object to another object (with caching). More...

void	addRelationTo (const TObject *object, float weight=1.0, const std::string &namedRelation="") const
	Add a relation from this object to another object (no caching, can be quite slow). More...

void	copyRelations (const RelationsInterface< BASE > *sourceObj)
	Copies all relations of sourceObj (pointing from or to sourceObj) to this object (including weights). More...

template<class TO >
RelationVector< TO >	getRelationsTo (const std::string &name="", const std::string &namedRelation="") const
	Get the relations that point from this object to another store array. More...

template<class FROM >
RelationVector< FROM >	getRelationsFrom (const std::string &name="", const std::string &namedRelation="") const
	Get the relations that point from another store array to this object. More...

template<class T >
RelationVector< T >	getRelationsWith (const std::string &name="", const std::string &namedRelation="") const
	Get the relations between this object and another store array. More...

template<class TO >
TO *	getRelatedTo (const std::string &name="", const std::string &namedRelation="") const
	Get the object to which this object has a relation. More...

template<class FROM >
FROM *	getRelatedFrom (const std::string &name="", const std::string &namedRelation="") const
	Get the object from which this object has a relation. More...

template<class T >
T *	getRelated (const std::string &name="", const std::string &namedRelation="") const
	Get the object to or from which this object has a relation. More...

template<class TO >
std::pair< TO *, float >	getRelatedToWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing to an array. More...

template<class FROM >
std::pair< FROM *, float >	getRelatedFromWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing from an array. More...

template<class T >
std::pair< T *, float >	getRelatedWithWeight (const std::string &name="", const std::string &namedRelation="") const
	Get first related object & weight of relation pointing from/to an array. More...

virtual std::string	getName () const
	Return a short name that describes this object, e.g. More...

virtual std::string	getInfoHTML () const
	Return a short summary of this object's contents in HTML format. More...

std::string	getInfo () const
	Return a short summary of this object's contents in raw text format. More...

std::string	getArrayName () const
	Get name of array this object is stored in, or "" if not found.

int	getArrayIndex () const
	Returns this object's array index (in StoreArray), or -1 if not found.

Protected Member Functions
TClonesArray *	getArrayPointer () const
	Returns the pointer to the raw DataStore array holding this object (protected since these arrays are easy to misuse).

Private Member Functions
	ClassDef (RelationsInterface, 0)
	defines interface for accessing relations of objects in StoreArray.

Private Attributes
unsigned short	m_sensorID
	Compressed sensor identifier. More...

short	m_row
	Absolute pixel position in v (V Cell ID).

short	m_column
	Absolute pixel position in u (U Cell ID).

short	m_charge
	Deposited charge in pixel.

unsigned short	m_frameNr
	Number of the Frames.

DataStore::StoreEntry *	m_cacheDataStoreEntry
	Cache of the data store entry to which this object belongs.

int	m_cacheArrayIndex
	Cache of the index in the TClonesArray to which this object belongs.

Detailed Description

The PXD Raw Hit class This class stores information about PXD Pixel hits and makes them available in a root tree.

Definition at line 36 of file PXDRawHit.h.

Constructor & Destructor Documentation

◆ PXDRawHit()

PXDRawHit	(	VxdID	sensorID,
		short	row,
		short	column,
		short	charge,
		unsigned int	frameNr
	)

inline

Parameters

sensorID	Sensor compact ID.
row	Pixel row coordinate (V Cell ID).
column	Pixel column coordinate ( U Cell ID).
charge	The Pixel charge.
frameNr	number of the (readout) frame.

Definition at line 55 of file PXDRawHit.h.

     {
       return m_sensorID;
     }

Member Function Documentation

◆ addRelationTo() [1/2]

void addRelationTo	(	const RelationsInterface< BASE > *	object,
		float	weight = `1.0`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Add a relation from this object to another object (with caching).

Parameters

object	The object to which the relation should point.
weight	The weight of the relation.
namedRelation	Additional name for the relation, or "" for the default naming

Definition at line 144 of file RelationsObject.h.

◆ addRelationTo() [2/2]

void addRelationTo	(	const TObject *	object,
		float	weight = `1.0`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Add a relation from this object to another object (no caching, can be quite slow).

Parameters

object	The object to which the relation should point.
weight	The weight of the relation.
namedRelation	Additional name for the relation, or "" for the default naming

Definition at line 157 of file RelationsObject.h.

◆ copyRelations()

void copyRelations ( const RelationsInterface< BASE > * sourceObj )

inlineinherited

Copies all relations of sourceObj (pointing from or to sourceObj) to this object (including weights).

Useful if you want to make a complete copy of a StoreArray object to make modifications to it, but retain all information on linked objects.

Note: this only works if sourceObj inherits from the same base (e.g. RelationsObject), and only for related objects that also inherit from the same base.

Definition at line 172 of file RelationsObject.h.

◆ getCharge()

short getCharge ( ) const

inline

Get collected charge.

Returns: charge collected in the pixel.

Definition at line 104 of file PXDRawHit.h.

◆ getColumn()

short getColumn ( ) const

inline

Get u cell id of hit position.

Returns: u cell id of hit position.

Definition at line 88 of file PXDRawHit.h.

◆ getFrameNr()

unsigned short getFrameNr ( ) const

inline

Get frame number.

Returns: Number of the Frame.

Definition at line 112 of file PXDRawHit.h.

◆ getInfo()

std::string getInfo ( ) const

inlineinherited

Return a short summary of this object's contents in raw text format.

Returns the contents of getInfoHTML() while translating line-breaks etc.

Note: : You don't need to implement this function (it's not virtual), getInfoHTML() is enough.

Definition at line 372 of file RelationsObject.h.

◆ getInfoHTML()

virtual std::string getInfoHTML ( ) const

inlinevirtualinherited

Return a short summary of this object's contents in HTML format.

Reimplement this in your own class to provide useful output for display or debugging purposes. For example, you might do something like:

std::stringstream out;
out << "<b>PDG</b>: " << m_pdg << "<br>";
out << "<b>Covariance Matrix</b>: " << HTML::getString(getCovariance5()) << "<br>";
return out.str();

See also: Particle::getInfoHTML() for a more complex example.; HTML for some utility functions.; Use getInfo() to get a raw text version of this output.

Reimplemented in TrackFitResult, TRGSummary, Track, SoftwareTriggerResult, Particle, RecoTrack, MCParticle, Cluster, and PIDLikelihood.

Definition at line 364 of file RelationsObject.h.

◆ getName()

virtual std::string getName ( ) const

inlinevirtualinherited

Return a short name that describes this object, e.g.

pi+ for an MCParticle.

Reimplemented in SpacePoint, Particle, and MCParticle.

Definition at line 346 of file RelationsObject.h.

◆ getRelated()

T* getRelated	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the object to or from which this object has a relation.

Template Parameters

T	The class of objects to or from which the relation points.

Parameters

name	The name of the store array to or from which the relation points. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: The first related object or a null pointer.

Definition at line 280 of file RelationsObject.h.

◆ getRelatedFrom()

FROM* getRelatedFrom	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the object from which this object has a relation.

Template Parameters

FROM	The class of objects from which the relation points.

Parameters

name	The name of the store array from which the relation points. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: The first related object or a null pointer.

Definition at line 265 of file RelationsObject.h.

◆ getRelatedFromWithWeight()

std::pair<FROM*, float> getRelatedFromWithWeight	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get first related object & weight of relation pointing from an array.

Template Parameters

FROM	The class of objects from which the relation points.

Parameters

name	The name of the store array from which the relation points. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 316 of file RelationsObject.h.

◆ getRelatedTo()

TO* getRelatedTo	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the object to which this object has a relation.

Template Parameters

TO	The class of objects to which the relation points.

Parameters

name	The name of the store array to which the relation points. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: The first related object or a null pointer.

Definition at line 250 of file RelationsObject.h.

◆ getRelatedToWithWeight()

std::pair<TO*, float> getRelatedToWithWeight	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get first related object & weight of relation pointing to an array.

Template Parameters

TO	The class of objects to which the relation points.

Parameters

name	The name of the store array to which the relation points. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 299 of file RelationsObject.h.

◆ getRelatedWithWeight()

std::pair<T*, float> getRelatedWithWeight	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get first related object & weight of relation pointing from/to an array.

Template Parameters

T	The class of objects to or from which the relation points.

Parameters

name	The name of the store array to or from which the relation points. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: Pair of first related object and the relation weight, or (NULL, 1.0) if none found.

Definition at line 333 of file RelationsObject.h.

◆ getRelationsFrom()

RelationVector<FROM> getRelationsFrom	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the relations that point from another store array to this object.

Template Parameters

FROM	The class of objects from which the relations point.

Parameters

name	The name of the store array from which the relations point. If empty the default store array name for class FROM will be used. If the special name "ALL" is given all store arrays containing objects of type FROM are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: A vector of relations.

Definition at line 214 of file RelationsObject.h.

◆ getRelationsTo()

RelationVector<TO> getRelationsTo	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the relations that point from this object to another store array.

Template Parameters

TO	The class of objects to which the relations point.

Parameters

name	The name of the store array to which the relations point. If empty the default store array name for class TO will be used. If the special name "ALL" is given all store arrays containing objects of type TO are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: A vector of relations.

Definition at line 199 of file RelationsObject.h.

◆ getRelationsWith()

RelationVector<T> getRelationsWith	(	const std::string &	name = `""`,
		const std::string &	namedRelation = `""`
	)		const

inlineinherited

Get the relations between this object and another store array.

Relations in both directions are returned.

Template Parameters

T	The class of objects to or from which the relations point.

Parameters

name	The name of the store array to or from which the relations point. If empty the default store array name for class T will be used. If the special name "ALL" is given all store arrays containing objects of type T are considered.
namedRelation	Additional name for the relation, or "" for the default naming

Returns: A vector of relations.

Definition at line 232 of file RelationsObject.h.

◆ getRow()

short getRow ( ) const

inline

Get v cell id of hit position.

Returns: v cell id of hit position.

Definition at line 72 of file PXDRawHit.h.

◆ getSensorID()

VxdID getSensorID ( ) const

inline

Get the sensor ID.

Returns: ID of the sensor.

Definition at line 64 of file PXDRawHit.h.

◆ getUCellID()

short getUCellID ( ) const

inline

Get u cell id of hit position.

Returns: u cell id of hit position.

Definition at line 96 of file PXDRawHit.h.

◆ getVCellID()

short getVCellID ( ) const

inline

Get v cell id of hit position.

Returns: v cell id of hit position.

Definition at line 80 of file PXDRawHit.h.

Member Data Documentation

◆ m_sensorID

unsigned short m_sensorID

private

Compressed sensor identifier.

actually a VxdID object

Definition at line 119 of file PXDRawHit.h.

The documentation for this class was generated from the following file:

pxd/dataobjects/include/PXDRawHit.h

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ PXDRawHit()

Member Function Documentation

◆ addRelationTo() [1/2]

◆ addRelationTo() [2/2]

◆ copyRelations()

◆ getCharge()

◆ getColumn()

◆ getFrameNr()

◆ getInfo()

◆ getInfoHTML()

◆ getName()

◆ getRelated()

◆ getRelatedFrom()

◆ getRelatedFromWithWeight()

◆ getRelatedTo()

◆ getRelatedToWithWeight()

◆ getRelatedWithWeight()

◆ getRelationsFrom()

◆ getRelationsTo()

◆ getRelationsWith()

◆ getRow()

◆ getSensorID()

◆ getUCellID()

◆ getVCellID()

Member Data Documentation

◆ m_sensorID
