Belle II Software  release-05-02-19
SVDSignal Class Reference

The SVD signal class. More...

#include <SVDSignal.h>

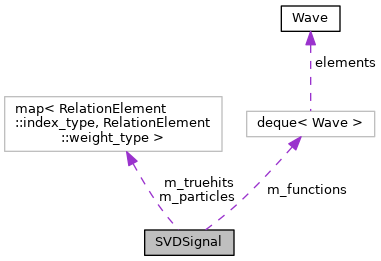

Collaboration diagram for SVDSignal:

Classes

struct  Wave
 Type to store elementary waveforms. More...


Public Types

typedef std::deque< Wavefunction_list
 List of elementary waveforms.

typedef std::map< RelationElement::index_type, RelationElement::weight_typerelations_map
 Type to store contributions to strip signal by different particles on output of SVDSignal.

typedef std::map< RelationElement::index_type, RelationElement::weight_type >::value_type relation_value_type
 Type of relation_map elements.


Public Member Functions

 SVDSignal ()
 Default constructor.

 SVDSignal (const SVDSignal &other)
 Copy ctor.

bool isNoise () const
 Check whether this is a noise signal. More...

void add (double initTime, double charge, double tau, int particle=-1, int truehit=-1)
 Add a chargelet to the strip signal. More...

SVDSignaloperator= (const SVDSignal &other)
 Make the SVDSignal assignable. More...

double waveform (double t, double initTime, double charge, double tau, waveFunction wfun=w_betaprime) const
 Waveform shape. More...

double waveform (double t, const Wave &wave) const
 Waveform taking parameters from a Wave struct. More...

double operator() (double t) const
 Make SVDSignal a functor. More...

double getCharge () const
 Return the charge collected in the strip. More...

const function_listgetFunctions () const
 Return the list of waveform parameters. More...

const relations_mapgetMCParticleRelations () const
 Return the list of MCParticle relations. More...

const relations_mapgetTrueHitRelations () const
 Return the list of TrueHit relations. More...

std::string toString () const
 Produce a string representation of the object.


Protected Attributes

double m_charge
 charge of the pixel

function_list m_functions
 list of elementary waveform parameters.

relations_map m_particles
 Map of MCParticle associations.

relations_map m_truehits
 Map of TrueHit associations.


Detailed Description

The SVD signal class.

The class implements the waveform appearing on an SVD strip as a result of ionization by particles passing through the detector. The class accumulates elementary waveforms formed by chargelets contributing to the charge accumulated on the strip. The elementary waveforms are currently of the form w(t|delta,tau) = charge * (t-delta)/tau * exp(1.0 - (t-delta)/tau)) for t >= delta, otherwise 0. with delta being the initial time, and tau the decay time. Maximum is attained at delta + tau and is equal to charge. The class is a functor returning values of summary waveform at a given time. Poisson and gaussian noises will be added externally.

Definition at line 52 of file SVDSignal.h.

Member Function Documentation

◆ add()

void add ( double  initTime,
double  charge,
double  tau,
int  particle = -1,
int  truehit = -1
)
inline

Add a chargelet to the strip signal.

Negative sign of charge has a special meaning, it designates noise signal carrying otherwise no useful information.

Parameters
chargeCharge in electrons to be added
initTimeTime of arrival of the chargelet to the sensitive surface of the sensor.
tauCharacteristic time of waveform decay.
particleIndex of the particle contributing the charge, -1 for no particle/noise
truehitIndex of the truehit corresponding to the particle that contributed the charge.

Definition at line 123 of file SVDSignal.h.

131  {
132  m_charge = other.getCharge();

◆ getCharge()

double getCharge ( ) const
inline

Return the charge collected in the strip.

Returns
Total charge of the waveform.

Definition at line 186 of file SVDSignal.h.

◆ getFunctions()

const function_list& getFunctions ( ) const
inline

Return the list of waveform parameters.

Returns
The deque containing SVDSignal::Wave structs with waveform parameters.

Definition at line 191 of file SVDSignal.h.

◆ getMCParticleRelations()

const relations_map& getMCParticleRelations ( ) const
inline

Return the list of MCParticle relations.

Returns
SVDSignal::relations_map with MCParticle relations of the signal.

Definition at line 196 of file SVDSignal.h.

◆ getTrueHitRelations()

const relations_map& getTrueHitRelations ( ) const
inline

Return the list of TrueHit relations.

Returns
SVDSignal::relations_map with TrueHit relations of the signal.

Definition at line 201 of file SVDSignal.h.

◆ isNoise()

bool isNoise ( ) const
inline

Check whether this is a noise signal.

If charge is negative, there is no useful information in the signal.

Returns
True if noise signal.

Definition at line 111 of file SVDSignal.h.

◆ operator()()

double operator() ( double  t) const
inline

Make SVDSignal a functor.

Parameters
tThe time at which output is to be calculated.
Returns
value of the waveform

Definition at line 174 of file SVDSignal.h.

◆ operator=()

SVDSignal& operator= ( const SVDSignal other)
inline

Make the SVDSignal assignable.

Parameters
otherThe original signal.
Returns
This signal with all quantities set to those of the other.

Definition at line 138 of file SVDSignal.h.

◆ waveform() [1/2]

double waveform ( double  t,
const Wave wave
) const
inline

Waveform taking parameters from a Wave struct.

Parameters
tThe time at which the function is to be calculated.
waveThe SVDSignal::Wave struct with parameters of a waveform.
Returns
THe value of the waveform at time time.

Definition at line 167 of file SVDSignal.h.

◆ waveform() [2/2]

double waveform ( double  t,
double  initTime,
double  charge,
double  tau,
waveFunction  wfun = w_betaprime
) const
inline

Waveform shape.

Parameters
tThe time at which the function is to be calculated.
initTimeThe initial time of the waveform.
chargeThe charge (peak value) of the waveform.
tauThe scale parameter (decay time) of the waveform.
wfunThe functional form of the waveform. Default is betaprime. The function is normalized to peak value of 1.
Returns
Value of the waveform at t.

Definition at line 155 of file SVDSignal.h.


The documentation for this class was generated from the following file:
