TRGGDL Class Reference

The instance of TRGGDL is a singleton. More...

#include <TRGGDL.h>

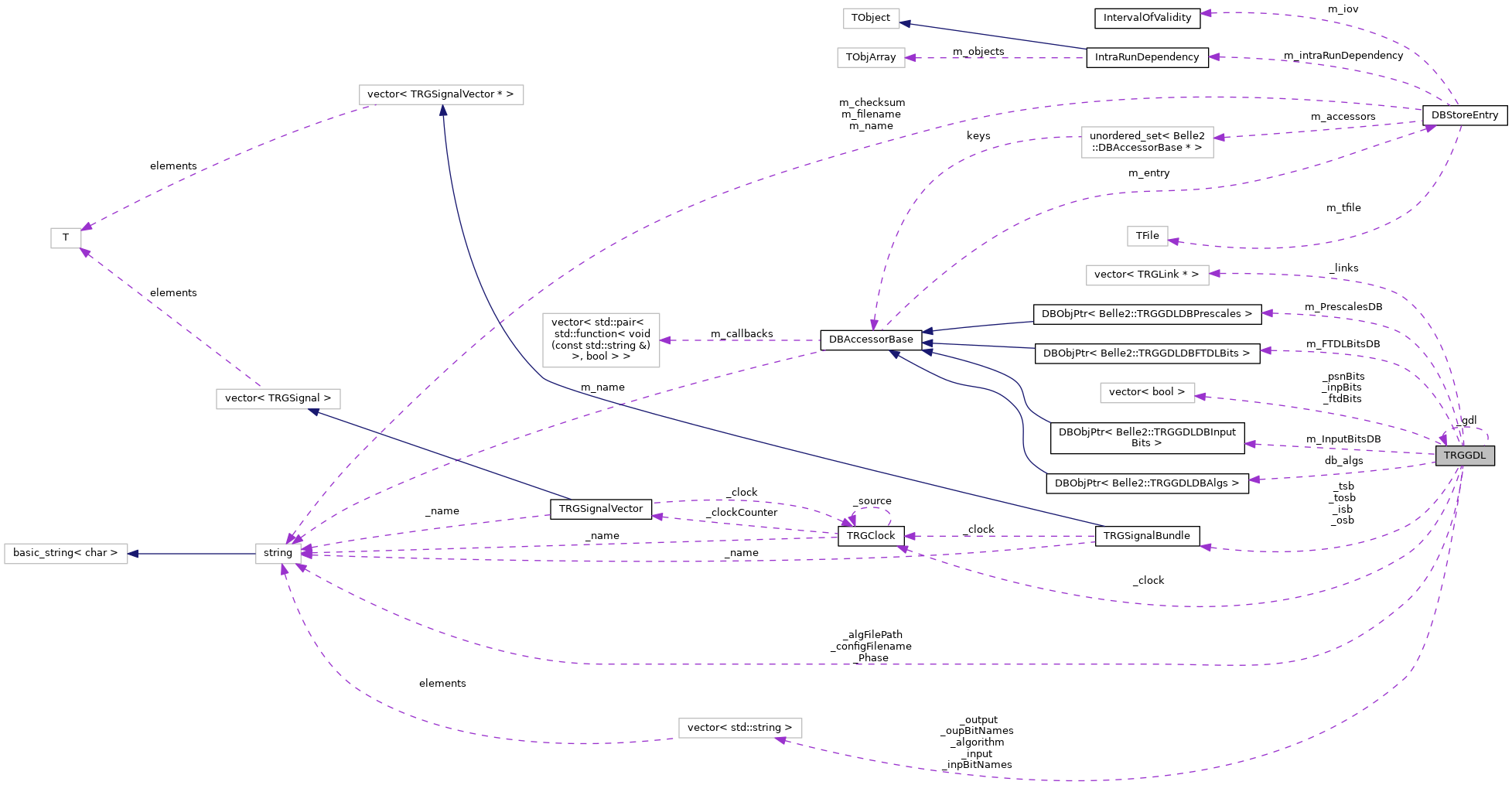

Collaboration diagram for TRGGDL:

Public Member Functions
std::string	name (void) const
	returns name.
std::string	version (void) const
	returns version.
std::string	configFile (void) const
	returns configuration file name.
unsigned	mode (void) const
	returns simulation mode.
unsigned	mode (unsigned)
	sets and returns simulation mode.
unsigned	firmwareSimulationMode (void) const
	returns firmware simulation mode.
void	dump (const std::string &message) const
	dumps debug information.
int	debugLevel (void) const
	returns debug level.
int	debugLevel (int) const
	sets and returns debug level.
void	clear (void)
	clears all TRGGDL information.
void	fastClear (void)
	clears TRGGDL information.
void	update (bool mcAnalysis=true)
	updates TRGGDL information.
const TRGClock &	systemClock (void) const
	returns the system clock.
double	systemOffsetMC (void) const
	returns the system offset in MC.
bool	doprescale (int f)
bool	isFiredFTDL (std::vector< bool > input, std::string alg)
std::vector< bool >	getInpBits (void)
std::vector< bool >	getFtdBits (void)
std::vector< bool >	getPsnBits (void)

Static Public Member Functions
static TRGGDL *	getTRGGDL (const std::string &configFile, unsigned simulationMode=0, unsigned fastSimulationMode=0, unsigned firmwareSimulationMode=0, const std::string &Phase="Phase", bool algFromDB=true, const std::string &algFilePath="ftd.alg", int debugLevel=0)
	returns TRGGDL object with specific configuration.
static TRGGDL *	getTRGGDL (void)
	returns TRGGDL object. More...
static TRGState	decision (const TRGState &input)
	Makes bit pattern(state) using input bit pattern(state).
static TRGState	timingDecision (const TRGState &input, TRGState &registers, bool &logicStillActive)
	Makes timing decision.

Static Public Attributes
static void(*	_ftd )(bool *out, bool *in)
	Function to simulate final trigger decision.

Private Member Functions
	TRGGDL (const std::string &configFile, unsigned simulationMode, unsigned fastSimulationMode, unsigned firmwareSimulationMode, const std::string &Phase, bool algFromDB=true, const std::string &algFilePath="ftd.alg", int debugLevel=0)
	Constructor.
virtual	~TRGGDL ()
	Destructor.
void	initialize (void)
	initializes GDL.
void	configure (void)
	configures trigger modules for firmware simulation.
void	simulate (void)
	fast trigger simulation.
void	terminate (void)
	terminates when run is finished
void	updateMC (void)
	updates TRGGDL information for MC.
void	fastSimulation (void)
	Fast simulation.
void	firmwareSimulation (void)
	Firmware simulation.
void	dataSimulation (void)
	Data simulation.
void	getInput (std::ifstream &ifs)
	Read input data definition.
void	getOutput (std::ifstream &ifs)
	Read output data definition.
void	getAlgorithm (std::ifstream &ifs)
	Read algorithm data definition.
void	accumulateInp (TH1I *)
	Accumulate bit info in histogram.
void	accumulateFtd (TH1I *)
	Accumulate bit info in histogram.
void	accumulatePsn (TH1I *)
	Accumulate bit info in histogram.
bool	isFiredInput (int n)
	Returns fired/not for input bits.
bool	isFiredFtdl (int n)
	Returns fired/not for ftdl bits.
bool	isFiredPsnm (int n)
	Returns fired/not for psnm bits.
int	getNbitsOup (void)
int	getNbitsInp (void)

Private Attributes
int	_debugLevel
	Debug level.
std::string	_configFilename
	GDL configuration filename.
unsigned	_simulationMode
	Simulation mode.
unsigned	_fastSimulationMode
	Fast simulation mode.
unsigned	_firmwareSimulationMode
	Firmware simulation mode.
std::string	_Phase
std::string	_algFilePath
const TRGClock &	_clock
	GDL trigger system clock.
const double	_offset
	Timing offset of GDL.
std::vector< TRGLink * >	_links
	All serial links.
std::vector< std::string >	_input
	Input names.
std::vector< std::string >	_output
	Output names.
std::vector< std::string >	_algorithm
	Algorithm.
TRGSignalBundle *	_isb
	Input signal bundle.
TRGSignalBundle *	_osb
	Output signal bundle.
TRGSignalBundle *	_tsb
	Timing input signal bundle.
TRGSignalBundle *	_tosb
	Timing output signal bundle.
DBObjPtr< TRGGDLDBInputBits >	m_InputBitsDB
	Data base of GDL input bits.
DBObjPtr< TRGGDLDBFTDLBits >	m_FTDLBitsDB
DBObjPtr< TRGGDLDBPrescales >	m_PrescalesDB
DBObjPtr< TRGGDLDBAlgs >	db_algs
std::vector< bool >	_inpBits
std::vector< bool >	_ftdBits
std::vector< bool >	_psnBits
std::vector< std::string >	_inpBitNames
std::vector< std::string >	_oupBitNames
bool	_algFromDB

Static Private Attributes
static TRGGDL *	_gdl = 0
	GDL singleton. More...

Friends
class	TRGGDLModule

Detailed Description

The instance of TRGGDL is a singleton.

'TRGGDL::getTRGGDL()' gives you a pointer to access the TRGGDL. Geometrical information is initialized automatically. Before accessing hit information, user has to call 'update()' to initialize hit information event by event.

Definition at line 48 of file TRGGDL.h.

---

The documentation for this class was generated from the following files:

• trg/gdl/include/TRGGDL.h
• trg/gdl/src/TRGGDL.cc
