MaterialScanPlanar Class Reference

Specific implementaion of MaterialScan to scan parallel to a given plane. More...

#include <MaterialScan.h>

Inheritance diagram for MaterialScanPlanar:

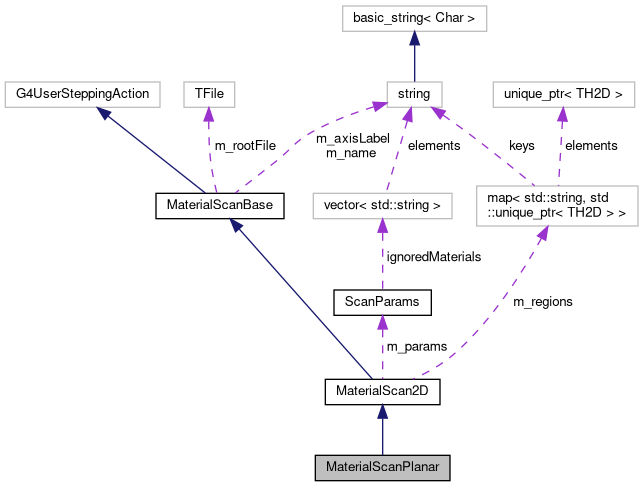

Collaboration diagram for MaterialScanPlanar:

Public Member Functions
	MaterialScanPlanar (TFile *rootFile, const G4ThreeVector &origin, const G4ThreeVector &dirU, const G4ThreeVector &dirV, const ScanParams &params)
	Create a Planar Scan object with the given parameters. More...
bool	createNext (G4ThreeVector &origin, G4ThreeVector &direction) override
	Get the origin and direction for the next scan particle. More...
int	getNRays () const override
	Return the number of rays in this scan.
void	UserSteppingAction (const G4Step *step) override
	Record the material budget for each step of the particles.
std::string	getName () const
	Return the name of the scan.

Protected Member Functions
void	getRay (G4ThreeVector &origin, G4ThreeVector &direction) override
	Create a ray with the current parameter values according to a planar distribution.
TH2D *	getHistogram (const std::string &name)
	get histogram for a given name, create if needed. More...
void	fillValue (const std::string &name, double value)
	Fill the recorded material budget into the corresponding histogram. More...
bool	checkStep (const G4Step *step)
	check for stuck tracks by looking at the step length

Protected Attributes
G4ThreeVector	m_origin
	Origin of the scan plane.
G4ThreeVector	m_dirU
	u direction of the scan plane
G4ThreeVector	m_dirV
	v direction of the scan plane
G4ThreeVector	m_dirW
	direction perpendicluar to u and v
ScanParams	m_params
	Parameters for the scan.
double	m_curU
	Current value of the parametetr u.
double	m_stepU
	Stepsize for the parameter u.
double	m_curV
	Current value of the parametetr v.
double	m_stepV
	Stepsize for the parameter v.
double	m_curDepth
	Tracklength of the current Ray.
std::map< std::string, std::unique_ptr< TH2D > >	m_regions
	Map holding pointers to all created histograms.
TFile *	m_rootFile
	Pointer to the root file for the histograms.
std::string	m_name
	Name of the scan, will be prefixed to all histogram names.
std::string	m_axisLabel
	Labels for the coordinate axes.

Private Attributes
int	m_zeroSteps {0}
	Count the number of steps with (almost) zero length.

Static Private Attributes
static constexpr double	c_zeroTolerance = 1e-6
	maximum Step length to be considered zero
static constexpr int	c_maxZeroStepsNudge = 10
	maximum number of consecutive zero steps before nudging the track along
static constexpr int	c_maxZeroStepsKill = 20
	maximum number of consecutive zero steps before killing the track

Detailed Description

Specific implementaion of MaterialScan to scan parallel to a given plane.

Particles will be created in a grid on the given plane and will be traced perpendicluar to that plane The plane is defined by one origin and the directions of the grid coordinates u and v. The flight direction is determined by the cross product between the u and v axis.

Definition at line 202 of file MaterialScan.h.

Constructor & Destructor Documentation

MaterialScanPlanar()

MaterialScanPlanar ( TFile *  rootFile, const G4ThreeVector &  origin, const G4ThreeVector &  dirU, const G4ThreeVector &  dirV, const ScanParams &  params  )

inline

Create a Planar Scan object with the given parameters.

Parameters

rootFile	pointer to the ROOT File containing the histograms
origin	Origin of the plane to shoot rays from
dirU	Direction of the u coordinate
dirV	Direction of the v coordinate
params	Parameters of the scan

Definition at line 211 of file MaterialScan.h.

Member Function Documentation

createNext()

bool createNext ( G4ThreeVector &  origin, G4ThreeVector &  direction  )

overridevirtualinherited

Get the origin and direction for the next scan particle.

Parameters

[out]	origin	Origin of the next scan particle
[out]	direction	Direction of the next scan particle

Returns

false if the scan is finished

Implements MaterialScanBase.

Definition at line 97 of file MaterialScan.cc.

fillValue()

void fillValue ( const std::string &  name, double  value  )

protectedinherited

Fill the recorded material budget into the corresponding histogram.

Parameters

name	Name of the histogram
value	Value to store

Definition at line 138 of file MaterialScan.cc.

getHistogram()

TH2D * getHistogram ( const std::string &  name )

protectedinherited

get histogram for a given name, create if needed.

Parameters

name	Name of the histogram

Definition at line 125 of file MaterialScan.cc.

---

The documentation for this class was generated from the following files:

• simulation/modules/include/MaterialScan.h
• simulation/modules/src/MaterialScan.cc
