A class to represent a CDC front-end board. More...

#include <FrontEnd.h>

Inheritance diagram for TRGCDCFrontEnd:

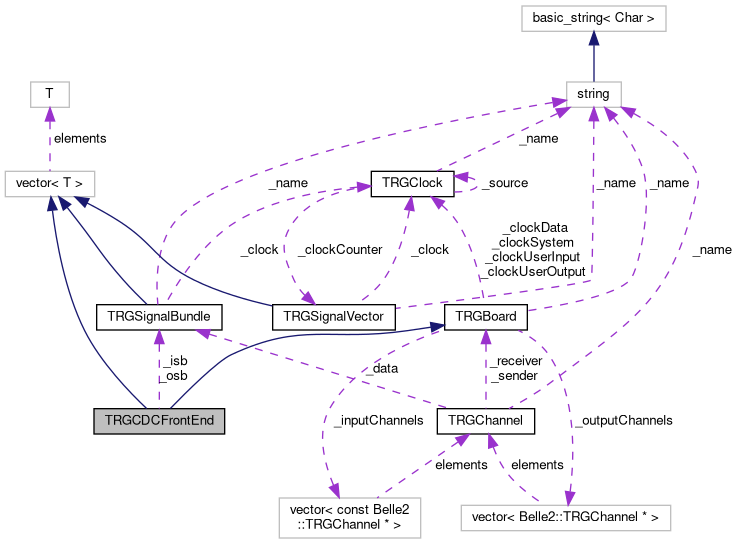

Collaboration diagram for TRGCDCFrontEnd:

[legend]

Public Types
enum	boardType { innerInside = 0 , innerOutside = 1 , outerInside = 2 , outerOutside = 3 , unknown = 999 }
	enum boardType

Public Member Functions
	TRGCDCFrontEnd (const std::string &name, boardType type, const TRGClock &systemClock, const TRGClock &dataClock, const TRGClock &userClock)
	Constructor.

virtual	~TRGCDCFrontEnd ()
	Destructor.

boardType	type (void) const
	returns type.

void	simulate (void)
	simulates firmware.

TRGSignalBundle *	getOSB (void) const
	output from FrontEnd

void	push_back (const TRGCDCWire *)
	push back TRGCDCWire for this Front-end

void	dump (const std::string &message="", const std::string &pre="") const
	dumps contents. More...

void	dump_log (void) const
	Dump all the details of _mosb into a .log file, do it in the end of simulate()

void	dump_log_innerInside (void) const
	Dump all the details of _mosb into a .log file, for innerInside FE.

void	dump_log_innerOutside (void) const
	Dump all the details of _mosb into a .log file, for innerOutside FE.

void	dump_log_outerInside (void) const
	Dump all the details of _mosb into a .log file, for outerInside FE.

void	dump_log_outerOutside (void) const
	Dump all the details of _mosb into a .log file, for outerOutside FE.

const std::string &	name (void) const
	returns name.

const TRGClock &	clockSystem (void) const
	returns system clock.

const TRGClock &	clockData (void) const
	returns data clock.

const TRGClock &	clockUserInput (void) const
	returns Aurora user clock for input.

const TRGClock &	clockUserOutput (void) const
	returns Aurora user clock for output.

unsigned	nInput (void) const
	returns input channels.

const TRGChannel *	input (unsigned i) const
	returns input channel i.

unsigned	nOutput (void) const
	returns output channels.

TRGChannel *	output (unsigned i) const
	returns output channel i.

void	appendInput (const TRGChannel *)
	appends an input Aurora channel.

void	appendOutput (TRGChannel *)
	appends an output Aurora channel.

Static Public Member Functions
static std::string	version (void)
	returns version.

static TRGState	packerInnerInside (const TRGState &input)
	Makes bit pattern using input bit pattern for the inner FE.

static TRGState	packerInnerOutside (const TRGState &input)
	Makes bit pattern using input bit pattern for the outer FE.

static TRGState	packerOuterInside (const TRGState &input)
	Makes bit pattern using input bit pattern for the inner FE.

static TRGState	packerOuterOutside (const TRGState &input)
	Makes bit pattern using input bit pattern for the outer FE.

static void	unpackerInnerInside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.

static void	unpackerInnerOutside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.

static void	unpackerOuterInside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.

static void	unpackerOuterOutside (const TRGState &input, const TRGState &output)
	Unpacks TRGState.

static int	implementation (const boardType &type, std::ofstream &)
	make a VHDL component file. More...

static int	implementationPort (const boardType &type, std::ofstream &)
	writes a port map.

Public Attributes
T	elements
	STL member.

Private Attributes
boardType	_type
	Board type.

TRGSignalBundle *	_isb
	Input signal bundle.

TRGSignalBundle *	_osb
	Output signal bundle.

const std::string	_name
	Name of a board.

const TRGClock *	_clockSystem
	System clock.

const TRGClock *	_clockData
	Data clock.

const TRGClock *	_clockUserInput
	User clock.

const TRGClock *	_clockUserOutput
	User clock.

std::vector< const TRGChannel * >	_inputChannels
	Input Aurora channel.

std::vector< TRGChannel * >	_outputChannels
	Output Aurora channel.

Detailed Description

A class to represent a CDC front-end board.

Definition at line 35 of file FrontEnd.h.

The documentation for this class was generated from the following files:

trg/cdc/include/FrontEnd.h
trg/cdc/src/FrontEnd.cc
