Geometry parameters of cable envelope. More...

#include <ARICHGeoCablesEnvelope.h>

Inheritance diagram for ARICHGeoCablesEnvelope:

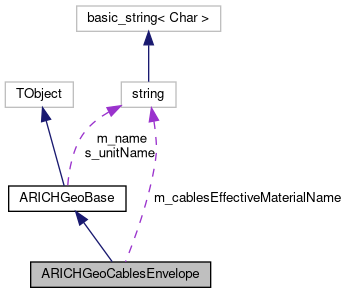

Collaboration diagram for ARICHGeoCablesEnvelope:

[legend]

Public Member Functions
	ARICHGeoCablesEnvelope ()
	Default constructor.

void	setCablesEffectiveMaterialName (const std::string &materialName)
	Set Effective material name describing cables. More...

void	setEnvelopeOuterRadius (double envelopeOuterRadius)
	Set outer radius of cables envelop. More...

void	setEnvelopeInnerRadius (double envelopeInnerRadius)
	Set inner radius of cables envelop. More...

void	setEnvelopeThickness (double envelopeThickness)
	Set thickness of cables envelop. More...

void	setEnvelopeCenterPosition (double x0, double y0, double z0)
	Set position of cables envelop. More...

const std::string &	getCablesEffectiveMaterialName () const
	Returns Effective material name describing cables. More...

double	getEnvelopeOuterRadius () const
	Returns Outer radius of cables envelop. More...

double	getEnvelopeInnerRadius () const
	Returns Inner radius of cables envelop. More...

double	getEnvelopeThickness () const
	Returns Thickness of cables envelop. More...

TVector3	getEnvelopeCenterPosition () const
	Returns position vector (TVector3) of cables envelop. More...

void	print (const std::string &title="Merger PCB geometry parameters") const
	Print the content of the class. More...

void	checkCablesEnvelopDataConsistency () const
	Check data consistency of cables envelop In case of failure print the basf2 ERROR message using B2ASSERT.

void	setName (const std::string &name)
	Sets object name. More...

const std::string &	getName () const
	Returns object name. More...

virtual bool	isConsistent () const
	Check for consistency of data members. More...

virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface. More...

virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters. More...

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length

static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDef (ARICHGeoCablesEnvelope, 1)
	ClassDef.

Private Attributes
std::string	m_cablesEffectiveMaterialName
	Effective material describing cables.

double	m_envelopeOuterRadius = 0.0
	Outer radius of cables envelop.

double	m_envelopeInnerRadius = 0.0
	Inner radius of cables envelop.

double	m_envelopeThickness = 0.0
	Thickness of cables envelop.

double	m_envelopeX0 = 0.0
	X0 ARICH cables envelop center.

double	m_envelopeY0 = 0.0
	Y0 ARICH cables envelop center.

double	m_envelopeZ0 = 0.0
	Z0 ARICH cables envelop center.

Detailed Description

Geometry parameters of cable envelope.

Definition at line 26 of file ARICHGeoCablesEnvelope.h.

Member Function Documentation

◆ getCablesEffectiveMaterialName()

const std::string& getCablesEffectiveMaterialName ( ) const

inline

Returns Effective material name describing cables.

Returns: Effective material name describing cables

Definition at line 72 of file ARICHGeoCablesEnvelope.h.

72 {return m_cablesEffectiveMaterialName;}

Belle2::ARICHGeoCablesEnvelope::m_cablesEffectiveMaterialName

std::string m_cablesEffectiveMaterialName

Effective material describing cables.

Definition: ARICHGeoCablesEnvelope.h:112

◆ getEnvelopeCenterPosition()

TVector3 getEnvelopeCenterPosition ( ) const

inline

Returns position vector (TVector3) of cables envelop.

Returns: position vector (TVector3) of cables envelop

Definition at line 96 of file ARICHGeoCablesEnvelope.h.

◆ getEnvelopeInnerRadius()

double getEnvelopeInnerRadius ( ) const

inline

Returns Inner radius of cables envelop.

Returns: Inner radius of cables envelop

Definition at line 84 of file ARICHGeoCablesEnvelope.h.

◆ getEnvelopeOuterRadius()

double getEnvelopeOuterRadius ( ) const

inline

Returns Outer radius of cables envelop.

Returns: Outer radius of cables envelop

Definition at line 78 of file ARICHGeoCablesEnvelope.h.

◆ getEnvelopeThickness()

double getEnvelopeThickness ( ) const

inline

Returns Thickness of cables envelop.

Returns: Thickness of cables envelop

Definition at line 90 of file ARICHGeoCablesEnvelope.h.

◆ getName()

const std::string& getName ( ) const

inlineinherited

Returns object name.

Returns: object name

Definition at line 49 of file ARICHGeoBase.h.

◆ isConsistent()

virtual bool isConsistent ( ) const

inlinevirtualinherited

Check for consistency of data members.

Returns: true if values consistent (valid)

Reimplemented in ARICHPositionElement, ARICHGeoSupport, ARICHGeoMirrors, ARICHGeoMasterVolume, ARICHGeoHAPD, ARICHGeoDetectorPlane, and ARICHGeoAerogelPlane.

Definition at line 55 of file ARICHGeoBase.h.

◆ print()

void print ( const std::string & title = "Merger PCB geometry parameters" ) const

virtual

Print the content of the class.

Parameters

title title to be printed

Reimplemented from ARICHGeoBase.

Definition at line 20 of file ARICHGeoCablesEnvelope.cc.

 {

   ARICHGeoBase::print(title);

   cout << "Outer radius of cables envelop            : " << getEnvelopeOuterRadius() << endl
        << "Inner radius of cables envelop            : " << getEnvelopeInnerRadius() << endl
        << "Thickness of cables envelop               : " << getEnvelopeThickness() << endl
        << "Effective material name describing cables : " << getCablesEffectiveMaterialName() << endl;
   cout << "X0 of ARICH cables envelop center         : " << getEnvelopeCenterPosition().X() << endl
        << "Y0 of ARICH cables envelop center         : " << getEnvelopeCenterPosition().Y() << endl
        << "Z0 of ARICH cables envelop center         : " << getEnvelopeCenterPosition().Z() << endl;

 }

◆ printPlacement()

void printPlacement	(	double	x,
		double	y,
		double	z,
		double	rx,
		double	ry,
		double	rz
	)		const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 25 of file ARICHGeoBase.cc.

◆ printSurface()

void printSurface ( const GeoOpticalSurface & surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface optical surface parameters

Definition at line 32 of file ARICHGeoBase.cc.

◆ setCablesEffectiveMaterialName()

void setCablesEffectiveMaterialName ( const std::string & materialName )

inline

Set Effective material name describing cables.

Parameters

materialName Effective material name describing cables

Definition at line 40 of file ARICHGeoCablesEnvelope.h.

◆ setEnvelopeCenterPosition()

void setEnvelopeCenterPosition	(	double	x0,
		double	y0,
		double	z0
	)

inline

Set position of cables envelop.

Parameters

x0	x position of cables envelop
y0	y position of cables envelop
z0	z position of cables envelop

Definition at line 66 of file ARICHGeoCablesEnvelope.h.

◆ setEnvelopeInnerRadius()

void setEnvelopeInnerRadius ( double envelopeInnerRadius )

inline

Set inner radius of cables envelop.

Parameters

envelopeInnerRadius inner radius of cables envelop

Definition at line 52 of file ARICHGeoCablesEnvelope.h.

◆ setEnvelopeOuterRadius()

void setEnvelopeOuterRadius ( double envelopeOuterRadius )

inline

Set outer radius of cables envelop.

Parameters

envelopeOuterRadius outer radius of cables envelop

Definition at line 46 of file ARICHGeoCablesEnvelope.h.

◆ setEnvelopeThickness()

void setEnvelopeThickness ( double envelopeThickness )

inline

Set thickness of cables envelop.

Parameters

envelopeThickness thickness of cables envelop

Definition at line 58 of file ARICHGeoCablesEnvelope.h.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 43 of file ARICHGeoBase.h.

The documentation for this class was generated from the following files:

arich/dbobjects/include/ARICHGeoCablesEnvelope.h
arich/dbobjects/src/ARICHGeoCablesEnvelope.cc
