ARICHMirrorAlignment Class Reference

Mirror alignment parameters for ARICH. More...

#include <ARICHMirrorAlignment.h>

Inheritance diagram for ARICHMirrorAlignment:

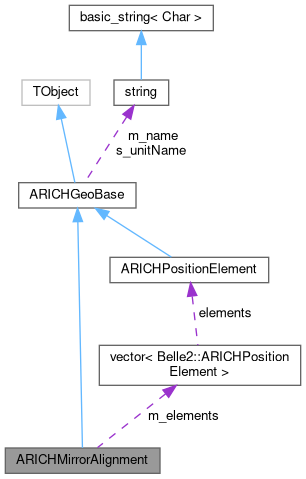

Collaboration diagram for ARICHMirrorAlignment:

Public Member Functions
	ARICHMirrorAlignment ()
	Default constructor.
void	setAlignmentElement (int id, const ARICHPositionElement &pars)
	Sets Alignment parameters (element) for mirror plate.
const ARICHPositionElement &	getAlignmentElement (int mirrorID) const
	Returns alignment parameters for given mirror plate.
void	print (const std::string &title="Mirror Alignment Parameters") const
	Print the content of the class.
void	setName (const std::string &name)
	Sets object name.
const std::string &	getName () const
	Returns object name.
virtual bool	isConsistent () const
	Check for consistency of data members.
virtual void	printSurface (const GeoOpticalSurface &surface) const
	Print the content of optical surface.
virtual void	printPlacement (double x, double y, double z, double rx, double ry, double rz) const
	Print volume positioning parameters.

Protected Member Functions
	ClassDef (ARICHGeoBase, 2)
	ClassDef.

Protected Attributes
std::string	m_name
	geometry object name

Static Protected Attributes
static double	s_unit = Unit::cm
	conversion unit for length
static std::string	s_unitName
	conversion unit name

Private Member Functions
	ClassDef (ARICHMirrorAlignment, 1)
	ClassDef.

Private Attributes
std::vector< ARICHPositionElement >	m_elements {std::vector<ARICHPositionElement>(18)}
	vector of position elements for alignment

Detailed Description

Mirror alignment parameters for ARICH.

Definition at line 23 of file ARICHMirrorAlignment.h.

Constructor & Destructor Documentation

ARICHMirrorAlignment()

ARICHMirrorAlignment ( )

inline

Default constructor.

Definition at line 29 of file ARICHMirrorAlignment.h.

    {}

~ARICHMirrorAlignment()

~ARICHMirrorAlignment ( )

inline

Definition at line 32 of file ARICHMirrorAlignment.h.

    {}

Member Function Documentation

getAlignmentElement()

const ARICHPositionElement & getAlignmentElement ( int  mirrorID ) const

inline

Returns alignment parameters for given mirror plate.

Returns

position element

Definition at line 49 of file ARICHMirrorAlignment.h.

    {
      return m_elements[mirrorID - 1];
    }

getName()

const std::string & getName ( ) const

inlineinherited

Returns object name.

Returns

object name

Definition at line 49 of file ARICHGeoBase.h.

{return m_name;}

isConsistent()

virtual bool isConsistent ( ) const

inlinevirtualinherited

Check for consistency of data members.

Returns

true if values consistent (valid)

Reimplemented in ARICHGeoAerogelPlane, ARICHGeoDetectorPlane, ARICHGeoHAPD, ARICHGeoMasterVolume, ARICHGeoMirrors, ARICHGeoSupport, and ARICHPositionElement.

Definition at line 55 of file ARICHGeoBase.h.

{return false;}

print()

void print ( const std::string &  title = "Mirror Alignment Parameters" ) const

inlinevirtual

Print the content of the class.

Parameters

title

title to be printed

Reimplemented from ARICHGeoBase.

Definition at line 54 of file ARICHMirrorAlignment.h.

    {
      ARICHGeoBase::print(title);
      int i = 1;
      for (auto el : m_elements) { std::cout << "Mirror plate " << i++ << std::endl; el.print(); std::cout << std::endl;}
    }

printPlacement()

void printPlacement ( double  x, double  y, double  z, double  rx, double  ry, double  rz  ) const

virtualinherited

Print volume positioning parameters.

Parameters

x	x position
y	y position
z	z position
rx	rotation around x-axis
ry	rotation around y-axis
rz	rotation around z-axis

Definition at line 25 of file ARICHGeoBase.cc.

{
//  cout << "Volume positioning information (inside local ARICH frame)" << endl;
  cout << " Center position; x: " << x << " " << s_unitName << ", y: " << y << " " << s_unitName << ", z: " << z << " " << s_unitName
       << endl;
  cout << " Rotations; x-axis: " << rx << " y-axis: " << ry << " z-axis: " << rz << " (in rad)"  << endl;
}

printSurface()

void printSurface ( const GeoOpticalSurface &  surface ) const

virtualinherited

Print the content of optical surface.

Parameters

surface

optical surface parameters

Definition at line 32 of file ARICHGeoBase.cc.

{
  cout << " Optical surface: ";
  if (surface.getName().empty() and !surface.hasProperties()) {
    cout << "not defined" << endl;
    return;
  }
  cout << surface.getName();
  cout << ", model: " << surface.getModel();
  cout << ", finish: " << surface.getFinish();
  cout << ", type: " << surface.getType();
  cout << ", value: " << surface.getValue();
  cout << endl;
  if (surface.hasProperties()) {
    for (const auto& property : surface.getProperties()) {
      cout << "  - property: ";
      cout << property.getName() << " [";
      for (const auto& value : property.getValues()) cout << value << ", ";
      cout << "], @[";
      for (const auto& value : property.getEnergies()) cout << value / Unit::eV << ", ";
      cout << "] eV" << endl;
    }
  } else {
    cout << "  - properties: None" << endl;
  }

}

setAlignmentElement()

void setAlignmentElement ( int  id, const ARICHPositionElement &  pars  )

inline

Sets Alignment parameters (element) for mirror plate.

Parameters

id	mirror id
pars	element displacement element

Definition at line 40 of file ARICHMirrorAlignment.h.

    {
      m_elements[id - 1] = pars;
    }

setName()

void setName ( const std::string &  name )

inlineinherited

Sets object name.

Parameters

name	object name

Definition at line 43 of file ARICHGeoBase.h.

{m_name = name;}

Member Data Documentation

m_elements

std::vector<ARICHPositionElement> m_elements {std::vector<ARICHPositionElement>(18)}

private

vector of position elements for alignment

Definition at line 64 of file ARICHMirrorAlignment.h.

m_name

std::string m_name

protectedinherited

geometry object name

Definition at line 82 of file ARICHGeoBase.h.

s_unit

double s_unit = Unit::cm

staticprotectedinherited

conversion unit for length

Definition at line 83 of file ARICHGeoBase.h.

s_unitName

std::string s_unitName

staticprotectedinherited

conversion unit name

Definition at line 84 of file ARICHGeoBase.h.

---

The documentation for this class was generated from the following file:

• arich/dbobjects/include/ARICHMirrorAlignment.h
