The Class for VXD geometry. More...

#include <SVDGeometryPar.h>

Inheritance diagram for SVDGeometryPar:

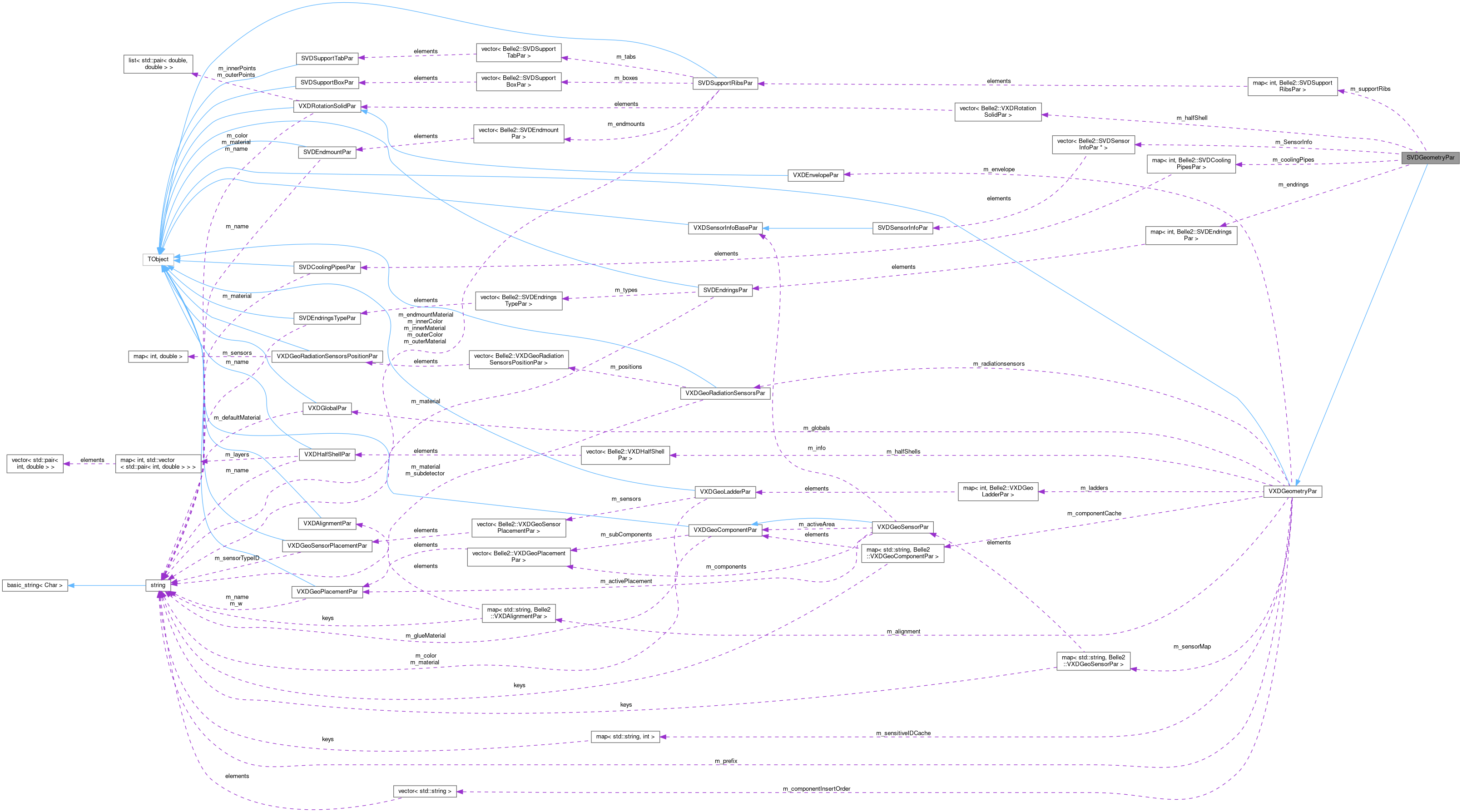

Collaboration diagram for SVDGeometryPar:

[legend]

Public Member Functions
	SVDGeometryPar ()
	Default constructor.

const std::vector< VXDRotationSolidPar > &	getRotationSolids () const
	get SVD halfshell Rotation Solids

std::vector< VXDRotationSolidPar > &	getRotationSolids ()
	get SVD halfshell Rotation Solids

const std::map< int, SVDEndringsPar > &	getEndrings () const
	get endrings

std::map< int, SVDEndringsPar > &	getEndrings ()
	get endrings

const std::map< int, SVDCoolingPipesPar > &	getCoolingPipes () const
	get cooling pipes

std::map< int, SVDCoolingPipesPar > &	getCoolingPipes ()
	get cooling pipes

const std::map< int, SVDSupportRibsPar > &	getSupportRibs () const
	get support ribs

std::map< int, SVDSupportRibsPar > &	getSupportRibs ()
	get support ribs

const SVDSupportRibsPar &	getSupportRibs (int) const
	get SVD Support Ribs

const SVDEndringsPar &	getEndrings (int) const
	get SVD Endrings

const SVDCoolingPipesPar &	getCoolingPipes (int) const
	get SVD Cooling Pipes

bool	getSupportRibsExist (int) const
	return if SVD Support Ribs exist

bool	getEndringsExist (int) const
	return if endrings exist

bool	getCoolingPipesExist (int) const
	return if endrings exist

std::vector< SVDSensorInfoPar * > &	getSensorInfos ()
	get sensorInfos

std::string	getPrefix () const
	get prefix

void	setPrefix (const std::string &prefix)
	set prefix

const VXDGlobalPar &	getGlobalParams () const
	get global parameters

void	setGlobalParams (const VXDGlobalPar &globals)
	set global parameters

const VXDEnvelopePar &	getEnvelope () const
	get envelope parameters

void	setEnvelope (const VXDEnvelopePar &envelope)
	set envelope parameters

const VXDGeoRadiationSensorsPar &	getRadiationSensors () const
	get radiation sensor parameters

void	setRadiationSensors (const VXDGeoRadiationSensorsPar &diamonds)
	set radiation sensor parameters

std::map< std::string, VXDAlignmentPar > &	getAlignmentMap ()
	get alignmant map

VXDAlignmentPar	getAlignment (std::string name) const
	get alignment parameters for component name

const std::vector< VXDHalfShellPar > &	getHalfShells () const
	get half-shell

std::vector< VXDHalfShellPar > &	getHalfShells ()
	get half-shell

std::map< int, VXDGeoLadderPar > &	getLadderMap ()
	get ladder map

const VXDGeoLadderPar &	getLadder (int layerID) const
	get ladder for given layer

const VXDGeoSensorPar &	getSensor (std::string sensorTypeID) const
	get sensor type

const VXDGeoComponentPar &	getComponent (std::string name) const
	get component

const std::map< std::string, VXDGeoSensorPar > &	getSensorMap () const
	get sensor map

std::map< std::string, VXDGeoSensorPar > &	getSensorMap ()
	get sensor map

const std::map< std::string, VXDGeoComponentPar > &	getComponentMap () const
	get component maps

std::map< std::string, VXDGeoComponentPar > &	getComponentMap ()
	get component maps

int	getSensitiveChipID (std::string name) const
	get Bkg sensitive chip Id

std::map< std::string, int > &	getSensitiveChipIdMap ()
	get sensitive chip id map

const std::vector< std::string > &	getComponentInsertOder () const
	get component insert order

std::vector< std::string > &	getComponentInsertOder ()
	get component insert order

Private Member Functions
	ClassDef (SVDGeometryPar, 5)
	ClassDef, must be the last term before the closing {}.

Private Attributes
std::vector< SVDSensorInfoPar * >	m_SensorInfo
	Vector of pointers to SensorInfo objects.

std::vector< VXDRotationSolidPar >	m_halfShell
	SVD Half Shell parameters.

std::map< int, SVDEndringsPar >	m_endrings
	SVD Endrings parameters.

std::map< int, SVDCoolingPipesPar >	m_coolingPipes
	SVD Cooling Pipes parameters.

std::map< int, SVDSupportRibsPar >	m_supportRibs
	SVD SupportRibs parameters.

std::string	m_prefix {""}
	Prefix to prepend to all volume names.

VXDGlobalPar	m_globals
	Container for a few general parameters.

std::map< std::string, VXDAlignmentPar >	m_alignment
	Alignment parameters for all components.

VXDEnvelopePar	m_envelope
	Envelope parameters.

std::vector< VXDHalfShellPar >	m_halfShells
	Cache for half shells

std::map< std::string, VXDGeoComponentPar >	m_componentCache
	Cache of all previously created components.

std::vector< std::string >	m_componentInsertOrder
	Vector remembering the order of insertions into component cache.

std::map< std::string, VXDGeoSensorPar >	m_sensorMap
	Map containing Information about all defined sensor types.

VXDGeoRadiationSensorsPar	m_radiationsensors
	Diamond radiation sensors.

std::map< int, VXDGeoLadderPar >	m_ladders
	Parameters of the detector ladders.

std::map< std::string, int >	m_sensitiveIDCache
	Cache of all Bkg sensitive chip Ids.

Detailed Description

The Class for VXD geometry.

Definition at line 29 of file SVDGeometryPar.h.

Constructor & Destructor Documentation

◆ SVDGeometryPar()

SVDGeometryPar ( )

inline

Default constructor.

Definition at line 33 of file SVDGeometryPar.h.

33{}

Member Function Documentation

◆ getAlignment()

VXDAlignmentPar getAlignment ( std::string name ) const

inherited

get alignment parameters for component name

Definition at line 62 of file VXDGeometryPar.cc.

{
  //Check if component already exists
  map<string, VXDAlignmentPar>::const_iterator cached = m_alignment.find(name);
  if (cached == m_alignment.end()) {
    B2FATAL("Could not find alignment parameters for component " << name);
  }
  return cached->second;
}

◆ getAlignmentMap()

std::map< std::string, VXDAlignmentPar > & getAlignmentMap ( )

inlineinherited

get alignmant map

Definition at line 58 of file VXDGeometryPar.h.

58{return m_alignment;}

◆ getComponent()

const VXDGeoComponentPar & getComponent ( std::string name ) const

inherited

get component

Definition at line 17 of file VXDGeometryPar.cc.

{
  //Check if component already exists
  std::map<string, VXDGeoComponentPar>::const_iterator cached = m_componentCache.find(name);
  if (cached == m_componentCache.end()) {
    B2FATAL("Could not find component " << name);
  }
  return cached->second;
}

◆ getComponentInsertOder() [1/2]

std::vector< std::string > & getComponentInsertOder ( )

inlineinherited

get component insert order

Definition at line 88 of file VXDGeometryPar.h.

88{return m_componentInsertOrder;}

Belle2::VXDGeometryPar::m_componentInsertOrder

std::vector< std::string > m_componentInsertOrder

Vector remembering the order of insertions into component cache.

Definition: VXDGeometryPar.h:105

◆ getComponentInsertOder() [2/2]

const std::vector< std::string > & getComponentInsertOder ( ) const

inlineinherited

get component insert order

Definition at line 86 of file VXDGeometryPar.h.

86{return m_componentInsertOrder;}

◆ getComponentMap() [1/2]

std::map< std::string, VXDGeoComponentPar > & getComponentMap ( )

inlineinherited

get component maps

Definition at line 80 of file VXDGeometryPar.h.

80{return m_componentCache; }

◆ getComponentMap() [2/2]

const std::map< std::string, VXDGeoComponentPar > & getComponentMap ( ) const

inlineinherited

get component maps

Definition at line 78 of file VXDGeometryPar.h.

78{return m_componentCache; }

◆ getCoolingPipes() [1/3]

std::map< int, SVDCoolingPipesPar > & getCoolingPipes ( )

inline

get cooling pipes

Definition at line 51 of file SVDGeometryPar.h.

51{return m_coolingPipes;}

Belle2::SVDGeometryPar::m_coolingPipes

std::map< int, SVDCoolingPipesPar > m_coolingPipes

SVD Cooling Pipes parameters.

Definition: SVDGeometryPar.h:92

◆ getCoolingPipes() [2/3]

const std::map< int, SVDCoolingPipesPar > & getCoolingPipes ( ) const

inline

get cooling pipes

Definition at line 48 of file SVDGeometryPar.h.

48{return m_coolingPipes;}

◆ getCoolingPipes() [3/3]

const SVDCoolingPipesPar & getCoolingPipes ( int layer ) const

get SVD Cooling Pipes

Definition at line 67 of file SVDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<int, SVDCoolingPipesPar>::const_iterator cached = m_coolingPipes.find(layer);
  if (cached == m_coolingPipes.end()) {
    B2FATAL("No CoolingPipes found for layer " << std::to_string(layer));
  }
  return cached->second;
}

◆ getCoolingPipesExist()

bool getCoolingPipesExist ( int layer ) const

return if endrings exist

Definition at line 36 of file SVDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<int, SVDCoolingPipesPar>::const_iterator cached = m_coolingPipes.find(layer);
  if (cached == m_coolingPipes.end()) {
    return false;
  }
  return true;
}

◆ getEndrings() [1/3]

std::map< int, SVDEndringsPar > & getEndrings ( )

inline

get endrings

Definition at line 45 of file SVDGeometryPar.h.

45{return m_endrings;}

Belle2::SVDGeometryPar::m_endrings

std::map< int, SVDEndringsPar > m_endrings

SVD Endrings parameters.

Definition: SVDGeometryPar.h:89

◆ getEndrings() [2/3]

const std::map< int, SVDEndringsPar > & getEndrings ( ) const

inline

get endrings

Definition at line 42 of file SVDGeometryPar.h.

42{return m_endrings;}

◆ getEndrings() [3/3]

const SVDEndringsPar & getEndrings ( int layer ) const

get SVD Endrings

Definition at line 57 of file SVDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<int, SVDEndringsPar>::const_iterator cached = m_endrings.find(layer);
  if (cached == m_endrings.end()) {
    B2FATAL("No Endrings found for layer " << std::to_string(layer));
  }
  return cached->second;
}

◆ getEndringsExist()

bool getEndringsExist ( int layer ) const

return if endrings exist

Definition at line 26 of file SVDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<int, SVDEndringsPar>::const_iterator cached = m_endrings.find(layer);
  if (cached == m_endrings.end()) {
    return false;
  }
  return true;
}

◆ getEnvelope()

const VXDEnvelopePar & getEnvelope ( ) const

inlineinherited

get envelope parameters

Definition at line 50 of file VXDGeometryPar.h.

50{return m_envelope;}

Belle2::VXDGeometryPar::m_envelope

VXDEnvelopePar m_envelope

Envelope parameters.

Definition: VXDGeometryPar.h:99

◆ getGlobalParams()

const VXDGlobalPar & getGlobalParams ( ) const

inlineinherited

get global parameters

Definition at line 46 of file VXDGeometryPar.h.

46{return m_globals;}

Belle2::VXDGeometryPar::m_globals

VXDGlobalPar m_globals

Container for a few general parameters.

Definition: VXDGeometryPar.h:95

◆ getHalfShells() [1/2]

std::vector< VXDHalfShellPar > & getHalfShells ( )

inlineinherited

get half-shell

Definition at line 64 of file VXDGeometryPar.h.

64{return m_halfShells;}

Belle2::VXDGeometryPar::m_halfShells

std::vector< VXDHalfShellPar > m_halfShells

Cache for half shells

Definition: VXDGeometryPar.h:101

◆ getHalfShells() [2/2]

const std::vector< VXDHalfShellPar > & getHalfShells ( ) const

inlineinherited

get half-shell

Definition at line 62 of file VXDGeometryPar.h.

62{return m_halfShells;}

◆ getLadder()

const VXDGeoLadderPar & getLadder ( int layerID ) const

inherited

get ladder for given layer

Definition at line 51 of file VXDGeometryPar.cc.

{
  //Check if component already exists
  map<int, VXDGeoLadderPar>::const_iterator cached = m_ladders.find(layer);
  if (cached == m_ladders.end()) {
    B2FATAL("Could not find ladder for layer " << (boost::format("%1%") % layer).str());
  }
  return cached->second;
}

◆ getLadderMap()

std::map< int, VXDGeoLadderPar > & getLadderMap ( )

inlineinherited

get ladder map

Definition at line 66 of file VXDGeometryPar.h.

66{ return m_ladders; }

◆ getPrefix()

std::string getPrefix ( ) const

inlineinherited

get prefix

Definition at line 42 of file VXDGeometryPar.h.

42{return m_prefix;}

Belle2::VXDGeometryPar::m_prefix

std::string m_prefix

Prefix to prepend to all volume names.

Definition: VXDGeometryPar.h:93

◆ getRadiationSensors()

const VXDGeoRadiationSensorsPar & getRadiationSensors ( ) const

inlineinherited

get radiation sensor parameters

Definition at line 54 of file VXDGeometryPar.h.

54{return m_radiationsensors;}

Belle2::VXDGeometryPar::m_radiationsensors

VXDGeoRadiationSensorsPar m_radiationsensors

Diamond radiation sensors.

Definition: VXDGeometryPar.h:109

◆ getRotationSolids() [1/2]

std::vector< VXDRotationSolidPar > & getRotationSolids ( )

inline

get SVD halfshell Rotation Solids

Definition at line 39 of file SVDGeometryPar.h.

39{return m_halfShell;}

Belle2::SVDGeometryPar::m_halfShell

std::vector< VXDRotationSolidPar > m_halfShell

SVD Half Shell parameters.

Definition: SVDGeometryPar.h:86

◆ getRotationSolids() [2/2]

const std::vector< VXDRotationSolidPar > & getRotationSolids ( ) const

inline

get SVD halfshell Rotation Solids

Definition at line 36 of file SVDGeometryPar.h.

36{return m_halfShell;}

◆ getSensitiveChipID()

int getSensitiveChipID ( std::string name ) const

inherited

get Bkg sensitive chip Id

Definition at line 29 of file VXDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<string, int>::const_iterator cached = m_sensitiveIDCache.find(name);
  if (cached == m_sensitiveIDCache.end()) {
    return -1;
  }
  return cached->second;
}

◆ getSensitiveChipIdMap()

std::map< std::string, int > & getSensitiveChipIdMap ( )

inlineinherited

get sensitive chip id map

Definition at line 84 of file VXDGeometryPar.h.

84{return m_sensitiveIDCache;}

◆ getSensor()

const VXDGeoSensorPar & getSensor ( std::string sensorTypeID ) const

inherited

get sensor type

Definition at line 41 of file VXDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<string, VXDGeoSensorPar>::const_iterator cached = m_sensorMap.find(sensorTypeID);
  if (cached == m_sensorMap.end()) {
    B2FATAL("Invalid SensorTypeID " << sensorTypeID);
  }
  return cached->second;
}

◆ getSensorInfos()

std::vector< SVDSensorInfoPar * > & getSensorInfos ( )

inline

get sensorInfos

Definition at line 78 of file SVDGeometryPar.h.

78{return m_SensorInfo;}

Belle2::SVDGeometryPar::m_SensorInfo

std::vector< SVDSensorInfoPar * > m_SensorInfo

Vector of pointers to SensorInfo objects.

Definition: SVDGeometryPar.h:83

◆ getSensorMap() [1/2]

std::map< std::string, VXDGeoSensorPar > & getSensorMap ( )

inlineinherited

get sensor map

Definition at line 76 of file VXDGeometryPar.h.

76{return m_sensorMap;}

◆ getSensorMap() [2/2]

const std::map< std::string, VXDGeoSensorPar > & getSensorMap ( ) const

inlineinherited

get sensor map

Definition at line 74 of file VXDGeometryPar.h.

74{return m_sensorMap;}

◆ getSupportRibs() [1/3]

std::map< int, SVDSupportRibsPar > & getSupportRibs ( )

inline

get support ribs

Definition at line 57 of file SVDGeometryPar.h.

57{return m_supportRibs;}

Belle2::SVDGeometryPar::m_supportRibs

std::map< int, SVDSupportRibsPar > m_supportRibs

SVD SupportRibs parameters.

Definition: SVDGeometryPar.h:95

◆ getSupportRibs() [2/3]

const std::map< int, SVDSupportRibsPar > & getSupportRibs ( ) const

inline

get support ribs

Definition at line 54 of file SVDGeometryPar.h.

54{return m_supportRibs;}

◆ getSupportRibs() [3/3]

const SVDSupportRibsPar & getSupportRibs ( int layer ) const

get SVD Support Ribs

Definition at line 47 of file SVDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<int, SVDSupportRibsPar>::const_iterator cached = m_supportRibs.find(layer);
  if (cached == m_supportRibs.end()) {
    B2FATAL("No SupportRibs found for layer " << std::to_string(layer));
  }
  return cached->second;
}

◆ getSupportRibsExist()

bool getSupportRibsExist ( int layer ) const

return if SVD Support Ribs exist

Definition at line 16 of file SVDGeometryPar.cc.

{
  //Check if sensorType already exists
  std::map<int, SVDSupportRibsPar>::const_iterator cached = m_supportRibs.find(layer);
  if (cached == m_supportRibs.end()) {
    return false;
  }
  return true;
}

◆ setEnvelope()

void setEnvelope ( const VXDEnvelopePar & envelope )

inlineinherited

set envelope parameters

Definition at line 52 of file VXDGeometryPar.h.

52{m_envelope = envelope;}

◆ setGlobalParams()

void setGlobalParams ( const VXDGlobalPar & globals )

inlineinherited

set global parameters

Definition at line 48 of file VXDGeometryPar.h.

48{ m_globals = globals;}

◆ setPrefix()

void setPrefix ( const std::string & prefix )

inlineinherited

set prefix

Definition at line 44 of file VXDGeometryPar.h.

44{ m_prefix = prefix;}

◆ setRadiationSensors()

void setRadiationSensors ( const VXDGeoRadiationSensorsPar & diamonds )

inlineinherited

set radiation sensor parameters

Definition at line 56 of file VXDGeometryPar.h.

56{m_radiationsensors = diamonds;}

Member Data Documentation

◆ m_alignment

std::map<std::string, VXDAlignmentPar> m_alignment

privateinherited

Alignment parameters for all components.

Definition at line 97 of file VXDGeometryPar.h.

◆ m_componentCache

std::map<std::string, VXDGeoComponentPar> m_componentCache

privateinherited

Cache of all previously created components.

Definition at line 103 of file VXDGeometryPar.h.

◆ m_componentInsertOrder

std::vector<std::string> m_componentInsertOrder

privateinherited

Vector remembering the order of insertions into component cache.

Definition at line 105 of file VXDGeometryPar.h.

◆ m_coolingPipes

std::map<int, SVDCoolingPipesPar> m_coolingPipes

private

SVD Cooling Pipes parameters.

Definition at line 92 of file SVDGeometryPar.h.

◆ m_endrings

std::map<int, SVDEndringsPar> m_endrings

private

SVD Endrings parameters.

Definition at line 89 of file SVDGeometryPar.h.

◆ m_envelope

VXDEnvelopePar m_envelope

privateinherited

Envelope parameters.

Definition at line 99 of file VXDGeometryPar.h.

◆ m_globals

VXDGlobalPar m_globals

privateinherited

Container for a few general parameters.

Definition at line 95 of file VXDGeometryPar.h.

◆ m_halfShell

std::vector<VXDRotationSolidPar> m_halfShell

private

SVD Half Shell parameters.

Definition at line 86 of file SVDGeometryPar.h.

◆ m_halfShells

std::vector<VXDHalfShellPar> m_halfShells

privateinherited

Cache for half shells

Definition at line 101 of file VXDGeometryPar.h.

◆ m_ladders

std::map<int, VXDGeoLadderPar> m_ladders

privateinherited

Parameters of the detector ladders.

Definition at line 111 of file VXDGeometryPar.h.

◆ m_prefix

std::string m_prefix {""}

privateinherited

Prefix to prepend to all volume names.

Definition at line 93 of file VXDGeometryPar.h.

◆ m_radiationsensors

VXDGeoRadiationSensorsPar m_radiationsensors

privateinherited

Diamond radiation sensors.

Definition at line 109 of file VXDGeometryPar.h.

◆ m_sensitiveIDCache

std::map<std::string, int> m_sensitiveIDCache

privateinherited

Cache of all Bkg sensitive chip Ids.

Definition at line 113 of file VXDGeometryPar.h.

◆ m_SensorInfo

std::vector<SVDSensorInfoPar*> m_SensorInfo

private

Vector of pointers to SensorInfo objects.

Definition at line 83 of file SVDGeometryPar.h.

◆ m_sensorMap

std::map<std::string, VXDGeoSensorPar> m_sensorMap

privateinherited

Map containing Information about all defined sensor types.

Definition at line 107 of file VXDGeometryPar.h.

◆ m_supportRibs

std::map<int, SVDSupportRibsPar> m_supportRibs

private

SVD SupportRibs parameters.

Definition at line 95 of file SVDGeometryPar.h.

The documentation for this class was generated from the following files:

svd/dbobjects/include/SVDGeometryPar.h
svd/dbobjects/src/SVDGeometryPar.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ SVDGeometryPar()

Member Function Documentation

◆ getAlignment()

◆ getAlignmentMap()

◆ getComponent()

◆ getComponentInsertOder() [1/2]

◆ getComponentInsertOder() [2/2]

◆ getComponentMap() [1/2]

◆ getComponentMap() [2/2]

◆ getCoolingPipes() [1/3]

◆ getCoolingPipes() [2/3]

◆ getCoolingPipes() [3/3]

◆ getCoolingPipesExist()

◆ getEndrings() [1/3]

◆ getEndrings() [2/3]

◆ getEndrings() [3/3]

◆ getEndringsExist()

◆ getEnvelope()

◆ getGlobalParams()

◆ getHalfShells() [1/2]

◆ getHalfShells() [2/2]

◆ getLadder()

◆ getLadderMap()

◆ getPrefix()

◆ getRadiationSensors()

◆ getRotationSolids() [1/2]

◆ getRotationSolids() [2/2]

◆ getSensitiveChipID()

◆ getSensitiveChipIdMap()

◆ getSensor()

◆ getSensorInfos()

◆ getSensorMap() [1/2]

◆ getSensorMap() [2/2]

◆ getSupportRibs() [1/3]

◆ getSupportRibs() [2/3]

◆ getSupportRibs() [3/3]

◆ getSupportRibsExist()

◆ setEnvelope()

◆ setGlobalParams()

◆ setPrefix()

◆ setRadiationSensors()

Member Data Documentation

◆ m_alignment

◆ m_componentCache

◆ m_componentInsertOrder

◆ m_coolingPipes

◆ m_endrings

◆ m_envelope

◆ m_globals

◆ m_halfShell

◆ m_halfShells

◆ m_ladders

◆ m_prefix

◆ m_radiationsensors

◆ m_sensitiveIDCache

◆ m_SensorInfo

◆ m_sensorMap

◆ m_supportRibs
