TRGCDCMerger Class Reference

A class to represent a CDC merger board. More...

#include <Merger.h>

Inheritance diagram for TRGCDCMerger:

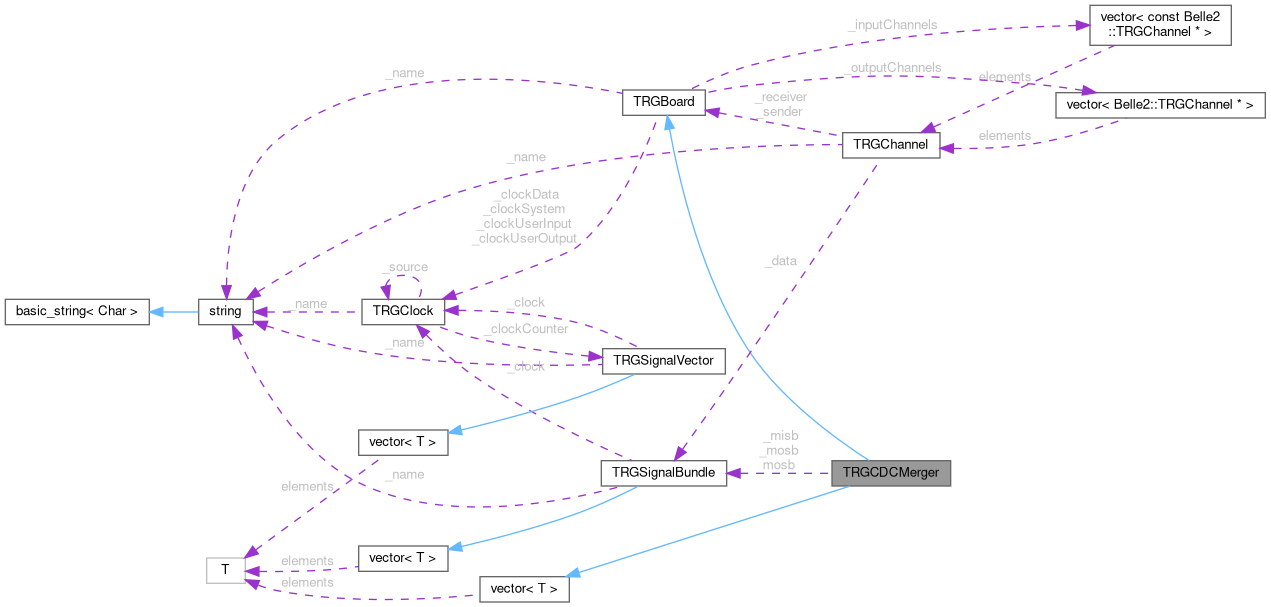

Collaboration diagram for TRGCDCMerger:

Public Types
enum	unitType {   innerType = 0 ,   outerType = 1 ,   unknown = 999 }
	enum of unitType More...

Public Member Functions
	TRGCDCMerger (const std::string &name, unitType type, const TRGClock &systemClock, const TRGClock &dataClock, const TRGClock &userClockInput, const TRGClock &userClockOutput)
	Constructor.
virtual	~TRGCDCMerger ()
	Destructor.
unitType	type (void) const
	return type.
void	simulate (void)
	simulates firmware.
void	push_back (const TRGCDCFrontEnd *)
	push back TRGCDCFrontEnd of this Merger
void	dump (const std::string &message="", const std::string &pre="") const
	dumps contents. "message" is to select information to dump. "pre" will be printed in head of each line.
void	dump_log (void) const
	Dump all the details of _mosb into a .log file, do it in the end of simulate()
void	dump_log_inner (void) const
	dump_log for inner Merger
void	dump_log_outer (void) const
	dump_log for outer Merger
const std::string &	name (void) const
	returns name.
const TRGClock &	clockSystem (void) const
	returns system clock.
const TRGClock &	clockData (void) const
	returns data clock.
const TRGClock &	clockUserInput (void) const
	returns Aurora user clock for input.
const TRGClock &	clockUserOutput (void) const
	returns Aurora user clock for output.
unsigned	nInput (void) const
	returns input channels.
const TRGChannel *	input (unsigned i) const
	returns input channel i.
unsigned	nOutput (void) const
	returns output channels.
TRGChannel *	output (unsigned i) const
	returns output channel i.
void	appendInput (const TRGChannel *)
	appends an input Aurora channel.
void	appendOutput (TRGChannel *)
	appends an output Aurora channel.

Static Public Member Functions
static std::string	version (void)
	return version.
static TRGState	packerInner (const TRGState &input)
	Make bit pattern using input information from inner FEs.
static TRGState	packerOuter (const TRGState &input)
	Make bit pattern using input information from outer FEs.
static void	unpackerInner (const TRGState &input, const TRGState &output)
	Unpack TRGState.
static void	unpackerOuter (const TRGState &input, const TRGState &output)
	Unpack TRGState.
static int	implementation (const unitType &type, std::ofstream &)
	make a VHDL component file.
static int	implementationPort (const unitType &type, std::ofstream &)
	writes a port map.

Public Attributes
TRGSignalBundle *	mosb = nullptr
	Output signal bundle. not the best way to do this though.
T	elements
	STL member.

Private Attributes
unitType	_type
	Unit type.
TRGSignalBundle *	_misb
	Input single bundle.
TRGSignalBundle *	_mosb
	outptu signal bundle
const std::string	_name
	Name of a board.
const TRGClock *	_clockSystem
	System clock.
const TRGClock *	_clockData
	Data clock.
const TRGClock *	_clockUserInput
	User clock.
const TRGClock *	_clockUserOutput
	User clock.
std::vector< const TRGChannel * >	_inputChannels
	Input Aurora channel.
std::vector< TRGChannel * >	_outputChannels
	Output Aurora channel.

Detailed Description

A class to represent a CDC merger board.

Definition at line 34 of file Merger.h.

Member Enumeration Documentation

unitType

enum unitType

enum of unitType

Definition at line 40 of file Merger.h.

                  {
      innerType = 0,            // for superlayer 0, connected with FE innerInside and innerOutside
      outerType = 1,            // for superlayer 1-7, connected with FE outerInside and outerOutside
      unknown   = 999
    };

Member Data Documentation

_clockData

const TRGClock* _clockData

privateinherited

Data clock.

Definition at line 90 of file Board.h.

_clockSystem

const TRGClock* _clockSystem

privateinherited

System clock.

Definition at line 87 of file Board.h.

_clockUserInput

const TRGClock* _clockUserInput

privateinherited

User clock.

Definition at line 93 of file Board.h.

_clockUserOutput

const TRGClock* _clockUserOutput

privateinherited

User clock.

Definition at line 96 of file Board.h.

_inputChannels

std::vector<const TRGChannel*> _inputChannels

privateinherited

Input Aurora channel.

Definition at line 99 of file Board.h.

_misb

TRGSignalBundle* _misb

private

Input single bundle.

Definition at line 133 of file Merger.h.

_mosb

TRGSignalBundle* _mosb

private

outptu signal bundle

Definition at line 136 of file Merger.h.

_name

const std::string _name

privateinherited

Name of a board.

Definition at line 84 of file Board.h.

_outputChannels

std::vector<TRGChannel*> _outputChannels

privateinherited

Output Aurora channel.

Definition at line 102 of file Board.h.

_type

unitType _type

private

Unit type.

Definition at line 130 of file Merger.h.

mosb

TRGSignalBundle* mosb = nullptr

Output signal bundle. not the best way to do this though.

Definition at line 80 of file Merger.h.

---

The documentation for this class was generated from the following files:

• trg/cdc/include/Merger.h
• trg/cdc/src/Merger.cc
