SVDLocalCalibrationsCheckModule Class Reference

Module to produce a list of histogram showing the uploaded local calibration constants. More...

#include <SVDLocalCalibrationsCheckModule.h>

Inheritance diagram for SVDLocalCalibrationsCheckModule:

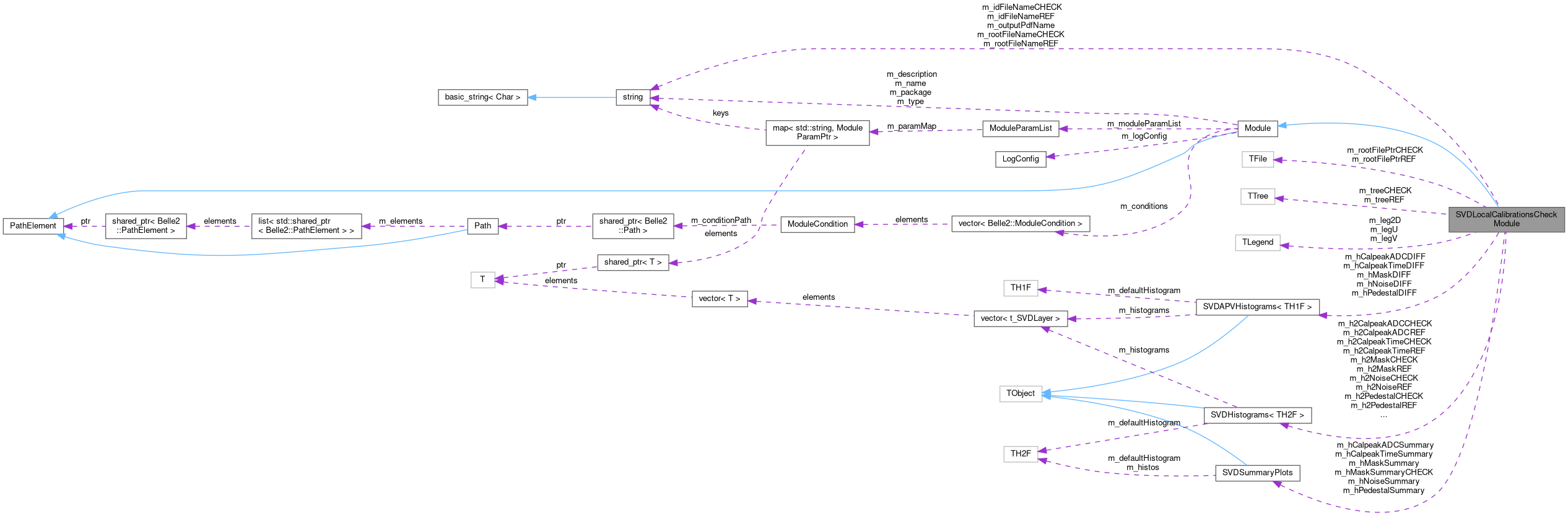

Collaboration diagram for SVDLocalCalibrationsCheckModule:

Public Types
enum	EModulePropFlags {   c_Input = 1 ,   c_Output = 2 ,   c_ParallelProcessingCertified = 4 ,   c_HistogramManager = 8 ,   c_InternalSerializer = 16 ,   c_TerminateInAllProcesses = 32 ,   c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...
typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	SVDLocalCalibrationsCheckModule ()
	Constructor: Sets the description, the properties and the parameters of the module.
virtual void	beginRun () override
	initialize the TTrees and create SVDHistograms and SVDAPVHistograms
virtual void	event () override
	perform analysis and Draw pdf Canvas
virtual void	initialize ()
	Initialize the Module.
virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules.
virtual void	endRun ()
	This method is called if the current run ends.
virtual void	terminate ()
	This method is called at the end of the event processing.
const std::string &	getName () const
	Returns the name of the module.
const std::string &	getType () const
	Returns the type of the module (i.e.
const std::string &	getPackage () const
	Returns the package this module is in.
const std::string &	getDescription () const
	Returns the description of the module.
void	setName (const std::string &name)
	Set the name of the module.
void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties.
LogConfig &	getLogConfig ()
	Returns the log system configuration.
void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.
void	setLogLevel (int logLevel)
	Configure the log level.
void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.
void	setAbortLevel (int abortLevel)
	Configure the abort log level.
void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level.
void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module.
void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module.
void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module.
bool	hasCondition () const
	Returns true if at least one condition was set for the module.
const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)
const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.
bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true.
std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).
Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished.
std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).
bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module.
bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.
const ModuleParamList &	getParamList () const
	Return module param list.
template<typename T >
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter.
bool	hasReturnValue () const
	Return true if this module has a valid return value set.
int	getReturnValue () const
	Return the return value set by this module.
std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module.
std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters.

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Public Attributes
TFile *	m_rootFilePtrREF = nullptr
	pointer at the REFERENCE root file
TFile *	m_rootFilePtrCHECK = nullptr
	pointer at the CHECK root file
TTree *	m_treeREF = nullptr
	pointer at REF tree
TTree *	m_treeCHECK = nullptr
	pointer at CHECK tree
TBranch *	b_runREF = nullptr
	run number
TBranch *	b_ladderREF = nullptr
	ladder number
TBranch *	b_layerREF = nullptr
	layer number
TBranch *	b_sensorREF = nullptr
	sensor number
TBranch *	b_sideREF = nullptr
	sensor side
TBranch *	b_stripREF = nullptr
	strip number
TBranch *	b_maskREF = nullptr
	strip mask 0/1
TBranch *	b_pedestalREF = nullptr
	strip pedestal
TBranch *	b_gainREF = nullptr
	strip gain
TBranch *	b_noiseREF = nullptr
	strip noise (ADC)
TBranch *	b_noiseElREF = nullptr
	strip noise (e-)
TBranch *	b_calPeakADCREF = nullptr
	strip calPeakADC (ADC of max pulse)
TBranch *	b_calPeakTimeREF = nullptr
	strip calPeakTime (time of max pulse)
TBranch *	b_pulseWidthREF = nullptr
	strip pulse width
TBranch *	b_runCHECK = nullptr
	run number
TBranch *	b_ladderCHECK = nullptr
	ladder number
TBranch *	b_layerCHECK = nullptr
	layer number
TBranch *	b_sensorCHECK = nullptr
	sensor number
TBranch *	b_sideCHECK = nullptr
	sensor side
TBranch *	b_stripCHECK = nullptr
	strip number
TBranch *	b_maskCHECK = nullptr
	strip mask 0/1
TBranch *	b_pedestalCHECK = nullptr
	strip pedestal
TBranch *	b_gainCHECK = nullptr
	strip gain
TBranch *	b_noiseCHECK = nullptr
	strip noise (ADC)
TBranch *	b_noiseElCHECK = nullptr
	strip noise (e-)
TBranch *	b_calPeakTimeCHECK = nullptr
	strip calPeakTime (time of max pulse)
TBranch *	b_calPeakADCCHECK = nullptr
	strip calPeakADC (ADC of max pulse)
TBranch *	b_pulseWidthCHECK = nullptr
	strip pulse width
UInt_t	m_runREF = -1
	run number
UInt_t	m_layerREF = -1
	layer number
UInt_t	m_ladderREF = -1
	ladder number
UInt_t	m_sensorREF = -1
	sensor number
UInt_t	m_sideREF = -1
	sensor side
UInt_t	m_stripREF = -1
	strip number
float	m_maskREF = -1
	strip mask 0/1
float	m_noiseREF = -1
	strip noise (ADC)
float	m_noiseElREF = -1
	strip noise (e-)
float	m_pedestalREF = -1
	strip pedestal
float	m_gainREF = -1
	strip gain
float	m_calPeakTimeREF = -1
	strip peak time
float	m_calPeakADCREF = -1
	strip max peak ADC
float	m_pulseWidthREF = -1
	strip pulse width
UInt_t	m_runCHECK = -1
	run number
UInt_t	m_layerCHECK = -1
	layer number
UInt_t	m_ladderCHECK = -1
	ladder number
UInt_t	m_sensorCHECK = -1
	sensor number
UInt_t	m_sideCHECK = -1
	sensor side
UInt_t	m_stripCHECK = -1
	strip number
float	m_maskCHECK = -1
	strip mask 0/1
float	m_noiseCHECK = -1
	strip noise (ADC)
float	m_noiseElCHECK = -1
	strip noise (e-)
float	m_pedestalCHECK = -1
	strip pedestal
float	m_gainCHECK = -1
	strip gain
float	m_calPeakTimeCHECK = -1
	strip peak time
float	m_calPeakADCCHECK = -1
	strip max peak ADC
float	m_pulseWidthCHECK = -1
	strip pulse width
std::string	m_rootFileNameREF = "SVDLocalCalibrationMonitor_experiment5_run92.root"
	root file name REFERENCE
std::string	m_rootFileNameCHECK = "SVDLocalCalibrationMonitor_experiment5_run408.root"
	root file name CHECK
std::string	m_idFileNameREF = "refID"
	ID of the xml file name REFERENCE.
std::string	m_idFileNameCHECK = "checkID"
	ID of the xml file name CHECK.
std::string	m_outputPdfName = "SVDLocalCalibrationCheck.pdf"
	output pdf filename
bool	m_plotGoodAPVs = false
	if true also the good APVs are plotted on the DIFF canvas
int	m_cutN_out = -1
	maximum number of allowed outliers
float	m_cutNoise_ave = -1
	maximum relative deviation APV-average (noise)
float	m_cutNoise_out = -1
	maximum relative deviation strip (noise)
float	m_cutCalpeakADC_ave = -1
	maximum relative deviation APV-average (calpeakADC)
float	m_cutCalpeakADC_out = -1
	maximum relative deviation strip (calpeakADC)
float	m_cutPedestal_ave = -1
	maximum relative deviation APV-average (pedestal)
float	m_cutPedestal_out = -1
	maximum relative deviation strip (pedestal)

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python.
virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.
virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.
virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side.
virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.
void	setDescription (const std::string &description)
	Sets the description of the module.
void	setType (const std::string &type)
	Set the module type.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module.
void	setReturnValue (int value)
	Sets the return value for this module as integer.
void	setReturnValue (bool value)
	Sets the return value for this module as bool.
void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Private Member Functions
void	printConfiguration ()
	print the configuration of the check of the calibration VS a reference calibration
void	setAPVHistoStyles (SVDAPVHistograms< TH1F > *m_APVhistos)
	set style of APV histograms
void	createLegends ()
	create the TLegends for the plot
void	printFirstPage ()
	print the first page of the output pdf
void	printLayerPage (int layer)
	print layer-number page
void	printPage (VxdID theVxdID, TList *listUBAD, TList *listVBAD, TList *listUGOOD, TList *listVGOOD, TString variable, bool isL3)
	print the page relative to a sensor with problematic APVs
void	printMaskedSummaryPages ()
	summary page with Masked strips summary plot
void	printAPVSummaryPages ()
	summary page with 2D summary plot with problemtic APVs
void	printLastPage ()
	print last empty page
int	hasAnyProblem (TH1F *h, float cutAve, float cutCOUNT)
	return True if the APV has a problem, given a variable
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list
std::string	getPathString () const override
	return the module name.
void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects.
void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary.

Private Attributes
const int	m_apvColors [6] = { 1, 2, 8, kBlue, 6, 28}
	color palette
TLegend *	m_leg2D = nullptr
	legend of the 2D plot
TLegend *	m_legU = nullptr
	legend of U-side plot
TLegend *	m_legV = nullptr
	legend of V-side plot
SVDHistograms< TH2F > *	m_h2MaskREF = nullptr
	MASKS.
SVDHistograms< TH2F > *	m_h2MaskCHECK = nullptr
	mask VS strip 2D histo
SVDAPVHistograms< TH1F > *	m_hMaskDIFF = nullptr
	mask histo
SVDSummaryPlots *	m_hMaskSummary = nullptr
	mask summary histo
SVDSummaryPlots *	m_hMaskSummaryCHECK = nullptr
	mask summary histo
int	m_nMaskedUREF = 0
	number of masked strips in the reference calibration (u side)
int	m_nMaskedVREF = 0
	number of masked strips in the reference calibration (v side)
int	m_nMaskedUCHECK = 0
	number of masked strips in the check calibration (u side)
int	m_nMaskedVCHECK = 0
	number of masked strips in the check calibration (v side)
SVDHistograms< TH2F > *	m_h2NoiseREF = nullptr
	NOISES.
SVDHistograms< TH2F > *	m_h2NoiseCHECK = nullptr
	noise VS strip 2D histo
SVDAPVHistograms< TH1F > *	m_hNoiseDIFF = nullptr
	noise histo
SVDSummaryPlots *	m_hNoiseSummary = nullptr
	noise summary histo
SVDHistograms< TH2F > *	m_h2CalpeakADCREF = nullptr
	CALPEAKS ADC.
SVDHistograms< TH2F > *	m_h2CalpeakADCCHECK = nullptr
	calpeakADC VS strip 2D histo
SVDAPVHistograms< TH1F > *	m_hCalpeakADCDIFF = nullptr
	calpeakADC histo
SVDSummaryPlots *	m_hCalpeakADCSummary = nullptr
	calpeakADC summary histo
SVDHistograms< TH2F > *	m_h2CalpeakTimeREF = nullptr
	CALPEAKS TIME.
SVDHistograms< TH2F > *	m_h2CalpeakTimeCHECK = nullptr
	calpeakTime VS strip 2D histo
SVDAPVHistograms< TH1F > *	m_hCalpeakTimeDIFF = nullptr
	calpeakTime histo
SVDSummaryPlots *	m_hCalpeakTimeSummary = nullptr
	calpeakTime summary histo
SVDHistograms< TH2F > *	m_h2PedestalREF = nullptr
	PEDESTALS.
SVDHistograms< TH2F > *	m_h2PedestalCHECK = nullptr
	pedestal VS strip 2D histo
SVDAPVHistograms< TH1F > *	m_hPedestalDIFF = nullptr
	pedestal histo
SVDSummaryPlots *	m_hPedestalSummary = nullptr
	pedestal summary histo
std::string	m_name
	The name of the module, saved as a string (user-modifiable)
std::string	m_type
	The type of the module, saved as a string.
std::string	m_package
	Package this module is found in (may be empty).
std::string	m_description
	The description of the module.
unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with |) of EModulePropFlags.
LogConfig	m_logConfig
	The log system configuration of the module.
ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.
bool	m_hasReturnValue
	True, if the return value is set.
int	m_returnValue
	The return value.
std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

Module to produce a list of histogram showing the uploaded local calibration constants.

Definition at line 38 of file SVDLocalCalibrationsCheckModule.h.

Member Typedef Documentation

EAfterConditionPath

typedef ModuleCondition::EAfterConditionPath EAfterConditionPath

inherited

Forward the EAfterConditionPath definition from the ModuleCondition.

Definition at line 88 of file Module.h.

Member Enumeration Documentation

EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

                          {
      c_Input                       = 1,
      c_Output                      = 2,
      c_ParallelProcessingCertified = 4,
      c_HistogramManager            = 8,
      c_InternalSerializer          = 16,
      c_TerminateInAllProcesses     = 32,
      c_DontCollectStatistics       = 64,
    };

Constructor & Destructor Documentation

SVDLocalCalibrationsCheckModule()

SVDLocalCalibrationsCheckModule

(

)

Constructor: Sets the description, the properties and the parameters of the module.

Definition at line 30 of file SVDLocalCalibrationsCheckModule.cc.

                                                                 : Module()
{
  // Set module properties
  setDescription("Module to produce a list of histograms showing the uploaded calibration constants");

  // Parameter definitions
  addParam("outputPdfName", m_outputPdfName, "output pdf filename", std::string("SVDLocalCalibrationsCheck.pdf"));
  addParam("referenceID", m_idFileNameREF, "ID of REFERENCE xml file.",
           std::string("refID"));
  addParam("checkID", m_idFileNameCHECK, "ID of CHECK xml file.",
           std::string("checkID"));
  addParam("reference_root", m_rootFileNameREF, "Name of REFERENCE root file.",
           std::string("SVDLocalCalibrationsMonitor_ref.root"));
  addParam("check_root", m_rootFileNameCHECK, "Name of CHECK root file.",
           std::string("SVDLocalCalibrationsMonitor_check.root"));
  addParam("plotGoodAPVs", m_plotGoodAPVs, "If true draw 1D plots also for good APVs", bool(false));

  addParam("cutN_outliers", m_cutN_out, "Max number of outliers allowed", int(5));
  addParam("cutNoise_average", m_cutNoise_ave, "Max deviation of average noise per APV, in ADC", float(0.1));
  addParam("cutNoise_outliers", m_cutNoise_out, "Max deviation of single strip, in ADC", float(2));
  addParam("cutCalPeakADC_average", m_cutCalpeakADC_ave, "Max deviation of average CalPeakADC per APV, in ADC", float(4));
  addParam("cutCalPeakADC_outliers", m_cutCalpeakADC_out, "Max deviation of single strip, in ADC", float(10));
  addParam("cutPedestal_average", m_cutPedestal_ave, "Max deviation of average pedestal per APV, in ADC", float(4));
  addParam("cutPedestal_outliers", m_cutPedestal_out, "Max deviation of single strip, in ADC", float(10));

}

Member Function Documentation

beginRun()

void beginRun ( void  )

overridevirtual

initialize the TTrees and create SVDHistograms and SVDAPVHistograms

MASKS

NOISES

CALPEAKTIMES

CALPEAKADC

PEDESTALS

Reimplemented from Module.

Definition at line 84 of file SVDLocalCalibrationsCheckModule.cc.

{

  printConfiguration();

  gStyle->SetOptStat(0);
  gStyle->SetLegendBorderSize(0);
  gStyle->SetTextFont(42);

  // read REFERENCE root file
  m_rootFilePtrREF = new TFile(m_rootFileNameREF.c_str(), "READ");

  //  m_rootFilePtrREF->Print();

  //REF tree initialization
  m_treeREF = (TTree*)m_rootFilePtrREF->Get("calibLocalDetailed");
  m_treeREF->SetBranchAddress("run", &m_runREF, &b_runREF);
  m_treeREF->SetBranchAddress("layer", &m_layerREF, &b_layerREF);
  m_treeREF->SetBranchAddress("ladder", &m_ladderREF, &b_ladderREF);
  m_treeREF->SetBranchAddress("sensor", &m_sensorREF, &b_sensorREF);
  m_treeREF->SetBranchAddress("side", &m_sideREF, &b_sideREF);
  m_treeREF->SetBranchAddress("strip", &m_stripREF, &b_stripREF);
  m_treeREF->SetBranchAddress("mask", &m_maskREF, &b_maskREF);
  m_treeREF->SetBranchAddress("noise", &m_noiseREF, &b_noiseREF);
  m_treeREF->SetBranchAddress("noiseEl", &m_noiseElREF, &b_noiseElREF);
  m_treeREF->SetBranchAddress("gain", &m_gainREF,  &b_gainREF);
  m_treeREF->SetBranchAddress("pedestal", &m_pedestalREF, &b_pedestalREF);
  m_treeREF->SetBranchAddress("calPeakADC", &m_calPeakADCREF, &b_calPeakADCREF);
  m_treeREF->SetBranchAddress("calPeakTime", &m_calPeakTimeREF, &b_calPeakTimeREF);
  m_treeREF->SetBranchAddress("pulseWidth", &m_pulseWidthREF, &b_pulseWidthREF);

  // read CHECK root file
  m_rootFilePtrCHECK = new TFile(m_rootFileNameCHECK.c_str(), "READ");
  //  m_rootFilePtrCHECK->Print();

  //CHECK tree initialization
  m_treeCHECK = (TTree*)m_rootFilePtrCHECK->Get("calibLocalDetailed");
  m_treeCHECK->SetBranchAddress("run", &m_runCHECK, &b_runCHECK);
  m_treeCHECK->SetBranchAddress("layer", &m_layerCHECK, &b_layerCHECK);
  m_treeCHECK->SetBranchAddress("ladder", &m_ladderCHECK, &b_ladderCHECK);
  m_treeCHECK->SetBranchAddress("sensor", &m_sensorCHECK, &b_sensorCHECK);
  m_treeCHECK->SetBranchAddress("side", &m_sideCHECK, &b_sideCHECK);
  m_treeCHECK->SetBranchAddress("strip", &m_stripCHECK, &b_stripCHECK);
  m_treeCHECK->SetBranchAddress("mask", &m_maskCHECK, &b_maskCHECK);
  m_treeCHECK->SetBranchAddress("noise", &m_noiseCHECK, &b_noiseCHECK);
  m_treeCHECK->SetBranchAddress("noiseEl", &m_noiseElCHECK, &b_noiseElCHECK);
  m_treeCHECK->SetBranchAddress("gain", &m_gainCHECK,  &b_gainCHECK);
  m_treeCHECK->SetBranchAddress("pedestal", &m_pedestalCHECK, &b_pedestalCHECK);
  m_treeCHECK->SetBranchAddress("calPeakTime", &m_calPeakTimeCHECK, &b_calPeakTimeCHECK);
  m_treeCHECK->SetBranchAddress("calPeakADC", &m_calPeakADCCHECK, &b_calPeakADCCHECK);
  m_treeCHECK->SetBranchAddress("pulseWidth", &m_pulseWidthCHECK, &b_pulseWidthCHECK);


  m_h2MaskREF = (SVDHistograms<TH2F>*)m_rootFilePtrREF->Get("expert/h2Mask");
  m_h2MaskCHECK = (SVDHistograms<TH2F>*)m_rootFilePtrCHECK->Get("expert/h2Mask");

  TH1F template_mask("maskDIFF_L@layerL@ladderS@sensor@view@apv",
                     "Mask Deviation Distribution in @layer.@ladder.@sensor @view/@side",
                     //                      200, -1, 1);
                     200, -5, 5);
  //  template_mask.GetXaxis()->SetTitle("( ref - check ) / ref");
  template_mask.GetXaxis()->SetTitle("ref - check");
  m_hMaskDIFF = new SVDAPVHistograms<TH1F>(template_mask);
  setAPVHistoStyles(m_hMaskDIFF);
  m_hMaskSummary = new SVDSummaryPlots("maskSummary@view", "REF - CHECK Number of Masked strips @view/@side Side");
  m_hMaskSummaryCHECK = new SVDSummaryPlots("maskCHECKSummary@view", "CHECK Number Masked Strips @view/@side Side");

  m_h2NoiseREF = (SVDHistograms<TH2F>*)m_rootFilePtrREF->Get("expert/h2Noise");
  m_h2NoiseCHECK = (SVDHistograms<TH2F>*)m_rootFilePtrCHECK->Get("expert/h2Noise");

  TH1F template_noise("noiseDIFF_L@layerL@ladderS@sensor@view@apv",
                      "Noise Deviation Distribution in @layer.@ladder.@sensor @view/@side",
                      //                      200, -1, 1);
                      200, -5, 5);
  //  template_noise.GetXaxis()->SetTitle("( ref - check ) / ref");
  template_noise.GetXaxis()->SetTitle("ref - check (ADC)");
  m_hNoiseDIFF = new SVDAPVHistograms<TH1F>(template_noise);
  setAPVHistoStyles(m_hNoiseDIFF);
  m_hNoiseSummary = new SVDSummaryPlots("noiseSummary@view", "Number of problematic APV chips due to Noise for @view/@side Side");




  m_h2CalpeakTimeREF = (SVDHistograms<TH2F>*)m_rootFilePtrREF->Get("expert/h2CalPeakTime");
  m_h2CalpeakTimeCHECK = (SVDHistograms<TH2F>*)m_rootFilePtrCHECK->Get("expert/h2CalPeakTime");

  TH1F template_calpeakTime("calpeakTimeDIFF_L@layerL@ladderS@sensor@view@apv",
                            //         "CalpeakTime Deviation Distribution in @layer.@ladder.@sensor @view/@side APV @apv",
                            "CalPeakTime Deviation Distribution in @layer.@ladder.@sensor @view/@side",
                            500, -0.5, 0.5);
  template_calpeakTime.GetXaxis()->SetTitle("( ref - check ) / ref");
  m_hCalpeakTimeDIFF = new SVDAPVHistograms<TH1F>(template_calpeakTime);
  setAPVHistoStyles(m_hCalpeakTimeDIFF);
  m_hCalpeakTimeSummary = new SVDSummaryPlots("calPeakTimeSummary@view",
                                              "Number of problematic APV chips due to CalPeakTime for @view/@side Side for @view/@side Side");

  m_h2CalpeakADCREF = (SVDHistograms<TH2F>*)m_rootFilePtrREF->Get("expert/h2CalPeakADC");
  m_h2CalpeakADCCHECK = (SVDHistograms<TH2F>*)m_rootFilePtrCHECK->Get("expert/h2CalPeakADC");

  TH1F template_calpeakADC("calpeakADCDIFF_L@layerL@ladderS@sensor@view@apv",
                           //         "CalpeakADC Deviation Distribution in @layer.@ladder.@sensor @view/@side APV @apv",
                           "CalPeakADC Deviation Distribution in @layer.@ladder.@sensor @view/@side",
                           400, -20, 20);
  template_calpeakADC.GetXaxis()->SetTitle("ref - check (ADC)");
  m_hCalpeakADCDIFF = new SVDAPVHistograms<TH1F>(template_calpeakADC);
  setAPVHistoStyles(m_hCalpeakADCDIFF);
  m_hCalpeakADCSummary = new SVDSummaryPlots("calPeakADCSummary@view",
                                             "Number of problematic APV chips due to CalPeakADC for @view/@side Side");


  m_h2PedestalREF = (SVDHistograms<TH2F>*)m_rootFilePtrREF->Get("expert/h2Pedestal");
  m_h2PedestalCHECK = (SVDHistograms<TH2F>*)m_rootFilePtrCHECK->Get("expert/h2Pedestal");

  TH1F template_pedestal("pedestalDIFF_L@layerL@ladderS@sensor@view@apv",
                         "Pedestal Deviation Distribution in @layer.@ladder.@sensor @view/@side",
                         //                         100, -0.5, 0.5);
                         100, -15, 15);
  //  template_pedestal.GetXaxis()->SetTitle("( ref - check ) / ref");
  template_pedestal.GetXaxis()->SetTitle("(ref - check)  (ADC)");
  m_hPedestalDIFF = new SVDAPVHistograms<TH1F>(template_pedestal);
  setAPVHistoStyles(m_hPedestalDIFF);
  m_hPedestalSummary = new SVDSummaryPlots("pedestalSummary@view",
                                           "Number of problematic APV chips due to Pedestal for @view/@side Side");

  createLegends();
}

clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

{
  ModulePtr newModule = ModuleManager::Instance().registerModule(getType());
  newModule->m_moduleParamList.setParameters(getParamList());
  newModule->setName(getName());
  newModule->m_package = m_package;
  newModule->m_propertyFlags = m_propertyFlags;
  newModule->m_logConfig = m_logConfig;
  newModule->m_conditions = m_conditions;

  return newModule;
}

createLegends()

void createLegends ( )

private

create the TLegends for the plot

Definition at line 958 of file SVDLocalCalibrationsCheckModule.cc.

{


  m_legU = new TLegend(0.75, 0.55, 0.89, 0.89);
  m_legV = new TLegend(0.75, 0.65, 0.89, 0.89);
  m_legU->SetFillStyle(0);
  m_legV->SetFillStyle(0);


  TH1F* hAPV1 = new TH1F("apv1", "apv 1", 1, 0, 1);
  hAPV1->SetLineColor(m_apvColors[0]);
  m_legU->AddEntry(hAPV1, "apv 1", "l");
  m_legV->AddEntry(hAPV1, "apv 1", "l");
  TH1F* hAPV2 = new TH1F("apv2", "apv 2", 2, 0, 2);
  hAPV2->SetLineColor(m_apvColors[1]);
  hAPV2->SetMarkerColor(m_apvColors[1]);
  hAPV2->SetMarkerStyle(21);
  hAPV2->SetMarkerSize(0.5);
  m_legU->AddEntry(hAPV2, "apv 2", "l");
  m_legV->AddEntry(hAPV2, "apv 2", "l");
  TH1F* hAPV3 = new TH1F("apv3", "apv 3", 3, 0, 3);
  hAPV3->SetLineColor(m_apvColors[2]);
  m_legU->AddEntry(hAPV3, "apv 3", "l");
  m_legV->AddEntry(hAPV3, "apv 3", "l");
  TH1F* hAPV4 = new TH1F("apv4", "apv 4", 4, 0, 4);
  hAPV4->SetLineColor(m_apvColors[3]);
  hAPV4->SetMarkerColor(m_apvColors[3]);
  hAPV4->SetMarkerStyle(21);
  hAPV4->SetMarkerSize(0.5);
  m_legU->AddEntry(hAPV4, "apv 4", "l");
  m_legV->AddEntry(hAPV4, "apv 4", "l");
  TH1F* hAPV5 = new TH1F("apv5", "apv 5", 5, 0, 5);
  hAPV5->SetLineColor(m_apvColors[4]);
  m_legU->AddEntry(hAPV5, "apv 5", "l");
  TH1F* hAPV6 = new TH1F("apv6", "apv 6", 6, 0, 6);
  hAPV6->SetLineColor(m_apvColors[5]);
  m_legU->AddEntry(hAPV6, "apv 6", "l");

  m_leg2D = new TLegend(0.78, 0.75, 0.89, 0.89);
  m_leg2D->AddEntry(hAPV2, "ref", "pl");
  m_leg2D->AddEntry(hAPV4, "check", "pl");
  m_leg2D->SetFillStyle(0);
}

def_beginRun()

virtual void def_beginRun ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 426 of file Module.h.

{ beginRun(); }

def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 439 of file Module.h.

{ endRun(); }

def_event()

virtual void def_event ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 432 of file Module.h.

{ event(); }

def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 420 of file Module.h.

{ initialize(); }

def_terminate()

virtual void def_terminate ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 445 of file Module.h.

{ terminate(); }

endRun()

virtual void endRun ( void  )

inlinevirtualinherited

This method is called if the current run ends.

Use this method to store information, which should be aggregated over one run.

This method can be implemented by subclasses.

Reimplemented in BeamabortModule, BgoModule, CaveModule, ClawModule, CLAWSModule, DosiModule, FANGSModule, He3tubeModule, MicrotpcModule, Ph1bpipeModule, Ph1sustrModule, PindiodeModule, PlumeModule, QcsmonitorModule, SrsensorModule, GetEventFromSocketModule, CalibrationCollectorModule, AlignDQMModule, CosmicsAlignmentValidationModule, CurlTaggerModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, arichBtestModule, ARICHDQMModule, B2BIIMCParticlesMonitorModule, B2BIIConvertMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, BeamBkgGeneratorModule, BeamBkgHitRateMonitorModule, BeamBkgMixerModule, BeamBkgTagSetterModule, BGOverlayInputModule, AnalysisPhase1StudyModule, NtuplePhase1_v6Module, ReprocessorModule, BeamabortStudyModule, BeamDigitizerModule, BgoDigitizerModule, BgoStudyModule, ClawDigitizerModule, ClawStudyModule, ClawsDigitizerModule, ClawsStudyModule, CsiDigitizer_v2Module, CsIDigitizerModule, CsiModule, CsiStudy_v2Module, CsIStudyModule, DosiDigitizerModule, DosiStudyModule, FANGSDigitizerModule, FANGSStudyModule, He3DigitizerModule, He3tubeStudyModule, MicrotpcStudyModule, TpcDigitizerModule, TPCStudyModule, PinDigitizerModule, PindiodeStudyModule, PlumeDigitizerModule, QcsmonitorDigitizerModule, QcsmonitorStudyModule, CDCCosmicAnalysisModule, CDCCRTestModule, CDCDedxDQMModule, CDCDedxValidationModule, cdcDQM7Module, CDCDQMModule, CDCPackerModule, CDCRecoTrackFilterModule, CDCUnpackerModule, DAQPerfModule, RxSocketModule, TxSocketModule, DqmHistoManagerModule, MonitorDataModule, TrackAnaModule, Ds2SampleModule, ReceiveEventModule, HLTDQM2ZMQModule, HLTDs2ZMQModule, ElapsedTimeModule, DeSerializerPXDModule, GenRawSendModule, Root2RawModule, SerializerModule, CertifyParallelModule, Ds2RawModule, Ds2RbufModule, EvReductionModule, FastRbuf2DsModule, Raw2DsModule, RawInputModule, Rbuf2DsModule, Rbuf2RbufModule, Ds2RawFileModule, PartialSeqRootReaderModule, SeqRootMergerModule, StorageDeserializerModule, StorageRootOutputModule, StorageSerializerModule, PhysicsObjectsDQMModule, PhysicsObjectsMiraBelleBhabhaModule, PhysicsObjectsMiraBelleDst2Module, PhysicsObjectsMiraBelleDstModule, PhysicsObjectsMiraBelleHadronModule, PhysicsObjectsMiraBelleModule, ECLBackgroundModule, ECLChargedPIDModule, ECLChargedPIDDataAnalysisModule, ECLChargedPIDDataAnalysisValidationModule, ECLClusterPSDModule, ECLCovarianceMatrixModule, ECLCRFinderModule, ECLDataAnalysisModule, ECLDigitCalibratorModule, ECLDigitizerModule, ECLDigitizerPureCsIModule, EclDisplayModule, ECLDQMModule, ECLDQMEXTENDEDModule, ECLFinalizerModule, ECLHitDebugModule, ECLLocalMaximumFinderModule, ECLLocalRunCalibratorModule, ECLLOMModule, ECLPackerModule, ECLShowerCalibratorModule, ECLShowerCorrectorModule, ECLShowerShapeModule, ECLSplitterN1Module, ECLSplitterN2Module, ECLUnpackerModule, ECLWaveformFitModule, HistoModule, SubEventModule, SwitchDataStoreModule, EventInfoPrinterModule, RandomBarrierModule, HistoManagerModule, StatisticsSummaryModule, SeqRootInputModule, SeqRootOutputModule, RxModule, TxModule, ZMQTxInputModule, ZMQTxWorkerModule, EvtGenDecayModule, OverrideGenerationFlagsModule, BKLMAnaModule, BKLMDigitAnalyzerModule, BKLMSimHistogrammerModule, BKLMTrackingModule, EKLMDataCheckerModule, KLMClusterEfficiencyModule, KLMClustersReconstructorModule, KLMDigitizerModule, KLMDQMModule, KLMDQM2Module, KLMPackerModule, KLMReconstructorModule, KLMScintillatorSimulatorModule, KLMUnpackerModule, AWESOMEBasicModule, PXDBackgroundModule, PXDClustersFromTracksModule, PXDPerformanceModule, Convert2RawDetModule, PrintDataModule, PrintEventRateModule, Root2BinaryModule, EventT0ValidationModule, DataWriterModule, KlongValidationModule, KLMMuonIDDNNExpertModule, FullSimModule, SVDBackgroundModule, SVDClusterCalibrationsMonitorModule, SVDHotStripFinderModule, SVDLatencyCalibrationModule, SVDLocalCalibrationsMonitorModule, SVDPositionErrorScaleFactorImporterModule, SVDTimeCalibrationsMonitorModule, svdDumpModule, SVDPackerModule, SVDB4CommissioningPlotsModule, SVDClusterEvaluationModule, SVDClusterEvaluationTrueInfoModule, SVDClusterFilterModule, SVDOccupancyAnalysisModule, SVDPerformanceModule, SVDShaperDigitsFromTracksModule, SVDClusterizerModule, SVDCoGTimeEstimatorModule, SVDDataFormatCheckModule, SVDRecoDigitCreatorModule, SVD3SamplesEmulatorModule, SVDTriggerQualityGeneratorModule, SVDUnpackerModule, TOPBackgroundModule, TOPChannelT0MCModule, TOPTriggerDigitizerModule, TOPDoublePulseGeneratorModule, TOPGainEfficiencyCalculatorModule, TOPLaserHitSelectorModule, TOPInterimFENtupleModule, TOPLaserCalibratorModule, TOPMCTrackMakerModule, TOPNtupleModule, TOPPackerModule, TOPRawDigitConverterModule, TOPTBCComparatorModule, TOPTimeBaseCalibratorModule, TOPUnpackerModule, TOPWaveformFeatureExtractorModule, TOPWaveformQualityPlotterModule, TOPXTalkChargeShareSetterModule, ExtModule, GenfitVisModule, MCV0MatcherModule, MCTrackCandClassifierModule, MuidModule, MCSlowPionPXDROICreatorModule, PXDROIFinderModule, SVDROIDQMModule, SVDROIFinderAnalysisModule, SVDROIFinderModule, RT2SPTCConverterModule, SPTCmomentumSeedRetrieverModule, SPTCvirtualIPRemoverModule, TrackFinderMCTruthRecoTracksModule, EffPlotsModule, HitXPModule, TrackingPerformanceEvaluationModule, V0findingPerformanceEvaluationModule, SecMapTrainerBaseModule, SecMapTrainerVXDTFModule, TrackFinderVXDAnalizerModule, VXDSimpleClusterizerModule, NoKickCutsEvalModule, SectorMapBootstrapModule, VXDTFTrainingDataCollectorModule, FindletModule< AFindlet >, FindletModule< HitBasedT0Extractor >, FindletModule< CKFToSVDSeedFindlet >, FindletModule< CKFToSVDFindlet >, FindletModule< CosmicsTrackMergerFindlet >, FindletModule< DATCONFPGAFindlet >, FindletModule< MCVXDCDCTrackMergerFindlet >, FindletModule< vxdHoughTracking::SVDHoughTracking >, FindletModule< CKFToCDCFindlet >, FindletModule< CKFToCDCFromEclFindlet >, FindletModule< CKFToPXDFindlet >, FindletModule< AsicBackgroundLibraryCreator >, FindletModule< CDCTrackingEventLevelMdstInfoFillerFindlet >, FindletModule< AxialSegmentPairCreator >, FindletModule< AxialStraightTrackFinder >, FindletModule< AxialTrackCreatorMCTruth >, FindletModule< AxialTrackCreatorSegmentHough >, FindletModule< AxialTrackFinderHough >, FindletModule< AxialTrackFinderLegendre >, FindletModule< ClusterBackgroundDetector >, FindletModule< ClusterPreparer >, FindletModule< ClusterRefiner< BridgingWireHitRelationFilter > >, FindletModule< FacetCreator >, FindletModule< HitReclaimer >, FindletModule< MonopoleAxialTrackFinderLegendre >, FindletModule< MonopoleStereoHitFinder >, FindletModule< MonopoleStereoHitFinderQuadratic >, FindletModule< SegmentCreatorFacetAutomaton >, FindletModule< SegmentCreatorMCTruth >, FindletModule< SegmentFinderFacetAutomaton >, FindletModule< SegmentFitter >, FindletModule< SegmentLinker >, FindletModule< SegmentOrienter >, FindletModule< SegmentPairCreator >, FindletModule< SegmentRejecter >, FindletModule< SegmentTrackCombiner >, FindletModule< SegmentTripleCreator >, FindletModule< StereoHitFinder >, FindletModule< SuperClusterCreator >, FindletModule< TrackCombiner >, FindletModule< TrackCreatorSegmentPairAutomaton >, FindletModule< TrackCreatorSegmentTripleAutomaton >, FindletModule< TrackCreatorSingleSegments >, FindletModule< TrackExporter >, FindletModule< TrackFinderAutomaton >, FindletModule< TrackFinderCosmics >, FindletModule< TrackFinder >, FindletModule< TrackFinderSegmentPairAutomaton >, FindletModule< TrackFinderSegmentTripleAutomaton >, FindletModule< TrackFlightTimeAdjuster >, FindletModule< TrackLinker >, FindletModule< TrackOrienter >, FindletModule< TrackQualityAsserter >, FindletModule< TrackQualityEstimator >, FindletModule< TrackRejecter >, FindletModule< WireHitBackgroundDetector >, FindletModule< WireHitCreator >, FindletModule< WireHitPreparer >, CDCTriggerNeuroDQMModule, CDCTriggerNeuroDQMOnlineModule, CDCTriggerNDFinderModule, TRGCDCModule, TRGCDCETFUnpackerModule, TRGCDCT2DDQMModule, TRGCDCT3DConverterModule, TRGCDCT3DDQMModule, TRGCDCT3DUnpackerModule, TRGCDCTSFDQMModule, TRGCDCTSFUnpackerModule, TRGCDCTSStreamModule, MCMatcherTRGECLModule, TRGECLFAMModule, TRGECLModule, TRGECLBGTCHitModule, TRGECLDQMModule, TRGECLQAMModule, TRGECLRawdataAnalysisModule, TRGECLTimingCalModule, TRGECLUnpackerModule, TRGGDLModule, TRGEFFDQMModule, TRGGDLDQMModule, TRGGDLDSTModule, TRGGDLSummaryModule, TRGGDLUnpackerModule, TRGGRLMatchModule, TRGGRLModule, TRGGRLProjectsModule, TRGGRLDQMModule, TRGGRLUnpackerModule, KLMTriggerModule, TRGTOPDQMModule, TRGTOPTRD2TTSConverterModule, TRGTOPUnpackerModule, TRGTOPUnpackerWaveformModule, TRGTOPWaveformPlotterModule, TRGRAWDATAModule, DQMHistAnalysisARICHModule, DQMHistAnalysisARICHMonObjModule, DQMHistAnalysisCDCDedxModule, DQMHistAnalysisCDCEpicsModule, DQMHistAnalysisCDCMonObjModule, DQMHistAnalysisDAQMonObjModule, DQMHistAnalysisECLModule, DQMHistAnalysisECLConnectedRegionsModule, DQMHistAnalysisECLOutOfTimeDigitsModule, DQMHistAnalysisECLShapersModule, DQMHistAnalysisECLSummaryModule, DQMHistAnalysisEpicsExampleModule, DQMHistAnalysisExampleModule, DQMHistAnalysisExampleFlagsModule, DQMHistAnalysisHLTMonObjModule, DQMHistAnalysisInput2Module, DQMHistAnalysisInputPVSrvModule, DQMHistAnalysisInputTestModule, DQMHistAnalysisKLMModule, DQMHistAnalysisKLM2Module, DQMHistAnalysisMiraBelleModule, DQMHistAnalysisMonObjModule, DQMHistAnalysisOutputFileModule, DQMHistAnalysisOutputMonObjModule, DQMHistAnalysisOutputRelayMsgModule, DQMHistAnalysisPXDFitsModule, DQMHistAnalysisSVDDoseModule, DQMHistAnalysisSVDEfficiencyModule, DQMHistAnalysisSVDGeneralModule, DQMHistAnalysisSVDOnMiraBelleModule, DQMHistAnalysisTOPModule, DQMHistAnalysisTRGECLModule, DQMHistAnalysisTRGEFFModule, DQMHistAnalysisTRGGDLModule, DQMHistComparitorModule, DQMHistDeltaHistoModule, DQMHistReferenceModule, DQMHistSnapshotsModule, PyModule, SVDUnpackerDQMModule, TrackSetEvaluatorHopfieldNNDEVModule, vxdDigitMaskingModule, DQMHistAnalysisDeltaEpicsMonObjExampleModule, DQMHistAnalysisDeltaTestModule, DQMHistAnalysisEpicsOutputModule, DQMHistAnalysisPhysicsModule, DQMHistAnalysisPXDChargeModule, DQMHistAnalysisPXDTrackChargeModule, DQMHistAnalysisRooFitExampleModule, DQMHistAnalysisTRGModule, and DQMHistOutputToEPICSModule.

Definition at line 166 of file Module.h.

{};

evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns

True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

{
  if (m_conditions.empty()) return false;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return true;
    }
  }
  return false;
}

event()

void event ( void  )

overridevirtual

perform analysis and Draw pdf Canvas

Reimplemented from Module.

Definition at line 216 of file SVDLocalCalibrationsCheckModule.cc.

{
  printFirstPage();

  Long64_t nentries = m_treeREF->GetEntriesFast();

  for (Long64_t jentry = 0; jentry < nentries; jentry++) {
    m_treeREF->GetEntry(jentry);
    m_treeCHECK->GetEntry(jentry);
    VxdID theVxdID(m_layerREF, m_ladderREF, m_sensorREF);
    float diff = 0;


    diff = (m_maskREF - m_maskCHECK);// / m_maskREF;
    m_hMaskDIFF->fill(theVxdID, (int)m_sideREF, (int)m_stripREF / 128, diff);
    if (m_sideREF == 1) {
      m_nMaskedUREF += m_maskREF;
      m_nMaskedUCHECK += m_maskCHECK;
    } else {
      m_nMaskedVREF += m_maskREF;
      m_nMaskedVCHECK += m_maskCHECK;
    }
    m_hMaskSummaryCHECK->fill(theVxdID, (int)m_sideREF, (float)m_maskCHECK);

    diff = (m_noiseREF - m_noiseCHECK);// / m_noiseREF;
    m_hNoiseDIFF->fill(theVxdID, (int)m_sideREF, (int)m_stripREF / 128, diff);

    diff = (m_calPeakTimeREF - m_calPeakTimeCHECK) / m_calPeakTimeREF;
    m_hCalpeakTimeDIFF->fill(theVxdID, (int)m_sideREF, (int)m_stripREF / 128, diff);

    diff = (m_calPeakADCREF - m_calPeakADCCHECK);// / m_calPeakADCREF;
    m_hCalpeakADCDIFF->fill(theVxdID, (int)m_sideREF, (int)m_stripREF / 128, diff);

    diff = (m_pedestalREF - m_pedestalCHECK);// / m_pedestalREF;
    m_hPedestalDIFF->fill(theVxdID, (int)m_sideREF, (int)m_stripREF / 128, diff);
  }


  //call for a geometry instance
  VXD::GeoCache& aGeometry = VXD::GeoCache::getInstance();
  std::set<Belle2::VxdID> svdLayers = aGeometry.getLayers(VXD::SensorInfoBase::SVD);
  std::set<Belle2::VxdID>::iterator itSvdLayers = svdLayers.begin();

  while ((itSvdLayers != svdLayers.end()) && (itSvdLayers->getLayerNumber() != 7)) { //loop on Layers

    bool isL3 = false;

    int layer = itSvdLayers->getLayerNumber();
    printLayerPage(layer);

    if (layer == 3)
      isL3 = true;

    std::set<Belle2::VxdID> svdLadders = aGeometry.getLadders(*itSvdLayers);
    std::set<Belle2::VxdID>::iterator itSvdLadders = svdLadders.begin();

    while (itSvdLadders != svdLadders.end()) { //loop on Ladders

      std::set<Belle2::VxdID> svdSensors = aGeometry.getSensors(*itSvdLadders);
      std::set<Belle2::VxdID>::iterator itSvdSensors = svdSensors.begin();

      while (itSvdSensors != svdSensors.end()) { //loop on sensors
        B2DEBUG(1, "    svd sensor info " << *itSvdSensors);


        int ladder =  itSvdSensors->getLadderNumber();
        int sensor = itSvdSensors->getSensorNumber();
        Belle2::VxdID theVxdID(layer, ladder, sensor);
        const SVD::SensorInfo* currentSensorInfo = dynamic_cast<const SVD::SensorInfo*>(&VXD::GeoCache::get(theVxdID));

        TList* listEmpty = new TList;

        //noise
        TList* listNoiseUBAD = new TList;
        TList* listNoiseUGOOD = new TList;
        TList* listNoiseVBAD = new TList;
        TList* listNoiseVGOOD = new TList;


        //calpeak
        TList* listCalpeakADCUBAD = new TList;
        TList* listCalpeakADCUGOOD = new TList;
        TList* listCalpeakADCVBAD = new TList;
        TList* listCalpeakADCVGOOD = new TList;

        //calpeak
        TList* listCalpeakTimeUGOOD = new TList;
        TList* listCalpeakTimeVGOOD = new TList;

        //pedestal
        TList* listPedestalUBAD = new TList;
        TList* listPedestalUGOOD = new TList;
        TList* listPedestalVBAD = new TList;
        TList* listPedestalVGOOD = new TList;

        bool needPlot = false;
        for (int side = 0; side < 2; side++) {

          int Ncells = currentSensorInfo->getUCells();
          if (side == 0)
            Ncells = currentSensorInfo->getVCells();

          int Napv = Ncells / 128;

          for (int m_APV = 0; m_APV < Napv; m_APV++) {

            int problem = 0;

            //mask analysis
            TH1F* hMask = m_hMaskDIFF->getHistogram(theVxdID, side, m_APV);
            m_hMaskSummary->fill(theVxdID, side, hMask->GetMean() * 128);

            //noise analysis
            TH1F* hNoise = m_hNoiseDIFF->getHistogram(theVxdID, side, m_APV);
            problem = hasAnyProblem(hNoise, m_cutNoise_ave, m_cutNoise_out);
            if (problem)   {
              needPlot = true;
              B2INFO("WARNING, ONE APV has Noise problems in: L" << layer << "L" << ladder << "S" << sensor << " side = " << side <<
                     ", APV number = " << m_APV << ", problem ID = " << problem);
              m_hNoiseSummary->fill(theVxdID, side, 1);
              if (side == 0)
                listNoiseVBAD->Add(hNoise);
              else
                listNoiseUBAD->Add(hNoise);
            } else {
              if (side == 0)
                listNoiseVGOOD->Add(hNoise);
              else
                listNoiseUGOOD->Add(hNoise);
            }



            //calpeak analysis
            TH1F* hCalpeakADC = m_hCalpeakADCDIFF->getHistogram(theVxdID, side, m_APV);
            problem = hasAnyProblem(hCalpeakADC, m_cutCalpeakADC_ave, m_cutCalpeakADC_out);
            if (problem)   {
              needPlot = true;
              B2INFO("WARNING, ONE APV has CalpeakADC problems in: L" << layer << "L" << ladder << "S" << sensor << " side = " << side <<
                     ", APV number = " << m_APV << " problem ID = " << problem);
              m_hCalpeakADCSummary->fill(theVxdID, side, 1);
              if (side == 0)
                listCalpeakADCVBAD->Add(hCalpeakADC);
              else
                listCalpeakADCUBAD->Add(hCalpeakADC);
            } else {
              if (side == 0)
                listCalpeakADCVGOOD->Add(hCalpeakADC);
              else
                listCalpeakADCUGOOD->Add(hCalpeakADC);
            }

            //calpeak plot
            TH1F* hCalpeakTime = m_hCalpeakTimeDIFF->getHistogram(theVxdID, side, m_APV);
            if (side == 0)
              listCalpeakTimeVGOOD->Add(hCalpeakTime);
            else
              listCalpeakTimeUGOOD->Add(hCalpeakTime);


            //pedestal analysis
            TH1F* hPedestal = m_hPedestalDIFF->getHistogram(theVxdID, side, m_APV);
            problem = hasAnyProblem(hPedestal, m_cutPedestal_ave, m_cutPedestal_out);
            if (problem)   {
              needPlot = true;
              B2INFO("WARNING, ONE APV has Pedestal problems in: L" << layer << "L" << ladder << "S" << sensor << " side = " << side <<
                     ", APV number = " << m_APV << " problem ID = " << problem);
              m_hPedestalSummary->fill(theVxdID, side, 1);
              if (side == 0)
                listPedestalVBAD->Add(hPedestal);
              else
                listPedestalUBAD->Add(hPedestal);
            } else {
              if (side == 0)
                listPedestalVGOOD->Add(hPedestal);
              else
                listPedestalUGOOD->Add(hPedestal);
            }



          }
        }
        if (needPlot) {
          printPage(theVxdID, listNoiseUBAD, listNoiseVBAD, listNoiseUGOOD, listNoiseVGOOD, "Noise", isL3);
          printPage(theVxdID, listCalpeakADCUBAD, listCalpeakADCVBAD, listCalpeakADCUGOOD, listCalpeakADCVGOOD, "CalpeakADC", isL3);
          printPage(theVxdID, listEmpty, listEmpty, listCalpeakTimeUGOOD, listCalpeakTimeVGOOD, "CalpeakTime", isL3);
          printPage(theVxdID, listPedestalUBAD, listPedestalVBAD, listPedestalUGOOD, listPedestalVGOOD, "Pedestal", isL3);
        }
        ++itSvdSensors;
      }
      ++itSvdLadders;
    }
    ++itSvdLayers;
  }

  printAPVSummaryPages();
  printMaskedSummaryPages();
  printLastPage();

}

exposePythonAPI()

void exposePythonAPI ( )

staticinherited

Exposes methods of the Module class to Python.

Definition at line 325 of file Module.cc.

{
  // to avoid confusion between std::arg and boost::python::arg we want a shorthand namespace as well
  namespace bp = boost::python;

  docstring_options options(true, true, false); //userdef, py sigs, c++ sigs

  void (Module::*setReturnValueInt)(int) = &Module::setReturnValue;

  enum_<Module::EAfterConditionPath>("AfterConditionPath",
                                     R"(Determines execution behaviour after a conditional path has been executed:

.. attribute:: END

  End processing of this path after the conditional path. (this is the default for if_value() etc.)

.. attribute:: CONTINUE

  After the conditional path, resume execution after this module.)")
  .value("END", Module::EAfterConditionPath::c_End)
  .value("CONTINUE", Module::EAfterConditionPath::c_Continue)
  ;

  /* Do not change the names of >, <, ... we use them to serialize conditional pathes */
  enum_<Belle2::ModuleCondition::EConditionOperators>("ConditionOperator")
  .value(">", Belle2::ModuleCondition::EConditionOperators::c_GT)
  .value("<", Belle2::ModuleCondition::EConditionOperators::c_ST)
  .value(">=", Belle2::ModuleCondition::EConditionOperators::c_GE)
  .value("<=", Belle2::ModuleCondition::EConditionOperators::c_SE)
  .value("==", Belle2::ModuleCondition::EConditionOperators::c_EQ)
  .value("!=", Belle2::ModuleCondition::EConditionOperators::c_NE)
  ;

  enum_<Module::EModulePropFlags>("ModulePropFlags",
                                  R"(Flags to indicate certain low-level features of modules, see :func:`Module.set_property_flags()`, :func:`Module.has_properties()`. Most useful flags are:

.. attribute:: PARALLELPROCESSINGCERTIFIED

    This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)

.. attribute:: HISTOGRAMMANAGER

  This module is used to manage histograms accumulated by other modules

.. attribute:: TERMINATEINALLPROCESSES

  When using parallel processing, call this module's terminate() function in all processes. This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
)")
  .value("INPUT", Module::EModulePropFlags::c_Input)
  .value("OUTPUT", Module::EModulePropFlags::c_Output)
  .value("PARALLELPROCESSINGCERTIFIED", Module::EModulePropFlags::c_ParallelProcessingCertified)
  .value("HISTOGRAMMANAGER", Module::EModulePropFlags::c_HistogramManager)
  .value("INTERNALSERIALIZER", Module::EModulePropFlags::c_InternalSerializer)
  .value("TERMINATEINALLPROCESSES", Module::EModulePropFlags::c_TerminateInAllProcesses)
  ;

  //Python class definition
  class_<Module, PyModule> module("Module", R"(
Base class for Modules.

A module is the smallest building block of the framework.
A typical event processing chain consists of a Path containing
modules. By inheriting from this base class, various types of
modules can be created. To use a module, please refer to
:func:`Path.add_module()`.  A list of modules is available by running
``basf2 -m`` or ``basf2 -m package``, detailed information on parameters is
given by e.g. ``basf2 -m RootInput``.

The 'Module Development' section in the manual provides detailed information
on how to create modules, setting parameters, or using return values/conditions:
https://xwiki.desy.de/xwiki/rest/p/f4fa4/#HModuleDevelopment

)");
  module
  .def("__str__", &Module::getPathString)
  .def("name", &Module::getName, return_value_policy<copy_const_reference>(),
       "Returns the name of the module. Can be changed via :func:`set_name() <Module.set_name()>`, use :func:`type() <Module.type()>` for identifying a particular module class.")
  .def("type", &Module::getType, return_value_policy<copy_const_reference>(),
       "Returns the type of the module (i.e. class name minus 'Module')")
  .def("set_name", &Module::setName, args("name"), R"(
Set custom name, e.g. to distinguish multiple modules of the same type.

>>> path.add_module('EventInfoSetter')
>>> ro = path.add_module('RootOutput', branchNames=['EventMetaData'])
>>> ro.set_name('RootOutput_metadata_only')
>>> print(path)
[EventInfoSetter -> RootOutput_metadata_only]

)")
  .def("description", &Module::getDescription, return_value_policy<copy_const_reference>(),
       "Returns the description of this module.")
  .def("package", &Module::getPackage, return_value_policy<copy_const_reference>(),
       "Returns the package this module belongs to.")
  .def("available_params", &_getParamInfoListPython,
       "Return list of all module parameters as `ModuleParamInfo` instances")
  .def("has_properties", &Module::hasProperties, (bp::arg("properties")),
       R"DOCSTRING(Allows to check if the module has the given properties out of `ModulePropFlags` set.

>>> if module.has_properties(ModulePropFlags.PARALLELPROCESSINGCERTIFIED):
>>>     ...

Parameters:
  properties (int): bitmask of `ModulePropFlags` to check for.
)DOCSTRING")
  .def("set_property_flags", &Module::setPropertyFlags, args("property_mask"),
       "Set module properties in the form of an OR combination of `ModulePropFlags`.");
  {
    // python signature is too crowded, make ourselves
    docstring_options subOptions(true, false, false); //userdef, py sigs, c++ sigs
    module
    .def("if_value", &Module::if_value,
         (bp::arg("expression"), bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOCSTRING(if_value(expression, condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this
module if the return value set in the module passes the given ``expression``.

Modules can define a return value (int or bool) using ``setReturnValue()``,
which can be used in the steering file to split the Path based on this value, for example

>>> module_with_condition.if_value("<1", another_path)

In case the return value of the ``module_with_condition`` for a given event is
less than 1, the execution will be diverted into ``another_path`` for this event.

You could for example set a special return value if an error occurs, and divert
the execution into a path containing :b2:mod:`RootOutput` if it is found;
saving only the data producing/produced by the error.

After a conditional path has executed, basf2 will by default stop processing
the path for this event. This behaviour can be changed by setting the
``after_condition_path`` argument.

Parameters:
  expression (str): Expression to determine if the conditional path should be executed.
      This should be one of the comparison operators ``<``, ``>``, ``<=``,
      ``>=``, ``==``, or ``!=`` followed by a numerical value for the return value
  condition_path (Path): path to execute in case the expression is fulfilled
  after_condition_path (AfterConditionPath): What to do once the ``condition_path`` has been executed.
)DOCSTRING")
    .def("if_false", &Module::if_false,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_false(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to False. This is equivalent to
calling `if_value` with ``expression=\"<1\"``)DOC")
    .def("if_true", &Module::if_true,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_true(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to True. It is equivalent to
calling `if_value` with ``expression=\">=1\"``)DOC");
  }
  module
  .def("has_condition", &Module::hasCondition,
       "Return true if a conditional path has been set for this module "
       "using `if_value`, `if_true` or `if_false`")
  .def("get_all_condition_paths", &_getAllConditionPathsPython,
       "Return a list of all conditional paths set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .def("get_all_conditions", &_getAllConditionsPython,
       "Return a list of all conditional path expressions set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .add_property("logging", make_function(&Module::getLogConfig, return_value_policy<reference_existing_object>()),
                &Module::setLogConfig)

getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

{
  if (m_conditions.empty()) return EAfterConditionPath::c_End;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getAfterConditionPath();
    }
  }

  return EAfterConditionPath::c_End;
}

getAllConditionPaths()

std::vector< std::shared_ptr< Path > > getAllConditionPaths ( ) const

inherited

Return all condition paths currently set (no matter if the condition is true or not).

Definition at line 150 of file Module.cc.

{
  std::vector<std::shared_ptr<Path>> allConditionPaths;
  for (const auto& condition : m_conditions) {
    allConditionPaths.push_back(condition.getPath());
  }

  return allConditionPaths;
}

getAllConditions()

const std::vector< ModuleCondition > & getAllConditions ( ) const

inlineinherited

Return all set conditions for this module.

Definition at line 324 of file Module.h.

    {
      return m_conditions;
    }

getCondition()

const ModuleCondition * getCondition ( ) const

inlineinherited

Return a pointer to the first condition (or nullptr, if none was set)

Definition at line 314 of file Module.h.

    {
      if (m_conditions.empty()) {
        return nullptr;
      } else {
        return &m_conditions.front();
      }
    }

getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

{
  PathPtr p;
  if (m_conditions.empty()) return p;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getPath();
    }
  }

  // if none of the conditions were true, return a null pointer.
  return p;
}

getDescription()

const std::string & getDescription ( ) const

inlineinherited

Returns the description of the module.

Definition at line 202 of file Module.h.

{return m_description;}

getFileNames()

virtual std::vector< std::string > getFileNames ( bool  outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootInputModule, StorageRootOutputModule, and RootOutputModule.

Definition at line 134 of file Module.h.

    {
      return std::vector<std::string>();
    }

getLogConfig()

LogConfig & getLogConfig ( )

inlineinherited

Returns the log system configuration.

Definition at line 225 of file Module.h.

{return m_logConfig;}

getModules()

std::list< ModulePtr > getModules ( ) const

inlineoverrideprivatevirtualinherited

no submodules, return empty list

Implements PathElement.

Definition at line 506 of file Module.h.

{ return std::list<ModulePtr>(); }

getName()

const std::string & getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 187 of file Module.h.

{return m_name;}

getPackage()

const std::string & getPackage ( ) const

inlineinherited

Returns the package this module is in.

Definition at line 197 of file Module.h.

{return m_package;}

getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns

A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

{
  return m_moduleParamList.getParamInfoListPython();
}

getParamList()

const ModuleParamList & getParamList ( ) const

inlineinherited

Return module param list.

Definition at line 363 of file Module.h.

{ return m_moduleParamList; }

getPathString()

std::string getPathString ( ) const

overrideprivatevirtualinherited

return the module name.

Implements PathElement.

Definition at line 192 of file Module.cc.

{

  std::string output = getName();

  for (const auto& condition : m_conditions) {
    output += condition.getString();
  }

  return output;
}

getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 381 of file Module.h.

{ return m_returnValue; }

getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

{
  if (m_type.empty())
    B2FATAL("Module type not set for " << getName());
  return m_type;
}

hasAnyProblem()

int hasAnyProblem ( TH1F *  h, float  cutAve, float  cutCOUNT  )

private

return True if the APV has a problem, given a variable

Definition at line 759 of file SVDLocalCalibrationsCheckModule.cc.

{

  float average = h->GetMean();
  if (std::fabs(average) > cutAve)
    return 1;

  TAxis* xaxis = h->GetXaxis();
  Int_t bin1 = xaxis->FindBin(-cutCOUNT);
  Int_t bin2 = xaxis->FindBin(cutCOUNT);
  if (bin1 > bin2) {
    int tmp = bin1;
    bin1 = bin2;
    bin2 = tmp;
  }

  B2DEBUG(1, bin1 << " -> " << bin2 << " with " << xaxis->GetNbins() << " bins");

  if (h->Integral(1, bin1) > m_cutN_out - 1) return 2;

  if (h->Integral(bin2, xaxis->GetNbins()) > m_cutN_out - 1) return 3;

  return 0;
}

hasCondition()

bool hasCondition ( ) const

inlineinherited

Returns true if at least one condition was set for the module.

Definition at line 311 of file Module.h.

{ return not m_conditions.empty(); };

hasProperties()

bool hasProperties ( unsigned int  propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags

Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

{
  return (propertyFlags & m_propertyFlags) == propertyFlags;
}

hasReturnValue()

bool hasReturnValue ( ) const

inlineinherited

Return true if this module has a valid return value set.

Definition at line 378 of file Module.h.

{ return m_hasReturnValue; }

hasUnsetForcedParams()

bool hasUnsetForcedParams ( ) const

inherited

Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

Definition at line 166 of file Module.cc.

{
  auto missing = m_moduleParamList.getUnsetForcedParams();
  std::string allMissing = "";
  for (const auto& s : missing)
    allMissing += s + " ";
  if (!missing.empty())
    B2ERROR("The following required parameters of Module '" << getName() << "' were not specified: " << allMissing <<
            "\nPlease add them to your steering file.");
  return !missing.empty();
}

if_false()

void if_false ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

{
  if_value("<1", path, afterConditionPath);
}

if_true()

void if_true ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

{
  if_value(">=1", path, afterConditionPath);
}

if_value()

void if_value ( const std::string &  expression, const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://xwiki.desy.de/xwiki/rest/p/a94f2 or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

{
  m_conditions.emplace_back(expression, path, afterConditionPath);
}

initialize()

virtual void initialize ( void  )

inlinevirtualinherited

Initialize the Module.

This method is called once before the actual event processing starts. Use this method to initialize variables, open files etc.

This method can be implemented by subclasses.

Reimplemented in ARICHBackgroundModule, BeamabortModule, BgoModule, CaveModule, ClawModule, CLAWSModule, DosiModule, FANGSModule, He3tubeModule, MicrotpcModule, Ph1bpipeModule, Ph1sustrModule, PindiodeModule, PlumeModule, QcsmonitorModule, SrsensorModule, GetEventFromSocketModule, TrackTimeEstimatorModule, CalibrationCollectorModule, EventsOfDoomBusterModule, MCRecoTracksMatcherModule, AlignmentGeneratorModule, CopyRecoTracksWithOverlapModule, CosmicsAlignmentValidationModule, MergerCosmicTracksModule, SetRecoTrackMomentumModule, UpdateParticleTrackCandModule, AllParticleCombinerModule, AnalysisConfigurationModule, BelleNbarMVAModule, BestCandidateSelectionModule, BelleBremRecoveryModule, BremsFinderModule, BtubeCreatorModule, ChargedPidMVAModule, ChargedPidMVAMulticlassModule, ContinuumSuppressionBuilderModule, CurlTaggerModule, DistanceCalculatorModule, DuplicateVertexMarkerModule, EventKinematicsModule, EventShapeCalculatorModule, ExtraInfoPrinterModule, ExtraInfoRemoverModule, FlavorTaggerInfoBuilderModule, FlavorTaggerInfoFillerModule, HelixErrorScalerModule, InclusiveBtagReconstructionModule, InclusiveDstarReconstructionModule, KlongDecayReconstructorExpertModule, KlongMomentumCalculatorExpertModule, KlongMomentumUpdaterExpertModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, MCDecayFinderModule, MCMatcherParticlesModule, NeutralHadron4MomentumCalculatorModule, OnlyWriteOutParticleListsModule, ParticleCombinerModule, ParticleCombinerFromMCModule, ParticleCopierModule, ParticleExtractorFromROEModule, ParticleKinematicFitterModule, ParticleListManipulatorModule, ParticleLoaderModule, ParticleMassHypothesesUpdaterModule, ParticleMassUpdaterModule, ParticleMCDecayStringModule, ParticleMomentumUpdaterModule, ParticlePrinterModule, ParticleSelectorModule, ParticleStatsModule, ParticleVertexFitterModule, ParticleWeightingModule, ParticleWeightingLookUpCreatorModule, Pi0VetoEfficiencySystematicsModule, PIDCalibrationWeightCreatorModule, PIDNeuralNetworkParametersCreatorModule, PostMergeUpdaterModule, PrintMCParticlesModule, PseudoVertexFitterModule, RemoveParticlesNotInListsModule, RestOfEventBuilderModule, RestOfEventInterpreterModule, RestOfEventPrinterModule, RestOfEventUpdaterModule, SelectDaughtersModule, SignalSideParticleFilterModule, SignalSideParticleListCreatorModule, SignalSideVariablesToDaughterExtraInfoModule, SignalSideVariablesToExtraInfoModule, SkimFilterModule, TagUniqueSignalModule, TagVertexModule, TauDecayMarkerModule, TauDecayModeModule, TrackFitResultEstimatorModule, TrackingEnergyLossCorrectionModule, TrackingMomentumScaleFactorsModule, TrackIsoCalculatorModule, TreeFitterModule, TwoBodyISRPhotonCorrectorModule, UdstListFilterModule, VariablesToEventBasedTreeModule, VariablesToEventExtraInfoModule, VariablesToExtraInfoModule, VariablesToHistogramModule, VariablesToNtupleModule, VariableToReturnValueModule, arichBtestModule, ARICHDigitizerModule, ARICHDQMModule, ARICHFillHitsModule, ARICHMCParticlesModule, ARICHNtupleModule, ARICHPackerModule, ARICHRateCalModule, ARICHRawUnpackerModule, ARICHReconstructorModule, ARICHRelateModule, arichToNtupleModule, ARICHUnpackerModule, B2BIIMCParticlesMonitorModule, B2BIIConvertBeamParamsModule, B2BIIConvertMdstModule, B2BIIFixMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, BeamBkgGeneratorModule, BeamBkgHitRateMonitorModule, BeamBkgMixerModule, BeamBkgTagSetterModule, BGOverlayExecutorModule, BGOverlayInputModule, AnalysisPhase1StudyModule, NtuplePhase1_v6Module, ReprocessorModule, BeamabortStudyModule, BeamDigitizerModule, BgoDigitizerModule, BgoStudyModule, ClawDigitizerModule, ClawStudyModule, ClawsDigitizerModule, ClawsStudyModule, CsiDigitizer_v2Module, CsIDigitizerModule, CsiModule, CsiStudy_v2Module, CsIStudyModule, DosiDigitizerModule, DosiStudyModule, FANGSDigitizerModule, FANGSStudyModule, He3DigitizerModule, He3tubeStudyModule, MicrotpcStudyModule, TpcDigitizerModule, TPCStudyModule, PinDigitizerModule, PindiodeStudyModule, PlumeDigitizerModule, QcsmonitorDigitizerModule, QcsmonitorStudyModule, TestCalibDBAccessModule, TriggerSkimModule, CDCCosmicAnalysisModule, CDCCosmicSelectorModule, CDCCosmicSelectorAfterFullSimModule, CDCCrossTalkAdderModule, CDCCRTestModule, CDCDedxCorrectionModule, CDCDedxDQMModule, CDCDedxHitSaverModule, CDCDedxPIDCreatorModule, CDCDedxPIDModule, CDCDedxScanModule, CDCDedxSkimModule, CDCDedxSkimCDSTModule, CDCDedxValidationModule, CDCDigitizerModule, cdcDQM7Module, CDCDQMModule, ScanCDCGeoModule, CDCHitFilterModule, CDCInitialT0DeterminationModule, CDCJobCntlParModifierModule, CDCPackerModule, CDCCosmicTrackMergerModule, CDCRecoTrackFilterModule, CDCUnpackerModule, HitLevelInfoWriterModule, DAQPerfModule, RxSocketModule, TxSocketModule, DqmHistoManagerModule, MonitorDataModule, TrackAnaModule, Ds2SampleModule, ReceiveEventModule, HLTZMQ2DsModule, HLTZMQ2DsDirectModule, StorageZMQ2DsModule, ElapsedTimeModule, DeSerializerModule, DeSerializerCOPPERModule, DeSerializerFILEModule, DeSerializerHLTModule, DeSerializerPCModule, DeSerializerPrePCModule, DeSerializerPXDModule, DesSerPrePCMainModule, DummyDataSourceModule, DummyDataSourceFileModule, GenRawSendModule, MonitorDataCOPPERModule, Root2RawModule, SerializerModule, CertifyParallelModule, Ds2RawModule, Ds2RbufModule, EvReductionModule, FastRbuf2DsModule, Raw2DsModule, RawInputModule, Rbuf2DsModule, Rbuf2RbufModule, Ds2RawFileModule, PartialSeqRootReaderModule, SeqRootMergerModule, StorageDeserializerModule, StorageRootOutputModule, StorageSerializerModule, DisplayModule, IPDQMModule, PhysicsObjectsDQMModule, PhysicsObjectsMiraBelleBhabhaModule, PhysicsObjectsMiraBelleDst2Module, PhysicsObjectsMiraBelleDstModule, PhysicsObjectsMiraBelleHadronModule, PhysicsObjectsMiraBelleModule, ECLBackgroundModule, ECLChargedPIDModule, ECLChargedPIDDataAnalysisModule, ECLChargedPIDDataAnalysisValidationModule, ECLChargedPIDMVAModule, ECLClusterPropertiesModule, ECLClusterPSDModule, ECLCompressBGOverlayModule, ECLCovarianceMatrixModule, ECLCRFinderModule, EclCovMatrixNtupleModule, ECLDataAnalysisModule, ECLDigiStudyModule, ECLDigitCalibratorModule, ECLDigitizerModule, ECLDigitizerPureCsIModule, EclDisplayModule, ECLDQMModule, ECLDQMConnectedRegionsModule, ECLDQMEXTENDEDModule, ECLDQMOutOfTimeDigitsModule, ECLDumpGeometryModule, ECLEventT0Module, ECLFillCellIdMappingModule, ECLFinalizerModule, ECLHitDebugModule, ECLLocalMaximumFinderModule, ECLLOMModule, ECLMatchingPerformanceExpertModule, ECLPackerModule, ECLShowerCalibratorModule, ECLShowerCorrectorModule, ECLShowerShapeModule, ECLSplitterN1Module, ECLSplitterN2Module, ECLTrackBremFinderModule, ECLTrackCalDigitMatchModule, ECLTrackClusterMatchingModule, ECLTrackClusterMatchingParametrizationExpertModule, ECLTrackClusterMatchingPerformanceModule, ECLTRGInformationModule, ECLTriggerClusterMatcherModule, ECLTrimShowersAndDigitsModule, ECLUnpackerModule, eclWaveformCalibCollectorModule, ECLWaveformFitModule, MCMatcherECLClustersModule, CreateConsistencyInfoModule, HistoModule, MergeDataStoreModule, SteerRootInputModule, SubEventModule, SwitchDataStoreModule, EventErrorFlagModule, EventInfoPrinterModule, EventInfoSetterModule, EventLimiterModule, IoVDependentConditionModule, PrescaleModule, PrintCollectionsModule, ProgressBarModule, ProgressModule, PruneDataStoreModule, RandomBarrierModule, TheKillerModule, GearboxModule, HistoManagerModule, ProfileModule, StatisticsSummaryModule, RootInputModule, RootOutputModule, SeqRootInputModule, SeqRootOutputModule, AsyncWrapper, RxModule, TxModule, ZMQRxOutputModule, ZMQRxWorkerModule, ZMQTxInputModule, BBBremInputModule, BHWideInputModule, CRYInputModule, EvtGenDecayModule, FragmentationModule, HepMCInputModule, HepMCOutputModule, BeamParametersModule, BoostMCParticlesModule, CosmicsModule, EventT0GeneratorModule, EventT0ShifterModule, GeneratedVertexDisplacerModule, GeneratorBaseModule, GeneratorPreselectionLeptonicModule, GeneratorPreselectionModule, HepevtInputModule, HepevtOutputModule, InclusiveParticleCheckerModule, LHEInputModule, OverrideGenerationFlagsModule, ParticleGunModule, RemoveMCParticlesModule, SADInputModule, SmearPrimaryVertexModule, TouschekTURTLEInputModule, PairGenModule, TeeggInputModule, FBXWriterModule, CreateFieldMapModule, DensityScalerModule, ExportGeometryModule, GeometryModule, OverlapCheckerModule, VRMLWriterModule, OnlineEventT0CreatorModule, SoftwareTriggerModule, SoftwareTriggerResultPrinterModule, CosmicRayHLTDQMModule, SoftwareTriggerHLTDQMModule, StatisticsTimingHLTDQMModule, BKLMAnaModule, BKLMDigitAnalyzerModule, BKLMSimHistogrammerModule, BKLMTrackingModule, EKLMDataCheckerModule, KLMClusterAnaModule, KLMClusterEfficiencyModule, KLMClustersReconstructorModule, KLMDigitizerModule, KLMDigitTimeShifterModule, KLMDQMModule, KLMDQM2Module, KLMPackerModule, KLMReconstructorModule, KLMScintillatorSimulatorModule, KLMUnpackerModule, MCMatcherKLMClustersModule, MasterClassModule, FixMergedObjectsModule, MVAExpertModule, MVAMultipleExpertsModule, MVAPrototypeModule, AWESOMEBasicModule, PXDBackgroundModule, PXDBeamBackHitFilterModule, PXDRawDQMChipsModule, PXDRawHitMaskingModule, PXDTrackingEventLevelMdstInfoFillerModule, PXDClustersFromTracksModule, PXDPerformanceModule, PXDClusterCheckModule, PXDClusterizerModule, PXDDigitSorterModule, PXDRawHitSorterModule, PXDSpacePointCreatorModule, CheckErrorEventModule, Convert2RawDetModule, DummyDataPackerModule, HexDataPackerModule, MakeDumHSLBDataModule, PrintDataModule, PrintDataTemplateModule, PrintEventRateModule, Root2BinaryModule, ClusterMatcherModule, EventT0DQMModule, EventT0ValidationModule, DataWriterModule, ECLExpertModule, KLMExpertModule, KlongValidationModule, KLMMuonIDDNNExpertModule, MdstPIDModule, PIDNtupleModule, VXDDedxPIDModule, VXDDedxPIDRemakerModule, FullSimModule, FullSimTimingModule, MaterialScanModule, SimulateEventLevelTriggerTimeInfoModule, SVDBackgroundModule, SVDBeamBackHitFilterModule, SVDChannelMappingModule, SVDDatabaseTestModule, SVDHotStripFinderModule, SVDLatencyCalibrationModule, SVDPositionErrorScaleFactorImporterModule, SVDChargeSharingAnalysisModule, SVDClusterQualityEstimatorCalibrationModule, SVDClusterQualityEstimatorModule, SVDCrossTalkFinderModule, SVDDQMHitTimeModule, svdDumpModule, SVDTrackingEventLevelMdstInfoFillerModule, SVDPackerModule, SVDB4CommissioningPlotsModule, SVDClusterEvaluationModule, SVDClusterEvaluationTrueInfoModule, SVDClusterFilterModule, SVDEventT0PerformanceTTreeModule, SVDMaxStripTTreeModule, SVDOccupancyAnalysisModule, SVDPerformanceModule, SVDPerformanceTTreeModule, SVDShaperDigitsFromTracksModule, SVDClusterizerDirectModule, SVDClusterizerModule, SVDCoGTimeEstimatorModule, SVDDataFormatCheckModule, SVDMissingAPVsClusterCreatorModule, SVDNNClusterizerModule, SVDNNShapeReconstructorModule, SVDRecoDigitCreatorModule, SVDShaperDigitSorterModule, SVDSimpleClusterizerModule, SVDStripMaskingModule, SVD3SamplesEmulatorModule, SVDDigitizerModule, SVDEventInfoSetterModule, SVDTriggerQualityGeneratorModule, SVDZeroSuppressionEmulatorModule, SVDSpacePointCreatorModule, SVDSpacePointQICalibrationModule, SVDTimeGroupingModule, SVDUnpackerModule, OpticalGunModule, TOPAlignerModule, TOPBackgroundModule, TOPBunchFinderModule, TOPChannelMaskerModule, TOPChannelT0CalibratorModule, TOPChannelT0MCModule, TOPCommonT0CalibratorModule, TOPCosmicT0FinderModule, TOPDigitizerModule, TOPTriggerDigitizerModule, TOPCalPulseGeneratorModule, TOPDoublePulseGeneratorModule, TOPDQMModule, TOPGainEfficiencyCalculatorModule, TOPLaserHitSelectorModule, TOPGeometryParInitializerModule, TOPInterimFENtupleModule, TOPLaserCalibratorModule, TOPLLScannerModule, TOPMCTrackMakerModule, TOPModuleT0CalibratorModule, TOPNtupleModule, TOPPackerModule, TOPPDFCheckerModule, TOPPDFDebuggerModule, TOPRawDigitConverterModule, TOPReconstructorModule, TOPRingPlotterModule, TOPTBCComparatorModule, TOPTimeBaseCalibratorModule, TOPTimeRecalibratorModule, TOPUnpackerModule, TOPWaveformFeatureExtractorModule, TOPWaveformQualityPlotterModule, TOPXTalkChargeShareSetterModule, DQMHistoModuleBase, SVDEventT0EstimatorModule, ExtModule, BaseRecoFitterModule, FittedTracksStorerModule, RecoTrackCreatorModule, BaseTrackTimeEstimatorModule, FlippedRecoTracksMergerModule, FlipQualityModule, RegisterEventLevelTrackingInfoModule, SetupGenfitExtrapolationModule, GenfitVisModule, BeamSpotMonitorModule, KinkFinderModule, Chi2MCTrackMatcherModule, MCV0MatcherModule, TrackToMCParticleRelatorModule, MCTrackCandClassifierModule, MuidModule, PruneRecoHitsModule, PruneRecoTracksModule, PXDSVDCutModule, ReattachCDCWireHitsToRecoTracksModule, RecoTrackParticleLoaderModule, RecoTracksCopierModule, RecoTracksReverterModule, CDCCKFTracksCombinerModule, MCRelationCreatorModule, RecoTrackStoreArrayCombinerModule, RelatedTracksCombinerModule, MCSlowPionPXDROICreatorModule, PXDclusterFilterModule, PXDROIFinderModule, ROIReadTestModule, SVDROIDQMModule, SVDROIFinderAnalysisDataModule, SVDROIFinderAnalysisModule, SVDROIFinderModule, SVDShaperDigitFilterModule, CurlingTrackCandSplitterModule, GFTC2SPTCConverterModule, PhaseSpaceAnalysisModule, RT2SPTCConverterModule, SpacePoint2TrueHitConnectorModule, SpacePointCreatorTestModule, SPTC2GFTCConverterModule, SPTCmomentumSeedRetrieverModule, SPTCRefereeModule, SPTCvirtualIPRemoverModule, TCConvertersTestModule, StandardTrackingPerformanceModule, TrackCreatorModule, ParallelTrackFilterModule, TrackFilterModule, TrackFinderMCTruthRecoTracksModule, CollectorTestModule, StudyMaterialEffectsModule, TrackDQMModule, TrackingExpressRecoDQMModule, TrackingHLTDQMModule, EffPlotsModule, FillTrackFitNtupleModule, HitXPModule, TrackingPerformanceEvaluationModule, V0findingPerformanceEvaluationModule, TrackQETrainingDataCollectorModule, TrackQualityEstimatorMVAModule, V0FinderModule, VXDCDCTrackMergerModule, OverlapResidualsModule, RawSecMapMergerModule, SecMapTrainerBaseModule, SecMapTrainerVXDTFModule, TrackFinderVXDAnalizerModule, VXDSimpleClusterizerModule, QualityEstimatorVXDModule, VXDQETrainingDataCollectorModule, VXDQualityEstimatorMVAModule, FastBDTClassifierAnalyzerModule, FastBDTClassifierTrainingModule, MLSegmentNetworkProducerModule, NoKickCutsEvalModule, SectorMapBootstrapModule, SegmentNetworkAnalyzerModule, SegmentNetworkProducerModule, SPTC2RTConverterModule, TrackFinderVXDBasicPathFinderModule, TrackFinderVXDCellOMatModule, TrackFinderVXDCosmicsStandaloneModule, VXDTFTrainingDataCollectorModule, FindletModule< AFindlet >, FindletModule< HitBasedT0Extractor >, FindletModule< CKFToSVDSeedFindlet >, FindletModule< CKFToSVDFindlet >, FindletModule< CosmicsTrackMergerFindlet >, FindletModule< DATCONFPGAFindlet >, FindletModule< MCVXDCDCTrackMergerFindlet >, FindletModule< vxdHoughTracking::SVDHoughTracking >, FindletModule< CKFToCDCFindlet >, FindletModule< CKFToCDCFromEclFindlet >, FindletModule< CKFToPXDFindlet >, FindletModule< AsicBackgroundLibraryCreator >, FindletModule< CDCTrackingEventLevelMdstInfoFillerFindlet >, FindletModule< AxialSegmentPairCreator >, FindletModule< AxialStraightTrackFinder >, FindletModule< AxialTrackCreatorMCTruth >, FindletModule< AxialTrackCreatorSegmentHough >, FindletModule< AxialTrackFinderHough >, FindletModule< AxialTrackFinderLegendre >, FindletModule< ClusterBackgroundDetector >, FindletModule< ClusterPreparer >, FindletModule< ClusterRefiner< BridgingWireHitRelationFilter > >, FindletModule< FacetCreator >, FindletModule< HitReclaimer >, FindletModule< MonopoleAxialTrackFinderLegendre >, FindletModule< MonopoleStereoHitFinder >, FindletModule< MonopoleStereoHitFinderQuadratic >, FindletModule< SegmentCreatorFacetAutomaton >, FindletModule< SegmentCreatorMCTruth >, FindletModule< SegmentFinderFacetAutomaton >, FindletModule< SegmentFitter >, FindletModule< SegmentLinker >, FindletModule< SegmentOrienter >, FindletModule< SegmentPairCreator >, FindletModule< SegmentRejecter >, FindletModule< SegmentTrackCombiner >, FindletModule< SegmentTripleCreator >, FindletModule< StereoHitFinder >, FindletModule< SuperClusterCreator >, FindletModule< TrackCombiner >, FindletModule< TrackCreatorSegmentPairAutomaton >, FindletModule< TrackCreatorSegmentTripleAutomaton >, FindletModule< TrackCreatorSingleSegments >, FindletModule< TrackExporter >, FindletModule< TrackFinderAutomaton >, FindletModule< TrackFinderCosmics >, FindletModule< TrackFinder >, FindletModule< TrackFinderSegmentPairAutomaton >, FindletModule< TrackFinderSegmentTripleAutomaton >, FindletModule< TrackFlightTimeAdjuster >, FindletModule< TrackLinker >, FindletModule< TrackOrienter >, FindletModule< TrackQualityAsserter >, FindletModule< TrackQualityEstimator >, FindletModule< TrackRejecter >, FindletModule< WireHitBackgroundDetector >, FindletModule< WireHitCreator >, FindletModule< WireHitPreparer >, CDCTriggerNeuroDQMModule, CDCTriggerNeuroDQMOnlineModule, CDCTrigger2DFitterModule, CDCTrigger3DFitterModule, CDCTriggerHoughETFModule, CDCTrigger2DFinderModule, CDCTriggerMCMatcherModule, CDCTriggerRecoHitMatcherModule, CDCTriggerRecoMatcherModule, CDCTriggerNDFinderModule, CDCTriggerNeuroDataModule, CDCTriggerNeuroIDHistModule, CDCTriggerNeuroModule, CDCTriggerETFModule, CDCTriggerTrackCombinerModule, CDCTriggerTSFFirmwareModule, CDCTriggerTSFModule, TRGCDCModule, TRGCDCETFUnpackerModule, TRGCDCT2DDQMModule, TRGCDCT3DConverterModule, TRGCDCT3DDQMModule, TRGCDCT3DUnpackerModule, TRGCDCTSFDQMModule, TRGCDCTSFUnpackerModule, TRGCDCTSStreamModule, CDCTriggerUnpackerModule, MCMatcherTRGECLModule, TRGECLFAMModule, TRGECLModule, TRGECLBGTCHitModule, TRGECLDQMModule, TRGECLEventTimingDQMModule, TRGECLQAMModule, TRGECLRawdataAnalysisModule, TRGECLTimingCalModule, TRGECLUnpackerModule, TRGGDLCosmicRunModule, TRGGDLModule, TRGEFFDQMModule, TRGGDLDQMModule, TRGGDLDSTModule, TRGGDLSummaryModule, TRGGDLUnpackerModule, TRGGRLMatchModule, TRGGRLModule, TRGGRLProjectsModule, TRGGRLDQMModule, GRLNeuroModule, GRLNeuroTrainerModule, TRGGRLUnpackerModule, KLMTriggerModule, TRGTOPDQMModule, TRGTOPTRD2TTSConverterModule, TRGTOPUnpackerModule, TRGTOPUnpackerWaveformModule, TRGTOPWaveformPlotterModule, TRGRAWDATAModule, VXDMisalignmentModule, NeutralHadronMatcherModule, DQMHistAnalysisARICHModule, DQMHistAnalysisARICHMonObjModule, DQMHistAnalysisCDCDedxModule, DQMHistAnalysisCDCEpicsModule, DQMHistAnalysisCDCMonObjModule, DQMHistAnalysisDAQMonObjModule, DQMHistAnalysisECLModule, DQMHistAnalysisECLConnectedRegionsModule, DQMHistAnalysisECLOutOfTimeDigitsModule, DQMHistAnalysisECLShapersModule, DQMHistAnalysisECLSummaryModule, DQMHistAnalysisEpicsEnableModule, DQMHistAnalysisEpicsExampleModule, DQMHistAnalysisEventT0EfficiencyModule, DQMHistAnalysisEventT0TriggerJitterModule, DQMHistAnalysisExampleModule, DQMHistAnalysisExampleFlagsModule, DQMHistAnalysisHLTModule, DQMHistAnalysisHLTMonObjModule, DQMHistAnalysisInput2Module, DQMHistAnalysisInputPVSrvModule, DQMHistAnalysisInputRootFileModule, DQMHistAnalysisInputTestModule, DQMHistAnalysisKLMModule, DQMHistAnalysisKLM2Module, DQMHistAnalysisMiraBelleModule, DQMHistAnalysisMonObjModule, DQMHistAnalysisOutputFileModule, DQMHistAnalysisOutputMonObjModule, DQMHistAnalysisOutputRelayMsgModule, DQMHistAnalysisPeakModule, DQMHistAnalysisPXDERModule, DQMHistAnalysisPXDFitsModule, DQMHistAnalysisSVDDoseModule, DQMHistAnalysisSVDEfficiencyModule, DQMHistAnalysisSVDGeneralModule, DQMHistAnalysisSVDOnMiraBelleModule, DQMHistAnalysisTOPModule, DQMHistAnalysisTrackingAbortModule, DQMHistAnalysisTrackingERModule, DQMHistAnalysisTrackingHLTModule, DQMHistAnalysisTRGECLModule, DQMHistAnalysisTRGEFFModule, DQMHistAnalysisTRGGDLModule, DQMHistAnalysisV0Module, DQMHistComparitorModule, DQMHistDeltaHistoModule, DQMHistReferenceModule, DQMHistSnapshotsModule, DAQMonitorModule, DelayDQMModule, PhysicsObjectsMiraBelleEcmsBBModule, V0ObjectsDQMModule, ECLDQMInjectionModule, PyModule, PXDBgTupleProducerModule, PXDMCBgTupleProducerModule, PXDDAQDQMModule, PXDDQMClustersModule, PXDDQMCorrModule, PXDDQMEfficiencyModule, PXDDQMEfficiencyNtupleModule, PXDDQMEfficiencyNtupleSelftrackModule, PXDDQMEfficiencySelftrackModule, PXDDQMExpressRecoModule, PXDDQMTrackRawNtupleModule, PXDGatedDHCDQMModule, PXDGatedModeDQMModule, PXDInjectionDQMModule, PXDRawDQMCorrModule, PXDRawDQMModule, PXDROIDQMModule, PXDTrackClusterDQMModule, PXDBadSensorTagModule, PXDEventPlotModule, PXDROIPlotModule, ActivatePXDClusterPositionEstimatorModule, ActivatePXDGainCalibratorModule, ActivatePXDPixelMaskerModule, PXDClusterPropFilterModule, PXDDigitizerModule, PXDInjectionVetoEmulatorModule, PXDGatedInfoFillerModule, PXDPackerErrModule, PXDPackerModule, PXDPostErrorCheckerModule, PXDReadRawBonnDAQModule, PXDReadRawBonnDAQMatchedModule, PXDReadRawONSENModule, PXDUnpackerModule, PXDUnpackerOldModule, PXDUnpackerOTModule, TTDDQMModule, TTDUnpackerModule, DetectorOccupanciesDQMModule, SVDDQMClustersOnTrackModule, SVDDQMDoseModule, SVDDQMEfficiencyModule, SVDDQMExpressRecoModule, SVDDQMInjectionModule, SVDUnpackerDQMModule, PXDdigiFilterModule, PXDRawHitFilterModule, PXDROIFinderAnalysisModule, ROIGeneratorModule, ROIPayloadAssemblerModule, ROISenderModule, TrackingAbortDQMModule, AddVXDTrackCandidateSubSetsModule, BestVXDFamilyCandidateSelectorModule, BestVXDTrackCandidatesSelectorModule, SVDOverlapResolverModule, TrackSetEvaluatorGreedyDEVModule, TrackSetEvaluatorHopfieldNNDEVModule, VXDTrackCandidatesQualityIndicatorCutterModule, VXDDQMExpressRecoModule, vxdDigitMaskingModule, PXDRawDumperModule, DQMHistAnalysisDeltaEpicsMonObjExampleModule, DQMHistAnalysisDeltaTestModule, DQMHistAnalysisEpicsOutputModule, DQMHistAnalysisOutputImagesModule, DQMHistAnalysisPhysicsModule, DQMHistAnalysisPXDChargeModule, DQMHistAnalysisPXDCMModule, DQMHistAnalysisPXDDAQModule, DQMHistAnalysisPXDEffModule, DQMHistAnalysisPXDInjectionModule, DQMHistAnalysisPXDReductionModule, DQMHistAnalysisPXDTrackChargeModule, DQMHistAnalysisRooFitExampleModule, DQMHistAnalysisRunNrModule, DQMHistAnalysisTRGModule, DQMHistInjectionModule, DQMHistOutputToEPICSModule, and ROIDQMModule.

Definition at line 109 of file Module.h.

{};

printAPVSummaryPages()

void printAPVSummaryPages ( )

private

summary page with 2D summary plot with problemtic APVs

Definition at line 839 of file SVDLocalCalibrationsCheckModule.cc.

{

  TPaveText* pt_cuts_title = new TPaveText(.05, .6, .95, .65);
  TPaveText* pt_cuts = new TPaveText(.15, .5, .85, .55);
  char cuts[512];
  sprintf(cuts, "%s", "APV SUMMARY");
  pt_cuts_title->SetShadowColor(0);
  pt_cuts_title->SetBorderSize(0);
  pt_cuts_title->SetTextSize(0.03);
  pt_cuts_title->AddText(cuts);
  sprintf(cuts, "each bin of the plots in the next pages contains the number of problematic  APV chips of the sensor");
  pt_cuts->AddText(cuts);
  sprintf(cuts, "corresponding to the combination of column (ladder number) and row (layer and sensor number)");
  pt_cuts->AddText(cuts);
  pt_cuts->SetTextSize(0.02);
  pt_cuts->SetShadowColor(0);
  pt_cuts->SetBorderSize(0);
  pt_cuts->SetFillColor(10);
  pt_cuts->SetTextAlign(12);

  TCanvas* explain = new TCanvas();
  pt_cuts_title->Draw();
  pt_cuts->Draw();
  explain->Print(m_outputPdfName.c_str());

  TCanvas* noise = new TCanvas();
  noise->SetGridx();
  noise->Divide(2, 2);
  noise->cd(1);
  m_hNoiseSummary->getHistogram(1)->Draw("colztext");
  noise->cd(3);
  m_hNoiseSummary->getHistogram(0)->Draw("colztext");
  noise->Print(m_outputPdfName.c_str());

  TCanvas* calpeakADC = new TCanvas();
  calpeakADC->Divide(2, 2);
  calpeakADC->cd(1);
  m_hCalpeakADCSummary->getHistogram(1)->Draw("colztext");
  calpeakADC->cd(3);
  m_hCalpeakADCSummary->getHistogram(0)->Draw("colztext");
  calpeakADC->Print(m_outputPdfName.c_str());



  TCanvas* pedestal = new TCanvas();
  pedestal->Divide(2, 2);
  pedestal->cd(1);
  m_hPedestalSummary->getHistogram(1)->Draw("colztext");
  pedestal->cd(3);
  m_hPedestalSummary->getHistogram(0)->Draw("colztext");
  pedestal->Print(m_outputPdfName.c_str());


}

printConfiguration()

void printConfiguration ( )

private

print the configuration of the check of the calibration VS a reference calibration

Definition at line 57 of file SVDLocalCalibrationsCheckModule.cc.

{
  B2INFO("SVD Local Calibration Check Configuration");
  B2INFO("-----------------------------------------");
  B2INFO("");
  B2INFO("- input files:");
  B2INFO("        reference: " << m_idFileNameREF);
  B2INFO("            check: " << m_idFileNameCHECK);
  B2INFO("- output file:");
  B2INFO("         output pdf: " << m_outputPdfName);
  B2INFO("");
  B2INFO("- analysis parameters:");
  B2INFO("           outliers (Noise, Pedestal, CalPeakADC)");
  B2INFO("              max allowed outliers = " << m_cutN_out);
  B2INFO("           Noise");
  B2INFO("              max difference on the APV averages = " << m_cutNoise_ave << " ADC");
  B2INFO("              max to mark a strip as outlier = " << m_cutNoise_out << " ADC");
  B2INFO("           CalPeakADC");
  B2INFO("              max difference on the APV averages = " << m_cutCalpeakADC_ave << " ADC");
  B2INFO("              max to mark a strip as outlier = " << m_cutCalpeakADC_out << " ADC");
  B2INFO("           Pedestal");
  B2INFO("              max difference on the APV averages = " << m_cutPedestal_ave << " ADC");
  B2INFO("              max to mark a strip as outlier = " << m_cutPedestal_out << " ADC");
  B2INFO("--------------------------------------------------------------");
  B2INFO("");
}

printFirstPage()

void printFirstPage ( )

private

print the first page of the output pdf

Definition at line 418 of file SVDLocalCalibrationsCheckModule.cc.

{

  TCanvas* empty = new TCanvas();
  TString pdf_open = TString(m_outputPdfName) + "[";
  empty->Print(pdf_open);

  TCanvas* first = new TCanvas("open_pag1", "test first page");
  first->cd();
  TPaveText* pt_title = new TPaveText(.05, .9, .95, 1, "blNDC");
  char name[50];
  sprintf(name, "Local Calibration Check Results");
  pt_title->AddText(name);
  pt_title->SetTextFont(42);
  pt_title->SetTextColor(kBlack);
  pt_title->SetShadowColor(0);
  pt_title->SetFillColor(10);
  pt_title->SetBorderSize(0);
  pt_title->SetTextSize(0.08);
  pt_title->Draw();

  TPaveText* pt_input_title = new TPaveText(.05, .8, .95, .85);
  TPaveText* pt_input = new TPaveText(.05, .72, .8, .8);
  char input[150];
  sprintf(input, "%s", "input files");
  pt_input_title->AddText(input);
  pt_input_title->SetShadowColor(0);
  pt_input_title->SetBorderSize(0);
  pt_input_title->SetTextSize(0.03);
  if (m_idFileNameREF == "refID")
    sprintf(input, "reference rootfile = %s",  m_rootFileNameREF.c_str());
  else
    sprintf(input, " reference ID = %s",  m_idFileNameREF.c_str());
  pt_input->AddText(input);
  ((TText*)pt_input->GetListOfLines()->Last())->SetTextColor(kRed);
  if (m_idFileNameCHECK == "checkID")
    sprintf(input, "calibration rootfile = %s", m_rootFileNameCHECK.c_str());
  else
    sprintf(input, "calibration ID = %s", m_idFileNameCHECK.c_str());
  pt_input->AddText(input);
  ((TText*)pt_input->GetListOfLines()->Last())->SetTextColor(kBlue);
  pt_input->SetTextSize(0.02);
  pt_input->SetTextAlign(12);
  pt_input->SetShadowColor(0);
  pt_input->SetBorderSize(0);
  pt_input->SetFillColor(10);

  pt_input_title->Draw();
  pt_input->Draw();

  TPaveText* pt_cuts_title = new TPaveText(.05, .65, .95, .7);
  TPaveText* pt_cuts = new TPaveText(.05, .15, .8, .60);
  char cuts[512];
  sprintf(cuts, "%s", "selection criteria");
  pt_cuts_title->AddText(cuts);
  pt_cuts_title->SetShadowColor(0);
  pt_cuts_title->SetBorderSize(0);
  pt_cuts_title->SetTextSize(0.03);
  sprintf(cuts, "  An APV chip is selected as problematic if passes the criteria on Noise or CalPeakADC or Pedestal");
  pt_cuts->AddText(cuts);
  // NOISE
  sprintf(cuts, "  Noise: an APV is problematic if 1. or 2. or 3.");
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         1. abs(ref_ave - check_ave) > %1.2f ADC",  m_cutNoise_ave);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         2. more than %d strips with a value %1.2f ADC higher than the value of the ref calibration",  m_cutN_out,
          m_cutNoise_out);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         3. more than %d strips with a value %1.2f ADC lower than the value of the ref calibration",  m_cutN_out,
          m_cutNoise_out);
  pt_cuts->AddText(cuts);
  // CALPEAK ADC
  sprintf(cuts, "  CalPeakADC: an APV is problematic if 1. or 2. or 3.");
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         1. abs(ref_ave - check_ave) > %1.2f ADC",  m_cutCalpeakADC_ave);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         2. more than %d strips with a value %1.1f ADC higher than the value of the ref calibration",  m_cutN_out,
          m_cutCalpeakADC_out);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         3. more than %d strips with a value %1.1f ADC lower than the value of the ref calibration",  m_cutN_out,
          m_cutCalpeakADC_out);
  pt_cuts->AddText(cuts);
  // PEDESTAL
  sprintf(cuts, "  Pedestal: an APV is problematic if 1. or 2. or 3.");
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         1. abs(ref_ave - check_ave) > %1.1f ADC",  m_cutPedestal_ave);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         2. more than %d strips with a value %1.1f ADC higher than the value of the ref calibration",  m_cutN_out,
          m_cutPedestal_out);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "         3. more than %d strips with a value %1.1f ADC lower than the value of the ref calibration",  m_cutN_out,
          m_cutPedestal_out);
  pt_cuts->AddText(cuts);
  sprintf(cuts,
          "  where:");
  pt_cuts->AddText(cuts);
  sprintf(cuts,
          "        - {ref,check}_ave is the variable averaged on one APV chip of the reference or the check calibration");
  pt_cuts->AddText(cuts);
  sprintf(cuts,
          "        - 1 2 and 3 are the problem ID printed on screen while running the python script");
  pt_cuts->AddText(cuts);
  pt_cuts->SetTextSize(0.02);
  pt_cuts->SetShadowColor(0);
  pt_cuts->SetBorderSize(0);
  pt_cuts->SetFillColor(10);
  pt_cuts->SetTextAlign(12);

  pt_cuts_title->Draw();
  pt_cuts->Draw();

  TPaveText* pt_tag_title = new TPaveText(.05, .03, .95, .07);
  char tag[100];
  sprintf(tag, "analysis algorithm ID 1.0");
  pt_tag_title->AddText(tag);
  //  pt_tag_title->SetTextFont(62);
  pt_tag_title->SetShadowColor(0);
  pt_tag_title->SetFillColor(18);
  pt_tag_title->SetBorderSize(0);
  pt_tag_title->SetTextSize(0.02);
  pt_tag_title->Draw();
  first->Print(m_outputPdfName.c_str());
}

printLastPage()

void printLastPage ( )

private

print last empty page

Definition at line 947 of file SVDLocalCalibrationsCheckModule.cc.

{

  TCanvas* empty = new TCanvas();
  TString pdf_close = TString(m_outputPdfName) + "]";
  empty->Print(pdf_close);


}

printLayerPage()

void printLayerPage ( int  layer )

private

print layer-number page

Definition at line 542 of file SVDLocalCalibrationsCheckModule.cc.

{

  TCanvas* cLayer = new TCanvas();
  cLayer->cd();
  TPaveText* pt_title = new TPaveText(.05, .4, .95, 0.6, "blNDC");
  char name[50];
  sprintf(name, "Layer %d", layer);
  pt_title->AddText(name);
  pt_title->SetTextFont(42);
  pt_title->SetTextColor(kBlack);
  pt_title->SetShadowColor(0);
  pt_title->SetFillColor(10);
  pt_title->SetBorderSize(0);
  pt_title->SetTextSize(0.08);
  pt_title->Draw();
  cLayer->Print(m_outputPdfName.c_str());

}

printMaskedSummaryPages()

void printMaskedSummaryPages ( )

private

summary page with Masked strips summary plot

Definition at line 895 of file SVDLocalCalibrationsCheckModule.cc.

{

  TPaveText* pt_cuts_title = new TPaveText(.05, .6, .95, .65);
  TPaveText* pt_cuts = new TPaveText(.15, .4, .85, .55);
  char cuts[512];
  sprintf(cuts, "%s", "Masked Strips SUMMARY");
  pt_cuts_title->SetShadowColor(0);
  pt_cuts_title->SetBorderSize(0);
  pt_cuts_title->SetTextSize(0.03);
  pt_cuts_title->AddText(cuts);
  float nU = 768 * (2 * 7 + 3 * 10 + 4 * 12 + 5 * 16);
  float nV = 512 * (2 * 7) + 768 * (3 * 10 + 4 * 12 + 5 * 16);
  sprintf(cuts, "Number of MASKED strips on the u/P side in the REF   calibration = %d (%.3f)%%", m_nMaskedUREF,
          m_nMaskedUREF * 100. / nU);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "Number of MASKED strips on the u/P side in the CHECK calibration = %d (%.3f)%%", m_nMaskedUCHECK,
          m_nMaskedUCHECK * 100. / nU);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "Number of MASKED strips on the v/N side in the REF   calibration = %d (%.3f)%%", m_nMaskedVREF,
          m_nMaskedVREF * 100. / nV);
  pt_cuts->AddText(cuts);
  sprintf(cuts, "Number of MASKED strips on the v/N side in the CHECK calibration = %d (%.3f)%%", m_nMaskedVCHECK,
          m_nMaskedVCHECK * 100. / nV);
  pt_cuts->AddText(cuts);
  pt_cuts->SetTextSize(0.02);
  pt_cuts->SetShadowColor(0);
  pt_cuts->SetBorderSize(0);
  pt_cuts->SetFillColor(10);
  pt_cuts->SetTextAlign(12);

  TCanvas* explain = new TCanvas();
  pt_cuts_title->Draw();
  pt_cuts->Draw();
  explain->Print(m_outputPdfName.c_str());

  TCanvas* mask = new TCanvas();
  mask->SetGridx();
  mask->Divide(2, 2);
  mask->cd(1);
  m_hMaskSummary->getHistogram(1)->Draw("colztext");
  mask->cd(2);
  m_hMaskSummaryCHECK->getHistogram(1)->Draw("colztext");
  mask->cd(3);
  m_hMaskSummary->getHistogram(0)->Draw("colztext");
  mask->cd(4);
  m_hMaskSummaryCHECK->getHistogram(0)->Draw("colztext");
  mask->Print(m_outputPdfName.c_str());


}

printPage()

void printPage ( VxdID  theVxdID, TList *  listUBAD, TList *  listVBAD, TList *  listUGOOD, TList *  listVGOOD, TString  variable, bool  isL3  )

private

print the page relative to a sensor with problematic APVs

Definition at line 562 of file SVDLocalCalibrationsCheckModule.cc.

{

  TH2F* refU = nullptr;
  TH2F* refV = nullptr;
  TH2F* checkU = nullptr;
  TH2F* checkV = nullptr;

  Int_t minY = 0;
  Int_t maxY = 0;

  Float_t leftLine = 0;
  Float_t rightLine = 0;
  Float_t topLine = 0;

  if (variable == "Noise") {
    refU = m_h2NoiseREF->getHistogram(theVxdID, 1);
    refV = m_h2NoiseREF->getHistogram(theVxdID, 0);
    checkU = m_h2NoiseCHECK->getHistogram(theVxdID, 1);
    checkV = m_h2NoiseCHECK->getHistogram(theVxdID, 0);
    //    minY = refU->GetYaxis()->GetXmin();
    //    maxY = refU->GetYaxis()->GetXmax();
    minY = 0;
    maxY = 6;
    leftLine = -m_cutNoise_out;
    rightLine = m_cutNoise_out;
    topLine = 5;
  } else   if (variable == "CalpeakADC") {
    refU = m_h2CalpeakADCREF->getHistogram(theVxdID, 1);
    refV = m_h2CalpeakADCREF->getHistogram(theVxdID, 0);
    checkU = m_h2CalpeakADCCHECK->getHistogram(theVxdID, 1);
    checkV = m_h2CalpeakADCCHECK->getHistogram(theVxdID, 0);
    minY = refU->GetYaxis()->GetXmin();
    maxY = refU->GetYaxis()->GetXmax();
    leftLine = -m_cutCalpeakADC_out;
    rightLine = m_cutCalpeakADC_out;
    topLine = 15;
  } else   if (variable == "CalpeakTime") {
    refU = m_h2CalpeakTimeREF->getHistogram(theVxdID, 1);
    refV = m_h2CalpeakTimeREF->getHistogram(theVxdID, 0);
    checkU = m_h2CalpeakTimeCHECK->getHistogram(theVxdID, 1);
    checkV = m_h2CalpeakTimeCHECK->getHistogram(theVxdID, 0);
    minY = refU->GetYaxis()->GetXmin();
    maxY = refU->GetYaxis()->GetXmax();
  } else   if (variable == "Pedestal") {
    refU = m_h2PedestalREF->getHistogram(theVxdID, 1);
    refV = m_h2PedestalREF->getHistogram(theVxdID, 0);
    checkU = m_h2PedestalCHECK->getHistogram(theVxdID, 1);
    checkV = m_h2PedestalCHECK->getHistogram(theVxdID, 0);
    //    minY = refU->GetYaxis()->GetXmin();
    //    maxY = refU->GetYaxis()->GetXmax();
    minY = 250;
    maxY = 500;
    leftLine = -m_cutPedestal_out;
    rightLine = m_cutPedestal_out;
    topLine = 25;
  } else {
    B2FATAL("The printPage function is not implemented for" << LogVar("variable", variable));
  }
  refU->GetYaxis()->SetRangeUser(minY, maxY);
  refV->GetYaxis()->SetRangeUser(minY, maxY);
  checkU->GetYaxis()->SetRangeUser(minY, maxY);
  checkV->GetYaxis()->SetRangeUser(minY, maxY);

  refU->SetMarkerColor(kRed);
  refV->SetMarkerColor(kRed);
  checkU->SetMarkerColor(kBlue);
  checkV->SetMarkerColor(kBlue);

  float min = minY;
  float max = maxY;

  //create outliers lines
  TLine lLeft(leftLine, 0, leftLine, topLine);
  TLine lRight(rightLine, 0, rightLine, topLine);
  lLeft.SetLineColor(15);
  lRight.SetLineColor(15);
  lLeft.SetLineStyle(kDashed);
  lRight.SetLineStyle(kDashed);

  //create APVlines
  TLine l1(128, min, 128, max);
  TLine l2(128 * 2, min, 128 * 2, max);
  TLine l3(128 * 3, min, 128 * 3, max);
  TLine l4(128 * 4, min, 128 * 4, max);
  TLine l5(128 * 5, min, 128 * 5, max);
  l1.SetLineColor(15);
  l2.SetLineColor(15);
  l3.SetLineColor(15);
  l4.SetLineColor(15);
  l5.SetLineColor(15);
  TCanvas* c = new TCanvas();
  TPaveText* pt_sensorID = new TPaveText(.495, 0.485, .505, 0.505, "blNDC");
  char name[50];
  sprintf(name, "%d.%d.%.d", theVxdID.getLayerNumber(), theVxdID.getLadderNumber(), theVxdID.getSensorNumber());
  pt_sensorID->AddText(name);
  pt_sensorID->SetTextFont(82);
  pt_sensorID->SetTextColor(kBlack);
  pt_sensorID->SetShadowColor(0);
  pt_sensorID->SetFillColor(10);
  pt_sensorID->SetBorderSize(0);
  pt_sensorID->SetTextSize(0.08);


  c->Divide(2, 2);
  c->cd(1);
  refU->Draw();
  l1.Draw("same");
  l2.Draw("same");
  l3.Draw("same");
  l4.Draw("same");
  l5.Draw("same");
  refU->Draw("same");
  checkU->Draw("same");
  m_leg2D->Draw("same");

  c->cd(2);
  TH1F* objDiff;
  int count = 0;
  if (m_plotGoodAPVs) {
    TIter nextH_uGood(listUGOOD);
    while ((objDiff = (TH1F*)nextH_uGood())) {
      objDiff->SetFillStyle(3004);
      if (count == 0)
        objDiff->Draw();
      else
        objDiff->Draw("same");
      count++;
    }
  }
  TIter nextH_uBad(listUBAD);
  while ((objDiff = (TH1F*)nextH_uBad())) {
    objDiff->SetFillStyle(0);
    if (count == 0)
      objDiff->Draw();
    else
      objDiff->Draw("same");
    count++;
  }
  if (count > 0) {
    lLeft.Draw("same");
    lRight.Draw("same");
    m_legU->Draw("same");
  }

  c->cd(3);
  refV->Draw();
  l1.Draw("same");
  l2.Draw("same");
  l3.Draw("same");
  if (isL3) {
    l4.Draw("same");
    l5.Draw("same");
  }

  refV->Draw("same");
  checkV->Draw("same");
  m_leg2D->Draw("same");

  c->cd(4);
  TIter nextH_vBad(listVBAD);
  count = 0;
  if (m_plotGoodAPVs) {
    TIter nextH_vGood(listVGOOD);
    while ((objDiff = (TH1F*)nextH_vGood())) {
      objDiff->SetFillStyle(3004);
      if (count == 0)
        objDiff->Draw();
      else
        objDiff->Draw("same");
      count++;
    }
  }
  while ((objDiff = (TH1F*)nextH_vBad())) {
    objDiff->SetFillStyle(0);
    if (count == 0)
      objDiff->Draw();
    else
      objDiff->Draw("same");
    count++;
  }
  if (count > 0) {
    lLeft.Draw("same");
    lRight.Draw("same");
    if (isL3)
      m_legU->Draw("same");
    else
      m_legV->Draw("same");
  }
  c->cd();
  if (variable == "Noise")
    pt_sensorID->Draw("same");
  c->Print(m_outputPdfName.c_str());

}

setAbortLevel()

void setAbortLevel ( int  abortLevel )

inherited

Configure the abort log level.

Definition at line 67 of file Module.cc.

{
  m_logConfig.setAbortLevel(static_cast<LogConfig::ELogLevel>(abortLevel));
}

setAPVHistoStyles()

void setAPVHistoStyles ( SVDAPVHistograms< TH1F > *  m_APVhistos )

private

set style of APV histograms

Definition at line 785 of file SVDLocalCalibrationsCheckModule.cc.

{

  VXD::GeoCache& aGeometry = VXD::GeoCache::getInstance();
  std::set<Belle2::VxdID> svdLayers = aGeometry.getLayers(VXD::SensorInfoBase::SVD);
  std::set<Belle2::VxdID>::iterator itSvdLayers = svdLayers.begin();

  while ((itSvdLayers != svdLayers.end()) && (itSvdLayers->getLayerNumber() != 7)) { //loop on Layers

    std::set<Belle2::VxdID> svdLadders = aGeometry.getLadders(*itSvdLayers);
    std::set<Belle2::VxdID>::iterator itSvdLadders = svdLadders.begin();

    while (itSvdLadders != svdLadders.end()) { //loop on Ladders

      std::set<Belle2::VxdID> svdSensors = aGeometry.getSensors(*itSvdLadders);
      std::set<Belle2::VxdID>::iterator itSvdSensors = svdSensors.begin();

      while (itSvdSensors != svdSensors.end()) { //loop on sensors

        int layer = itSvdSensors->getLayerNumber();
        int ladder =  itSvdSensors->getLadderNumber();
        int sensor = itSvdSensors->getSensorNumber();
        Belle2::VxdID theVxdID(layer, ladder, sensor);
        const SVD::SensorInfo* currentSensorInfo = dynamic_cast<const SVD::SensorInfo*>(&VXD::GeoCache::get(theVxdID));

        for (int side = 0; side < 2; side++) {

          int Ncells = currentSensorInfo->getUCells();
          if (side == 0)
            Ncells = currentSensorInfo->getVCells();

          int Napv = Ncells / 128;

          for (int m_APV = 0; m_APV < Napv; m_APV++) {

            TH1F* h = m_APVhistos->getHistogram(theVxdID, side, m_APV);

            h->SetFillColor(m_apvColors[m_APV]);
            h->SetLineColor(m_apvColors[m_APV]);
            h->SetMarkerColor(m_apvColors[m_APV]);
          }
        }

        ++itSvdSensors;
      }
      ++itSvdLadders;
    }
    ++itSvdLayers;
  }


}

setDebugLevel()

void setDebugLevel ( int  debugLevel )

inherited

Configure the debug messaging level.

Definition at line 61 of file Module.cc.

{
  m_logConfig.setDebugLevel(debugLevel);
}

setDescription()

void setDescription ( const std::string &  description )

protectedinherited

Sets the description of the module.

Parameters

description

A description of the module.

Definition at line 214 of file Module.cc.

{
  m_description = description;
}

setLogConfig()

void setLogConfig ( const LogConfig &  logConfig )

inlineinherited

Set the log system configuration.

Definition at line 230 of file Module.h.

{m_logConfig = logConfig;}

setLogInfo()

void setLogInfo ( int  logLevel, unsigned int  logInfo  )

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

{
  m_logConfig.setLogInfo(static_cast<LogConfig::ELogLevel>(logLevel), logInfo);
}

setLogLevel()

void setLogLevel ( int  logLevel )

inherited

Configure the log level.

Definition at line 55 of file Module.cc.

{
  m_logConfig.setLogLevel(static_cast<LogConfig::ELogLevel>(logLevel));
}

setName()

void setName ( const std::string &  name )

inlineinherited

Set the name of the module.

Note

The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 214 of file Module.h.

{ m_name = name; };

setParamList()

void setParamList ( const ModuleParamList &  params )

inlineprotectedinherited

Replace existing parameter list.

Definition at line 501 of file Module.h.

{ m_moduleParamList = params; }

setParamPython()

void setParamPython ( const std::string &  name, const boost::python::object &  pyObj  )

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

{
  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());
  try {
    m_moduleParamList.setParamPython(name, pyObj);
  } catch (std::runtime_error& e) {
    throw std::runtime_error("Cannot set parameter '" + name + "' for module '"
                             + m_name + "': " + e.what());
  }

  logSystem.updateModule(nullptr);
}

setParamPythonDict()

void setParamPythonDict ( const boost::python::dict &  dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary

The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

{

  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());

  boost::python::list dictKeys = dictionary.keys();
  int nKey = boost::python::len(dictKeys);

  //Loop over all keys in the dictionary
  for (int iKey = 0; iKey < nKey; ++iKey) {
    boost::python::object currKey = dictKeys[iKey];
    boost::python::extract<std::string> keyProxy(currKey);

    if (keyProxy.check()) {
      const boost::python::object& currValue = dictionary[currKey];
      setParamPython(keyProxy, currValue);
    } else {
      B2ERROR("Setting the module parameters from a python dictionary: invalid key in dictionary!");
    }
  }

  logSystem.updateModule(nullptr);
}

setPropertyFlags()

void setPropertyFlags ( unsigned int  propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags

bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

{
  m_propertyFlags = propertyFlags;
}

setReturnValue() [1/2]

void setReturnValue ( bool  value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 227 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setReturnValue() [2/2]

void setReturnValue ( int  value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 220 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setType()

void setType ( const std::string &  type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

{
  if (!m_type.empty())
    B2FATAL("Trying to change module type from " << m_type << " is not allowed, the value is assumed to be fixed.");
  m_type = type;
}

terminate()

virtual void terminate ( void  )

inlinevirtualinherited

This method is called at the end of the event processing.

This method is called only once after the event processing finished. Use this method for cleaning up, closing files, etc.

This method can be implemented by subclasses.

Reimplemented in ARICHBackgroundModule, BeamabortModule, BgoModule, CaveModule, ClawModule, CLAWSModule, DosiModule, FANGSModule, He3tubeModule, MicrotpcModule, Ph1bpipeModule, Ph1sustrModule, PindiodeModule, PlumeModule, QcsmonitorModule, SrsensorModule, GetEventFromSocketModule, CalibrationCollectorModule, CosmicsAlignmentValidationModule, CurlTaggerModule, EventKinematicsModule, FlavorTaggerInfoFillerModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, ParticleKinematicFitterModule, ParticleLoaderModule, ParticleMassHypothesesUpdaterModule, ParticleMassUpdaterModule, ParticleMCDecayStringModule, ParticleMomentumUpdaterModule, ParticleStatsModule, ParticleWeightingLookUpCreatorModule, RemoveParticlesNotInListsModule, SkimFilterModule, TreeFitterModule, VariablesToEventBasedTreeModule, VariablesToHistogramModule, VariablesToNtupleModule, arichBtestModule, ARICHNtupleModule, arichToNtupleModule, B2BIIMCParticlesMonitorModule, B2BIIConvertMdstModule, B2BIIFixMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, BeamBkgGeneratorModule, BeamBkgHitRateMonitorModule, BeamBkgMixerModule, BeamBkgTagSetterModule, BGOverlayInputModule, AnalysisPhase1StudyModule, NtuplePhase1_v6Module, ReprocessorModule, BeamabortStudyModule, BeamDigitizerModule, BgoDigitizerModule, BgoStudyModule, ClawDigitizerModule, ClawStudyModule, ClawsDigitizerModule, ClawsStudyModule, CsiDigitizer_v2Module, CsIDigitizerModule, CsiModule, CsiStudy_v2Module, CsIStudyModule, DosiDigitizerModule, DosiStudyModule, FANGSDigitizerModule, FANGSStudyModule, He3DigitizerModule, He3tubeStudyModule, MicrotpcStudyModule, TpcDigitizerModule, PinDigitizerModule, PindiodeStudyModule, PlumeDigitizerModule, QcsmonitorDigitizerModule, QcsmonitorStudyModule, CDCCosmicAnalysisModule, CDCCrossTalkAdderModule, CDCCRTestModule, CDCDedxCorrectionModule, CDCDedxDQMModule, CDCDedxPIDModule, CDCDedxScanModule, CDCDedxSkimModule, CDCDedxSkimCDSTModule, CDCDedxValidationModule, CDCDigitizerModule, cdcDQM7Module, CDCDQMModule, ScanCDCGeoModule, CDCInitialT0DeterminationModule, CDCPackerModule, CDCRecoTrackFilterModule, CDCUnpackerModule, HitLevelInfoWriterModule, DAQPerfModule, RxSocketModule, TxSocketModule, DqmHistoManagerModule, MonitorDataModule, TrackAnaModule, Ds2SampleModule, ReceiveEventModule, HLTDQM2ZMQModule, HLTDs2ZMQModule, ElapsedTimeModule, DeSerializerModule, DeSerializerPXDModule, GenRawSendModule, Root2RawModule, SerializerModule, CertifyParallelModule, Ds2RawModule, Ds2RbufModule, EvReductionModule, FastRbuf2DsModule, Raw2DsModule, RawInputModule, Rbuf2DsModule, Rbuf2RbufModule, Ds2RawFileModule, PartialSeqRootReaderModule, SeqRootMergerModule, StorageDeserializerModule, StorageRootOutputModule, StorageSerializerModule, DisplayModule, PhysicsObjectsDQMModule, PhysicsObjectsMiraBelleBhabhaModule, PhysicsObjectsMiraBelleDst2Module, PhysicsObjectsMiraBelleDstModule, PhysicsObjectsMiraBelleHadronModule, PhysicsObjectsMiraBelleModule, ECLBackgroundModule, ECLChargedPIDModule, ECLChargedPIDDataAnalysisModule, ECLChargedPIDDataAnalysisValidationModule, ECLClusterPSDModule, ECLCompressBGOverlayModule, ECLCovarianceMatrixModule, ECLCRFinderModule, EclCovMatrixNtupleModule, ECLDataAnalysisModule, ECLDigiStudyModule, ECLDigitCalibratorModule, ECLDigitizerModule, ECLDigitizerPureCsIModule, EclDisplayModule, ECLDQMModule, ECLDQMEXTENDEDModule, ECLFillCellIdMappingModule, ECLFinalizerModule, ECLHitDebugModule, ECLLocalMaximumFinderModule, ECLLOMModule, ECLMatchingPerformanceExpertModule, ECLPackerModule, ECLShowerCalibratorModule, ECLShowerCorrectorModule, ECLShowerShapeModule, ECLSplitterN1Module, ECLSplitterN2Module, ECLTrackClusterMatchingModule, ECLTrackClusterMatchingParametrizationExpertModule, ECLTrackClusterMatchingPerformanceModule, ECLTRGInformationModule, ECLTrimShowersAndDigitsModule, ECLUnpackerModule, eclWaveformCalibCollectorModule, ECLWaveformFitModule, HistoModule, MergeDataStoreModule, SubEventModule, SwitchDataStoreModule, ProgressBarModule, RandomBarrierModule, HistoManagerModule, ProfileModule, RootInputModule, RootOutputModule, SeqRootInputModule, SeqRootOutputModule, AsyncWrapper, RxModule, TxModule, ZMQRxOutputModule, ZMQRxWorkerModule, ZMQTxInputModule, ZMQTxWorkerModule, AafhInputModule, BabayagaNLOInputModule, BBBremInputModule, BHWideInputModule, CRYInputModule, EvtGenDecayModule, FragmentationModule, HepMCInputModule, HepMCOutputModule, GeneratedVertexDisplacerModule, GeneratorPreselectionModule, HepevtOutputModule, OverrideGenerationFlagsModule, RemoveMCParticlesModule, KKGenInputModule, KoralWInputModule, PhokharaInputModule, TeeggInputModule, TrepsInputModule, GeometryModule, SoftwareTriggerModule, SoftwareTriggerResultPrinterModule, BKLMAnaModule, BKLMDigitAnalyzerModule, BKLMSimHistogrammerModule, BKLMTrackingModule, EKLMDataCheckerModule, KLMClusterEfficiencyModule, KLMClustersReconstructorModule, KLMDigitizerModule, KLMDQMModule, KLMDQM2Module, KLMPackerModule, KLMReconstructorModule, KLMScintillatorSimulatorModule, KLMUnpackerModule, MasterClassModule, MVAExpertModule, MVAMultipleExpertsModule, AWESOMEBasicModule, PXDBackgroundModule, PXDClustersFromTracksModule, PXDPerformanceModule, PXDSpacePointCreatorModule, CheckErrorEventModule, Convert2RawDetModule, Root2BinaryModule, DataWriterModule, ECLExpertModule, KLMExpertModule, KlongValidationModule, KLMMuonIDDNNExpertModule, PIDNtupleModule, VXDDedxPIDModule, FullSimModule, FullSimTimingModule, SVDBackgroundModule, SVDChannelMappingModule, SVDHotStripFinderModule, SVDChargeSharingAnalysisModule, SVDClusterQualityEstimatorCalibrationModule, SVDClusterQualityEstimatorModule, SVDCrossTalkFinderModule, svdDumpModule, SVDPackerModule, SVDClusterEvaluationTrueInfoModule, SVDClusterFilterModule, SVDEventT0PerformanceTTreeModule, SVDMaxStripTTreeModule, SVDPerformanceTTreeModule, SVDShaperDigitsFromTracksModule, SVDCoGTimeEstimatorModule, SVDDataFormatCheckModule, SVD3SamplesEmulatorModule, SVDDigitizerModule, SVDTriggerQualityGeneratorModule, SVDSpacePointCreatorModule, SVDSpacePointQICalibrationModule, TOPAlignerModule, TOPBackgroundModule, TOPBunchFinderModule, TOPChannelT0CalibratorModule, TOPChannelT0MCModule, TOPCommonT0CalibratorModule, TOPCosmicT0FinderModule, TOPTriggerDigitizerModule, TOPDoublePulseGeneratorModule, TOPGainEfficiencyCalculatorModule, TOPLaserHitSelectorModule, TOPInterimFENtupleModule, TOPLaserCalibratorModule, TOPLLScannerModule, TOPMCTrackMakerModule, TOPModuleT0CalibratorModule, TOPNtupleModule, TOPPackerModule, TOPPDFCheckerModule, TOPRawDigitConverterModule, TOPRingPlotterModule, TOPTBCComparatorModule, TOPTimeBaseCalibratorModule, TOPUnpackerModule, TOPWaveformFeatureExtractorModule, TOPXTalkChargeShareSetterModule, ExtModule, GenfitVisModule, BeamSpotMonitorModule, KinkFinderModule, Chi2MCTrackMatcherModule, MCV0MatcherModule, MCTrackCandClassifierModule, MuidModule, ROIReadTestModule, SVDROIFinderAnalysisDataModule, SVDROIFinderAnalysisModule, SVDROIFinderModule, CurlingTrackCandSplitterModule, GFTC2SPTCConverterModule, PhaseSpaceAnalysisModule, RT2SPTCConverterModule, SpacePoint2TrueHitConnectorModule, SpacePointCreatorTestModule, SPTC2GFTCConverterModule, SPTCRefereeModule, TCConvertersTestModule, StandardTrackingPerformanceModule, TrackFilterModule, CollectorTestModule, StudyMaterialEffectsModule, EffPlotsModule, FillTrackFitNtupleModule, HitXPModule, TrackingPerformanceEvaluationModule, V0findingPerformanceEvaluationModule, TrackQETrainingDataCollectorModule, V0FinderModule, SecMapTrainerBaseModule, SecMapTrainerVXDTFModule, TrackFinderVXDAnalizerModule, VXDQETrainingDataCollectorModule, FastBDTClassifierAnalyzerModule, FastBDTClassifierTrainingModule, MLSegmentNetworkProducerModule, NoKickCutsEvalModule, SegmentNetworkAnalyzerModule, SPTC2RTConverterModule, VXDTFTrainingDataCollectorModule, FindletModule< AFindlet >, FindletModule< HitBasedT0Extractor >, FindletModule< CKFToSVDSeedFindlet >, FindletModule< CKFToSVDFindlet >, FindletModule< CosmicsTrackMergerFindlet >, FindletModule< DATCONFPGAFindlet >, FindletModule< MCVXDCDCTrackMergerFindlet >, FindletModule< vxdHoughTracking::SVDHoughTracking >, FindletModule< CKFToCDCFindlet >, FindletModule< CKFToCDCFromEclFindlet >, FindletModule< CKFToPXDFindlet >, FindletModule< AsicBackgroundLibraryCreator >, FindletModule< CDCTrackingEventLevelMdstInfoFillerFindlet >, FindletModule< AxialSegmentPairCreator >, FindletModule< AxialStraightTrackFinder >, FindletModule< AxialTrackCreatorMCTruth >, FindletModule< AxialTrackCreatorSegmentHough >, FindletModule< AxialTrackFinderHough >, FindletModule< AxialTrackFinderLegendre >, FindletModule< ClusterBackgroundDetector >, FindletModule< ClusterPreparer >, FindletModule< ClusterRefiner< BridgingWireHitRelationFilter > >, FindletModule< FacetCreator >, FindletModule< HitReclaimer >, FindletModule< MonopoleAxialTrackFinderLegendre >, FindletModule< MonopoleStereoHitFinder >, FindletModule< MonopoleStereoHitFinderQuadratic >, FindletModule< SegmentCreatorFacetAutomaton >, FindletModule< SegmentCreatorMCTruth >, FindletModule< SegmentFinderFacetAutomaton >, FindletModule< SegmentFitter >, FindletModule< SegmentLinker >, FindletModule< SegmentOrienter >, FindletModule< SegmentPairCreator >, FindletModule< SegmentRejecter >, FindletModule< SegmentTrackCombiner >, FindletModule< SegmentTripleCreator >, FindletModule< StereoHitFinder >, FindletModule< SuperClusterCreator >, FindletModule< TrackCombiner >, FindletModule< TrackCreatorSegmentPairAutomaton >, FindletModule< TrackCreatorSegmentTripleAutomaton >, FindletModule< TrackCreatorSingleSegments >, FindletModule< TrackExporter >, FindletModule< TrackFinderAutomaton >, FindletModule< TrackFinderCosmics >, FindletModule< TrackFinder >, FindletModule< TrackFinderSegmentPairAutomaton >, FindletModule< TrackFinderSegmentTripleAutomaton >, FindletModule< TrackFlightTimeAdjuster >, FindletModule< TrackLinker >, FindletModule< TrackOrienter >, FindletModule< TrackQualityAsserter >, FindletModule< TrackQualityEstimator >, FindletModule< TrackRejecter >, FindletModule< WireHitBackgroundDetector >, FindletModule< WireHitCreator >, FindletModule< WireHitPreparer >, CDCTriggerNeuroDQMModule, CDCTriggerNeuroDQMOnlineModule, CDCTriggerHoughETFModule, CDCTrigger2DFinderModule, CDCTriggerNDFinderModule, CDCTriggerNeuroDataModule, CDCTriggerNeuroIDHistModule, CDCTriggerTSFFirmwareModule, CDCTriggerTSFModule, TRGCDCModule, TRGCDCETFUnpackerModule, TRGCDCT2DDQMModule, TRGCDCT3DConverterModule, TRGCDCT3DDQMModule, TRGCDCT3DUnpackerModule, TRGCDCTSFDQMModule, TRGCDCTSFUnpackerModule, TRGCDCTSStreamModule, CDCTriggerUnpackerModule, MCMatcherTRGECLModule, TRGECLFAMModule, TRGECLModule, TRGECLBGTCHitModule, TRGECLDQMModule, TRGECLQAMModule, TRGECLRawdataAnalysisModule, TRGECLTimingCalModule, TRGECLUnpackerModule, TRGGDLModule, TRGEFFDQMModule, TRGGDLDQMModule, TRGGDLDSTModule, TRGGDLSummaryModule, TRGGDLUnpackerModule, TRGGRLMatchModule, TRGGRLModule, TRGGRLProjectsModule, TRGGRLDQMModule, GRLNeuroModule, GRLNeuroTrainerModule, TRGGRLUnpackerModule, KLMTriggerModule, TRGTOPDQMModule, TRGTOPTRD2TTSConverterModule, TRGTOPUnpackerModule, TRGTOPUnpackerWaveformModule, TRGTOPWaveformPlotterModule, TRGRAWDATAModule, VXDMisalignmentModule, DQMHistAnalysisARICHModule, DQMHistAnalysisARICHMonObjModule, DQMHistAnalysisCDCDedxModule, DQMHistAnalysisCDCEpicsModule, DQMHistAnalysisCDCMonObjModule, DQMHistAnalysisDAQMonObjModule, DQMHistAnalysisECLModule, DQMHistAnalysisECLConnectedRegionsModule, DQMHistAnalysisECLOutOfTimeDigitsModule, DQMHistAnalysisECLShapersModule, DQMHistAnalysisECLSummaryModule, DQMHistAnalysisEpicsExampleModule, DQMHistAnalysisEventT0EfficiencyModule, DQMHistAnalysisEventT0TriggerJitterModule, DQMHistAnalysisExampleModule, DQMHistAnalysisExampleFlagsModule, DQMHistAnalysisHLTModule, DQMHistAnalysisHLTMonObjModule, DQMHistAnalysisInput2Module, DQMHistAnalysisInputPVSrvModule, DQMHistAnalysisInputTestModule, DQMHistAnalysisKLMModule, DQMHistAnalysisMiraBelleModule, DQMHistAnalysisMonObjModule, DQMHistAnalysisOutputFileModule, DQMHistAnalysisOutputMonObjModule, DQMHistAnalysisOutputRelayMsgModule, DQMHistAnalysisPeakModule, DQMHistAnalysisPXDFitsModule, DQMHistAnalysisSVDEfficiencyModule, DQMHistAnalysisSVDGeneralModule, DQMHistAnalysisSVDOnMiraBelleModule, DQMHistAnalysisTOPModule, DQMHistAnalysisTrackingAbortModule, DQMHistAnalysisTRGECLModule, DQMHistAnalysisTRGEFFModule, DQMHistAnalysisTRGGDLModule, DQMHistAutoCanvasModule, DQMHistComparitorModule, DQMHistDeltaHistoModule, DQMHistReferenceModule, DQMHistSnapshotsModule, PyModule, PXDBgTupleProducerModule, PXDMCBgTupleProducerModule, PXDDQMEfficiencyNtupleModule, PXDDQMEfficiencyNtupleSelftrackModule, PXDDQMTrackRawNtupleModule, PXDPackerErrModule, PXDPackerModule, PXDReadRawBonnDAQModule, PXDReadRawBonnDAQMatchedModule, PXDReadRawONSENModule, PXDUnpackerModule, PXDUnpackerOldModule, PXDUnpackerOTModule, SVDDQMClustersOnTrackModule, SVDDQMExpressRecoModule, PXDROIFinderAnalysisModule, ROISenderModule, DQMHistAnalysisDeltaEpicsMonObjExampleModule, DQMHistAnalysisDeltaTestModule, DQMHistAnalysisPhysicsModule, DQMHistAnalysisPXDChargeModule, DQMHistAnalysisPXDCMModule, DQMHistAnalysisPXDDAQModule, DQMHistAnalysisPXDEffModule, DQMHistAnalysisPXDERModule, DQMHistAnalysisPXDInjectionModule, DQMHistAnalysisPXDReductionModule, DQMHistAnalysisPXDTrackChargeModule, DQMHistAnalysisRooFitExampleModule, DQMHistAnalysisRunNrModule, DQMHistAnalysisTRGModule, DQMHistOutputToEPICSModule, and ROIDQMModule.

Definition at line 176 of file Module.h.

{};

Member Data Documentation

b_calPeakADCCHECK

TBranch* b_calPeakADCCHECK = nullptr

strip calPeakADC (ADC of max pulse)

Definition at line 88 of file SVDLocalCalibrationsCheckModule.h.

b_calPeakADCREF

TBranch* b_calPeakADCREF = nullptr

strip calPeakADC (ADC of max pulse)

Definition at line 71 of file SVDLocalCalibrationsCheckModule.h.

b_calPeakTimeCHECK

TBranch* b_calPeakTimeCHECK = nullptr

strip calPeakTime (time of max pulse)

Definition at line 87 of file SVDLocalCalibrationsCheckModule.h.

b_calPeakTimeREF

TBranch* b_calPeakTimeREF = nullptr

strip calPeakTime (time of max pulse)

Definition at line 72 of file SVDLocalCalibrationsCheckModule.h.

b_gainCHECK

TBranch* b_gainCHECK = nullptr

strip gain

Definition at line 84 of file SVDLocalCalibrationsCheckModule.h.

b_gainREF

TBranch* b_gainREF = nullptr

strip gain

Definition at line 68 of file SVDLocalCalibrationsCheckModule.h.

b_ladderCHECK

TBranch* b_ladderCHECK = nullptr

ladder number

Definition at line 77 of file SVDLocalCalibrationsCheckModule.h.

b_ladderREF

TBranch* b_ladderREF = nullptr

ladder number

Definition at line 61 of file SVDLocalCalibrationsCheckModule.h.

b_layerCHECK

TBranch* b_layerCHECK = nullptr

layer number

Definition at line 78 of file SVDLocalCalibrationsCheckModule.h.

b_layerREF

TBranch* b_layerREF = nullptr

layer number

Definition at line 62 of file SVDLocalCalibrationsCheckModule.h.

b_maskCHECK

TBranch* b_maskCHECK = nullptr

strip mask 0/1

Definition at line 82 of file SVDLocalCalibrationsCheckModule.h.

b_maskREF

TBranch* b_maskREF = nullptr

strip mask 0/1

Definition at line 66 of file SVDLocalCalibrationsCheckModule.h.

b_noiseCHECK

TBranch* b_noiseCHECK = nullptr

strip noise (ADC)

Definition at line 85 of file SVDLocalCalibrationsCheckModule.h.

b_noiseElCHECK

TBranch* b_noiseElCHECK = nullptr

strip noise (e-)

Definition at line 86 of file SVDLocalCalibrationsCheckModule.h.

b_noiseElREF

TBranch* b_noiseElREF = nullptr

strip noise (e-)

Definition at line 70 of file SVDLocalCalibrationsCheckModule.h.

b_noiseREF

TBranch* b_noiseREF = nullptr

strip noise (ADC)

Definition at line 69 of file SVDLocalCalibrationsCheckModule.h.

b_pedestalCHECK

TBranch* b_pedestalCHECK = nullptr

strip pedestal

Definition at line 83 of file SVDLocalCalibrationsCheckModule.h.

b_pedestalREF

TBranch* b_pedestalREF = nullptr

strip pedestal

Definition at line 67 of file SVDLocalCalibrationsCheckModule.h.

b_pulseWidthCHECK

TBranch* b_pulseWidthCHECK = nullptr

strip pulse width

Definition at line 89 of file SVDLocalCalibrationsCheckModule.h.

b_pulseWidthREF

TBranch* b_pulseWidthREF = nullptr

strip pulse width

Definition at line 73 of file SVDLocalCalibrationsCheckModule.h.

b_runCHECK

TBranch* b_runCHECK = nullptr

run number

Definition at line 76 of file SVDLocalCalibrationsCheckModule.h.

b_runREF

TBranch* b_runREF = nullptr

run number

Definition at line 60 of file SVDLocalCalibrationsCheckModule.h.

b_sensorCHECK

TBranch* b_sensorCHECK = nullptr

sensor number

Definition at line 79 of file SVDLocalCalibrationsCheckModule.h.

b_sensorREF

TBranch* b_sensorREF = nullptr

sensor number

Definition at line 63 of file SVDLocalCalibrationsCheckModule.h.

b_sideCHECK

TBranch* b_sideCHECK = nullptr

sensor side

Definition at line 80 of file SVDLocalCalibrationsCheckModule.h.

b_sideREF

TBranch* b_sideREF = nullptr

sensor side

Definition at line 64 of file SVDLocalCalibrationsCheckModule.h.

b_stripCHECK

TBranch* b_stripCHECK = nullptr

strip number

Definition at line 81 of file SVDLocalCalibrationsCheckModule.h.

b_stripREF

TBranch* b_stripREF = nullptr

strip number

Definition at line 65 of file SVDLocalCalibrationsCheckModule.h.

m_apvColors

const int m_apvColors[6] = { 1, 2, 8, kBlue, 6, 28}

private

color palette

Definition at line 148 of file SVDLocalCalibrationsCheckModule.h.

m_calPeakADCCHECK

float m_calPeakADCCHECK = -1

strip max peak ADC

Definition at line 122 of file SVDLocalCalibrationsCheckModule.h.

m_calPeakADCREF

float m_calPeakADCREF = -1

strip max peak ADC

Definition at line 105 of file SVDLocalCalibrationsCheckModule.h.

m_calPeakTimeCHECK

float m_calPeakTimeCHECK = -1

strip peak time

Definition at line 121 of file SVDLocalCalibrationsCheckModule.h.

m_calPeakTimeREF

float m_calPeakTimeREF = -1

strip peak time

Definition at line 104 of file SVDLocalCalibrationsCheckModule.h.

m_conditions

std::vector<ModuleCondition> m_conditions

privateinherited

Module condition, only non-null if set.

Definition at line 521 of file Module.h.

m_cutCalpeakADC_ave

float m_cutCalpeakADC_ave = -1

maximum relative deviation APV-average (calpeakADC)

Definition at line 139 of file SVDLocalCalibrationsCheckModule.h.

m_cutCalpeakADC_out

float m_cutCalpeakADC_out = -1

maximum relative deviation strip (calpeakADC)

Definition at line 140 of file SVDLocalCalibrationsCheckModule.h.

m_cutN_out

int m_cutN_out = -1

maximum number of allowed outliers

Definition at line 136 of file SVDLocalCalibrationsCheckModule.h.

m_cutNoise_ave

float m_cutNoise_ave = -1

maximum relative deviation APV-average (noise)

Definition at line 137 of file SVDLocalCalibrationsCheckModule.h.

m_cutNoise_out

float m_cutNoise_out = -1

maximum relative deviation strip (noise)

Definition at line 138 of file SVDLocalCalibrationsCheckModule.h.

m_cutPedestal_ave

float m_cutPedestal_ave = -1

maximum relative deviation APV-average (pedestal)

Definition at line 141 of file SVDLocalCalibrationsCheckModule.h.

m_cutPedestal_out

float m_cutPedestal_out = -1

maximum relative deviation strip (pedestal)

Definition at line 142 of file SVDLocalCalibrationsCheckModule.h.

m_description

std::string m_description

privateinherited

The description of the module.

Definition at line 511 of file Module.h.

m_gainCHECK

float m_gainCHECK = -1

strip gain

Definition at line 120 of file SVDLocalCalibrationsCheckModule.h.

m_gainREF

float m_gainREF = -1

strip gain

Definition at line 103 of file SVDLocalCalibrationsCheckModule.h.

m_h2CalpeakADCCHECK

SVDHistograms<TH2F>* m_h2CalpeakADCCHECK = nullptr

private

calpeakADC VS strip 2D histo

Definition at line 185 of file SVDLocalCalibrationsCheckModule.h.

m_h2CalpeakADCREF

SVDHistograms<TH2F>* m_h2CalpeakADCREF = nullptr

private

CALPEAKS ADC.

calpeakADC VS strip 2D histo

Definition at line 184 of file SVDLocalCalibrationsCheckModule.h.

m_h2CalpeakTimeCHECK

SVDHistograms<TH2F>* m_h2CalpeakTimeCHECK = nullptr

private

calpeakTime VS strip 2D histo

Definition at line 191 of file SVDLocalCalibrationsCheckModule.h.

m_h2CalpeakTimeREF

SVDHistograms<TH2F>* m_h2CalpeakTimeREF = nullptr

private

CALPEAKS TIME.

calpeakTime VS strip 2D histo

Definition at line 190 of file SVDLocalCalibrationsCheckModule.h.

m_h2MaskCHECK

SVDHistograms<TH2F>* m_h2MaskCHECK = nullptr

private

mask VS strip 2D histo

Definition at line 168 of file SVDLocalCalibrationsCheckModule.h.

m_h2MaskREF

SVDHistograms<TH2F>* m_h2MaskREF = nullptr

private

MASKS.

mask VS strip 2D histo

Definition at line 167 of file SVDLocalCalibrationsCheckModule.h.

m_h2NoiseCHECK

SVDHistograms<TH2F>* m_h2NoiseCHECK = nullptr

private

noise VS strip 2D histo

Definition at line 179 of file SVDLocalCalibrationsCheckModule.h.

m_h2NoiseREF

SVDHistograms<TH2F>* m_h2NoiseREF = nullptr

private

NOISES.

noise VS strip 2D histo

Definition at line 178 of file SVDLocalCalibrationsCheckModule.h.

m_h2PedestalCHECK

SVDHistograms<TH2F>* m_h2PedestalCHECK = nullptr

private

pedestal VS strip 2D histo

Definition at line 197 of file SVDLocalCalibrationsCheckModule.h.

m_h2PedestalREF

SVDHistograms<TH2F>* m_h2PedestalREF = nullptr

private

PEDESTALS.

pedestal VS strip 2D histo

Definition at line 196 of file SVDLocalCalibrationsCheckModule.h.

m_hasReturnValue

bool m_hasReturnValue

privateinherited

True, if the return value is set.

Definition at line 518 of file Module.h.

m_hCalpeakADCDIFF

SVDAPVHistograms<TH1F>* m_hCalpeakADCDIFF = nullptr

private

calpeakADC histo

Definition at line 186 of file SVDLocalCalibrationsCheckModule.h.

m_hCalpeakADCSummary

SVDSummaryPlots* m_hCalpeakADCSummary = nullptr

private

calpeakADC summary histo

Definition at line 187 of file SVDLocalCalibrationsCheckModule.h.

m_hCalpeakTimeDIFF

SVDAPVHistograms<TH1F>* m_hCalpeakTimeDIFF = nullptr

private

calpeakTime histo

Definition at line 192 of file SVDLocalCalibrationsCheckModule.h.

m_hCalpeakTimeSummary

SVDSummaryPlots* m_hCalpeakTimeSummary = nullptr

private

calpeakTime summary histo

Definition at line 193 of file SVDLocalCalibrationsCheckModule.h.

m_hMaskDIFF

SVDAPVHistograms<TH1F>* m_hMaskDIFF = nullptr

private

mask histo

Definition at line 169 of file SVDLocalCalibrationsCheckModule.h.

m_hMaskSummary

SVDSummaryPlots* m_hMaskSummary = nullptr

private

mask summary histo

Definition at line 170 of file SVDLocalCalibrationsCheckModule.h.

m_hMaskSummaryCHECK

SVDSummaryPlots* m_hMaskSummaryCHECK = nullptr

private

mask summary histo

Definition at line 171 of file SVDLocalCalibrationsCheckModule.h.

m_hNoiseDIFF

SVDAPVHistograms<TH1F>* m_hNoiseDIFF = nullptr

private

noise histo

Definition at line 180 of file SVDLocalCalibrationsCheckModule.h.

m_hNoiseSummary

SVDSummaryPlots* m_hNoiseSummary = nullptr

private

noise summary histo

Definition at line 181 of file SVDLocalCalibrationsCheckModule.h.

m_hPedestalDIFF

SVDAPVHistograms<TH1F>* m_hPedestalDIFF = nullptr

private

pedestal histo

Definition at line 198 of file SVDLocalCalibrationsCheckModule.h.

m_hPedestalSummary

SVDSummaryPlots* m_hPedestalSummary = nullptr

private

pedestal summary histo

Definition at line 199 of file SVDLocalCalibrationsCheckModule.h.

m_idFileNameCHECK

std::string m_idFileNameCHECK = "checkID"

ID of the xml file name CHECK.

Definition at line 129 of file SVDLocalCalibrationsCheckModule.h.

m_idFileNameREF

std::string m_idFileNameREF = "refID"

ID of the xml file name REFERENCE.

Definition at line 128 of file SVDLocalCalibrationsCheckModule.h.

m_ladderCHECK

UInt_t m_ladderCHECK = -1

ladder number

Definition at line 112 of file SVDLocalCalibrationsCheckModule.h.

m_ladderREF

UInt_t m_ladderREF = -1

ladder number

Definition at line 95 of file SVDLocalCalibrationsCheckModule.h.

m_layerCHECK

UInt_t m_layerCHECK = -1

layer number

Definition at line 111 of file SVDLocalCalibrationsCheckModule.h.

m_layerREF

UInt_t m_layerREF = -1

layer number

Definition at line 94 of file SVDLocalCalibrationsCheckModule.h.

m_leg2D

TLegend* m_leg2D = nullptr

private

legend of the 2D plot

Definition at line 152 of file SVDLocalCalibrationsCheckModule.h.

m_legU

TLegend* m_legU = nullptr

private

legend of U-side plot

Definition at line 153 of file SVDLocalCalibrationsCheckModule.h.

m_legV

TLegend* m_legV = nullptr

private

legend of V-side plot

Definition at line 154 of file SVDLocalCalibrationsCheckModule.h.

m_logConfig

LogConfig m_logConfig

privateinherited

The log system configuration of the module.

Definition at line 514 of file Module.h.

m_maskCHECK

float m_maskCHECK = -1

strip mask 0/1

Definition at line 116 of file SVDLocalCalibrationsCheckModule.h.

m_maskREF

float m_maskREF = -1

strip mask 0/1

Definition at line 99 of file SVDLocalCalibrationsCheckModule.h.

m_moduleParamList

ModuleParamList m_moduleParamList

privateinherited

List storing and managing all parameter of the module.

Definition at line 516 of file Module.h.

m_name

std::string m_name

privateinherited

The name of the module, saved as a string (user-modifiable)

Definition at line 508 of file Module.h.

m_nMaskedUCHECK

int m_nMaskedUCHECK = 0

private

number of masked strips in the check calibration (u side)

Definition at line 174 of file SVDLocalCalibrationsCheckModule.h.

m_nMaskedUREF

int m_nMaskedUREF = 0

private

number of masked strips in the reference calibration (u side)

Definition at line 172 of file SVDLocalCalibrationsCheckModule.h.

m_nMaskedVCHECK

int m_nMaskedVCHECK = 0

private

number of masked strips in the check calibration (v side)

Definition at line 175 of file SVDLocalCalibrationsCheckModule.h.

m_nMaskedVREF

int m_nMaskedVREF = 0

private

number of masked strips in the reference calibration (v side)

Definition at line 173 of file SVDLocalCalibrationsCheckModule.h.

m_noiseCHECK

float m_noiseCHECK = -1

strip noise (ADC)

Definition at line 117 of file SVDLocalCalibrationsCheckModule.h.

m_noiseElCHECK

float m_noiseElCHECK = -1

strip noise (e-)

Definition at line 118 of file SVDLocalCalibrationsCheckModule.h.

m_noiseElREF

float m_noiseElREF = -1

strip noise (e-)

Definition at line 101 of file SVDLocalCalibrationsCheckModule.h.

m_noiseREF

float m_noiseREF = -1

strip noise (ADC)

Definition at line 100 of file SVDLocalCalibrationsCheckModule.h.

m_outputPdfName

std::string m_outputPdfName = "SVDLocalCalibrationCheck.pdf"

output pdf filename

Definition at line 131 of file SVDLocalCalibrationsCheckModule.h.

m_package

std::string m_package

privateinherited

Package this module is found in (may be empty).

Definition at line 510 of file Module.h.

m_pedestalCHECK

float m_pedestalCHECK = -1

strip pedestal

Definition at line 119 of file SVDLocalCalibrationsCheckModule.h.

m_pedestalREF

float m_pedestalREF = -1

strip pedestal

Definition at line 102 of file SVDLocalCalibrationsCheckModule.h.

m_plotGoodAPVs

bool m_plotGoodAPVs = false

if true also the good APVs are plotted on the DIFF canvas

Definition at line 133 of file SVDLocalCalibrationsCheckModule.h.

m_propertyFlags

unsigned int m_propertyFlags

privateinherited

The properties of the module as bitwise or (with |) of EModulePropFlags.

Definition at line 512 of file Module.h.

m_pulseWidthCHECK

float m_pulseWidthCHECK = -1

strip pulse width

Definition at line 123 of file SVDLocalCalibrationsCheckModule.h.

m_pulseWidthREF

float m_pulseWidthREF = -1

strip pulse width

Definition at line 106 of file SVDLocalCalibrationsCheckModule.h.

m_returnValue

int m_returnValue

privateinherited

The return value.

Definition at line 519 of file Module.h.

m_rootFileNameCHECK

std::string m_rootFileNameCHECK = "SVDLocalCalibrationMonitor_experiment5_run408.root"

root file name CHECK

Definition at line 126 of file SVDLocalCalibrationsCheckModule.h.

m_rootFileNameREF

std::string m_rootFileNameREF = "SVDLocalCalibrationMonitor_experiment5_run92.root"

root file name REFERENCE

Definition at line 125 of file SVDLocalCalibrationsCheckModule.h.

m_rootFilePtrCHECK

TFile* m_rootFilePtrCHECK = nullptr

pointer at the CHECK root file

Definition at line 55 of file SVDLocalCalibrationsCheckModule.h.

m_rootFilePtrREF

TFile* m_rootFilePtrREF = nullptr

pointer at the REFERENCE root file

Definition at line 54 of file SVDLocalCalibrationsCheckModule.h.

m_runCHECK

UInt_t m_runCHECK = -1

run number

Definition at line 110 of file SVDLocalCalibrationsCheckModule.h.

m_runREF

UInt_t m_runREF = -1

run number

Definition at line 93 of file SVDLocalCalibrationsCheckModule.h.

m_sensorCHECK

UInt_t m_sensorCHECK = -1

sensor number

Definition at line 113 of file SVDLocalCalibrationsCheckModule.h.

m_sensorREF

UInt_t m_sensorREF = -1

sensor number

Definition at line 96 of file SVDLocalCalibrationsCheckModule.h.

m_sideCHECK

UInt_t m_sideCHECK = -1

sensor side

Definition at line 114 of file SVDLocalCalibrationsCheckModule.h.

m_sideREF

UInt_t m_sideREF = -1

sensor side

Definition at line 97 of file SVDLocalCalibrationsCheckModule.h.

m_stripCHECK

UInt_t m_stripCHECK = -1

strip number

Definition at line 115 of file SVDLocalCalibrationsCheckModule.h.

m_stripREF

UInt_t m_stripREF = -1

strip number

Definition at line 98 of file SVDLocalCalibrationsCheckModule.h.

m_treeCHECK

TTree* m_treeCHECK = nullptr

pointer at CHECK tree

Definition at line 57 of file SVDLocalCalibrationsCheckModule.h.

m_treeREF

TTree* m_treeREF = nullptr

pointer at REF tree

Definition at line 56 of file SVDLocalCalibrationsCheckModule.h.

m_type

std::string m_type

privateinherited

The type of the module, saved as a string.

Definition at line 509 of file Module.h.

---

The documentation for this class was generated from the following files:

• svd/modules/svdCalibration/include/SVDLocalCalibrationsCheckModule.h
• svd/modules/svdCalibration/src/SVDLocalCalibrationsCheckModule.cc
