SVDClusterizerDirectModule Class Reference

SVD Direct Clusterizer. More...

#include <SVDClusterizerDirectModule.h>

Inheritance diagram for SVDClusterizerDirectModule:

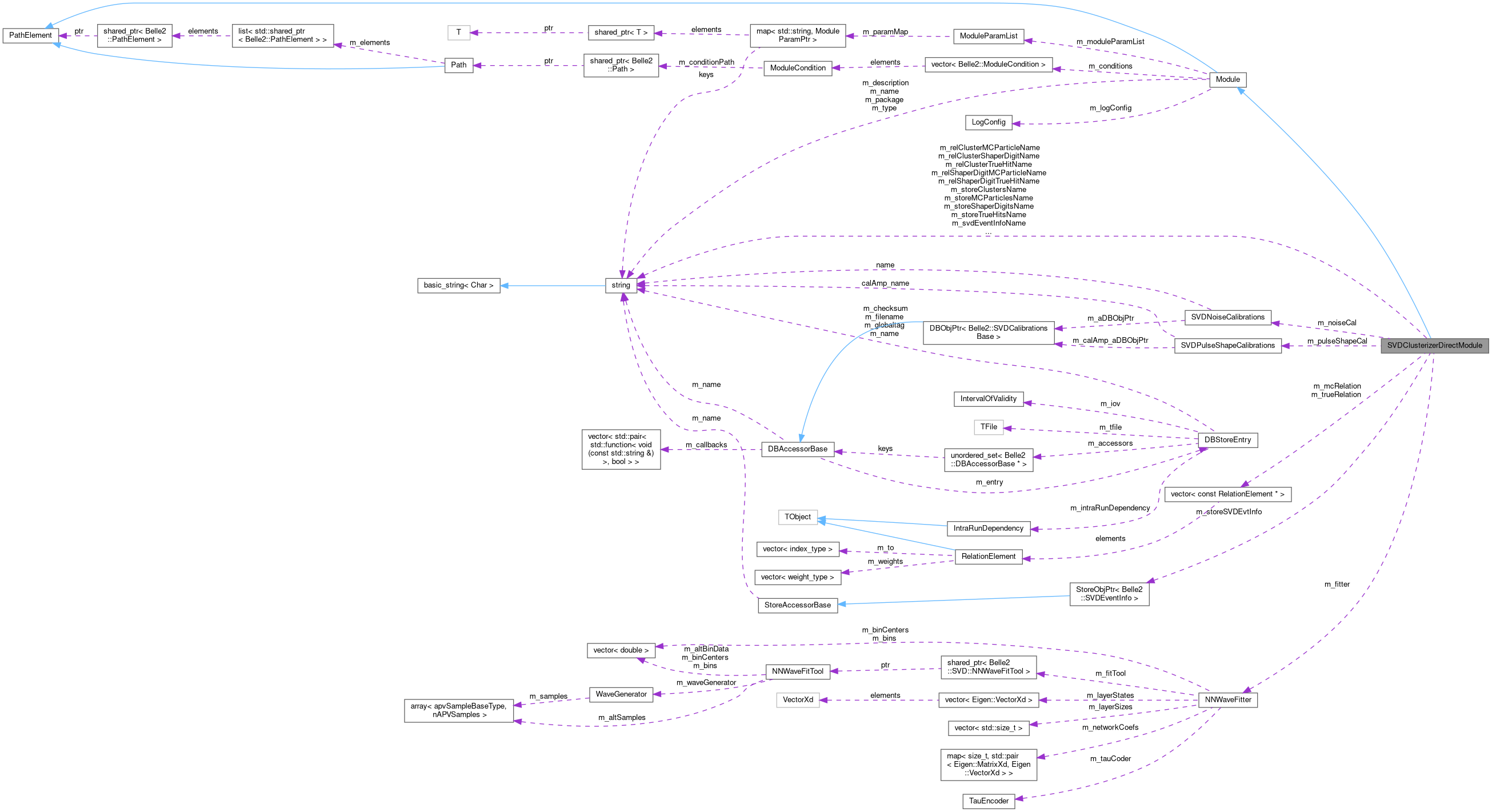

Collaboration diagram for SVDClusterizerDirectModule:

Public Types
typedef std::vector< const RelationElement * >	RelationLookup
	Container for a RelationArray Lookup table.
enum	EModulePropFlags {   c_Input = 1 ,   c_Output = 2 ,   c_ParallelProcessingCertified = 4 ,   c_HistogramManager = 8 ,   c_InternalSerializer = 16 ,   c_TerminateInAllProcesses = 32 ,   c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...
typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	SVDClusterizerDirectModule ()
	Constructor defining the parameters.
virtual void	initialize () override
	Initialize the module.
virtual void	event () override
	do the clustering
virtual std::vector< std::string >	getFileNames (bool outputFiles)
	Return a list of output filenames for this modules.
virtual void	beginRun ()
	Called when entering a new run.
virtual void	endRun ()
	This method is called if the current run ends.
virtual void	terminate ()
	This method is called at the end of the event processing.
const std::string &	getName () const
	Returns the name of the module.
const std::string &	getType () const
	Returns the type of the module (i.e.
const std::string &	getPackage () const
	Returns the package this module is in.
const std::string &	getDescription () const
	Returns the description of the module.
void	setName (const std::string &name)
	Set the name of the module.
void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties.
LogConfig &	getLogConfig ()
	Returns the log system configuration.
void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.
void	setLogLevel (int logLevel)
	Configure the log level.
void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.
void	setAbortLevel (int abortLevel)
	Configure the abort log level.
void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level.
void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module.
void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module.
void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module.
bool	hasCondition () const
	Returns true if at least one condition was set for the module.
const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)
const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.
bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true.
std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).
Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished.
std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).
bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module.
bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.
const ModuleParamList &	getParamList () const
	Return module param list.
template<typename T >
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter.
bool	hasReturnValue () const
	Return true if this module has a valid return value set.
int	getReturnValue () const
	Return the return value set by this module.
std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module.
std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters.

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
void	createRelationLookup (const RelationArray &relation, RelationLookup &lookup, size_t digits)
	Create lookup maps for relations We do not use the RelationIndex as we know much more about the relations: we know the relations get created in a consolidated way by the Digitizer and that they already point in the right direction so we only need to speed up finding the correct element.
void	fillRelationMap (const RelationLookup &lookup, std::map< unsigned int, float > &relation, unsigned int index)
	Add the relation from a given SVDShaperDigit index to a map.
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python.
virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.
virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.
virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side.
virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.
void	setDescription (const std::string &description)
	Sets the description of the module.
void	setType (const std::string &type)
	Set the module type.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module.
template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module.
void	setReturnValue (int value)
	Sets the return value for this module as integer.
void	setReturnValue (bool value)
	Sets the return value for this module as bool.
void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Protected Attributes
StoreObjPtr< SVDEventInfo >	m_storeSVDEvtInfo
	Storage for SVDEventInfo object.
std::string	m_storeMCParticlesName
	Name of the collection to use for the MCParticles.
std::string	m_storeTrueHitsName
	Name of the collection to use for the SVDTrueHits.
std::string	m_storeShaperDigitsName
	Name of the collection to use for the SVDShaperDigits.
std::string	m_storeClustersName
	Name of the collection to use for the SVDClusters.
std::string	m_relShaperDigitMCParticleName
	Name of the relation between SVDShaperDigits and MCParticles.
std::string	m_relShaperDigitTrueHitName
	Name of the relation between SVDShaperDigits and SVDTrueHits.
std::string	m_relClusterMCParticleName
	Name of the relation between SVDClusters and MCParticles.
std::string	m_relClusterTrueHitName
	Name of the relation between SVDClusters and SVDTrueHits.
std::string	m_relClusterShaperDigitName
	Name of the relation between SVDClusters and SVDShaperDigits.
std::string	m_svdEventInfoName
	Name of the SVDEventInfo object.
std::string	m_timeFitterName
	Name of the time fitter (db label)
bool	m_calibratePeak = false
	Use peak widths and peak time calibrations? Unitl this is also simulated, set to true only for testbeam data.
double	m_cutAdjacent = 3.0
	Noise (cluster member) cut in units of m_elNoise.
double	m_cutSeed = 5.0
	Seed cut in units of m_elNoise.
double	m_cutCluster = 5.0
	Cluster cut in units of m_elNoise.
int	m_sizeHeadTail = 3
	Size of the cluster at which we switch from Center of Gravity to Analog Head Tail.
NNWaveFitter	m_fitter
	Time fitter.
SVDNoiseCalibrations	m_noiseCal
	Calibrations: noise.
SVDPulseShapeCalibrations	m_pulseShapeCal
	Calibrations: pusle shape and gain.
RelationLookup	m_mcRelation
	Lookup table for SVDShaperDigit->MCParticle relation.
RelationLookup	m_trueRelation
	Lookup table for SVDShaperDigit->SVDTrueHit relation.

Private Member Functions
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list
std::string	getPathString () const override
	return the module name.
void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects.
void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary.

Private Attributes
std::string	m_name
	The name of the module, saved as a string (user-modifiable)
std::string	m_type
	The type of the module, saved as a string.
std::string	m_package
	Package this module is found in (may be empty).
std::string	m_description
	The description of the module.
unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with |) of EModulePropFlags.
LogConfig	m_logConfig
	The log system configuration of the module.
ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.
bool	m_hasReturnValue
	True, if the return value is set.
int	m_returnValue
	The return value.
std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

SVD Direct Clusterizer.

This module produces clusters from SVDShaperDigits (signal samples taken on individual strips) by first performing time and apmlitude fitting, and then reconstructing particle hits in SVDSensors. The module makes no use of SVDRecoDigits. If RecoDigits are desired, use the SVDSignalReconstructor module.

Definition at line 37 of file SVDClusterizerDirectModule.h.

Member Typedef Documentation

EAfterConditionPath

typedef ModuleCondition::EAfterConditionPath EAfterConditionPath

inherited

Forward the EAfterConditionPath definition from the ModuleCondition.

Definition at line 88 of file Module.h.

RelationLookup

typedef std::vector<const RelationElement*> RelationLookup

Container for a RelationArray Lookup table.

Definition at line 42 of file SVDClusterizerDirectModule.h.

Member Enumeration Documentation

EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 77 of file Module.h.

                          {
      c_Input                       = 1,
      c_Output                      = 2,
      c_ParallelProcessingCertified = 4,
      c_HistogramManager            = 8,
      c_InternalSerializer          = 16,
      c_TerminateInAllProcesses     = 32,
      c_DontCollectStatistics       = 64,
    };

Constructor & Destructor Documentation

SVDClusterizerDirectModule()

SVDClusterizerDirectModule

(

)

Constructor defining the parameters.

Definition at line 44 of file SVDClusterizerDirectModule.cc.

                                                       : Module()
{
  B2DEBUG(200, "SVDClusterizerDirectModule ctor");
  //Set module properties
  setDescription("Clusterize SVDShaperDigits and reconstruct hits");
  setPropertyFlags(c_ParallelProcessingCertified);

  // 1. Collections.
  addParam("Digits", m_storeShaperDigitsName,
           "6-digits collection name", string(""));
  addParam("Clusters", m_storeClustersName,
           "Cluster collection name", string(""));
  addParam("TrueHits", m_storeTrueHitsName,
           "TrueHit collection name", string(""));
  addParam("MCParticles", m_storeMCParticlesName,
           "MCParticles collection name", string(""));
  addParam("SVDEventInfo", m_svdEventInfoName,
           "SVDEventInfo name", string(""));

  // 2. Calibration and time fitter sources
  addParam("TimeFitterName", m_timeFitterName,
           "Name of time fitter data file", string("SVDTimeNet_6samples"));
  addParam("CalibratePeak", m_calibratePeak, "Use calibrattion (vs. default) for peak widths and positions", bool(false));

  // 3. Clustering
  // FIXME: Idiotic names of parameters kept for compatibility with the old clusterizer.
  addParam("NoiseSN", m_cutAdjacent,
           "SN for digits to be considered for clustering", m_cutAdjacent);
  addParam("SeedSN", m_cutSeed,
           "SN for digits to be considered as seed", m_cutSeed);
  addParam("ClusterSN", m_cutCluster,
           "Minimum SN for clusters", m_cutCluster);
  addParam("HeadTailSize", m_sizeHeadTail,
           "Cluster size at which to switch to Analog head tail algorithm", m_sizeHeadTail);

}

Member Function Documentation

beginRun()

virtual void beginRun ( void  )

inlinevirtualinherited

Called when entering a new run.

Called at the beginning of each run, the method gives you the chance to change run dependent constants like alignment parameters, etc.

This method can be implemented by subclasses.

Reimplemented in ARICHBackgroundModule, BeamabortModule, BgoModule, CaveModule, ClawModule, CLAWSModule, DosiModule, FANGSModule, He3tubeModule, MicrotpcModule, Ph1bpipeModule, Ph1sustrModule, PindiodeModule, PlumeModule, QcsmonitorModule, SrsensorModule, GetEventFromSocketModule, CalibrationCollectorModule, EventsOfDoomBusterModule, CosmicsAlignmentValidationModule, EnergyBiasCorrectionModule, ChargedPidMVAModule, ChargedPidMVAMulticlassModule, CurlTaggerModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, ParticleVertexFitterModule, PhotonEfficiencySystematicsModule, TagVertexModule, TreeFitterModule, arichBtestModule, ARICHDigitizerModule, ARICHDQMModule, ARICHRateCalModule, ARICHReconstructorModule, B2BIIMCParticlesMonitorModule, B2BIIConvertBeamParamsModule, B2BIIConvertMdstModule, B2BIIFixMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, BeamBkgGeneratorModule, BeamBkgHitRateMonitorModule, BeamBkgMixerModule, BeamBkgTagSetterModule, BGOverlayInputModule, AnalysisPhase1StudyModule, NtuplePhase1_v6Module, ReprocessorModule, BeamabortStudyModule, BeamDigitizerModule, BgoDigitizerModule, BgoStudyModule, ClawDigitizerModule, ClawStudyModule, ClawsDigitizerModule, ClawsStudyModule, CsiDigitizer_v2Module, CsIDigitizerModule, CsiModule, CsiStudy_v2Module, CsIStudyModule, DosiDigitizerModule, DosiStudyModule, FANGSDigitizerModule, FANGSStudyModule, He3DigitizerModule, He3tubeStudyModule, MicrotpcStudyModule, TpcDigitizerModule, PinDigitizerModule, PindiodeStudyModule, PlumeDigitizerModule, QcsmonitorDigitizerModule, QcsmonitorStudyModule, CDCCosmicAnalysisModule, CDCCRTestModule, CDCDedxDQMModule, CDCDedxValidationModule, cdcDQM7Module, CDCDQMModule, CDCPackerModule, CDCRecoTrackFilterModule, CDCUnpackerModule, DAQPerfModule, RxSocketModule, TxSocketModule, DqmHistoManagerModule, MonitorDataModule, TrackAnaModule, Ds2SampleModule, ReceiveEventModule, HLTDQM2ZMQModule, ElapsedTimeModule, DeSerializerPXDModule, GenRawSendModule, SerializerModule, CertifyParallelModule, Ds2RawModule, Ds2RbufModule, EvReductionModule, FastRbuf2DsModule, Raw2DsModule, RawInputModule, Rbuf2DsModule, Rbuf2RbufModule, Ds2RawFileModule, PartialSeqRootReaderModule, SeqRootMergerModule, StorageDeserializerModule, StorageSerializerModule, IPDQMModule, PhysicsObjectsDQMModule, PhysicsObjectsMiraBelleBhabhaModule, PhysicsObjectsMiraBelleDst2Module, PhysicsObjectsMiraBelleDstModule, PhysicsObjectsMiraBelleHadronModule, PhysicsObjectsMiraBelleModule, ECLBackgroundModule, ECLChargedPIDModule, ECLChargedPIDDataAnalysisModule, ECLChargedPIDDataAnalysisValidationModule, ECLChargedPIDMVAModule, ECLClusterPSDModule, ECLCovarianceMatrixModule, ECLCRFinderModule, ECLDataAnalysisModule, ECLDigitCalibratorModule, ECLDigitizerModule, ECLDigitizerPureCsIModule, EclDisplayModule, ECLDQMModule, ECLDQMConnectedRegionsModule, ECLDQMEXTENDEDModule, ECLDQMOutOfTimeDigitsModule, ECLFinalizerModule, ECLHitDebugModule, ECLLocalMaximumFinderModule, ECLLocalRunCalibratorModule, ECLLOMModule, ECLPackerModule, ECLShowerCalibratorModule, ECLShowerCorrectorModule, ECLShowerShapeModule, ECLSplitterN1Module, ECLSplitterN2Module, ECLUnpackerModule, ECLWaveformFitModule, HistoModule, SubEventModule, SwitchDataStoreModule, EventInfoPrinterModule, EventLimiterModule, IoVDependentConditionModule, ProgressModule, RandomBarrierModule, GearboxModule, HistoManagerModule, StatisticsSummaryModule, SeqRootInputModule, SeqRootOutputModule, RxModule, TxModule, EvtGenDecayModule, EvtGenInputModule, OverrideGenerationFlagsModule, KKGenInputModule, CreateFieldMapModule, ExportGeometryModule, SoftwareTriggerModule, SoftwareTriggerHLTDQMModule, StatisticsTimingHLTDQMModule, BKLMAnaModule, BKLMDigitAnalyzerModule, BKLMSimHistogrammerModule, BKLMTrackingModule, EKLMDataCheckerModule, KLMClusterAnaModule, KLMClusterEfficiencyModule, KLMClustersReconstructorModule, KLMDigitizerModule, KLMDigitTimeShifterModule, KLMDQMModule, KLMDQM2Module, KLMPackerModule, KLMReconstructorModule, KLMScintillatorSimulatorModule, KLMUnpackerModule, MVAExpertModule, MVAMultipleExpertsModule, MVAPrototypeModule, AWESOMEBasicModule, PXDBackgroundModule, PXDRawDQMChipsModule, PXDClustersFromTracksModule, PXDPerformanceModule, PXDClusterizerModule, Convert2RawDetModule, EventT0DQMModule, EventT0ValidationModule, DataWriterModule, ECLExpertModule, KLMExpertModule, KlongValidationModule, KLMMuonIDDNNExpertModule, FullSimModule, MaterialScanModule, SVDBackgroundModule, SVDClusterCalibrationsMonitorModule, SVDHotStripFinderModule, SVDLatencyCalibrationModule, SVDLocalCalibrationsCheckModule, SVDLocalCalibrationsMonitorModule, SVDPositionErrorScaleFactorImporterModule, SVDTimeCalibrationsMonitorModule, SVDDQMHitTimeModule, svdDumpModule, SVDPackerModule, SVDB4CommissioningPlotsModule, SVDClusterEvaluationModule, SVDClusterEvaluationTrueInfoModule, SVDClusterFilterModule, SVDMaxStripTTreeModule, SVDOccupancyAnalysisModule, SVDPerformanceModule, SVDPerformanceTTreeModule, SVDShaperDigitsFromTracksModule, SVDClusterizerModule, SVDCoGTimeEstimatorModule, SVDDataFormatCheckModule, SVDMissingAPVsClusterCreatorModule, SVDRecoDigitCreatorModule, SVD3SamplesEmulatorModule, SVDDigitizerModule, SVDEventInfoSetterModule, SVDTriggerQualityGeneratorModule, SVDSpacePointCreatorModule, SVDTimeGroupingModule, SVDUnpackerModule, TOPBackgroundModule, TOPBunchFinderModule, TOPChannelMaskerModule, TOPChannelT0MCModule, TOPDigitizerModule, TOPTriggerDigitizerModule, TOPDoublePulseGeneratorModule, TOPDQMModule, TOPGainEfficiencyCalculatorModule, TOPLaserHitSelectorModule, TOPInterimFENtupleModule, TOPLaserCalibratorModule, TOPMCTrackMakerModule, TOPModuleT0CalibratorModule, TOPNtupleModule, TOPPackerModule, TOPRawDigitConverterModule, TOPTBCComparatorModule, TOPTimeBaseCalibratorModule, TOPTimeRecalibratorModule, TOPUnpackerModule, TOPWaveformFeatureExtractorModule, TOPXTalkChargeShareSetterModule, DQMHistoModuleBase, SVDEventT0EstimatorModule, ExtModule, FlipQualityModule, BeamSpotMonitorModule, KinkFinderModule, MCV0MatcherModule, MCTrackCandClassifierModule, MuidModule, PXDROIFinderModule, SVDROIFinderAnalysisModule, SVDROIFinderModule, SPTCmomentumSeedRetrieverModule, SPTCvirtualIPRemoverModule, TrackCreatorModule, TrackFinderMCTruthRecoTracksModule, EffPlotsModule, HitXPModule, TrackingPerformanceEvaluationModule, V0findingPerformanceEvaluationModule, TrackQETrainingDataCollectorModule, TrackQualityEstimatorMVAModule, SecMapTrainerBaseModule, SecMapTrainerVXDTFModule, TrackFinderVXDAnalizerModule, VXDSimpleClusterizerModule, QualityEstimatorVXDModule, VXDQETrainingDataCollectorModule, VXDQualityEstimatorMVAModule, SectorMapBootstrapModule, SegmentNetworkProducerModule, TrackFinderVXDBasicPathFinderModule, TrackFinderVXDCellOMatModule, VXDTFTrainingDataCollectorModule, FindletModule< AFindlet >, FindletModule< HitBasedT0Extractor >, FindletModule< CKFToSVDSeedFindlet >, FindletModule< CKFToSVDFindlet >, FindletModule< CosmicsTrackMergerFindlet >, FindletModule< DATCONFPGAFindlet >, FindletModule< MCVXDCDCTrackMergerFindlet >, FindletModule< vxdHoughTracking::SVDHoughTracking >, FindletModule< CKFToCDCFindlet >, FindletModule< CKFToCDCFromEclFindlet >, FindletModule< CKFToPXDFindlet >, FindletModule< AsicBackgroundLibraryCreator >, FindletModule< CDCTrackingEventLevelMdstInfoFillerFindlet >, FindletModule< AxialSegmentPairCreator >, FindletModule< AxialStraightTrackFinder >, FindletModule< AxialTrackCreatorMCTruth >, FindletModule< AxialTrackCreatorSegmentHough >, FindletModule< AxialTrackFinderHough >, FindletModule< AxialTrackFinderLegendre >, FindletModule< ClusterBackgroundDetector >, FindletModule< ClusterPreparer >, FindletModule< ClusterRefiner< BridgingWireHitRelationFilter > >, FindletModule< FacetCreator >, FindletModule< HitReclaimer >, FindletModule< MonopoleAxialTrackFinderLegendre >, FindletModule< MonopoleStereoHitFinder >, FindletModule< MonopoleStereoHitFinderQuadratic >, FindletModule< SegmentCreatorFacetAutomaton >, FindletModule< SegmentCreatorMCTruth >, FindletModule< SegmentFinderFacetAutomaton >, FindletModule< SegmentFitter >, FindletModule< SegmentLinker >, FindletModule< SegmentOrienter >, FindletModule< SegmentPairCreator >, FindletModule< SegmentRejecter >, FindletModule< SegmentTrackCombiner >, FindletModule< SegmentTripleCreator >, FindletModule< StereoHitFinder >, FindletModule< SuperClusterCreator >, FindletModule< TrackCombiner >, FindletModule< TrackCreatorSegmentPairAutomaton >, FindletModule< TrackCreatorSegmentTripleAutomaton >, FindletModule< TrackCreatorSingleSegments >, FindletModule< TrackExporter >, FindletModule< TrackFinderAutomaton >, FindletModule< TrackFinderCosmics >, FindletModule< TrackFinder >, FindletModule< TrackFinderSegmentPairAutomaton >, FindletModule< TrackFinderSegmentTripleAutomaton >, FindletModule< TrackFlightTimeAdjuster >, FindletModule< TrackLinker >, FindletModule< TrackOrienter >, FindletModule< TrackQualityAsserter >, FindletModule< TrackQualityEstimator >, FindletModule< TrackRejecter >, FindletModule< WireHitBackgroundDetector >, FindletModule< WireHitCreator >, FindletModule< WireHitPreparer >, CDCTriggerNeuroDQMModule, CDCTriggerNeuroDQMOnlineModule, CDCTriggerNDFinderModule, CDCTriggerTSFModule, TRGCDCModule, TRGCDCETFUnpackerModule, TRGCDCT2DDQMModule, TRGCDCT3DConverterModule, TRGCDCT3DDQMModule, TRGCDCT3DUnpackerModule, TRGCDCTSFDQMModule, TRGCDCTSFUnpackerModule, TRGCDCTSStreamModule, CDCTriggerUnpackerModule, MCMatcherTRGECLModule, TRGECLFAMModule, TRGECLModule, TRGECLBGTCHitModule, TRGECLDQMModule, TRGECLEventTimingDQMModule, TRGECLQAMModule, TRGECLRawdataAnalysisModule, TRGECLTimingCalModule, TRGECLUnpackerModule, TRGGDLModule, TRGEFFDQMModule, TRGGDLDQMModule, TRGGDLDSTModule, TRGGDLSummaryModule, TRGGDLUnpackerModule, TRGGRLMatchModule, TRGGRLModule, TRGGRLProjectsModule, TRGGRLDQMModule, TRGGRLUnpackerModule, KLMTriggerModule, TRGTOPDQMModule, TRGTOPTRD2TTSConverterModule, TRGTOPUnpackerModule, TRGTOPUnpackerWaveformModule, TRGTOPWaveformPlotterModule, TRGRAWDATAModule, VXDMisalignmentModule, DQMHistAnalysisARICHModule, DQMHistAnalysisCDCDedxModule, DQMHistAnalysisCDCEpicsModule, DQMHistAnalysisCDCMonObjModule, DQMHistAnalysisDAQMonObjModule, DQMHistAnalysisECLModule, DQMHistAnalysisECLConnectedRegionsModule, DQMHistAnalysisECLShapersModule, DQMHistAnalysisECLSummaryModule, DQMHistAnalysisEpicsExampleModule, DQMHistAnalysisEventT0EfficiencyModule, DQMHistAnalysisEventT0TriggerJitterModule, DQMHistAnalysisExampleModule, DQMHistAnalysisExampleFlagsModule, DQMHistAnalysisHLTModule, DQMHistAnalysisInput2Module, DQMHistAnalysisInputPVSrvModule, DQMHistAnalysisInputRootFileModule, DQMHistAnalysisInputTestModule, DQMHistAnalysisKLMModule, DQMHistAnalysisKLM2Module, DQMHistAnalysisMiraBelleModule, DQMHistAnalysisOutputMonObjModule, DQMHistAnalysisOutputRelayMsgModule, DQMHistAnalysisPeakModule, DQMHistAnalysisPXDERModule, DQMHistAnalysisPXDFitsModule, DQMHistAnalysisSVDDoseModule, DQMHistAnalysisSVDEfficiencyModule, DQMHistAnalysisSVDGeneralModule, DQMHistAnalysisSVDOnMiraBelleModule, DQMHistAnalysisTOPModule, DQMHistAnalysisTrackingAbortModule, DQMHistAnalysisTrackingHLTModule, DQMHistAnalysisTRGECLModule, DQMHistAutoCanvasModule, DQMHistComparitorModule, DQMHistDeltaHistoModule, DQMHistReferenceModule, DQMHistSnapshotsModule, DAQMonitorModule, DelayDQMModule, PhysicsObjectsMiraBelleEcmsBBModule, V0ObjectsDQMModule, ECLDQMInjectionModule, PyModule, PXDBgTupleProducerModule, PXDMCBgTupleProducerModule, PXDDAQDQMModule, PXDDQMClustersModule, PXDDQMCorrModule, PXDDQMEfficiencyModule, PXDDQMEfficiencySelftrackModule, PXDDQMExpressRecoModule, PXDGatedDHCDQMModule, PXDGatedModeDQMModule, PXDInjectionDQMModule, PXDRawDQMCorrModule, PXDRawDQMModule, PXDROIDQMModule, PXDTrackClusterDQMModule, PXDDigitizerModule, PXDPackerModule, PXDUnpackerModule, TTDDQMModule, DetectorOccupanciesDQMModule, SVDDQMClustersOnTrackModule, SVDDQMDoseModule, SVDDQMExpressRecoModule, SVDDQMInjectionModule, SVDUnpackerDQMModule, PXDclusterFilterModule, PXDdigiFilterModule, PXDROIFinderAnalysisModule, TrackingAbortDQMModule, VXDDQMExpressRecoModule, vxdDigitMaskingModule, DQMHistAnalysisDeltaEpicsMonObjExampleModule, DQMHistAnalysisDeltaTestModule, DQMHistAnalysisEpicsOutputModule, DQMHistAnalysisPhysicsModule, DQMHistAnalysisPXDChargeModule, DQMHistAnalysisPXDCMModule, DQMHistAnalysisPXDDAQModule, DQMHistAnalysisPXDEffModule, DQMHistAnalysisPXDInjectionModule, DQMHistAnalysisPXDReductionModule, DQMHistAnalysisPXDTrackChargeModule, DQMHistAnalysisRooFitExampleModule, DQMHistAnalysisRunNrModule, DQMHistAnalysisTRGModule, DQMHistInjectionModule, and DQMHistOutputToEPICSModule.

Definition at line 147 of file Module.h.

{};

clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 179 of file Module.cc.

{
  ModulePtr newModule = ModuleManager::Instance().registerModule(getType());
  newModule->m_moduleParamList.setParameters(getParamList());
  newModule->setName(getName());
  newModule->m_package = m_package;
  newModule->m_propertyFlags = m_propertyFlags;
  newModule->m_logConfig = m_logConfig;
  newModule->m_conditions = m_conditions;

  return newModule;
}

createRelationLookup()

void createRelationLookup ( const RelationArray &  relation, RelationLookup &  lookup, size_t  digits  )

protected

Create lookup maps for relations We do not use the RelationIndex as we know much more about the relations: we know the relations get created in a consolidated way by the Digitizer and that they already point in the right direction so we only need to speed up finding the correct element.

We just create a vector from digit id to relationElement pointer for fast lookup

Parameters

relation	RelationArray to build the lookuptable for
lookup	Lookuptable to fill
digits	number of digits in this event

Definition at line 148 of file SVDClusterizerDirectModule.cc.

{
  lookup.clear();
  //If we don't have a relation we don't build a lookuptable
  if (!relation) return;
  //Resize to number of digits and set all values
  lookup.resize(digits);
  for (const auto& element : relation) {
    lookup[element.getFromIndex()] = &element;
  }
}

def_beginRun()

virtual void def_beginRun ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 426 of file Module.h.

{ beginRun(); }

def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 439 of file Module.h.

{ endRun(); }

def_event()

virtual void def_event ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 432 of file Module.h.

{ event(); }

def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 420 of file Module.h.

{ initialize(); }

def_terminate()

virtual void def_terminate ( )

inlineprotectedvirtualinherited

Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 445 of file Module.h.

{ terminate(); }

endRun()

virtual void endRun ( void  )

inlinevirtualinherited

This method is called if the current run ends.

Use this method to store information, which should be aggregated over one run.

This method can be implemented by subclasses.

Reimplemented in BeamabortModule, BgoModule, CaveModule, ClawModule, CLAWSModule, DosiModule, FANGSModule, He3tubeModule, MicrotpcModule, Ph1bpipeModule, Ph1sustrModule, PindiodeModule, PlumeModule, QcsmonitorModule, SrsensorModule, GetEventFromSocketModule, CalibrationCollectorModule, AlignDQMModule, CosmicsAlignmentValidationModule, CurlTaggerModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, arichBtestModule, ARICHDQMModule, B2BIIMCParticlesMonitorModule, B2BIIConvertMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, BeamBkgGeneratorModule, BeamBkgHitRateMonitorModule, BeamBkgMixerModule, BeamBkgTagSetterModule, BGOverlayInputModule, AnalysisPhase1StudyModule, NtuplePhase1_v6Module, ReprocessorModule, BeamabortStudyModule, BeamDigitizerModule, BgoDigitizerModule, BgoStudyModule, ClawDigitizerModule, ClawStudyModule, ClawsDigitizerModule, ClawsStudyModule, CsiDigitizer_v2Module, CsIDigitizerModule, CsiModule, CsiStudy_v2Module, CsIStudyModule, DosiDigitizerModule, DosiStudyModule, FANGSDigitizerModule, FANGSStudyModule, He3DigitizerModule, He3tubeStudyModule, MicrotpcStudyModule, TpcDigitizerModule, TPCStudyModule, PinDigitizerModule, PindiodeStudyModule, PlumeDigitizerModule, QcsmonitorDigitizerModule, QcsmonitorStudyModule, CDCCosmicAnalysisModule, CDCCRTestModule, CDCDedxDQMModule, CDCDedxValidationModule, cdcDQM7Module, CDCDQMModule, CDCPackerModule, CDCRecoTrackFilterModule, CDCUnpackerModule, DAQPerfModule, RxSocketModule, TxSocketModule, DqmHistoManagerModule, MonitorDataModule, TrackAnaModule, Ds2SampleModule, ReceiveEventModule, HLTDQM2ZMQModule, HLTDs2ZMQModule, ElapsedTimeModule, DeSerializerPXDModule, GenRawSendModule, Root2RawModule, SerializerModule, CertifyParallelModule, Ds2RawModule, Ds2RbufModule, EvReductionModule, FastRbuf2DsModule, Raw2DsModule, RawInputModule, Rbuf2DsModule, Rbuf2RbufModule, Ds2RawFileModule, PartialSeqRootReaderModule, SeqRootMergerModule, StorageDeserializerModule, StorageRootOutputModule, StorageSerializerModule, PhysicsObjectsDQMModule, PhysicsObjectsMiraBelleBhabhaModule, PhysicsObjectsMiraBelleDst2Module, PhysicsObjectsMiraBelleDstModule, PhysicsObjectsMiraBelleHadronModule, PhysicsObjectsMiraBelleModule, ECLBackgroundModule, ECLChargedPIDModule, ECLChargedPIDDataAnalysisModule, ECLChargedPIDDataAnalysisValidationModule, ECLClusterPSDModule, ECLCovarianceMatrixModule, ECLCRFinderModule, ECLDataAnalysisModule, ECLDigitCalibratorModule, ECLDigitizerModule, ECLDigitizerPureCsIModule, EclDisplayModule, ECLDQMModule, ECLDQMEXTENDEDModule, ECLFinalizerModule, ECLHitDebugModule, ECLLocalMaximumFinderModule, ECLLocalRunCalibratorModule, ECLLOMModule, ECLPackerModule, ECLShowerCalibratorModule, ECLShowerCorrectorModule, ECLShowerShapeModule, ECLSplitterN1Module, ECLSplitterN2Module, ECLUnpackerModule, ECLWaveformFitModule, HistoModule, SubEventModule, SwitchDataStoreModule, EventInfoPrinterModule, RandomBarrierModule, HistoManagerModule, StatisticsSummaryModule, SeqRootInputModule, SeqRootOutputModule, RxModule, TxModule, ZMQTxInputModule, ZMQTxWorkerModule, EvtGenDecayModule, OverrideGenerationFlagsModule, BKLMAnaModule, BKLMDigitAnalyzerModule, BKLMSimHistogrammerModule, BKLMTrackingModule, EKLMDataCheckerModule, KLMClusterEfficiencyModule, KLMClustersReconstructorModule, KLMDigitizerModule, KLMDQMModule, KLMDQM2Module, KLMPackerModule, KLMReconstructorModule, KLMScintillatorSimulatorModule, KLMUnpackerModule, AWESOMEBasicModule, PXDBackgroundModule, PXDClustersFromTracksModule, PXDPerformanceModule, Convert2RawDetModule, PrintDataModule, PrintEventRateModule, Root2BinaryModule, EventT0ValidationModule, DataWriterModule, KlongValidationModule, KLMMuonIDDNNExpertModule, FullSimModule, SVDBackgroundModule, SVDClusterCalibrationsMonitorModule, SVDHotStripFinderModule, SVDLatencyCalibrationModule, SVDLocalCalibrationsMonitorModule, SVDPositionErrorScaleFactorImporterModule, SVDTimeCalibrationsMonitorModule, svdDumpModule, SVDPackerModule, SVDB4CommissioningPlotsModule, SVDClusterEvaluationModule, SVDClusterEvaluationTrueInfoModule, SVDClusterFilterModule, SVDOccupancyAnalysisModule, SVDPerformanceModule, SVDShaperDigitsFromTracksModule, SVDClusterizerModule, SVDCoGTimeEstimatorModule, SVDDataFormatCheckModule, SVDRecoDigitCreatorModule, SVD3SamplesEmulatorModule, SVDTriggerQualityGeneratorModule, SVDUnpackerModule, TOPBackgroundModule, TOPChannelT0MCModule, TOPTriggerDigitizerModule, TOPDoublePulseGeneratorModule, TOPGainEfficiencyCalculatorModule, TOPLaserHitSelectorModule, TOPInterimFENtupleModule, TOPLaserCalibratorModule, TOPMCTrackMakerModule, TOPNtupleModule, TOPPackerModule, TOPRawDigitConverterModule, TOPTBCComparatorModule, TOPTimeBaseCalibratorModule, TOPUnpackerModule, TOPWaveformFeatureExtractorModule, TOPWaveformQualityPlotterModule, TOPXTalkChargeShareSetterModule, ExtModule, GenfitVisModule, MCV0MatcherModule, MCTrackCandClassifierModule, MuidModule, MCSlowPionPXDROICreatorModule, PXDROIFinderModule, SVDROIDQMModule, SVDROIFinderAnalysisModule, SVDROIFinderModule, RT2SPTCConverterModule, SPTCmomentumSeedRetrieverModule, SPTCvirtualIPRemoverModule, TrackFinderMCTruthRecoTracksModule, EffPlotsModule, HitXPModule, TrackingPerformanceEvaluationModule, V0findingPerformanceEvaluationModule, SecMapTrainerBaseModule, SecMapTrainerVXDTFModule, TrackFinderVXDAnalizerModule, VXDSimpleClusterizerModule, NoKickCutsEvalModule, SectorMapBootstrapModule, VXDTFTrainingDataCollectorModule, FindletModule< AFindlet >, FindletModule< HitBasedT0Extractor >, FindletModule< CKFToSVDSeedFindlet >, FindletModule< CKFToSVDFindlet >, FindletModule< CosmicsTrackMergerFindlet >, FindletModule< DATCONFPGAFindlet >, FindletModule< MCVXDCDCTrackMergerFindlet >, FindletModule< vxdHoughTracking::SVDHoughTracking >, FindletModule< CKFToCDCFindlet >, FindletModule< CKFToCDCFromEclFindlet >, FindletModule< CKFToPXDFindlet >, FindletModule< AsicBackgroundLibraryCreator >, FindletModule< CDCTrackingEventLevelMdstInfoFillerFindlet >, FindletModule< AxialSegmentPairCreator >, FindletModule< AxialStraightTrackFinder >, FindletModule< AxialTrackCreatorMCTruth >, FindletModule< AxialTrackCreatorSegmentHough >, FindletModule< AxialTrackFinderHough >, FindletModule< AxialTrackFinderLegendre >, FindletModule< ClusterBackgroundDetector >, FindletModule< ClusterPreparer >, FindletModule< ClusterRefiner< BridgingWireHitRelationFilter > >, FindletModule< FacetCreator >, FindletModule< HitReclaimer >, FindletModule< MonopoleAxialTrackFinderLegendre >, FindletModule< MonopoleStereoHitFinder >, FindletModule< MonopoleStereoHitFinderQuadratic >, FindletModule< SegmentCreatorFacetAutomaton >, FindletModule< SegmentCreatorMCTruth >, FindletModule< SegmentFinderFacetAutomaton >, FindletModule< SegmentFitter >, FindletModule< SegmentLinker >, FindletModule< SegmentOrienter >, FindletModule< SegmentPairCreator >, FindletModule< SegmentRejecter >, FindletModule< SegmentTrackCombiner >, FindletModule< SegmentTripleCreator >, FindletModule< StereoHitFinder >, FindletModule< SuperClusterCreator >, FindletModule< TrackCombiner >, FindletModule< TrackCreatorSegmentPairAutomaton >, FindletModule< TrackCreatorSegmentTripleAutomaton >, FindletModule< TrackCreatorSingleSegments >, FindletModule< TrackExporter >, FindletModule< TrackFinderAutomaton >, FindletModule< TrackFinderCosmics >, FindletModule< TrackFinder >, FindletModule< TrackFinderSegmentPairAutomaton >, FindletModule< TrackFinderSegmentTripleAutomaton >, FindletModule< TrackFlightTimeAdjuster >, FindletModule< TrackLinker >, FindletModule< TrackOrienter >, FindletModule< TrackQualityAsserter >, FindletModule< TrackQualityEstimator >, FindletModule< TrackRejecter >, FindletModule< WireHitBackgroundDetector >, FindletModule< WireHitCreator >, FindletModule< WireHitPreparer >, CDCTriggerNeuroDQMModule, CDCTriggerNeuroDQMOnlineModule, CDCTriggerNDFinderModule, TRGCDCModule, TRGCDCETFUnpackerModule, TRGCDCT2DDQMModule, TRGCDCT3DConverterModule, TRGCDCT3DDQMModule, TRGCDCT3DUnpackerModule, TRGCDCTSFDQMModule, TRGCDCTSFUnpackerModule, TRGCDCTSStreamModule, MCMatcherTRGECLModule, TRGECLFAMModule, TRGECLModule, TRGECLBGTCHitModule, TRGECLDQMModule, TRGECLQAMModule, TRGECLRawdataAnalysisModule, TRGECLTimingCalModule, TRGECLUnpackerModule, TRGGDLModule, TRGEFFDQMModule, TRGGDLDQMModule, TRGGDLDSTModule, TRGGDLSummaryModule, TRGGDLUnpackerModule, TRGGRLMatchModule, TRGGRLModule, TRGGRLProjectsModule, TRGGRLDQMModule, TRGGRLUnpackerModule, KLMTriggerModule, TRGTOPDQMModule, TRGTOPTRD2TTSConverterModule, TRGTOPUnpackerModule, TRGTOPUnpackerWaveformModule, TRGTOPWaveformPlotterModule, TRGRAWDATAModule, DQMHistAnalysisARICHModule, DQMHistAnalysisARICHMonObjModule, DQMHistAnalysisCDCDedxModule, DQMHistAnalysisCDCEpicsModule, DQMHistAnalysisCDCMonObjModule, DQMHistAnalysisDAQMonObjModule, DQMHistAnalysisECLModule, DQMHistAnalysisECLConnectedRegionsModule, DQMHistAnalysisECLOutOfTimeDigitsModule, DQMHistAnalysisECLShapersModule, DQMHistAnalysisECLSummaryModule, DQMHistAnalysisEpicsExampleModule, DQMHistAnalysisExampleModule, DQMHistAnalysisExampleFlagsModule, DQMHistAnalysisHLTMonObjModule, DQMHistAnalysisInput2Module, DQMHistAnalysisInputPVSrvModule, DQMHistAnalysisInputTestModule, DQMHistAnalysisKLMModule, DQMHistAnalysisKLM2Module, DQMHistAnalysisMiraBelleModule, DQMHistAnalysisMonObjModule, DQMHistAnalysisOutputFileModule, DQMHistAnalysisOutputMonObjModule, DQMHistAnalysisOutputRelayMsgModule, DQMHistAnalysisPXDFitsModule, DQMHistAnalysisSVDDoseModule, DQMHistAnalysisSVDEfficiencyModule, DQMHistAnalysisSVDGeneralModule, DQMHistAnalysisSVDOnMiraBelleModule, DQMHistAnalysisTOPModule, DQMHistAnalysisTRGECLModule, DQMHistAnalysisTRGEFFModule, DQMHistAnalysisTRGGDLModule, DQMHistComparitorModule, DQMHistDeltaHistoModule, DQMHistReferenceModule, DQMHistSnapshotsModule, PyModule, SVDUnpackerDQMModule, TrackSetEvaluatorHopfieldNNDEVModule, vxdDigitMaskingModule, DQMHistAnalysisDeltaEpicsMonObjExampleModule, DQMHistAnalysisDeltaTestModule, DQMHistAnalysisEpicsOutputModule, DQMHistAnalysisPhysicsModule, DQMHistAnalysisPXDChargeModule, DQMHistAnalysisPXDTrackChargeModule, DQMHistAnalysisRooFitExampleModule, DQMHistAnalysisTRGModule, and DQMHistOutputToEPICSModule.

Definition at line 166 of file Module.h.

{};

evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns

True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 96 of file Module.cc.

{
  if (m_conditions.empty()) return false;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return true;
    }
  }
  return false;
}

event()

void event ( void  )

overridevirtual

do the clustering

Reimplemented from Module.

Definition at line 178 of file SVDClusterizerDirectModule.cc.

{

  const StoreArray<SVDShaperDigit> storeShaperDigits(m_storeShaperDigitsName);
  // If no digits or no SVDEventInfo, nothing to do
  if (!storeShaperDigits || !storeShaperDigits.getEntries() || !m_storeSVDEvtInfo.isValid()) return;

  SVDModeByte modeByte = m_storeSVDEvtInfo->getModeByte();

  size_t nDigits = storeShaperDigits.getEntries();
  B2DEBUG(90, "Initial size of StoreDigits array: " << nDigits);

  const StoreArray<MCParticle> storeMCParticles(m_storeMCParticlesName);
  const StoreArray<SVDTrueHit> storeTrueHits(m_storeTrueHitsName);

  RelationArray relShaperDigitMCParticle(storeShaperDigits, storeMCParticles, m_relShaperDigitMCParticleName);
  RelationArray relShaperDigitTrueHit(storeShaperDigits, storeTrueHits, m_relShaperDigitTrueHitName);

  StoreArray<SVDCluster> storeClusters(m_storeClustersName);
  storeClusters.clear();

  RelationArray relClusterMCParticle(storeClusters, storeMCParticles,
                                     m_relClusterMCParticleName);
  if (relClusterMCParticle) relClusterMCParticle.clear();

  RelationArray relClusterShaperDigit(storeClusters, storeShaperDigits,
                                      m_relClusterShaperDigitName);
  if (relClusterShaperDigit) relClusterShaperDigit.clear();

  RelationArray relClusterTrueHit(storeClusters, storeTrueHits,
                                  m_relClusterTrueHitName);
  if (relClusterTrueHit) relClusterTrueHit.clear();

  //Build lookup tables for relations
  createRelationLookup(relShaperDigitMCParticle, m_mcRelation, nDigits);
  createRelationLookup(relShaperDigitTrueHit, m_trueRelation, nDigits);

  // Create fit tool object
  NNWaveFitTool fitTool = m_fitter.getFitTool();

  // I. Group digits by sensor/side.
  vector<pair<unsigned short, unsigned short> > sensorDigits;
  VxdID lastSensorID(0);
  size_t firstSensorDigit = 0;
  for (size_t iDigit = 0; iDigit < nDigits; ++iDigit) {
    const SVDShaperDigit& adigit = *storeShaperDigits[iDigit];
    VxdID sensorID = adigit.getSensorID();
    sensorID.setSegmentNumber(adigit.isUStrip() ? 1 : 0);
    if (sensorID != lastSensorID) { // we have a new sensor side
      sensorDigits.push_back(make_pair(firstSensorDigit, iDigit));
      firstSensorDigit = iDigit;
      lastSensorID = sensorID;
    }
  }
  // save last VxdID
  sensorDigits.push_back(make_pair(firstSensorDigit, nDigits));

  // ICYCLE OVER SENSORS
  for (auto id_indices : sensorDigits) {
    // Retrieve parameters from sensorDigits
    unsigned int firstDigit = id_indices.first;
    unsigned int lastDigit = id_indices.second;
    // Get VXDID from the first digit
    const SVDShaperDigit& sampleDigit = *storeShaperDigits[firstDigit];
    VxdID sensorID = sampleDigit.getSensorID();
    bool isU = sampleDigit.isUStrip();

    // Retrieve sensor parameters from GeoCache
    const SensorInfo& info = dynamic_cast<const SensorInfo&>(VXD::GeoCache::get(sensorID));
    double pitch = isU ? info.getUPitch() : info.getVPitch();

    // 4. Cycle through digits and form clusters on the way.

    // Identify contiguous groups of strips
    // We maintain two pointers: firstDigit and lastDigit. We also keep track of last seen
    // strip number.
    // We start with firstDigit = lastDigit = 0
    // If there is a gap in strip numbers or the current digit/strip is invalid, we save the
    // current group (fd, cd), unless empty, and set fd = cd.
    // If current strip is valid, we include it: ld = cd+1.

    vector<pair<size_t, size_t> > stripGroups;
    unordered_map<size_t, apvSamples> storedNormedSamples;
    size_t firstClusterDigit = firstDigit;
    size_t lastClusterDigit = firstDigit;
    short lastStrip = -2;

    B2DEBUG(300, "Clustering digits " << firstDigit << " to " << lastDigit);
    for (size_t iDigit = firstDigit; iDigit < lastDigit; ++iDigit) {

      const SVDShaperDigit& digit = *storeShaperDigits[iDigit];
      unsigned short currentStrip = digit.getCellID();
      B2DEBUG(300, "Digit " << iDigit << ", strip: " << currentStrip << ", lastStrip: " << lastStrip);
      B2DEBUG(300, "First CD: " << firstClusterDigit << " Last CD: " << lastClusterDigit);
      // Get calibration
      float stripNoiseADU = m_noiseCal.getNoise(sensorID, isU, currentStrip);

      // If the strip is not masked away, save normalized samples (sample/stripNoise)
      apvSamples normedSamples;

      auto samples = digit.getSamples();
      transform(samples.begin(), samples.end(), normedSamples.begin(),
                bind2nd(divides<float>(), stripNoiseADU));
      bool validDigit = pass3Samples(normedSamples, m_cutAdjacent);

      // If this is a valid digit, store normed samples.
      // It's not just that we don't have to normalize again - we don't need other data than strip
      // number and normed samples from the digits!
      zeroSuppress(normedSamples, m_cutAdjacent);
      storedNormedSamples.insert(make_pair(iDigit, normedSamples));


      // See if we have a gap in strip numbers.
      bool consecutive = ((currentStrip - lastStrip) == 1);
      lastStrip = currentStrip;

      B2DEBUG(300, (validDigit ? "Valid " : "Invalid ") << (consecutive ? "consecutive" : "gap"));

      // If this is not a valid digit or we have a gap, we save if there is something to save
      if ((!validDigit || !consecutive) && (firstClusterDigit < lastClusterDigit)) {
        B2DEBUG(300, "Saving (" << firstClusterDigit << ", " << lastClusterDigit << ")");
        stripGroups.emplace_back(firstClusterDigit, lastClusterDigit);
      }

      // Update counters
      if (validDigit) {
        if (consecutive) {// consecutive and valid : include in cluster
          lastClusterDigit = iDigit + 1;
        } else { // valid after a gap = new cluster
          firstClusterDigit = iDigit;
          lastClusterDigit = iDigit + 1;
        }
      } else { // invalid digit : skip
        firstClusterDigit = iDigit + 1;
        lastClusterDigit = iDigit + 1;
      }
    } // for digits
    // save last if any
    if (firstClusterDigit < lastClusterDigit) {
      B2DEBUG(300, "Saving (" << firstClusterDigit << ", " << lastDigit << ")");
      stripGroups.emplace_back(firstClusterDigit, lastDigit);
    }

    ostringstream os;
    os << sensorID << "NormedSamples: " << endl;
    for (auto item : storedNormedSamples) {
      os << item.first << ": ";
      copy(item.second.begin(), item.second.end(), ostream_iterator<double>(os, " "));
      os << endl;
    }
    os << "StripGroups: " << endl;
    for (auto item : stripGroups) {
      os << "(" << item.first << ", " << item.second << "), ";
    }
    B2DEBUG(300, os.str());

    // 5. Now we loop through stripGroups and form clusters.
    // We are still keeping digit indices, so we are keeping hold on the relations as wwell.

    // FIXME: Pretty stupid. There should be ClusterCandidate type to hold all this, as
    // well as normed samples. It could calculate a lot of things by itself and make the
    // code cleaner.
    vector<unsigned short> stripNumbers;
    vector<float> stripPositions;
    vector<float> stripNoises;
    vector<float> timeShifts;
    vector<float> waveWidths;

    for (auto clusterBounds : stripGroups) {

      unsigned short clusterSize = clusterBounds.second - clusterBounds.first;
      assert(clusterSize > 0);

      stripNumbers.clear();
      stripPositions.clear();
      stripNoises.clear();
      timeShifts.clear();
      waveWidths.clear();

      for (size_t iDigit = clusterBounds.first; iDigit < clusterBounds.second; ++iDigit) {
        // Now we take the normed samples and calculate the common
        // cluster probability distribution and, from it, the time and its error, and
        // the probability of the hit being from beam background.
        const SVDShaperDigit& digit = *storeShaperDigits[iDigit];

        unsigned short stripNo = digit.getCellID();
        stripNumbers.push_back(stripNo);
        // Is the calibrations interface sensible?
        double stripNoiseADU = m_noiseCal.getNoise(sensorID, isU, stripNo);
        stripNoises.push_back(
          m_pulseShapeCal.getChargeFromADC(sensorID, isU, stripNo, stripNoiseADU)
        );
        // Some calibrations magic.
        // FIXME: Only use calibration on real data. Until simulations correspond to
        // default calibrtion, we cannot use it.
        double peakWidth = 270;
        double timeShift = isU ? 2.5 : -2.2;
        if (m_calibratePeak) {
          peakWidth = 1.988 * m_pulseShapeCal.getWidth(sensorID, isU, stripNo);
          timeShift = m_pulseShapeCal.getPeakTime(sensorID, isU, stripNo)
                      - 0.25 * peakWidth;
        }
        // Correct with trigger bin information
        const double triggerBinSep = 4 * 1.96516; //in ns
        double apvPhase = triggerBinSep * (0.5 + static_cast<int>(modeByte.getTriggerBin()));
        timeShift = timeShift + apvPhase;
        waveWidths.push_back(peakWidth);
        timeShifts.push_back(timeShift);
        stripPositions.push_back(
          isU ? info.getUCellPosition(stripNo) : info.getVCellPosition(stripNo)
        );
        stripPositions.push_back(
          isU ? info.getUCellPosition(stripNo) : info.getVCellPosition(stripNo)
        );
      }
      // The formulas don't take into account differences in strip noises. So we take RMS
      // strip noise as cluster noise.
      // cluster noise is in e-!
      float clusterNoise = sqrt(
                             1.0 / clusterSize
                             * inner_product(stripNoises.begin(), stripNoises.end(), stripNoises.begin(), 0.0)
                           );
      B2DEBUG(200, "RMS cluster noise: " << clusterNoise);

      // This will hold component pdfs. We may want to rememeber them to study
      // homogeneity of cluster times.
      shared_ptr<nnFitterBinData> pStrip;
      // This will aggregate the components pdfs to get cluster time pdf
      nnFitterBinData pCluster(m_fitter.getBinCenters().size());
      fill(pCluster.begin(), pCluster.end(), double(1.0));
      for (size_t iClusterStrip = 0; iClusterStrip < clusterSize; ++iClusterStrip) {
        size_t iDigit = clusterBounds.first + iClusterStrip;
        ostringstream os1;
        os1 << "Input to NNFitter: iDigit = " << iDigit << endl << "Samples: ";
        copy(storedNormedSamples[iDigit].begin(), storedNormedSamples[iDigit].end(),
             ostream_iterator<double>(os1, " "));
        os1 << endl;
        pStrip = m_fitter.getFit(storedNormedSamples[iDigit], waveWidths[iClusterStrip]);
        os1 << "Output from NNWaveFitter: " << endl;
        copy(pStrip->begin(), pStrip->end(), ostream_iterator<double>(os1, " "));
        os1 << endl;
        // Apply strip time shift to pdf
        fitTool.shiftInTime(*pStrip, -timeShifts[iClusterStrip]);
        fitTool.multiply(pCluster, *pStrip);
        os1 << "Accummulated: " << endl;
        copy(pCluster.begin(), pCluster.end(), ostream_iterator<double>(os1, " "));
        B2DEBUG(200, os1.str());
      }
      // We can now calculate clsuter time and its error.
      double clusterTime, clusterTimeErr;
      tie(clusterTime, clusterTimeErr) = fitTool.getTimeShift(pCluster);
      B2DEBUG(200, "Time: " << clusterTime << " +/- " << clusterTimeErr);
      // Now we have the cluster time pdf, so we can calculate amplitudes.
      // In the next cycle thrugh cluster's digits, we calculate ampltidues and their
      // errors.
      vector<double> stripAmplitudes(stripNoises.size());
      vector<double> stripAmplitudeErrors(stripNoises.size());
      double clusterChi2 = 0.0;
      for (size_t iClusterStrip = 0; iClusterStrip < clusterSize; ++iClusterStrip) {
        size_t iDigit = clusterBounds.first + iClusterStrip;
        double snAmp, snAmpError, chi2;
        tie(snAmp, snAmpError, chi2) =
          fitTool.getAmplitudeChi2(storedNormedSamples[iDigit], clusterTime, waveWidths[iClusterStrip]);
        // We have to re-normalize: Multiply amplitudes in SN units by noises in electrons.
        stripAmplitudes[iClusterStrip] =
          stripNoises[iClusterStrip] * snAmp;
        stripAmplitudeErrors[iClusterStrip] =
          stripNoises[iClusterStrip] * snAmpError;
        clusterChi2 += chi2;
        B2DEBUG(200, "Digit " << iDigit << " Noise: " << stripNoises[iClusterStrip]
                << " Amplitude: " << stripAmplitudes[iClusterStrip]
                << " +/- " << stripAmplitudeErrors[iClusterStrip]
                << " Chi2: " << chi2
               );
      }
      // Cluster charge and S/N
      float clusterCharge = accumulate(stripAmplitudes.begin(), stripAmplitudes.end(), 0.0);
      float clusterChargeError = sqrt(
                                   inner_product(stripAmplitudeErrors.begin(), stripAmplitudeErrors.end(),
                                                 stripAmplitudeErrors.begin(), 0.0)
                                 );
      float clusterSN = (clusterChargeError > 0) ? clusterCharge / clusterChargeError : clusterCharge;
      clusterChi2 /= clusterSize;
      // Cluster seed
      size_t seedIndex = distance(stripAmplitudes.begin(), max_element(
                                    stripAmplitudes.begin(), stripAmplitudes.end()));
      //unsigned short clusterSeedStrip = stripNumbers[seedIndex];
      float clusterSeedCharge = stripAmplitudes[seedIndex];
      B2DEBUG(200, "Cluster parameters:");
      B2DEBUG(200, "Charge: " << clusterCharge << " +/- " << clusterChargeError);
      B2DEBUG(200, "Seed: " << clusterSeedCharge << " +/- " << stripAmplitudeErrors[seedIndex]);
      B2DEBUG(200, "S/N: " <<  clusterSN);


      // Hit position
      float clusterPosition, clusterPositionError;

      // Now censoring:
      // NB: We don't censor strip charges again. The requirement of 3 consecutive samples
      // above threshold is a good enough safeguard.
      if ((clusterCharge < clusterNoise * m_cutCluster) || (clusterSeedCharge < clusterNoise * m_cutSeed))
        continue;

      if (clusterSize < m_sizeHeadTail) { // centre of gravity
        clusterPosition = 1.0 / clusterCharge * inner_product(
                            stripAmplitudes.begin(), stripAmplitudes.end(), stripPositions.begin(), 0.0
                          );
        // Strip charge equal to zero-suppression threshold
        float phantomCharge = m_cutAdjacent * clusterNoise;
        if (clusterSize == 1) {
          clusterPositionError = pitch * phantomCharge / (clusterCharge + phantomCharge);
        } else {
          clusterPositionError = pitch * phantomCharge / clusterCharge;
        }
      } else { // Head-tail
        float leftStripCharge = stripAmplitudes.front();
        float leftPos = stripPositions.front();
        float rightStripCharge = stripAmplitudes.back();
        float rightPos = stripPositions.back();
        float centreCharge = (clusterCharge - leftStripCharge - rightStripCharge) / (clusterSize - 2);
        leftStripCharge = (leftStripCharge < centreCharge) ? leftStripCharge : centreCharge;
        rightStripCharge = (rightStripCharge < centreCharge) ? rightStripCharge : centreCharge;
        clusterPosition = 0.5 * (leftPos + rightPos)
                          + 0.5 * (rightStripCharge - leftStripCharge) / centreCharge * pitch;
        float sn = centreCharge / m_cutAdjacent / clusterNoise;
        // Rough estimates of Landau noise
        float landauHead = leftStripCharge / centreCharge;
        double landauTail = rightStripCharge / centreCharge;
        clusterPositionError = 0.5 * pitch * sqrt(1.0 / sn / sn
                                                  + 0.5 * landauHead * landauHead + 0.5 * landauTail * landauTail);
      }
      //Lorentz shift correction
      clusterPosition -= info.getLorentzShift(isU, clusterPosition);

      // Finally, we save the cluster and its relations.
      map<unsigned int, float> mc_relations;
      map<unsigned int, float> truehit_relations;
      vector<pair<unsigned int, float> > digit_weights;
      digit_weights.reserve(clusterSize);

      for (size_t iDigit = clusterBounds.first; iDigit < clusterBounds.second; ++iDigit) {
        // Store relations to MCParticles and SVDTrueHits
        fillRelationMap(m_mcRelation, mc_relations, iDigit);
        fillRelationMap(m_trueRelation, truehit_relations, iDigit);
        //Add digit to the Cluster->Digit relation list
        digit_weights.emplace_back(iDigit, stripAmplitudes[iDigit - clusterBounds.first]);
      }

      //Store the cluster into Datastore ...
      int clsIndex = storeClusters.getEntries();
      VxdID clusterSensorID = sensorID;
      clusterSensorID.setSegmentNumber(0);
      storeClusters.appendNew(
        SVDCluster(sensorID, isU, clusterPosition, clusterPositionError, clusterTime,
                   clusterTimeErr, clusterCharge, clusterSeedCharge, clusterSize, clusterSN, clusterChi2)
      );

      //Create relations to the cluster
      if (!mc_relations.empty()) {
        relClusterMCParticle.add(clsIndex, mc_relations.begin(), mc_relations.end());
      }
      if (!truehit_relations.empty()) {
        relClusterTrueHit.add(clsIndex, truehit_relations.begin(), truehit_relations.end());
      }
      relClusterShaperDigit.add(clsIndex, digit_weights.begin(), digit_weights.end());
    } // CYCLE OVER CLUSTERS for stripGroups

  } // CYCLE OVER SENSORS for items in sensorDigits

  B2DEBUG(100, "Number of clusters: " << storeClusters.getEntries());

} // event()

exposePythonAPI()

void exposePythonAPI ( )

staticinherited

Exposes methods of the Module class to Python.

Definition at line 325 of file Module.cc.

{
  // to avoid confusion between std::arg and boost::python::arg we want a shorthand namespace as well
  namespace bp = boost::python;

  docstring_options options(true, true, false); //userdef, py sigs, c++ sigs

  void (Module::*setReturnValueInt)(int) = &Module::setReturnValue;

  enum_<Module::EAfterConditionPath>("AfterConditionPath",
                                     R"(Determines execution behaviour after a conditional path has been executed:

.. attribute:: END

  End processing of this path after the conditional path. (this is the default for if_value() etc.)

.. attribute:: CONTINUE

  After the conditional path, resume execution after this module.)")
  .value("END", Module::EAfterConditionPath::c_End)
  .value("CONTINUE", Module::EAfterConditionPath::c_Continue)
  ;

  /* Do not change the names of >, <, ... we use them to serialize conditional pathes */
  enum_<Belle2::ModuleCondition::EConditionOperators>("ConditionOperator")
  .value(">", Belle2::ModuleCondition::EConditionOperators::c_GT)
  .value("<", Belle2::ModuleCondition::EConditionOperators::c_ST)
  .value(">=", Belle2::ModuleCondition::EConditionOperators::c_GE)
  .value("<=", Belle2::ModuleCondition::EConditionOperators::c_SE)
  .value("==", Belle2::ModuleCondition::EConditionOperators::c_EQ)
  .value("!=", Belle2::ModuleCondition::EConditionOperators::c_NE)
  ;

  enum_<Module::EModulePropFlags>("ModulePropFlags",
                                  R"(Flags to indicate certain low-level features of modules, see :func:`Module.set_property_flags()`, :func:`Module.has_properties()`. Most useful flags are:

.. attribute:: PARALLELPROCESSINGCERTIFIED

    This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)

.. attribute:: HISTOGRAMMANAGER

  This module is used to manage histograms accumulated by other modules

.. attribute:: TERMINATEINALLPROCESSES

  When using parallel processing, call this module's terminate() function in all processes. This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
)")
  .value("INPUT", Module::EModulePropFlags::c_Input)
  .value("OUTPUT", Module::EModulePropFlags::c_Output)
  .value("PARALLELPROCESSINGCERTIFIED", Module::EModulePropFlags::c_ParallelProcessingCertified)
  .value("HISTOGRAMMANAGER", Module::EModulePropFlags::c_HistogramManager)
  .value("INTERNALSERIALIZER", Module::EModulePropFlags::c_InternalSerializer)
  .value("TERMINATEINALLPROCESSES", Module::EModulePropFlags::c_TerminateInAllProcesses)
  ;

  //Python class definition
  class_<Module, PyModule> module("Module", R"(
Base class for Modules.

A module is the smallest building block of the framework.
A typical event processing chain consists of a Path containing
modules. By inheriting from this base class, various types of
modules can be created. To use a module, please refer to
:func:`Path.add_module()`.  A list of modules is available by running
``basf2 -m`` or ``basf2 -m package``, detailed information on parameters is
given by e.g. ``basf2 -m RootInput``.

The 'Module Development' section in the manual provides detailed information
on how to create modules, setting parameters, or using return values/conditions:
https://xwiki.desy.de/xwiki/rest/p/f4fa4/#HModuleDevelopment

)");
  module
  .def("__str__", &Module::getPathString)
  .def("name", &Module::getName, return_value_policy<copy_const_reference>(),
       "Returns the name of the module. Can be changed via :func:`set_name() <Module.set_name()>`, use :func:`type() <Module.type()>` for identifying a particular module class.")
  .def("type", &Module::getType, return_value_policy<copy_const_reference>(),
       "Returns the type of the module (i.e. class name minus 'Module')")
  .def("set_name", &Module::setName, args("name"), R"(
Set custom name, e.g. to distinguish multiple modules of the same type.

>>> path.add_module('EventInfoSetter')
>>> ro = path.add_module('RootOutput', branchNames=['EventMetaData'])
>>> ro.set_name('RootOutput_metadata_only')
>>> print(path)
[EventInfoSetter -> RootOutput_metadata_only]

)")
  .def("description", &Module::getDescription, return_value_policy<copy_const_reference>(),
       "Returns the description of this module.")
  .def("package", &Module::getPackage, return_value_policy<copy_const_reference>(),
       "Returns the package this module belongs to.")
  .def("available_params", &_getParamInfoListPython,
       "Return list of all module parameters as `ModuleParamInfo` instances")
  .def("has_properties", &Module::hasProperties, (bp::arg("properties")),
       R"DOCSTRING(Allows to check if the module has the given properties out of `ModulePropFlags` set.

>>> if module.has_properties(ModulePropFlags.PARALLELPROCESSINGCERTIFIED):
>>>     ...

Parameters:
  properties (int): bitmask of `ModulePropFlags` to check for.
)DOCSTRING")
  .def("set_property_flags", &Module::setPropertyFlags, args("property_mask"),
       "Set module properties in the form of an OR combination of `ModulePropFlags`.");
  {
    // python signature is too crowded, make ourselves
    docstring_options subOptions(true, false, false); //userdef, py sigs, c++ sigs
    module
    .def("if_value", &Module::if_value,
         (bp::arg("expression"), bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOCSTRING(if_value(expression, condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this
module if the return value set in the module passes the given ``expression``.

Modules can define a return value (int or bool) using ``setReturnValue()``,
which can be used in the steering file to split the Path based on this value, for example

>>> module_with_condition.if_value("<1", another_path)

In case the return value of the ``module_with_condition`` for a given event is
less than 1, the execution will be diverted into ``another_path`` for this event.

You could for example set a special return value if an error occurs, and divert
the execution into a path containing :b2:mod:`RootOutput` if it is found;
saving only the data producing/produced by the error.

After a conditional path has executed, basf2 will by default stop processing
the path for this event. This behaviour can be changed by setting the
``after_condition_path`` argument.

Parameters:
  expression (str): Expression to determine if the conditional path should be executed.
      This should be one of the comparison operators ``<``, ``>``, ``<=``,
      ``>=``, ``==``, or ``!=`` followed by a numerical value for the return value
  condition_path (Path): path to execute in case the expression is fulfilled
  after_condition_path (AfterConditionPath): What to do once the ``condition_path`` has been executed.
)DOCSTRING")
    .def("if_false", &Module::if_false,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_false(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to False. This is equivalent to
calling `if_value` with ``expression=\"<1\"``)DOC")
    .def("if_true", &Module::if_true,
         (bp::arg("condition_path"), bp::arg("after_condition_path")= Module::EAfterConditionPath::c_End),
         R"DOC(if_true(condition_path, after_condition_path=AfterConditionPath.END)

Sets a conditional sub path which will be executed after this module if
the return value of the module evaluates to True. It is equivalent to
calling `if_value` with ``expression=\">=1\"``)DOC");
  }
  module
  .def("has_condition", &Module::hasCondition,
       "Return true if a conditional path has been set for this module "
       "using `if_value`, `if_true` or `if_false`")
  .def("get_all_condition_paths", &_getAllConditionPathsPython,
       "Return a list of all conditional paths set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .def("get_all_conditions", &_getAllConditionsPython,
       "Return a list of all conditional path expressions set for this module using "
       "`if_value`, `if_true` or `if_false`")
  .add_property("logging", make_function(&Module::getLogConfig, return_value_policy<reference_existing_object>()),
                &Module::setLogConfig)

fillRelationMap()

void fillRelationMap ( const RelationLookup &  lookup, std::map< unsigned int, float > &  relation, unsigned int  index  )

protected

Add the relation from a given SVDShaperDigit index to a map.

Parameters

lookup	Lookuptable to use for the relation
relation	map to add the entries to
index	index of the SVDDigit

Definition at line 161 of file SVDClusterizerDirectModule.cc.

{
  //If the lookup table is not empty and the element is set
  if (!lookup.empty() && lookup[index]) {
    const RelationElement& element = *lookup[index];
    const unsigned int size = element.getSize();
    //Add all Relations to the map
    for (unsigned int i = 0; i < size; ++i) {
      //negative weights are from ignored particles, we don't like them and
      //thus ignore them :D
      if (element.getWeight(i) < 0) continue;
      relation[element.getToIndex(i)] += element.getWeight(i);
    }
  }
}

getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 133 of file Module.cc.

{
  if (m_conditions.empty()) return EAfterConditionPath::c_End;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getAfterConditionPath();
    }
  }

  return EAfterConditionPath::c_End;
}

getAllConditionPaths()

std::vector< std::shared_ptr< Path > > getAllConditionPaths ( ) const

inherited

Return all condition paths currently set (no matter if the condition is true or not).

Definition at line 150 of file Module.cc.

{
  std::vector<std::shared_ptr<Path>> allConditionPaths;
  for (const auto& condition : m_conditions) {
    allConditionPaths.push_back(condition.getPath());
  }

  return allConditionPaths;
}

getAllConditions()

const std::vector< ModuleCondition > & getAllConditions ( ) const

inlineinherited

Return all set conditions for this module.

Definition at line 324 of file Module.h.

    {
      return m_conditions;
    }

getCondition()

const ModuleCondition * getCondition ( ) const

inlineinherited

Return a pointer to the first condition (or nullptr, if none was set)

Definition at line 314 of file Module.h.

    {
      if (m_conditions.empty()) {
        return nullptr;
      } else {
        return &m_conditions.front();
      }
    }

getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 113 of file Module.cc.

{
  PathPtr p;
  if (m_conditions.empty()) return p;

  //okay, a condition was set for this Module...
  if (!m_hasReturnValue) {
    B2FATAL("A condition was set for '" << getName() << "', but the module did not set a return value!");
  }

  for (const auto& condition : m_conditions) {
    if (condition.evaluate(m_returnValue)) {
      return condition.getPath();
    }
  }

  // if none of the conditions were true, return a null pointer.
  return p;
}

getDescription()

const std::string & getDescription ( ) const

inlineinherited

Returns the description of the module.

Definition at line 202 of file Module.h.

{return m_description;}

getFileNames()

virtual std::vector< std::string > getFileNames ( bool  outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Reimplemented in RootInputModule, StorageRootOutputModule, and RootOutputModule.

Definition at line 134 of file Module.h.

    {
      return std::vector<std::string>();
    }

getLogConfig()

LogConfig & getLogConfig ( )

inlineinherited

Returns the log system configuration.

Definition at line 225 of file Module.h.

{return m_logConfig;}

getModules()

std::list< ModulePtr > getModules ( ) const

inlineoverrideprivatevirtualinherited

no submodules, return empty list

Implements PathElement.

Definition at line 506 of file Module.h.

{ return std::list<ModulePtr>(); }

getName()

const std::string & getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 187 of file Module.h.

{return m_name;}

getPackage()

const std::string & getPackage ( ) const

inlineinherited

Returns the package this module is in.

Definition at line 197 of file Module.h.

{return m_package;}

getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns

A python list containing the parameters of this parameter list.

Definition at line 279 of file Module.cc.

{
  return m_moduleParamList.getParamInfoListPython();
}

getParamList()

const ModuleParamList & getParamList ( ) const

inlineinherited

Return module param list.

Definition at line 363 of file Module.h.

{ return m_moduleParamList; }

getPathString()

std::string getPathString ( ) const

overrideprivatevirtualinherited

return the module name.

Implements PathElement.

Definition at line 192 of file Module.cc.

{

  std::string output = getName();

  for (const auto& condition : m_conditions) {
    output += condition.getString();
  }

  return output;
}

getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 381 of file Module.h.

{ return m_returnValue; }

getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 41 of file Module.cc.

{
  if (m_type.empty())
    B2FATAL("Module type not set for " << getName());
  return m_type;
}

hasCondition()

bool hasCondition ( ) const

inlineinherited

Returns true if at least one condition was set for the module.

Definition at line 311 of file Module.h.

{ return not m_conditions.empty(); };

hasProperties()

bool hasProperties ( unsigned int  propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags

Ored EModulePropFlags which should be compared with the module flags.

Definition at line 160 of file Module.cc.

{
  return (propertyFlags & m_propertyFlags) == propertyFlags;
}

hasReturnValue()

bool hasReturnValue ( ) const

inlineinherited

Return true if this module has a valid return value set.

Definition at line 378 of file Module.h.

{ return m_hasReturnValue; }

hasUnsetForcedParams()

bool hasUnsetForcedParams ( ) const

inherited

Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

Definition at line 166 of file Module.cc.

{
  auto missing = m_moduleParamList.getUnsetForcedParams();
  std::string allMissing = "";
  for (const auto& s : missing)
    allMissing += s + " ";
  if (!missing.empty())
    B2ERROR("The following required parameters of Module '" << getName() << "' were not specified: " << allMissing <<
            "\nPlease add them to your steering file.");
  return !missing.empty();
}

if_false()

void if_false ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 85 of file Module.cc.

{
  if_value("<1", path, afterConditionPath);
}

if_true()

void if_true ( const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 90 of file Module.cc.

{
  if_value(">=1", path, afterConditionPath);
}

if_value()

void if_value ( const std::string &  expression, const std::shared_ptr< Path > &  path, EAfterConditionPath  afterConditionPath = EAfterConditionPath::c_End  )

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://xwiki.desy.de/xwiki/rest/p/a94f2 or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 79 of file Module.cc.

{
  m_conditions.emplace_back(expression, path, afterConditionPath);
}

initialize()

void initialize ( void  )

overridevirtual

Initialize the module.

Reimplemented from Module.

Definition at line 81 of file SVDClusterizerDirectModule.cc.

{
  //Register collections
  StoreArray<SVDCluster> storeClusters(m_storeClustersName);
  StoreArray<SVDShaperDigit> storeShaperDigits(m_storeShaperDigitsName);
  StoreArray<SVDTrueHit> storeTrueHits(m_storeTrueHitsName);
  StoreArray<MCParticle> storeMCParticles(m_storeMCParticlesName);

  storeClusters.registerInDataStore();
  storeShaperDigits.isRequired();
  storeTrueHits.isOptional();
  storeMCParticles.isOptional();
  m_storeSVDEvtInfo.isRequired();

  if (!m_storeSVDEvtInfo.isOptional(m_svdEventInfoName)) m_svdEventInfoName = "SVDEventInfoSim";
  m_storeSVDEvtInfo.isRequired(m_svdEventInfoName);

  RelationArray relClusterShaperDigits(storeClusters, storeShaperDigits);
  RelationArray relClusterTrueHits(storeClusters, storeTrueHits);
  RelationArray relClusterMCParticles(storeClusters, storeMCParticles);
  RelationArray relShaperDigitTrueHits(storeShaperDigits, storeTrueHits);
  RelationArray relShaperDigitMCParticles(storeShaperDigits, storeMCParticles);

  relClusterShaperDigits.registerInDataStore();
  //Relations to simulation objects only if the ancestor relations exist
  if (relShaperDigitTrueHits.isOptional())
    relClusterTrueHits.registerInDataStore();
  if (relShaperDigitMCParticles.isOptional())
    relClusterMCParticles.registerInDataStore();

  //Store names to speed up creation later
  m_storeClustersName = storeClusters.getName();
  m_storeShaperDigitsName = storeShaperDigits.getName();
  m_storeTrueHitsName = storeTrueHits.getName();
  m_storeMCParticlesName = storeMCParticles.getName();

  m_relClusterShaperDigitName = relClusterShaperDigits.getName();
  m_relClusterTrueHitName = relClusterTrueHits.getName();
  m_relClusterMCParticleName = relClusterMCParticles.getName();
  m_relShaperDigitTrueHitName = relShaperDigitTrueHits.getName();
  m_relShaperDigitMCParticleName = relShaperDigitMCParticles.getName();

  B2INFO(" 1. COLLECTIONS:");
  B2INFO(" -->  MCParticles:        " << m_storeMCParticlesName);
  B2INFO(" -->  Digits:             " << m_storeShaperDigitsName);
  B2INFO(" -->  Clusters:           " << m_storeClustersName);
  B2INFO(" -->  TrueHits:           " << m_storeTrueHitsName);
  B2INFO(" -->  DigitMCRel:         " << m_relShaperDigitMCParticleName);
  B2INFO(" -->  ClusterMCRel:       " << m_relClusterMCParticleName);
  B2INFO(" -->  ClusterDigitRel:    " << m_relClusterShaperDigitName);
  B2INFO(" -->  DigitTrueRel:       " << m_relShaperDigitTrueHitName);
  B2INFO(" -->  ClusterTrueRel:     " << m_relClusterTrueHitName);
  B2INFO(" 2. CALIBRATION DATA:");
  B2INFO(" -->  Time NN:            " << m_timeFitterName);
  B2INFO(" 4. CLUSTERING:");
  B2INFO(" -->  Neighbour cut:      " << m_cutAdjacent);
  B2INFO(" -->  Seed cut:           " << m_cutSeed);
  B2INFO(" -->  Cluster charge cut: " << m_cutCluster);
  B2INFO(" -->  HT for clusters >:  " << m_sizeHeadTail);

  // Properly initialize the NN time fitter
  // FIXME: Should be moved to beginRun
  // FIXME: No support for 3/6 sample switching within a run/event
  DBObjPtr<DatabaseRepresentationOfWeightfile> dbXml(m_timeFitterName);
  m_fitter.setNetwrok(dbXml->m_data);
}

setAbortLevel()

void setAbortLevel ( int  abortLevel )

inherited

Configure the abort log level.

Definition at line 67 of file Module.cc.

{
  m_logConfig.setAbortLevel(static_cast<LogConfig::ELogLevel>(abortLevel));
}

setDebugLevel()

void setDebugLevel ( int  debugLevel )

inherited

Configure the debug messaging level.

Definition at line 61 of file Module.cc.

{
  m_logConfig.setDebugLevel(debugLevel);
}

setDescription()

void setDescription ( const std::string &  description )

protectedinherited

Sets the description of the module.

Parameters

description

A description of the module.

Definition at line 214 of file Module.cc.

{
  m_description = description;
}

setLogConfig()

void setLogConfig ( const LogConfig &  logConfig )

inlineinherited

Set the log system configuration.

Definition at line 230 of file Module.h.

{m_logConfig = logConfig;}

setLogInfo()

void setLogInfo ( int  logLevel, unsigned int  logInfo  )

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 73 of file Module.cc.

{
  m_logConfig.setLogInfo(static_cast<LogConfig::ELogLevel>(logLevel), logInfo);
}

setLogLevel()

void setLogLevel ( int  logLevel )

inherited

Configure the log level.

Definition at line 55 of file Module.cc.

{
  m_logConfig.setLogLevel(static_cast<LogConfig::ELogLevel>(logLevel));
}

setName()

void setName ( const std::string &  name )

inlineinherited

Set the name of the module.

Note

The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 214 of file Module.h.

{ m_name = name; };

setParamList()

void setParamList ( const ModuleParamList &  params )

inlineprotectedinherited

Replace existing parameter list.

Definition at line 501 of file Module.h.

{ m_moduleParamList = params; }

setParamPython()

void setParamPython ( const std::string &  name, const boost::python::object &  pyObj  )

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 234 of file Module.cc.

{
  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());
  try {
    m_moduleParamList.setParamPython(name, pyObj);
  } catch (std::runtime_error& e) {
    throw std::runtime_error("Cannot set parameter '" + name + "' for module '"
                             + m_name + "': " + e.what());
  }

  logSystem.updateModule(nullptr);
}

setParamPythonDict()

void setParamPythonDict ( const boost::python::dict &  dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary

The python dictionary from which the parameter values are read.

Definition at line 249 of file Module.cc.

{

  LogSystem& logSystem = LogSystem::Instance();
  logSystem.updateModule(&(getLogConfig()), getName());

  boost::python::list dictKeys = dictionary.keys();
  int nKey = boost::python::len(dictKeys);

  //Loop over all keys in the dictionary
  for (int iKey = 0; iKey < nKey; ++iKey) {
    boost::python::object currKey = dictKeys[iKey];
    boost::python::extract<std::string> keyProxy(currKey);

    if (keyProxy.check()) {
      const boost::python::object& currValue = dictionary[currKey];
      setParamPython(keyProxy, currValue);
    } else {
      B2ERROR("Setting the module parameters from a python dictionary: invalid key in dictionary!");
    }
  }

  logSystem.updateModule(nullptr);
}

setPropertyFlags()

void setPropertyFlags ( unsigned int  propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags

bitwise OR of EModulePropFlags

Definition at line 208 of file Module.cc.

{
  m_propertyFlags = propertyFlags;
}

setReturnValue() [1/2]

void setReturnValue ( bool  value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 227 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setReturnValue() [2/2]

void setReturnValue ( int  value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value

The value of the return value.

Definition at line 220 of file Module.cc.

{
  m_hasReturnValue = true;
  m_returnValue = value;
}

setType()

void setType ( const std::string &  type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 48 of file Module.cc.

{
  if (!m_type.empty())
    B2FATAL("Trying to change module type from " << m_type << " is not allowed, the value is assumed to be fixed.");
  m_type = type;
}

terminate()

virtual void terminate ( void  )

inlinevirtualinherited

This method is called at the end of the event processing.

This method is called only once after the event processing finished. Use this method for cleaning up, closing files, etc.

This method can be implemented by subclasses.

Reimplemented in ARICHBackgroundModule, BeamabortModule, BgoModule, CaveModule, ClawModule, CLAWSModule, DosiModule, FANGSModule, He3tubeModule, MicrotpcModule, Ph1bpipeModule, Ph1sustrModule, PindiodeModule, PlumeModule, QcsmonitorModule, SrsensorModule, GetEventFromSocketModule, CalibrationCollectorModule, CosmicsAlignmentValidationModule, CurlTaggerModule, EventKinematicsModule, FlavorTaggerInfoFillerModule, LowEnergyPi0IdentificationExpertModule, LowEnergyPi0VetoExpertModule, ParticleKinematicFitterModule, ParticleLoaderModule, ParticleMassHypothesesUpdaterModule, ParticleMassUpdaterModule, ParticleMCDecayStringModule, ParticleMomentumUpdaterModule, ParticleStatsModule, ParticleWeightingLookUpCreatorModule, RemoveParticlesNotInListsModule, SkimFilterModule, TreeFitterModule, VariablesToEventBasedTreeModule, VariablesToHistogramModule, VariablesToNtupleModule, arichBtestModule, ARICHNtupleModule, arichToNtupleModule, B2BIIMCParticlesMonitorModule, B2BIIConvertMdstModule, B2BIIFixMdstModule, B2BIIMdstInputModule, BelleMCOutputModule, BeamBkgGeneratorModule, BeamBkgHitRateMonitorModule, BeamBkgMixerModule, BeamBkgTagSetterModule, BGOverlayInputModule, AnalysisPhase1StudyModule, NtuplePhase1_v6Module, ReprocessorModule, BeamabortStudyModule, BeamDigitizerModule, BgoDigitizerModule, BgoStudyModule, ClawDigitizerModule, ClawStudyModule, ClawsDigitizerModule, ClawsStudyModule, CsiDigitizer_v2Module, CsIDigitizerModule, CsiModule, CsiStudy_v2Module, CsIStudyModule, DosiDigitizerModule, DosiStudyModule, FANGSDigitizerModule, FANGSStudyModule, He3DigitizerModule, He3tubeStudyModule, MicrotpcStudyModule, TpcDigitizerModule, PinDigitizerModule, PindiodeStudyModule, PlumeDigitizerModule, QcsmonitorDigitizerModule, QcsmonitorStudyModule, CDCCosmicAnalysisModule, CDCCrossTalkAdderModule, CDCCRTestModule, CDCDedxCorrectionModule, CDCDedxDQMModule, CDCDedxPIDModule, CDCDedxScanModule, CDCDedxSkimModule, CDCDedxSkimCDSTModule, CDCDedxValidationModule, CDCDigitizerModule, cdcDQM7Module, CDCDQMModule, ScanCDCGeoModule, CDCInitialT0DeterminationModule, CDCPackerModule, CDCRecoTrackFilterModule, CDCUnpackerModule, HitLevelInfoWriterModule, DAQPerfModule, RxSocketModule, TxSocketModule, DqmHistoManagerModule, MonitorDataModule, TrackAnaModule, Ds2SampleModule, ReceiveEventModule, HLTDQM2ZMQModule, HLTDs2ZMQModule, ElapsedTimeModule, DeSerializerModule, DeSerializerPXDModule, GenRawSendModule, Root2RawModule, SerializerModule, CertifyParallelModule, Ds2RawModule, Ds2RbufModule, EvReductionModule, FastRbuf2DsModule, Raw2DsModule, RawInputModule, Rbuf2DsModule, Rbuf2RbufModule, Ds2RawFileModule, PartialSeqRootReaderModule, SeqRootMergerModule, StorageDeserializerModule, StorageRootOutputModule, StorageSerializerModule, DisplayModule, PhysicsObjectsDQMModule, PhysicsObjectsMiraBelleBhabhaModule, PhysicsObjectsMiraBelleDst2Module, PhysicsObjectsMiraBelleDstModule, PhysicsObjectsMiraBelleHadronModule, PhysicsObjectsMiraBelleModule, ECLBackgroundModule, ECLChargedPIDModule, ECLChargedPIDDataAnalysisModule, ECLChargedPIDDataAnalysisValidationModule, ECLClusterPSDModule, ECLCompressBGOverlayModule, ECLCovarianceMatrixModule, ECLCRFinderModule, EclCovMatrixNtupleModule, ECLDataAnalysisModule, ECLDigiStudyModule, ECLDigitCalibratorModule, ECLDigitizerModule, ECLDigitizerPureCsIModule, EclDisplayModule, ECLDQMModule, ECLDQMEXTENDEDModule, ECLFillCellIdMappingModule, ECLFinalizerModule, ECLHitDebugModule, ECLLocalMaximumFinderModule, ECLLOMModule, ECLMatchingPerformanceExpertModule, ECLPackerModule, ECLShowerCalibratorModule, ECLShowerCorrectorModule, ECLShowerShapeModule, ECLSplitterN1Module, ECLSplitterN2Module, ECLTrackClusterMatchingModule, ECLTrackClusterMatchingParametrizationExpertModule, ECLTrackClusterMatchingPerformanceModule, ECLTRGInformationModule, ECLTrimShowersAndDigitsModule, ECLUnpackerModule, eclWaveformCalibCollectorModule, ECLWaveformFitModule, HistoModule, MergeDataStoreModule, SubEventModule, SwitchDataStoreModule, ProgressBarModule, RandomBarrierModule, HistoManagerModule, ProfileModule, RootInputModule, RootOutputModule, SeqRootInputModule, SeqRootOutputModule, AsyncWrapper, RxModule, TxModule, ZMQRxOutputModule, ZMQRxWorkerModule, ZMQTxInputModule, ZMQTxWorkerModule, AafhInputModule, BabayagaNLOInputModule, BBBremInputModule, BHWideInputModule, CRYInputModule, EvtGenDecayModule, FragmentationModule, HepMCInputModule, HepMCOutputModule, GeneratedVertexDisplacerModule, GeneratorPreselectionModule, HepevtOutputModule, OverrideGenerationFlagsModule, RemoveMCParticlesModule, KKGenInputModule, KoralWInputModule, PhokharaInputModule, TeeggInputModule, TrepsInputModule, GeometryModule, SoftwareTriggerModule, SoftwareTriggerResultPrinterModule, BKLMAnaModule, BKLMDigitAnalyzerModule, BKLMSimHistogrammerModule, BKLMTrackingModule, EKLMDataCheckerModule, KLMClusterEfficiencyModule, KLMClustersReconstructorModule, KLMDigitizerModule, KLMDQMModule, KLMDQM2Module, KLMPackerModule, KLMReconstructorModule, KLMScintillatorSimulatorModule, KLMUnpackerModule, MasterClassModule, MVAExpertModule, MVAMultipleExpertsModule, AWESOMEBasicModule, PXDBackgroundModule, PXDClustersFromTracksModule, PXDPerformanceModule, PXDSpacePointCreatorModule, CheckErrorEventModule, Convert2RawDetModule, Root2BinaryModule, DataWriterModule, ECLExpertModule, KLMExpertModule, KlongValidationModule, KLMMuonIDDNNExpertModule, PIDNtupleModule, VXDDedxPIDModule, FullSimModule, FullSimTimingModule, SVDBackgroundModule, SVDChannelMappingModule, SVDHotStripFinderModule, SVDChargeSharingAnalysisModule, SVDClusterQualityEstimatorCalibrationModule, SVDClusterQualityEstimatorModule, SVDCrossTalkFinderModule, svdDumpModule, SVDPackerModule, SVDClusterEvaluationTrueInfoModule, SVDClusterFilterModule, SVDEventT0PerformanceTTreeModule, SVDMaxStripTTreeModule, SVDPerformanceTTreeModule, SVDShaperDigitsFromTracksModule, SVDCoGTimeEstimatorModule, SVDDataFormatCheckModule, SVD3SamplesEmulatorModule, SVDDigitizerModule, SVDTriggerQualityGeneratorModule, SVDSpacePointCreatorModule, SVDSpacePointQICalibrationModule, TOPAlignerModule, TOPBackgroundModule, TOPBunchFinderModule, TOPChannelT0CalibratorModule, TOPChannelT0MCModule, TOPCommonT0CalibratorModule, TOPCosmicT0FinderModule, TOPTriggerDigitizerModule, TOPDoublePulseGeneratorModule, TOPGainEfficiencyCalculatorModule, TOPLaserHitSelectorModule, TOPInterimFENtupleModule, TOPLaserCalibratorModule, TOPLLScannerModule, TOPMCTrackMakerModule, TOPModuleT0CalibratorModule, TOPNtupleModule, TOPPackerModule, TOPPDFCheckerModule, TOPRawDigitConverterModule, TOPRingPlotterModule, TOPTBCComparatorModule, TOPTimeBaseCalibratorModule, TOPUnpackerModule, TOPWaveformFeatureExtractorModule, TOPXTalkChargeShareSetterModule, ExtModule, GenfitVisModule, BeamSpotMonitorModule, KinkFinderModule, Chi2MCTrackMatcherModule, MCV0MatcherModule, MCTrackCandClassifierModule, MuidModule, ROIReadTestModule, SVDROIFinderAnalysisDataModule, SVDROIFinderAnalysisModule, SVDROIFinderModule, CurlingTrackCandSplitterModule, GFTC2SPTCConverterModule, PhaseSpaceAnalysisModule, RT2SPTCConverterModule, SpacePoint2TrueHitConnectorModule, SpacePointCreatorTestModule, SPTC2GFTCConverterModule, SPTCRefereeModule, TCConvertersTestModule, StandardTrackingPerformanceModule, TrackFilterModule, CollectorTestModule, StudyMaterialEffectsModule, EffPlotsModule, FillTrackFitNtupleModule, HitXPModule, TrackingPerformanceEvaluationModule, V0findingPerformanceEvaluationModule, TrackQETrainingDataCollectorModule, V0FinderModule, SecMapTrainerBaseModule, SecMapTrainerVXDTFModule, TrackFinderVXDAnalizerModule, VXDQETrainingDataCollectorModule, FastBDTClassifierAnalyzerModule, FastBDTClassifierTrainingModule, MLSegmentNetworkProducerModule, NoKickCutsEvalModule, SegmentNetworkAnalyzerModule, SPTC2RTConverterModule, VXDTFTrainingDataCollectorModule, FindletModule< AFindlet >, FindletModule< HitBasedT0Extractor >, FindletModule< CKFToSVDSeedFindlet >, FindletModule< CKFToSVDFindlet >, FindletModule< CosmicsTrackMergerFindlet >, FindletModule< DATCONFPGAFindlet >, FindletModule< MCVXDCDCTrackMergerFindlet >, FindletModule< vxdHoughTracking::SVDHoughTracking >, FindletModule< CKFToCDCFindlet >, FindletModule< CKFToCDCFromEclFindlet >, FindletModule< CKFToPXDFindlet >, FindletModule< AsicBackgroundLibraryCreator >, FindletModule< CDCTrackingEventLevelMdstInfoFillerFindlet >, FindletModule< AxialSegmentPairCreator >, FindletModule< AxialStraightTrackFinder >, FindletModule< AxialTrackCreatorMCTruth >, FindletModule< AxialTrackCreatorSegmentHough >, FindletModule< AxialTrackFinderHough >, FindletModule< AxialTrackFinderLegendre >, FindletModule< ClusterBackgroundDetector >, FindletModule< ClusterPreparer >, FindletModule< ClusterRefiner< BridgingWireHitRelationFilter > >, FindletModule< FacetCreator >, FindletModule< HitReclaimer >, FindletModule< MonopoleAxialTrackFinderLegendre >, FindletModule< MonopoleStereoHitFinder >, FindletModule< MonopoleStereoHitFinderQuadratic >, FindletModule< SegmentCreatorFacetAutomaton >, FindletModule< SegmentCreatorMCTruth >, FindletModule< SegmentFinderFacetAutomaton >, FindletModule< SegmentFitter >, FindletModule< SegmentLinker >, FindletModule< SegmentOrienter >, FindletModule< SegmentPairCreator >, FindletModule< SegmentRejecter >, FindletModule< SegmentTrackCombiner >, FindletModule< SegmentTripleCreator >, FindletModule< StereoHitFinder >, FindletModule< SuperClusterCreator >, FindletModule< TrackCombiner >, FindletModule< TrackCreatorSegmentPairAutomaton >, FindletModule< TrackCreatorSegmentTripleAutomaton >, FindletModule< TrackCreatorSingleSegments >, FindletModule< TrackExporter >, FindletModule< TrackFinderAutomaton >, FindletModule< TrackFinderCosmics >, FindletModule< TrackFinder >, FindletModule< TrackFinderSegmentPairAutomaton >, FindletModule< TrackFinderSegmentTripleAutomaton >, FindletModule< TrackFlightTimeAdjuster >, FindletModule< TrackLinker >, FindletModule< TrackOrienter >, FindletModule< TrackQualityAsserter >, FindletModule< TrackQualityEstimator >, FindletModule< TrackRejecter >, FindletModule< WireHitBackgroundDetector >, FindletModule< WireHitCreator >, FindletModule< WireHitPreparer >, CDCTriggerNeuroDQMModule, CDCTriggerNeuroDQMOnlineModule, CDCTriggerHoughETFModule, CDCTrigger2DFinderModule, CDCTriggerNDFinderModule, CDCTriggerNeuroDataModule, CDCTriggerNeuroIDHistModule, CDCTriggerTSFFirmwareModule, CDCTriggerTSFModule, TRGCDCModule, TRGCDCETFUnpackerModule, TRGCDCT2DDQMModule, TRGCDCT3DConverterModule, TRGCDCT3DDQMModule, TRGCDCT3DUnpackerModule, TRGCDCTSFDQMModule, TRGCDCTSFUnpackerModule, TRGCDCTSStreamModule, CDCTriggerUnpackerModule, MCMatcherTRGECLModule, TRGECLFAMModule, TRGECLModule, TRGECLBGTCHitModule, TRGECLDQMModule, TRGECLQAMModule, TRGECLRawdataAnalysisModule, TRGECLTimingCalModule, TRGECLUnpackerModule, TRGGDLModule, TRGEFFDQMModule, TRGGDLDQMModule, TRGGDLDSTModule, TRGGDLSummaryModule, TRGGDLUnpackerModule, TRGGRLMatchModule, TRGGRLModule, TRGGRLProjectsModule, TRGGRLDQMModule, GRLNeuroModule, GRLNeuroTrainerModule, TRGGRLUnpackerModule, KLMTriggerModule, TRGTOPDQMModule, TRGTOPTRD2TTSConverterModule, TRGTOPUnpackerModule, TRGTOPUnpackerWaveformModule, TRGTOPWaveformPlotterModule, TRGRAWDATAModule, VXDMisalignmentModule, DQMHistAnalysisARICHModule, DQMHistAnalysisARICHMonObjModule, DQMHistAnalysisCDCDedxModule, DQMHistAnalysisCDCEpicsModule, DQMHistAnalysisCDCMonObjModule, DQMHistAnalysisDAQMonObjModule, DQMHistAnalysisECLModule, DQMHistAnalysisECLConnectedRegionsModule, DQMHistAnalysisECLOutOfTimeDigitsModule, DQMHistAnalysisECLShapersModule, DQMHistAnalysisECLSummaryModule, DQMHistAnalysisEpicsExampleModule, DQMHistAnalysisEventT0EfficiencyModule, DQMHistAnalysisEventT0TriggerJitterModule, DQMHistAnalysisExampleModule, DQMHistAnalysisExampleFlagsModule, DQMHistAnalysisHLTModule, DQMHistAnalysisHLTMonObjModule, DQMHistAnalysisInput2Module, DQMHistAnalysisInputPVSrvModule, DQMHistAnalysisInputTestModule, DQMHistAnalysisKLMModule, DQMHistAnalysisMiraBelleModule, DQMHistAnalysisMonObjModule, DQMHistAnalysisOutputFileModule, DQMHistAnalysisOutputMonObjModule, DQMHistAnalysisOutputRelayMsgModule, DQMHistAnalysisPeakModule, DQMHistAnalysisPXDFitsModule, DQMHistAnalysisSVDEfficiencyModule, DQMHistAnalysisSVDGeneralModule, DQMHistAnalysisSVDOnMiraBelleModule, DQMHistAnalysisTOPModule, DQMHistAnalysisTrackingAbortModule, DQMHistAnalysisTRGECLModule, DQMHistAnalysisTRGEFFModule, DQMHistAnalysisTRGGDLModule, DQMHistAutoCanvasModule, DQMHistComparitorModule, DQMHistDeltaHistoModule, DQMHistReferenceModule, DQMHistSnapshotsModule, PyModule, PXDBgTupleProducerModule, PXDMCBgTupleProducerModule, PXDDQMEfficiencyNtupleModule, PXDDQMEfficiencyNtupleSelftrackModule, PXDDQMTrackRawNtupleModule, PXDPackerErrModule, PXDPackerModule, PXDReadRawBonnDAQModule, PXDReadRawBonnDAQMatchedModule, PXDReadRawONSENModule, PXDUnpackerModule, PXDUnpackerOldModule, PXDUnpackerOTModule, SVDDQMClustersOnTrackModule, SVDDQMExpressRecoModule, PXDROIFinderAnalysisModule, ROISenderModule, DQMHistAnalysisDeltaEpicsMonObjExampleModule, DQMHistAnalysisDeltaTestModule, DQMHistAnalysisPhysicsModule, DQMHistAnalysisPXDChargeModule, DQMHistAnalysisPXDCMModule, DQMHistAnalysisPXDDAQModule, DQMHistAnalysisPXDEffModule, DQMHistAnalysisPXDERModule, DQMHistAnalysisPXDInjectionModule, DQMHistAnalysisPXDReductionModule, DQMHistAnalysisPXDTrackChargeModule, DQMHistAnalysisRooFitExampleModule, DQMHistAnalysisRunNrModule, DQMHistAnalysisTRGModule, DQMHistOutputToEPICSModule, and ROIDQMModule.

Definition at line 176 of file Module.h.

{};

Member Data Documentation

m_calibratePeak

bool m_calibratePeak = false

protected

Use peak widths and peak time calibrations? Unitl this is also simulated, set to true only for testbeam data.

Definition at line 108 of file SVDClusterizerDirectModule.h.

m_conditions

std::vector<ModuleCondition> m_conditions

privateinherited

Module condition, only non-null if set.

Definition at line 521 of file Module.h.

m_cutAdjacent

double m_cutAdjacent = 3.0

protected

Noise (cluster member) cut in units of m_elNoise.

Definition at line 113 of file SVDClusterizerDirectModule.h.

m_cutCluster

double m_cutCluster = 5.0

protected

Cluster cut in units of m_elNoise.

Definition at line 117 of file SVDClusterizerDirectModule.h.

m_cutSeed

double m_cutSeed = 5.0

protected

Seed cut in units of m_elNoise.

Definition at line 115 of file SVDClusterizerDirectModule.h.

m_description

std::string m_description

privateinherited

The description of the module.

Definition at line 511 of file Module.h.

m_fitter

NNWaveFitter m_fitter

protected

Time fitter.

Definition at line 123 of file SVDClusterizerDirectModule.h.

m_hasReturnValue

bool m_hasReturnValue

privateinherited

True, if the return value is set.

Definition at line 518 of file Module.h.

m_logConfig

LogConfig m_logConfig

privateinherited

The log system configuration of the module.

Definition at line 514 of file Module.h.

m_mcRelation

RelationLookup m_mcRelation

protected

Lookup table for SVDShaperDigit->MCParticle relation.

Definition at line 132 of file SVDClusterizerDirectModule.h.

m_moduleParamList

ModuleParamList m_moduleParamList

privateinherited

List storing and managing all parameter of the module.

Definition at line 516 of file Module.h.

m_name

std::string m_name

privateinherited

The name of the module, saved as a string (user-modifiable)

Definition at line 508 of file Module.h.

m_noiseCal

SVDNoiseCalibrations m_noiseCal

protected

Calibrations: noise.

Definition at line 126 of file SVDClusterizerDirectModule.h.

m_package

std::string m_package

privateinherited

Package this module is found in (may be empty).

Definition at line 510 of file Module.h.

m_propertyFlags

unsigned int m_propertyFlags

privateinherited

The properties of the module as bitwise or (with |) of EModulePropFlags.

Definition at line 512 of file Module.h.

m_pulseShapeCal

SVDPulseShapeCalibrations m_pulseShapeCal

protected

Calibrations: pusle shape and gain.

Definition at line 128 of file SVDClusterizerDirectModule.h.

m_relClusterMCParticleName

std::string m_relClusterMCParticleName

protected

Name of the relation between SVDClusters and MCParticles.

Definition at line 95 of file SVDClusterizerDirectModule.h.

m_relClusterShaperDigitName

std::string m_relClusterShaperDigitName

protected

Name of the relation between SVDClusters and SVDShaperDigits.

Definition at line 99 of file SVDClusterizerDirectModule.h.

m_relClusterTrueHitName

std::string m_relClusterTrueHitName

protected

Name of the relation between SVDClusters and SVDTrueHits.

Definition at line 97 of file SVDClusterizerDirectModule.h.

m_relShaperDigitMCParticleName

std::string m_relShaperDigitMCParticleName

protected

Name of the relation between SVDShaperDigits and MCParticles.

Definition at line 91 of file SVDClusterizerDirectModule.h.

m_relShaperDigitTrueHitName

std::string m_relShaperDigitTrueHitName

protected

Name of the relation between SVDShaperDigits and SVDTrueHits.

Definition at line 93 of file SVDClusterizerDirectModule.h.

m_returnValue

int m_returnValue

privateinherited

The return value.

Definition at line 519 of file Module.h.

m_sizeHeadTail

int m_sizeHeadTail = 3

protected

Size of the cluster at which we switch from Center of Gravity to Analog Head Tail.

Definition at line 119 of file SVDClusterizerDirectModule.h.

m_storeClustersName

std::string m_storeClustersName

protected

Name of the collection to use for the SVDClusters.

Definition at line 89 of file SVDClusterizerDirectModule.h.

m_storeMCParticlesName

std::string m_storeMCParticlesName

protected

Name of the collection to use for the MCParticles.

Definition at line 83 of file SVDClusterizerDirectModule.h.

m_storeShaperDigitsName

std::string m_storeShaperDigitsName

protected

Name of the collection to use for the SVDShaperDigits.

Definition at line 87 of file SVDClusterizerDirectModule.h.

m_storeSVDEvtInfo

StoreObjPtr<SVDEventInfo> m_storeSVDEvtInfo

protected

Storage for SVDEventInfo object.

Definition at line 79 of file SVDClusterizerDirectModule.h.

m_storeTrueHitsName

std::string m_storeTrueHitsName

protected

Name of the collection to use for the SVDTrueHits.

Definition at line 85 of file SVDClusterizerDirectModule.h.

m_svdEventInfoName

std::string m_svdEventInfoName

protected

Name of the SVDEventInfo object.

Definition at line 101 of file SVDClusterizerDirectModule.h.

m_timeFitterName

std::string m_timeFitterName

protected

Name of the time fitter (db label)

Definition at line 105 of file SVDClusterizerDirectModule.h.

m_trueRelation

RelationLookup m_trueRelation

protected

Lookup table for SVDShaperDigit->SVDTrueHit relation.

Definition at line 134 of file SVDClusterizerDirectModule.h.

m_type

std::string m_type

privateinherited

The type of the module, saved as a string.

Definition at line 509 of file Module.h.

---

The documentation for this class was generated from the following files:

• svd/modules/svdReconstruction/include/SVDClusterizerDirectModule.h
• svd/modules/svdReconstruction/src/SVDClusterizerDirectModule.cc
