Class to add the matched hits to the track and set the taken flag correctly. More...

#include <StereoHitTrackAdder.h>

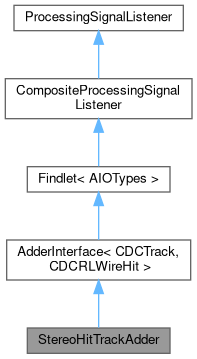

Inheritance diagram for StereoHitTrackAdder:

[legend]

Collaboration diagram for StereoHitTrackAdder:

[legend]

Public Types
using	WeightedRelationItem = WeightedRelation< CDCTrack, const CDCRLWireHit >
	Shortcut class name for a weighted relation between a collector item and a collection item.

using	IOTypes = std::tuple< AIOTypes... >
	Types that should be served to apply on invokation.

using	IOVectors = std::tuple< std::vector< AIOTypes >... >
	Vector types that should be served to apply on invokation.

Public Member Functions
void	apply (std::vector< WeightedRelationItem > &weightedRelations) override
	Main function to do the adding. Override the add function below in your derived class.

virtual void	apply (ToVector< AIOTypes > &... ioVectors)=0
	Main function executing the algorithm.

virtual std::string	getDescription ()
	Brief description of the purpose of the concret findlet.

virtual void	exposeParameters (ModuleParamList *moduleParamList, const std::string &prefix)
	Forward prefixed parameters of this findlet to the module parameter list.

void	initialize () override
	Receive and dispatch signal before the start of the event processing.

void	beginRun () override
	Receive and dispatch signal for the beginning of a new run.

void	beginEvent () override
	Receive and dispatch signal for the start of a new event.

void	endRun () override
	Receive and dispatch signal for the end of the run.

void	terminate () override
	Receive and dispatch Signal for termination of the event processing.

Protected Types
template<class T >
using	ToVector = typename ToVectorImpl< T >::Type
	Short hand for ToRangeImpl.

Protected Member Functions
void	addProcessingSignalListener (ProcessingSignalListener *psl)
	Register a processing signal listener to be notified.

int	getNProcessingSignalListener ()
	Get the number of currently registered listeners.

Private Types
using	Super = ProcessingSignalListener
	Type of the base class.

Private Member Functions
void	add (CDCTrack &track, const CDCRLWireHit &hit, Weight weight) override
	Add the matched hits to the track and set the taken flag correctly.

Private Attributes
std::vector< ProcessingSignalListener * >	m_subordinaryProcessingSignalListeners
	References to subordinary signal processing listener contained in this findlet.

bool	m_initialized = false
	Flag to keep track whether initialization happend before.

bool	m_terminated = false
	Flag to keep track whether termination happend before.

std::string	m_initializedAs
	Name of the type during initialisation.

Detailed Description

Class to add the matched hits to the track and set the taken flag correctly.

Definition at line 21 of file StereoHitTrackAdder.h.

Member Typedef Documentation

◆ IOTypes

using IOTypes = std::tuple<AIOTypes...>

inherited

Types that should be served to apply on invokation.

Definition at line 30 of file Findlet.h.

◆ IOVectors

using IOVectors = std::tuple< std::vector<AIOTypes>... >

inherited

Vector types that should be served to apply on invokation.

Definition at line 53 of file Findlet.h.

◆ Super

using Super = ProcessingSignalListener

privateinherited

Type of the base class.

Definition at line 25 of file CompositeProcessingSignalListener.h.

◆ ToVector

using ToVector = typename ToVectorImpl<T>::Type

protectedinherited

Short hand for ToRangeImpl.

Definition at line 49 of file Findlet.h.

◆ WeightedRelationItem

using WeightedRelationItem = WeightedRelation<CDCTrack , const CDCRLWireHit >

inherited

Shortcut class name for a weighted relation between a collector item and a collection item.

Definition at line 42 of file AdderInterface.h.

Member Function Documentation

◆ add()

void add	(	CDCTrack &	track,
		const CDCRLWireHit &	hit,
		Weight	weight
	)

overrideprivatevirtual

Add the matched hits to the track and set the taken flag correctly.

We ignore the weight completely here.

Reimplemented from AdderInterface< CDCTrack, CDCRLWireHit >.

Definition at line 20 of file StereoHitTrackAdder.cc.

{
  const CDCTrajectory2D& trajectory2D = track.getStartTrajectory3D().getTrajectory2D();
  const double radius = trajectory2D.getGlobalCircle().absRadius();
  const bool isCurler = trajectory2D.isCurler();

  Vector3D recoPos3D = hit.reconstruct3D(trajectory2D);
  double arcLength2D = trajectory2D.calcArcLength2D(recoPos3D.xy());
  if (isCurler and arcLength2D < 0) {
    arcLength2D += 2 * TMath::Pi() * radius;
  }

  B2ASSERT("A stereo hit should not be added twice!", not hit.getWireHit().getAutomatonCell().hasTakenFlag());
  track.emplace_back(hit, recoPos3D, arcLength2D);
  hit.getWireHit().getAutomatonCell().setTakenFlag();
}

◆ addProcessingSignalListener()

void addProcessingSignalListener ( ProcessingSignalListener * psl )

protectedinherited

Register a processing signal listener to be notified.

Definition at line 55 of file CompositeProcessingSignalListener.cc.

{
  m_subordinaryProcessingSignalListeners.push_back(psl);
}

◆ apply()

void apply ( std::vector< WeightedRelationItem > & weightedRelations )

inlineoverrideinherited

Main function to do the adding. Override the add function below in your derived class.

Definition at line 45 of file AdderInterface.h.

      {
        for (const WeightedRelationItem& relationItem : weightedRelations) {
          ACollectorItem& collectorItem = *relationItem.getFrom();
          const ACollectionItem& collectionItem = *relationItem.getTo();
          Weight weight = relationItem.getWeight();
          add(collectorItem, collectionItem, weight);
        }
      }

◆ beginEvent()

void beginEvent ( )

overridevirtualinherited

Receive and dispatch signal for the start of a new event.

Reimplemented from ProcessingSignalListener.

Definition at line 31 of file CompositeProcessingSignalListener.cc.

{
  Super::beginEvent();
  for (ProcessingSignalListener* psl : m_subordinaryProcessingSignalListeners) {
    psl->beginEvent();
  }
}

◆ beginRun()

void beginRun ( )

overridevirtualinherited

Receive and dispatch signal for the beginning of a new run.

Reimplemented from ProcessingSignalListener.

Reimplemented in LayerRelationFilter< AFilter >, FourHitFilter, QualityIndicatorFilter, ThreeHitFilter, TwoHitVirtualIPFilter, TwoHitVirtualIPQIFilter, RecoTrackStorer, ROIFinder, SpacePointLoaderAndPreparer, and TrackCandidateResultRefiner.

Definition at line 23 of file CompositeProcessingSignalListener.cc.

{
  Super::beginRun();
  for (ProcessingSignalListener* psl : m_subordinaryProcessingSignalListeners) {
    psl->beginRun();
  }
}

◆ endRun()

void endRun ( )

overridevirtualinherited

Receive and dispatch signal for the end of the run.

Reimplemented from ProcessingSignalListener.

Definition at line 39 of file CompositeProcessingSignalListener.cc.

{
  for (ProcessingSignalListener* psl : reversedRange(m_subordinaryProcessingSignalListeners)) {
    psl->endRun();
  }
  Super::endRun();
}

◆ exposeParameters()

virtual void exposeParameters	(	ModuleParamList *	moduleParamList,
		const std::string &	prefix
	)

inlinevirtualinherited

Forward prefixed parameters of this findlet to the module parameter list.

Definition at line 69 of file Findlet.h.

71 {

72 }

◆ getDescription()

virtual std::string getDescription ( )

inlinevirtualinherited

Brief description of the purpose of the concret findlet.

Definition at line 60 of file Findlet.h.

      {
        return "(no description)";
      }

◆ getNProcessingSignalListener()

int getNProcessingSignalListener ( )

protectedinherited

Get the number of currently registered listeners.

Definition at line 60 of file CompositeProcessingSignalListener.cc.

{
  return m_subordinaryProcessingSignalListeners.size();
}

◆ initialize()

void initialize ( )

overridevirtualinherited

Receive and dispatch signal before the start of the event processing.

Reimplemented from ProcessingSignalListener.

Definition at line 15 of file CompositeProcessingSignalListener.cc.

{
  Super::initialize();
  for (ProcessingSignalListener* psl : m_subordinaryProcessingSignalListeners) {
    psl->initialize();
  }
}

◆ terminate()

void terminate ( )

overridevirtualinherited

Receive and dispatch Signal for termination of the event processing.

Reimplemented from ProcessingSignalListener.

Reimplemented in StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::HyperHough >, StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::QuadraticLegendre >, and StereoHitTrackQuadTreeMatcher< Belle2::TrackFindingCDC::Z0TanLambdaLegendre >.

Definition at line 47 of file CompositeProcessingSignalListener.cc.

{
  for (ProcessingSignalListener* psl : reversedRange(m_subordinaryProcessingSignalListeners)) {
    psl->terminate();
  }
  Super::terminate();
}

Member Data Documentation

◆ m_initialized

bool m_initialized = false

privateinherited

Flag to keep track whether initialization happend before.

Definition at line 52 of file ProcessingSignalListener.h.

◆ m_initializedAs

std::string m_initializedAs

privateinherited

Name of the type during initialisation.

Definition at line 58 of file ProcessingSignalListener.h.

◆ m_subordinaryProcessingSignalListeners

std::vector<ProcessingSignalListener*> m_subordinaryProcessingSignalListeners

privateinherited

References to subordinary signal processing listener contained in this findlet.

Definition at line 52 of file CompositeProcessingSignalListener.h.

◆ m_terminated

bool m_terminated = false

privateinherited

Flag to keep track whether termination happend before.

Definition at line 55 of file ProcessingSignalListener.h.

The documentation for this class was generated from the following files:

tracking/trackFindingCDC/collectors/adders/include/StereoHitTrackAdder.h
tracking/trackFindingCDC/collectors/adders/src/StereoHitTrackAdder.cc
