#include <DATCONTrackingModule.h>

Inheritance diagram for DATCONTrackingModule:

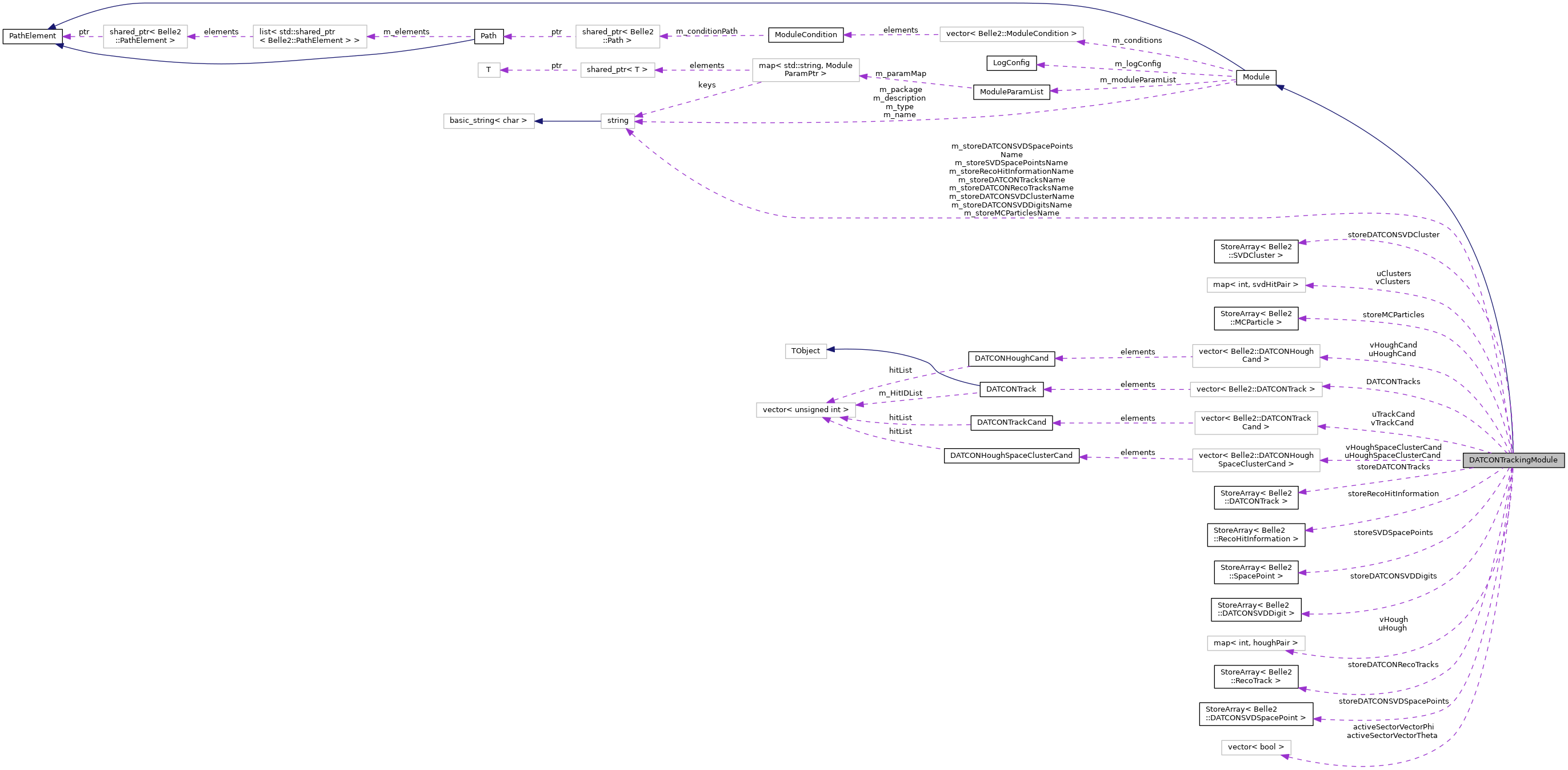

Collaboration diagram for DATCONTrackingModule:

[legend]

Public Types
enum	EModulePropFlags { c_Input = 1, c_Output = 2, c_ParallelProcessingCertified = 4, c_HistogramManager = 8, c_InternalSerializer = 16, c_TerminateInAllProcesses = 32, c_DontCollectStatistics = 64 }
	Each module can be tagged with property flags, which indicate certain features of the module. More...

typedef ModuleCondition::EAfterConditionPath	EAfterConditionPath
	Forward the EAfterConditionPath definition from the ModuleCondition.

Public Member Functions
	DATCONTrackingModule ()
	Constructor. More...

virtual	~DATCONTrackingModule ()=default
	Standard Deconstructor.

virtual void	initialize () override
	Initialize the module and check module parameters.

virtual void	event () override
	Run tracking.

virtual void	terminate () override
	Terminate the module.

void	addParameter ()
	Add module parameter, put in separate function to have the Constructor clean and readable.

void	prepareDATCONSVDSpacePoints ()
	Prepare the DATCONSVDSpacePoints for the Hough Trafo.

void	prepareSVDSpacePoints ()
	Prepare the DATCONSVDSpacePoints for the Hough Trafo.

void	houghTrafo2d (svdHitMap &mapClusters, bool u_side)
	Hough transformation function.

int	fastInterceptFinder2d (houghMap &hits, bool u_side, TVector2 v1_s, TVector2 v2_s, TVector2 v4_s, unsigned int iterations, unsigned int maxIterations)
	Intercept Finder functions. More...

int	slowInterceptFinder2d (houghMap &hits, bool u_side)
	FPGA-like intercept finder with all the sectors defined a priori, so no subdivision of sectors is needed. More...

void	FindHoughSpaceCluster (bool u_side)
	Cluster finding in the Hough Space using a "depth first search" algorithm.

void	DepthFirstSearch (bool u_side, int **ArrayOfActiveHoughSpaceSectors, int angleSectors, int vertSectors, int actualPositionX, int actualPositionY, std::vector< unsigned int > &mergedList)
	Depth First Search algorithm, compare with https://en.wikipedia.org/wiki/Depth-first_search (06. More...

bool	layerFilter (bool *layer)
	Layer filter, checking for hits from different SVD layers.

void	purifyTrackCandsList ()
	Purify track candidates by checking list of strip_id (specific id calculated in this module) More...

bool	compareList (std::vector< unsigned int > &aList, std::vector< unsigned int > &bList)
	Compare strip_id lists / lists of counter variable.

void	mergeIdList (std::vector< unsigned int > &mergedList, std::vector< unsigned int > &mergeme)
	Merge strip_id lists / lists of counter variables to combine large lists to smaller ones and thus purify track candidates and avoid (too) many fakes.

void	trackCandMerger ()
	Track merger to merge DATCONTrackCand with similar properties and to avoid / reduce number of fakes. More...

void	trackMerger ()
	Track merger to merge DATCONTrackCand with similar properties and to avoid / reduce number of fakes. More...

void	findandcombine3d ()
	Find and Combine track candidates Combine found values of phi and r from u-side HS with found values of theta from v-side HS into track candidates. More...

void	saveHitsToRecoTrack (std::vector< unsigned int > &idList, TVector3 momentum)
	Save Hits to RecoTrack. More...

virtual std::vector< std::string >	getFileNames (__attribute__((unused)) bool outputFiles)
	Return a list of output filenames for this modules. More...

virtual void	beginRun ()
	Called when entering a new run. More...

virtual void	endRun ()
	This method is called if the current run ends. More...

const std::string &	getName () const
	Returns the name of the module. More...

const std::string &	getType () const
	Returns the type of the module (i.e. More...

const std::string &	getPackage () const
	Returns the package this module is in.

const std::string &	getDescription () const
	Returns the description of the module.

void	setName (const std::string &name)
	Set the name of the module. More...

void	setPropertyFlags (unsigned int propertyFlags)
	Sets the flags for the module properties. More...

LogConfig &	getLogConfig ()
	Returns the log system configuration.

void	setLogConfig (const LogConfig &logConfig)
	Set the log system configuration.

void	setLogLevel (int logLevel)
	Configure the log level.

void	setDebugLevel (int debugLevel)
	Configure the debug messaging level.

void	setAbortLevel (int abortLevel)
	Configure the abort log level.

void	setLogInfo (int logLevel, unsigned int logInfo)
	Configure the printed log information for the given level. More...

void	if_value (const std::string &expression, const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	Add a condition to the module. More...

void	if_false (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to add a condition to the module. More...

void	if_true (const std::shared_ptr< Path > &path, EAfterConditionPath afterConditionPath=EAfterConditionPath::c_End)
	A simplified version to set the condition of the module. More...

bool	hasCondition () const
	Returns true if at least one condition was set for the module.

const ModuleCondition *	getCondition () const
	Return a pointer to the first condition (or nullptr, if none was set)

const std::vector< ModuleCondition > &	getAllConditions () const
	Return all set conditions for this module.

bool	evalCondition () const
	If at least one condition was set, it is evaluated and true returned if at least one condition returns true. More...

std::shared_ptr< Path >	getConditionPath () const
	Returns the path of the last true condition (if there is at least one, else reaturn a null pointer). More...

Module::EAfterConditionPath	getAfterConditionPath () const
	What to do after the conditional path is finished. More...

std::vector< std::shared_ptr< Path > >	getAllConditionPaths () const
	Return all condition paths currently set (no matter if the condition is true or not).

bool	hasProperties (unsigned int propertyFlags) const
	Returns true if all specified property flags are available in this module. More...

bool	hasUnsetForcedParams () const
	Returns true and prints error message if the module has unset parameters which the user has to set in the steering file.

const ModuleParamList &	getParamList () const
	Return module param list.

template<typename T >
ModuleParam< T > &	getParam (const std::string &name) const
	Returns a reference to a parameter. More...

bool	hasReturnValue () const
	Return true if this module has a valid return value set.

int	getReturnValue () const
	Return the return value set by this module. More...

std::shared_ptr< PathElement >	clone () const override
	Create an independent copy of this module. More...

std::shared_ptr< boost::python::list >	getParamInfoListPython () const
	Returns a python list of all parameters. More...

Static Public Member Functions
static void	exposePythonAPI ()
	Exposes methods of the Module class to Python.

Protected Member Functions
virtual void	def_initialize ()
	Wrappers to make the methods without "def_" prefix callable from Python. More...

virtual void	def_beginRun ()
	Wrapper method for the virtual function beginRun() that has the implementation to be used in a call from Python.

virtual void	def_event ()
	Wrapper method for the virtual function event() that has the implementation to be used in a call from Python.

virtual void	def_endRun ()
	This method can receive that the current run ends as a call from the Python side. More...

virtual void	def_terminate ()
	Wrapper method for the virtual function terminate() that has the implementation to be used in a call from Python.

void	setDescription (const std::string &description)
	Sets the description of the module. More...

void	setType (const std::string &type)
	Set the module type. More...

template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description, const T &defaultValue)
	Adds a new parameter to the module. More...

template<typename T >
void	addParam (const std::string &name, T &paramVariable, const std::string &description)
	Adds a new enforced parameter to the module. More...

void	setReturnValue (int value)
	Sets the return value for this module as integer. More...

void	setReturnValue (bool value)
	Sets the return value for this module as bool. More...

void	setParamList (const ModuleParamList &params)
	Replace existing parameter list.

Protected Attributes
std::string	m_storeMCParticlesName
	Members holding module parameters: More...

std::string	m_storeSVDSpacePointsName
	Name of the SVDSpacePoints array.

std::string	m_storeDATCONSVDDigitsName
	Name of the DATCONSVDDigits array.

std::string	m_storeDATCONSVDClusterName
	Name of the DATCONSVDSpacePoints array.

std::string	m_storeDATCONSVDSpacePointsName
	Name of the DATCONSVDSpacePoints array.

std::string	m_storeDATCONTracksName
	Name of the collection for the SVD Hough tracks.

std::string	m_storeDATCONRecoTracksName
	Name of the RecoTrack array.

std::string	m_storeRecoHitInformationName
	Name of the RecoHit StoreArray required for RecoTracks.

StoreArray< MCParticle >	storeMCParticles
	MCParticles StoreArray.

StoreArray< SpacePoint >	storeSVDSpacePoints
	SVDSpacePoints StoreArray.

StoreArray< DATCONSVDDigit >	storeDATCONSVDDigits
	DATCONSVDDigit StoreArray.

StoreArray< SVDCluster >	storeDATCONSVDCluster
	DATCONSVDCluster StoreArray.

StoreArray< DATCONSVDSpacePoint >	storeDATCONSVDSpacePoints
	DATCONSVDSpacePoint StoreArray.

StoreArray< RecoHitInformation >	storeRecoHitInformation
	RecoHitInformation StoreArray for DATCON Reco Hits.

StoreArray< RecoTrack >	storeDATCONRecoTracks
	DATCONRecoTracks StoreArray.

StoreArray< DATCONTrack >	storeDATCONTracks
	DATCONTracks StoreArray.

bool	m_useDATCONSVDSpacePoints
	Use DATCONSVDSpacePoints.

bool	m_useSVDSpacePoints
	Use SVDSpacePoints.

double	m_trackCenterX
	Center of the tracks (our Hough Trafo requires (0, 0, 0). More...

double	m_trackCenterY
	Center position in Y.

unsigned short	m_minimumLines
	Minimum number of lines required for an active sector (default: 3)

int	m_maxIterationsU
	Maximum number of iterations allowed for u-side (obsolete?) (default: 12)

int	m_maxIterationsV
	Maximum number of iterations allowed for v-side (obsolete?) (default: 12)

bool	m_independentSectors
	Use tracking with independent sectors in HS like it is possible to do on FPGA (with slowInterceptFinder2d) Independent means: number of sectors is not necessary equal to 2^n with n=1,2,3,... More...

int	m_nAngleSectorsU
	Using independent sectors: Number of horizontal sectors for u-side (default: 256)

int	m_nAngleSectorsV
	Using independent sectors: Number of horizontal sectors for v-side (default: 256)

int	m_nVertSectorsU
	Using independent sectors: Number of vertical sectors for u-side (default: 256)

int	m_nVertSectorsV
	Using independent sectors: Number of vertical sectors for v-side (default: 256)

double	m_rectSizeV
	For fastInterceptFinder2d: vertical size of HS for v-side (default: 0.1)

double	m_rectSizeU
	For fastInterceptFinder2d: vertical size of HS for u-side (default: 0.1)

bool	m_usePhase2Simulation
	Use the simulation for phase 2 geometry and FPGA setup?

bool	m_usePurifier
	Use purifying algortihm at all.

bool	m_useHoughSpaceClustering
	Use FindHoughSpaceCluster algorithm to extract track information from the Hough Spaces?

int	m_MinimumPhiHSClusterSize
	Minimum cluster size in the Phi HS.

int	m_MaximumPhiHSClusterSize
	Maximum cluster size in the Phi HS.

int	m_MaximumPhiHSClusterSizeX
	Maximum cluster size in horizontal direction in the Phi HS.

int	m_MaximumPhiHSClusterSizeY
	Maximum cluster size in vertical direction in the Phi HS.

int	m_MinimumThetaHSClusterSize
	Minimum cluster size of the Theta HS.

int	m_MaximumThetaHSClusterSize
	Maximum cluster size in the Theta HS.

int	m_MaximumThetaHSClusterSizeX
	Maximum cluster size in horizontal direction in the Theta HS.

int	m_MaximumThetaHSClusterSizeY
	Maximum cluster size in vertical direction in the Theta HS.

int	m_clusterSize
	Size of the current cluster.

int	m_clusterCount
	Number of clusters in current event.

TVector2	m_clusterInitialPosition
	Initial position of cluster in HS sector coordinates.

TVector2	m_clusterCenterOfGravity
	Center of Gravity of current cluster.

bool	m_useTrackCandMerger
	Use TrackMerger to merge found tracks (candidates) to avoid / reduce fakes.

bool	m_useTrackCandMergerU
	Use TrackMerger for u-side tracks (candidates)

bool	m_useTrackCandMergerV
	Use TrackMerger for v-side tracks (candidates)

double	m_mergeThreshold
	Global track merger merging threshold.

double	m_mergeThresholdU
	Merging threshold for u-side trackCandMerger.

double	m_mergeThresholdV
	Merging threshold for v-side trackCandMerger.

bool	m_useTrackMerger
	Use TrackMerger to merge found tracks (candidates) to avoid / reduce fakes.

double	m_mergeThresholdPhi
	Merging threshold for phi trackMerger.

double	m_mergeThresholdTheta
	Merging threshold for theta trackMerger.

svdHitMap	uClusters
	Clusters. More...

svdHitMap	vClusters
	SVD v-side clusters.

houghMap	uHough
	Hough Map. More...

houghMap	vHough
	v-side HoughMap

std::vector< DATCONHoughCand >	uHoughCand
	Hough Candidates. More...

std::vector< DATCONHoughCand >	vHoughCand
	v-side

std::vector< DATCONHoughSpaceClusterCand >	uHoughSpaceClusterCand
	u-side

std::vector< DATCONHoughSpaceClusterCand >	vHoughSpaceClusterCand
	v-side

std::vector< DATCONTrackCand >	uTrackCand
	Purified Hough Candidates. More...

std::vector< DATCONTrackCand >	vTrackCand
	v-side

std::vector< DATCONTrack >	DATCONTracks
	DATCON Track.

std::vector< bool >	activeSectorVectorPhi
	Vector of bools containing information about the active sectors of the Phi Hough Space in a 1-D representation.

std::vector< bool >	activeSectorVectorTheta
	Analogue vector for the Theta Hough Space.

int **	ArrayOfActiveSectorsPhiHS
	"2D-Array" of the sectors of the Phi Hough Space containing information whether or not a sector is "active", meaning it is at crossed by at least three rising curves of three different layers.

int **	ArrayOfActiveSectorsThetaHS
	Analogue array for the Theta Hough Space.

Private Member Functions
std::list< ModulePtr >	getModules () const override
	no submodules, return empty list

std::string	getPathString () const override
	return the module name.

void	setParamPython (const std::string &name, const boost::python::object &pyObj)
	Implements a method for setting boost::python objects. More...

void	setParamPythonDict (const boost::python::dict &dictionary)
	Implements a method for reading the parameter values from a boost::python dictionary. More...

Private Attributes
std::string	m_name
	The name of the module, saved as a string (user-modifiable)

std::string	m_type
	The type of the module, saved as a string.

std::string	m_package
	Package this module is found in (may be empty).

std::string	m_description
	The description of the module.

unsigned int	m_propertyFlags
	The properties of the module as bitwise or (with \|) of EModulePropFlags.

LogConfig	m_logConfig
	The log system configuration of the module.

ModuleParamList	m_moduleParamList
	List storing and managing all parameter of the module.

bool	m_hasReturnValue
	True, if the return value is set.

int	m_returnValue
	The return value.

std::vector< ModuleCondition >	m_conditions
	Module condition, only non-null if set.

Detailed Description

DATCONTrackingModule class.

Definition at line 79 of file DATCONTrackingModule.h.

Member Enumeration Documentation

◆ EModulePropFlags

enum EModulePropFlags

inherited

Each module can be tagged with property flags, which indicate certain features of the module.

Enumerator
c_Input	This module is an input module (reads data).
c_Output	This module is an output module (writes data).
c_ParallelProcessingCertified	This module can be run in parallel processing mode safely (All I/O must be done through the data store, in particular, the module must not write any files.)
c_HistogramManager	This module is used to manage histograms accumulated by other modules.
c_InternalSerializer	This module is an internal serializer/deserializer for parallel processing.
c_TerminateInAllProcesses	When using parallel processing, call this module's terminate() function in all processes(). This will also ensure that there is exactly one process (single-core if no parallel modules found) or at least one input, one main and one output process.
c_DontCollectStatistics	No statistics is collected for this module.

Definition at line 79 of file Module.h.

Constructor & Destructor Documentation

◆ DATCONTrackingModule()

DATCONTrackingModule ( )

Constructor.

Definition at line 25 of file DATCONTrackingModule.cc.

                                            : Module()
 {
   //Set module properties
   setDescription("DATCON: Data Acquisition Tracking Concentrator Online Node \n"
                  "Algorithm for online data reduction in the PXD. \n"
                  "DATCON takes SVD hits as input and performs track reconstruction based on these data. \n"
                  "The tracks are extrapolated from the origin in the x-y-plane to the PXD sensors. \n"
                  "Around each extrapolated hit (called Most Probable Hit, MPH), a Region of Interest (ROI) is created."
                  "The data of the ROIs (namely two opposing corners) are sent to the \n"
                  "Online Selector Node (ONSEN) which also receives ROIs of the Higher Level Trigger (HLT). \n"
                  "This C++ Implementation of DATCON is the development environment, the algorithms will later \n"
                  "be transferred to FPGA, as DATCON is a hardware based online data reduction system.");
   setPropertyFlags(c_ParallelProcessingCertified);

   addParameter();

 }

Member Function Documentation

◆ beginRun()

virtual void beginRun ( )

inlinevirtualinherited

Called when entering a new run.

Called at the beginning of each run, the method gives you the chance to change run dependent constants like alignment parameters, etc.

This method can be implemented by subclasses.

Definition at line 149 of file Module.h.

◆ clone()

std::shared_ptr< PathElement > clone ( ) const

overridevirtualinherited

Create an independent copy of this module.

Note that parameters are shared, so changing them on a cloned module will also affect the original module.

Implements PathElement.

Definition at line 181 of file Module.cc.

◆ def_endRun()

virtual void def_endRun ( )

inlineprotectedvirtualinherited

This method can receive that the current run ends as a call from the Python side.

For regular C++-Modules that forwards the call to the regular endRun() method.

Reimplemented in PyModule.

Definition at line 441 of file Module.h.

◆ def_initialize()

virtual void def_initialize ( )

inlineprotectedvirtualinherited

Wrappers to make the methods without "def_" prefix callable from Python.

Overridden in PyModule. Wrapper method for the virtual function initialize() that has the implementation to be used in a call from Python.

Reimplemented in PyModule.

Definition at line 422 of file Module.h.

◆ DepthFirstSearch()

void DepthFirstSearch	(	bool	u_side,
		int **	ArrayOfActiveHoughSpaceSectors,
		int	angleSectors,
		int	vertSectors,
		int	actualPositionX,
		int	actualPositionY,
		std::vector< unsigned int > &	mergedList
	)

Depth First Search algorithm, compare with https://en.wikipedia.org/wiki/Depth-first_search (06.

May 2018) https://en.wikipedia.org/wiki/Connected_component_(graph_theory) (06. May 2018)

Definition at line 102 of file DATCONTrackingHoughSpaceClusterFinder.cc.

 {
   vector<unsigned int> mergeMeIDList;
   int maximumClusterSize;
   int maximumClusterSizeX;
   int maximumClusterSizeY;
   vector<DATCONHoughSpaceClusterCand> HoughSpaceClusterCandCopy;
   TVector2 CandidateCoordinates;

   if (uSide) {
     HoughSpaceClusterCandCopy = uHoughSpaceClusterCand;
     maximumClusterSize  = m_MaximumPhiHSClusterSize;
     maximumClusterSizeX = m_MaximumPhiHSClusterSizeX;
     maximumClusterSizeY = m_MaximumPhiHSClusterSizeY;
   } else {
     HoughSpaceClusterCandCopy = vHoughSpaceClusterCand;
     maximumClusterSize  = m_MaximumThetaHSClusterSize;
     maximumClusterSizeX = m_MaximumThetaHSClusterSizeX;
     maximumClusterSizeY = m_MaximumThetaHSClusterSizeY;
   }

   ArrayOfActiveHoughSpaceSectors[actualPositionY][actualPositionX] = m_clusterCount;
   for (int k = actualPositionY; k >= actualPositionY - 1; k--) {
     for (int l = actualPositionX; l <= actualPositionX + 1; l++) {
       if (k >= 0  && k < vertSectors && l >= 0 && l < angleSectors) {
         if (ArrayOfActiveHoughSpaceSectors[k][l] == -1) {
           for (auto it = HoughSpaceClusterCandCopy.begin(); it != HoughSpaceClusterCandCopy.end(); it++) {
             mergeMeIDList = it->getIdList();
             CandidateCoordinates = it->getCoord();
             int j = (int)CandidateCoordinates.X();
             int i = (int)CandidateCoordinates.Y();
             if (j == l && i == k) {
               break;
             }
           }
           mergeIdList(mergedList, mergeMeIDList);

           m_clusterCenterOfGravity += TVector2(l, k);
           m_clusterSize++;
           if (m_clusterSize >= maximumClusterSize || abs((int)m_clusterInitialPosition.X() - actualPositionX) >= maximumClusterSizeX
               || abs((int)m_clusterInitialPosition.Y() - actualPositionY) >= maximumClusterSizeY) {
             return;
           }
           DepthFirstSearch(uSide, ArrayOfActiveHoughSpaceSectors, angleSectors, vertSectors, l, k, mergedList);
         }
       }
     }
   }
 }

◆ endRun()

virtual void endRun ( )

inlinevirtualinherited

This method is called if the current run ends.

Use this method to store information, which should be aggregated over one run.

This method can be implemented by subclasses.

Definition at line 168 of file Module.h.

◆ evalCondition()

bool evalCondition ( ) const

inherited

If at least one condition was set, it is evaluated and true returned if at least one condition returns true.

If no condition or result value was defined, the method returns false. Otherwise, the condition is evaluated and true returned, if at least one condition returns true. To speed up the evaluation, the condition strings were already parsed in the method if_value().

Returns: True if at least one condition and return value exists and at least one condition expression was evaluated to true.

Definition at line 98 of file Module.cc.

◆ fastInterceptFinder2d()

int fastInterceptFinder2d	(	houghMap &	hits,
		bool	u_side,
		TVector2	v1_s,
		TVector2	v2_s,
		TVector2	v4_s,
		unsigned int	iterations,
		unsigned int	maxIterations
	)

Intercept Finder functions.

fastInterceptFinder2d uses iterative / recursive approach, only subdividing "active" sectors with at least m_minimum lines of m_minimumLines different SVD layers passing through the "active" sector, using a "Divide & Conquer" approach. New fastInterceptFinder2d written by Christian Wessel, up-to-date

< differences used to fill the ArrayOfActiveSectors

Definition at line 49 of file DATCONTrackingInterceptFinder.cc.

 {
   int hitID;
   unsigned int countLayer;
   double unitX, unitY;
   double y1, y2;
   double m, a;
   houghPair hp;
   VxdID sensor;
   vector<unsigned int> candidateIDList;
   double xdiff, ydiff;
   int sectorX, sectorY;
   double baseX, baseY;
   int maxSectorX, maxSectorY;
   houghMap containedHits;

   TVector2 v1, v2, v3, v4;

   unitX = ((v2_s.X() - v1_s.X()) / 2.0);
   unitY = ((v1_s.Y() - v4_s.Y()) / 2.0);

   if (uSide) {
     baseX = -M_PI;
     baseY = -m_rectSizeU;
     maxSectorX = (int)pow(2, m_maxIterationsU + 1) - 1;
     maxSectorY = (int)pow(2, m_maxIterationsU + 1) - 1;
   } else {
     baseX = -M_PI;
     baseY = -m_rectSizeV;
     maxSectorX = (int)pow(2, m_maxIterationsV + 1) - 1;
     maxSectorY = (int)pow(2, m_maxIterationsV + 1) - 1;
   }

   countLayer = 0;
   for (int i = 0; i < 2 ; ++i) {
     for (int j = 0; j < 2; ++j) {
       v1.Set((v4_s.X() + (double) i * unitX), (v4_s.Y() + (double) j * unitY + unitY));
       v2.Set((v4_s.X() + (double) i * unitX + unitX), (v4_s.Y() + (double) j * unitY + unitY));
       v3.Set((v4_s.X() + (double) i * unitX + unitX), (v4_s.Y() + (double) j * unitY));
       v4.Set((v4_s.X() + (double) i * unitX), (v4_s.Y() + (double) j * unitY));

       candidateIDList.clear();
       bool layerHit[4] = {false}; /* For layer filter */
       for (const auto& hit : hits) {
         hitID = hit.first;
         hp = hit.second;
         sensor = hp.first;

         if (!uSide) {
           m = hp.second.X();
           a = hp.second.Y();
           y1 = m * cos(v1.X()) + a * sin(v1.X());
           y2 = m * cos(v2.X()) + a * sin(v2.X());
         } else {
           m = hp.second.X();
           a = hp.second.Y();
           y1 = 2. * (m * cos(v1.X()) + a * sin(v1.X()));
           y2 = 2. * (m * cos(v2.X()) + a * sin(v2.X()));
           if (m_usePhase2Simulation) {
             m = hp.second.X();
             a = hp.second.Y();
             y1 = m * cos(v1.X()) + a * sin(v1.X());
             y2 = m * cos(v2.X()) + a * sin(v2.X());
           }
         }

         /* Check if HS-parameter curve is inside (or outside) actual sub-HS */
         if (y1 <= v1.Y() && y2 >= v3.Y() && y2 >= y1) {
           if (iterations == maxIterations) {
             candidateIDList.push_back(hitID);
           }

           layerHit[sensor.getLayerNumber() - 3] = true; /* layer filter */
           ++countLayer;
           containedHits.insert(hit);
         }
       }

       if (countLayer >= m_minimumLines) {
         if (layerFilter(layerHit)) {
           // recursive / iterative call of fastInterceptFinder2d, until iterations = critIterations (critIterations-1),
           // actual values for v1...v4 are new startingpoints
           if (iterations != maxIterations) {
             fastInterceptFinder2d(containedHits, uSide, v1, v2, v4,
                                   iterations + 1, maxIterations);
           } else {
             if (!uSide) {
               vHoughCand.push_back(DATCONHoughCand(candidateIDList, make_pair(v1, v3)));
               if (m_useHoughSpaceClustering) {
                 xdiff = v4.X() - baseX;
                 ydiff = v4.Y() - baseY;
                 sectorX = round(xdiff / unitX);
                 sectorY = maxSectorY - round(ydiff / unitY);
                 if (sectorX > maxSectorX) {
                   sectorX = maxSectorX;
                 } else if (sectorX < 0) {
                   sectorX = 0;
                 }
                 if (sectorY > maxSectorY) {
                   sectorY = maxSectorY;
                 } else if (sectorY < 0) {
                   sectorY = 0;
                 }
                 ArrayOfActiveSectorsThetaHS[sectorY][sectorX] = -1;
                 vHoughSpaceClusterCand.push_back(DATCONHoughSpaceClusterCand(candidateIDList, TVector2(sectorX, sectorY)));

                 activeSectorVectorTheta.push_back(true);
               }

             } else {
               uHoughCand.push_back(DATCONHoughCand(candidateIDList, make_pair(v1, v3)));
               if (m_useHoughSpaceClustering) {
                 baseX = -M_PI;
                 baseY = -m_rectSizeU;
                 xdiff = v4.X() - baseX;
                 ydiff = v4.Y() - baseY;
                 maxSectorX = (int)pow(2, m_maxIterationsU + 1) - 1;
                 maxSectorY = (int)pow(2, m_maxIterationsU + 1) - 1;
                 sectorX = round(xdiff / unitX);
                 sectorY = maxSectorY - round(ydiff / unitY);
                 if (sectorX > maxSectorX) {
                   sectorX = maxSectorX;
                 } else if (sectorX < 0) {
                   sectorX = 0;
                 }
                 if (sectorY > maxSectorY) {
                   sectorY = maxSectorY;
                 } else if (sectorY < 0) {
                   sectorY = 0;
                 }
                 ArrayOfActiveSectorsPhiHS[sectorY][sectorX] = -1;
                 uHoughSpaceClusterCand.push_back(DATCONHoughSpaceClusterCand(candidateIDList, TVector2(sectorX, sectorY)));

                 activeSectorVectorPhi.push_back(true);
               }
             }
           }
         }
       } else {
         if (m_useHoughSpaceClustering) {
           if (uSide) {
             activeSectorVectorPhi.push_back(false);
           } else {
             activeSectorVectorTheta.push_back(false);
           }
         }
       }

       countLayer = 0;
     }
   }

   return 0;
 }

◆ findandcombine3d()

void findandcombine3d ( )

Find and Combine track candidates Combine found values of phi and r from u-side HS with found values of theta from v-side HS into track candidates.

Find and combine into 3D tracks.

Definition at line 22 of file DATCONTrackingFunctions.cc.

 {
   unsigned int tracks;

   TVector3 houghMomentum;

   if (storeDATCONTracks.isValid()) {
     storeDATCONTracks.clear();
   }

   tracks = 0;

   for (auto it = vTrackCand.begin(); it != vTrackCand.end(); ++it) {
     for (auto it_in = uTrackCand.begin(); it_in != uTrackCand.end(); ++it_in) {
       vector<unsigned int> v_idList = it->getIdList();
       vector<unsigned int> u_idList = it_in->getIdList();

       if (compareList(u_idList, v_idList)) {

         int curvsign = 0;
         int charge = -curvsign;

         ++tracks;

         TVector2 TrackCandV  = it->getCoord();
         TVector2 TrackCandU  = it_in->getCoord();
         double TrackRadius = 1.0 / TrackCandU.Y();
         double TrackPhi    = TrackCandU.X();
         double TrackTheta  = TrackCandV.X();
         double TrackZzero  = TrackCandV.Y();

         if (m_usePhase2Simulation) {
           // ATTENTION TODO FIXME : This still has to be implemented!!!
           // So far no phase 2 specific algorithms have been implemented and tested!
           B2WARNING("This mode is not yet implemented, nothing will happen! Return...");
           return;
         } else {  // begin of "else" belonging to "if(m_usePhase2Simulation)"
           if (TrackRadius < 0.0) {
             charge = -1;
             curvsign = -charge;
             TrackPhi = TrackPhi + M_PI / 2.0;
           } else {
             charge = 1;
             curvsign = -charge;
             TrackPhi = (TrackPhi + M_PI / 2.0) - M_PI;
           }
           if (TrackPhi > M_PI) {
             TrackPhi -= 2.0 * M_PI;
           } //else if (TrackPhi < -1.0 * M_PI) {
           if (TrackPhi < -1.0 * M_PI) {
             TrackPhi += 2.0 * M_PI;
           }

           if (TrackCandV.Y() > 0.0) {
             TrackTheta = -1.0 * TrackTheta;
           } else {
             TrackTheta = M_PI - TrackTheta;
           }

           if (TrackTheta < 0.0) {
             TrackTheta += M_PI;
           } else if (TrackTheta > M_PI) {
             TrackTheta -= M_PI;
           }

           if (fabs(TrackRadius) < 5000) {
             storeDATCONTracks.appendNew(DATCONTrack(tracks, TrackRadius, TrackPhi, TrackZzero, TrackTheta, charge, curvsign));
             DATCONTracks.push_back(DATCONTrack(tracks, TrackRadius, TrackPhi, TrackZzero, TrackTheta, charge, curvsign));
           }

           B2Vector3D magField = BFieldManager::getFieldInTesla({0, 0, 0});
           double BFieldStrength = magField.Mag();

           double pX = 0.299792458 * BFieldStrength * TrackRadius * cos(TrackPhi);
           double pY = 0.299792458 * BFieldStrength * TrackRadius * sin(TrackPhi);
           double pZ = 0.299792458 * BFieldStrength * TrackRadius / tan(TrackTheta);

           houghMomentum.SetXYZ(pX, pY, pZ);

 //           saveHitsToRecoTrack(u_idList, houghMomentum);

         }
       }
     }
   }
 }

◆ getAfterConditionPath()

Module::EAfterConditionPath getAfterConditionPath ( ) const

inherited

What to do after the conditional path is finished.

(defaults to c_End if no condition is set)

Definition at line 135 of file Module.cc.

◆ getConditionPath()

std::shared_ptr< Path > getConditionPath ( ) const

inherited

Returns the path of the last true condition (if there is at least one, else reaturn a null pointer).

Definition at line 115 of file Module.cc.

◆ getFileNames()

virtual std::vector<std::string> getFileNames ( __attribute__((unused)) bool outputFiles )

inlinevirtualinherited

Return a list of output filenames for this modules.

This will be called when basf2 is run with "--dry-run" if the module has set either the c_Input or c_Output properties.

If the parameter outputFiles is false (for modules with c_Input) the list of input filenames should be returned (if any). If outputFiles is true (for modules with c_Output) the list of output files should be returned (if any).

If a module has sat both properties this member is called twice, once for each property.

The module should return the actual list of requested input or produced output filenames (including handling of input/output overrides) so that the grid system can handle input/output files correctly.

This function should return the same value when called multiple times. This is especially important when taking the input/output overrides from Environment as they get consumed when obtained so the finalized list of output files should be stored for subsequent calls.

Definition at line 136 of file Module.h.

◆ getName()

const std::string& getName ( ) const

inlineinherited

Returns the name of the module.

This can be changed via e.g. set_name() in the steering file to give more useful names if there is more than one module of the same type.

For identifying the type of a module, using getType() (or type() in Python) is recommended.

Definition at line 189 of file Module.h.

◆ getParamInfoListPython()

std::shared_ptr< boost::python::list > getParamInfoListPython ( ) const

inherited

Returns a python list of all parameters.

Each item in the list consists of the name of the parameter, a string describing its type, a python list of all default values and the description of the parameter.

Returns: A python list containing the parameters of this parameter list.

Definition at line 281 of file Module.cc.

◆ getReturnValue()

int getReturnValue ( ) const

inlineinherited

Return the return value set by this module.

This value is only meaningful if hasReturnValue() is true

Definition at line 383 of file Module.h.

◆ getType()

const std::string & getType ( ) const

inherited

Returns the type of the module (i.e.

class name minus 'Module')

Definition at line 43 of file Module.cc.

◆ hasProperties()

bool hasProperties ( unsigned int propertyFlags ) const

inherited

Returns true if all specified property flags are available in this module.

Parameters

propertyFlags Ored EModulePropFlags which should be compared with the module flags.

Definition at line 162 of file Module.cc.

◆ if_false()

void if_false	(	const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = `EAfterConditionPath::c_End`
	)

inherited

A simplified version to add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression "<1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is false.
afterConditionPath	What to do after executing 'path'.

Definition at line 87 of file Module.cc.

◆ if_true()

void if_true	(	const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = `EAfterConditionPath::c_End`
	)

inherited

A simplified version to set the condition of the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

It is equivalent to the if_value() method, using the expression ">=1". This method is meant to be used together with the setReturnValue(bool value) method.

Parameters

path	Shared pointer to the Path which will be executed if the return value is true.
afterConditionPath	What to do after executing 'path'.

Definition at line 92 of file Module.cc.

◆ if_value()

void if_value	(	const std::string &	expression,
		const std::shared_ptr< Path > &	path,
		EAfterConditionPath	afterConditionPath = `EAfterConditionPath::c_End`
	)

inherited

Add a condition to the module.

Please note that successive calls of this function will add more than one condition to the module. If more than one condition results in true, only the last of them will be used.

See https://confluence.desy.de/display/BI/Software+ModCondTut or ModuleCondition for a description of the syntax.

Please be careful: Avoid creating cyclic paths, e.g. by linking a condition to a path which is processed before the path where this module is located in.

Parameters

expression	The expression of the condition.
path	Shared pointer to the Path which will be executed if the condition is evaluated to true.
afterConditionPath	What to do after executing 'path'.

Definition at line 81 of file Module.cc.

◆ purifyTrackCandsList()

void purifyTrackCandsList ( )

Purify track candidates by checking list of strip_id (specific id calculated in this module)

Start merging for v-side

End merging v-side

Start merging u-side

End merging u-side

Definition at line 21 of file DATCONTrackingPurifierFunctions.cc.

 {
   vector<unsigned int> merged_idList;
   unsigned int cand_cnt = 0;
   double x = 0, y = 0;
   double x_tolerance = 0.2;
   vector<DATCONHoughCand> cpyCand;
   bool useMerger = false;

   cpyCand = vHoughCand;
   sort(cpyCand.begin(), cpyCand.end());
   for (auto it = cpyCand.begin(); it != cpyCand.end(); ++it) {
     vector<unsigned int> idList = it->getIdList();
     coord2dPair hc = it->getCoord();
     if (it == cpyCand.begin()) {
       x  = hc.first.X() + hc.second.X();
       y  = hc.first.Y() + hc.second.Y();
       merged_idList = idList;
       cand_cnt = 1;
     } else if (compareList(idList, merged_idList) && fabs(x / (2.0 * cand_cnt) - hc.first.X()) < x_tolerance
                && it != cpyCand.end()) {
       x += hc.first.X() + hc.second.X();
       y += hc.first.Y() + hc.second.Y();
       ++cand_cnt;
       if (useMerger) {
         mergeIdList(merged_idList, idList);
       } else {
         merged_idList = idList;
       }
     } else {
       if (it != cpyCand.begin()) {
         x /= (2.0 * ((double) cand_cnt));
         y /= (2.0 * ((double) cand_cnt));
         vTrackCand.push_back(DATCONTrackCand(merged_idList, TVector2(x, y)));
       }
       x = hc.first.X() + hc.second.X();
       y = hc.first.Y() + hc.second.Y();
       cand_cnt = 1;
       merged_idList = idList;
     }
   }

   if (cpyCand.size() > 0) {
     x /= (2.0 * ((double) cand_cnt));
     y /= (2.0 * ((double) cand_cnt));
     vTrackCand.push_back(DATCONTrackCand(merged_idList, TVector2(x, y)));
   }

   cpyCand = uHoughCand;
   sort(cpyCand.begin(), cpyCand.end());
   for (auto it = cpyCand.begin(); it != cpyCand.end(); ++it) {
     vector<unsigned int> idList = it->getIdList();
     coord2dPair hc = it->getCoord();
     if (it == cpyCand.begin()) {
       x = hc.first.X() + hc.second.X();
       y = hc.first.Y() + hc.second.Y();
       cand_cnt = 1;
       merged_idList = idList;
     } else if (compareList(idList, merged_idList) && fabs(x / (2.0 * cand_cnt) - hc.first.X()) < x_tolerance
                && it != cpyCand.end()) {
       x += hc.first.X() + hc.second.X();
       y += hc.first.Y() + hc.second.Y();
       ++cand_cnt;
       if (useMerger) {
         mergeIdList(merged_idList, idList);
       } else {
         merged_idList = idList;
       }
     } else {
       if (it != cpyCand.begin()) {
         x /= (2.0 * ((double) cand_cnt));
         y /= (2.0 * ((double) cand_cnt));
         uTrackCand.push_back(DATCONTrackCand(merged_idList, TVector2(x, y)));
       }
       x = hc.first.X() + hc.second.X();
       y = hc.first.Y() + hc.second.Y();
       cand_cnt = 1;
       merged_idList = idList;
     }
   }

   if (cpyCand.size() > 0) {
     x /= (2.0 * ((double) cand_cnt));
     y /= (2.0 * ((double) cand_cnt));
     uTrackCand.push_back(DATCONTrackCand(merged_idList, TVector2(x, y)));
   }

 }

◆ saveHitsToRecoTrack()

void saveHitsToRecoTrack	(	std::vector< unsigned int > &	idList,
		TVector3	momentum
	)

Save Hits to RecoTrack.

Save (Track) Hits to RecoTrack.

Definition at line 114 of file DATCONTrackingFunctions.cc.

◆ setDescription()

void setDescription ( const std::string & description )

protectedinherited

Sets the description of the module.

Parameters

description A description of the module.

Definition at line 216 of file Module.cc.

◆ setLogInfo()

void setLogInfo	(	int	logLevel,
		unsigned int	logInfo
	)

inherited

Configure the printed log information for the given level.

Parameters

logLevel	The log level (one of LogConfig::ELogLevel)
logInfo	What kind of info should be printed? ORed combination of LogConfig::ELogInfo flags.

Definition at line 75 of file Module.cc.

◆ setName()

void setName ( const std::string & name )

inlineinherited

Set the name of the module.

Note: The module name is set when using the REG_MODULE macro, but the module can be renamed before calling process() using the set_name() function in your steering file.

Parameters

name	The name of the module

Definition at line 216 of file Module.h.

◆ setParamPython()

void setParamPython	(	const std::string &	name,
		const boost::python::object &	pyObj
	)

privateinherited

Implements a method for setting boost::python objects.

The method supports the following types: list, dict, int, double, string, bool The conversion of the python object to the C++ type and the final storage of the parameter value is done in the ModuleParam class.

Parameters

name	The unique name of the parameter.
pyObj	The object which should be converted and stored as the parameter value.

Definition at line 236 of file Module.cc.

◆ setParamPythonDict()

void setParamPythonDict ( const boost::python::dict & dictionary )

privateinherited

Implements a method for reading the parameter values from a boost::python dictionary.

The key of the dictionary has to be the name of the parameter and the value has to be of one of the supported parameter types.

Parameters

dictionary The python dictionary from which the parameter values are read.

Definition at line 251 of file Module.cc.

◆ setPropertyFlags()

void setPropertyFlags ( unsigned int propertyFlags )

inherited

Sets the flags for the module properties.

Parameters

propertyFlags bitwise OR of EModulePropFlags

Definition at line 210 of file Module.cc.

◆ setReturnValue() [1/2]

void setReturnValue ( bool value )

protectedinherited

Sets the return value for this module as bool.

The bool value is saved as an integer with the convention 1 meaning true and 0 meaning false. The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value The value of the return value.

Definition at line 229 of file Module.cc.

◆ setReturnValue() [2/2]

void setReturnValue ( int value )

protectedinherited

Sets the return value for this module as integer.

The value can be used in the steering file to divide the analysis chain into several paths.

Parameters

value The value of the return value.

Definition at line 222 of file Module.cc.

◆ setType()

void setType ( const std::string & type )

protectedinherited

Set the module type.

Only for use by internal modules (which don't use the normal REG_MODULE mechanism).

Definition at line 50 of file Module.cc.

◆ slowInterceptFinder2d()

int slowInterceptFinder2d	(	houghMap &	hits,
		bool	u_side
	)

FPGA-like intercept finder with all the sectors defined a priori, so no subdivision of sectors is needed.

This makes this intercept finder slower since all sectors have to be checked and not only active ones

Definition at line 219 of file DATCONTrackingInterceptFinder.cc.

◆ trackCandMerger()

void trackCandMerger ( )

Track merger to merge DATCONTrackCand with similar properties and to avoid / reduce number of fakes.

Merge duplicated tracks (means tracks with difference of m_mergeThreshold).

Definition at line 158 of file DATCONTrackingFunctions.cc.

◆ trackMerger()

void trackMerger ( )

Track merger to merge DATCONTrackCand with similar properties and to avoid / reduce number of fakes.

Merge duplicated tracks (means tracks with difference of m_mergeThreshold).

Definition at line 266 of file DATCONTrackingFunctions.cc.

Member Data Documentation

◆ m_independentSectors

bool m_independentSectors

protected

Use tracking with independent sectors in HS like it is possible to do on FPGA (with slowInterceptFinder2d) Independent means: number of sectors is not necessary equal to 2^n with n=1,2,3,...

number of iteration steps and number of sectors for horizontal and vertical axis in HS does not have to be equal but different (default: false)

Definition at line 238 of file DATCONTrackingModule.h.

◆ m_storeMCParticlesName

std::string m_storeMCParticlesName

protected

Members holding module parameters:

Collections Name of the collection for the MCParticles

Definition at line 176 of file DATCONTrackingModule.h.

◆ m_trackCenterX

double m_trackCenterX

protected

Center of the tracks (our Hough Trafo requires (0, 0, 0).

If the IP is much different than that, it has to be given. Center position in X

Definition at line 221 of file DATCONTrackingModule.h.

◆ uClusters

svdHitMap uClusters

protected

Clusters.

SVD u-side clusters

Definition at line 313 of file DATCONTrackingModule.h.

◆ uHough

houghMap uHough

protected

Hough Map.

u-side HoughMap

Definition at line 319 of file DATCONTrackingModule.h.

◆ uHoughCand

std::vector<DATCONHoughCand> uHoughCand

protected

Hough Candidates.

u-side

Definition at line 325 of file DATCONTrackingModule.h.

◆ uTrackCand

std::vector<DATCONTrackCand> uTrackCand

protected

Purified Hough Candidates.

u-side

Definition at line 336 of file DATCONTrackingModule.h.

The documentation for this class was generated from the following files:

tracking/modules/DATCON/include/DATCONTrackingModule.h
tracking/modules/DATCON/src/DATCONTrackingAddParameter.cc
tracking/modules/DATCON/src/DATCONTrackingConversionFunctions.cc
tracking/modules/DATCON/src/DATCONTrackingFunctions.cc
tracking/modules/DATCON/src/DATCONTrackingHoughSpaceClusterFinder.cc
tracking/modules/DATCON/src/DATCONTrackingHoughtrafo.cc
tracking/modules/DATCON/src/DATCONTrackingInterceptFinder.cc
tracking/modules/DATCON/src/DATCONTrackingModule.cc
tracking/modules/DATCON/src/DATCONTrackingPurifierFunctions.cc

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Member Enumeration Documentation

◆ EModulePropFlags

Constructor & Destructor Documentation

◆ DATCONTrackingModule()

Member Function Documentation

◆ beginRun()

◆ clone()

◆ def_endRun()

◆ def_initialize()

◆ DepthFirstSearch()

◆ endRun()

◆ evalCondition()

◆ fastInterceptFinder2d()

◆ findandcombine3d()

◆ getAfterConditionPath()

◆ getConditionPath()

◆ getFileNames()

◆ getName()

◆ getParamInfoListPython()

◆ getReturnValue()

◆ getType()

◆ hasProperties()

◆ if_false()

◆ if_true()

◆ if_value()

◆ purifyTrackCandsList()

◆ saveHitsToRecoTrack()

◆ setDescription()

◆ setLogInfo()

◆ setName()

◆ setParamPython()

◆ setParamPythonDict()

◆ setPropertyFlags()

◆ setReturnValue() [1/2]

◆ setReturnValue() [2/2]

◆ setType()

◆ slowInterceptFinder2d()

◆ trackCandMerger()

◆ trackMerger()

Member Data Documentation

◆ m_independentSectors

◆ m_storeMCParticlesName

◆ m_trackCenterX

◆ uClusters

◆ uHough

◆ uHoughCand

◆ uTrackCand
